Lexus ES350-300H 2018 — Front Door Lock & Handle
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 69415-60020 | COVER, DOOR LOCK STRIKER, FRONT | 2 | |
Note:AXZH1#,GSZ10 Production:2018-06 – 2021-07 | |||
| 69410-33030 | PLATE ASSY, FRONT DOOR LOCK STRIKER | 2 | |
Note:AXZH1#,GSZ10 Production:2018-06 – 2021-10 | |||
| 69318-51010 | SEAL, DOOR LOCK WIRING HARNESS | 2 | |
Note:AXZH1#,GSZ10 Production:2018-06 – … | |||
| 69030-53120 | LOCK ASSY, FRONT DOOR W/MOTOR, RH | 1 | |
Note:AXZH1#,GSZ10 Production:2018-06 – … | |||
| 69040-53130 | LOCK ASSY, FRONT DOOR W/MOTOR, LH | 1 | |
Note:AXZH1#,GSZ10 Production:2018-06 – … | |||
| 69035-30010 | COVER SUB-ASSY, FRONT DOOR LOCK, RH | 1 | |
Note:AXZH1#,GSZ10 Production:2018-06 – … | |||
| 69036-30010 | COVER SUB-ASSY, FRONT DOOR LOCK, LH | 1 | |
Note:AXZH1#,GSZ10 Production:2018-06 – … | |||
| 69311-33130 | ROD, FRONT DOOR LOCK OPEN, RH | 1 | |
Note:AXZH1#,GSZ10 Production:2018-06 – … | |||
| 69312-33130 | ROD, FRONT DOOR LOCK OPEN, LH | 1 | |
Note:AXZH1#,GSZ10 Production:2018-06 – … | |||
| 69710-33130 | CABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER) | 1 | |
Note:AXZH1#,GSZ10 Production:2018-06 – … | |||
| 69710-33130 | CABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER) | 1 | |
Note:AXZH1#,GSZ10 Production:2018-06 – … | |||
| 69750-33120 | CABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB) | 1 | |
Note:AXZH1#,GSZ10 Production:2018-06 – … | |||
| 69750-33120 | CABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB) | 1 | |
Note:AXZH1#,GSZ10 Production:2018-06 – … | |||
| 69275-30070 | CUSHION(FOR FRONT DOOR INSIDE HANDLE) | 2 | |
Note:AXZH1#,GSZ10 Production:2018-08 – 2021-10 | |||
| 69270-50030 | HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | 1 | |
Note:AXZH1#,GSZ10 Production:2018-06 – 2021-10 | |||
| 69280-50030 | HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | 1 | |
Note:AXZH1#,GSZ10 Production:2018-06 – 2021-10 | |||
| 69210-33161-E0 | HANDLE ASSY, FRONT DOOR, OUTSIDE RH | 1 | |
Note:AXZH1#,GSZ10 Production:2018-09 – … Spec:ICE ECRU M.M.,4X8 | |||
| 69220-33071-E0 | HANDLE ASSY, FRONT DOOR OUTSIDE, LH | 1 | |
Note:AXZH1#,GSZ10 Production:2018-09 – … Spec:ICE ECRU M.M.,4X8 | |||
| 69241-33040 | PAD, FRONT DOOR OUTSIDE HANDLE, FRONT | 1 | |
Note:AXZH1#,GSZ10 Production:2018-06 – … Spec:RH | |||
| 69242-33050 | PAD, FRONT DOOR OUTSIDE HANDLE, FRONT | 1 | |
Note:AXZH1#,GSZ10 Production:2018-06 – … Spec:LH | |||
| 69241-33050 | PAD, FRONT DOOR OUTSIDE HANDLE, REAR | 1 | |
Note:AXZH1#,GSZ10 Production:2018-06 – … Spec:RH | |||
| 69242-33060 | PAD, FRONT DOOR OUTSIDE HANDLE, REAR | 1 | |
Note:AXZH1#,GSZ10 Production:2018-06 – … Spec:LH | |||
| 69201-76040 | FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH | 1 | |
Note:AXZH1#,GSZ10 Production:2018-09 – … | |||
| 69202-76040 | FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH | 1 | |
Note:AXZH1#,GSZ10 Production:2018-09 – … | |||
| 69237-62010 | NUT, FRONT DOOR HANDLE | 2 | |
Note:AXZH1#,GSZ10 Production:2018-06 – … | |||
| 69239-47010 | BUSH, FRONT DOOR HANDLE | 2 | |
Note:AXZH1#,GSZ10 Production:2018-06 – … | |||
| 69296-30010 | SCREW, DOOR INSIDE HANDLE | 2 | |
Note:AXZH1#,GSZ10 Production:2018-06 – … | |||
| 69217-50060 | COVER, FRONT DOOR OUTSIDE HANDLE | 1 | |
Note:AXZH1#,GSZ10 Production:2018-06 – … Spec:BLACK,PASSENGER SIDE ONLY | |||
| 90148-80066 | standard | — | |
| 90148-60083 | standard | — | |
| 90164-40105 | standard | — | |
| 90148-50003 | standard | — | |

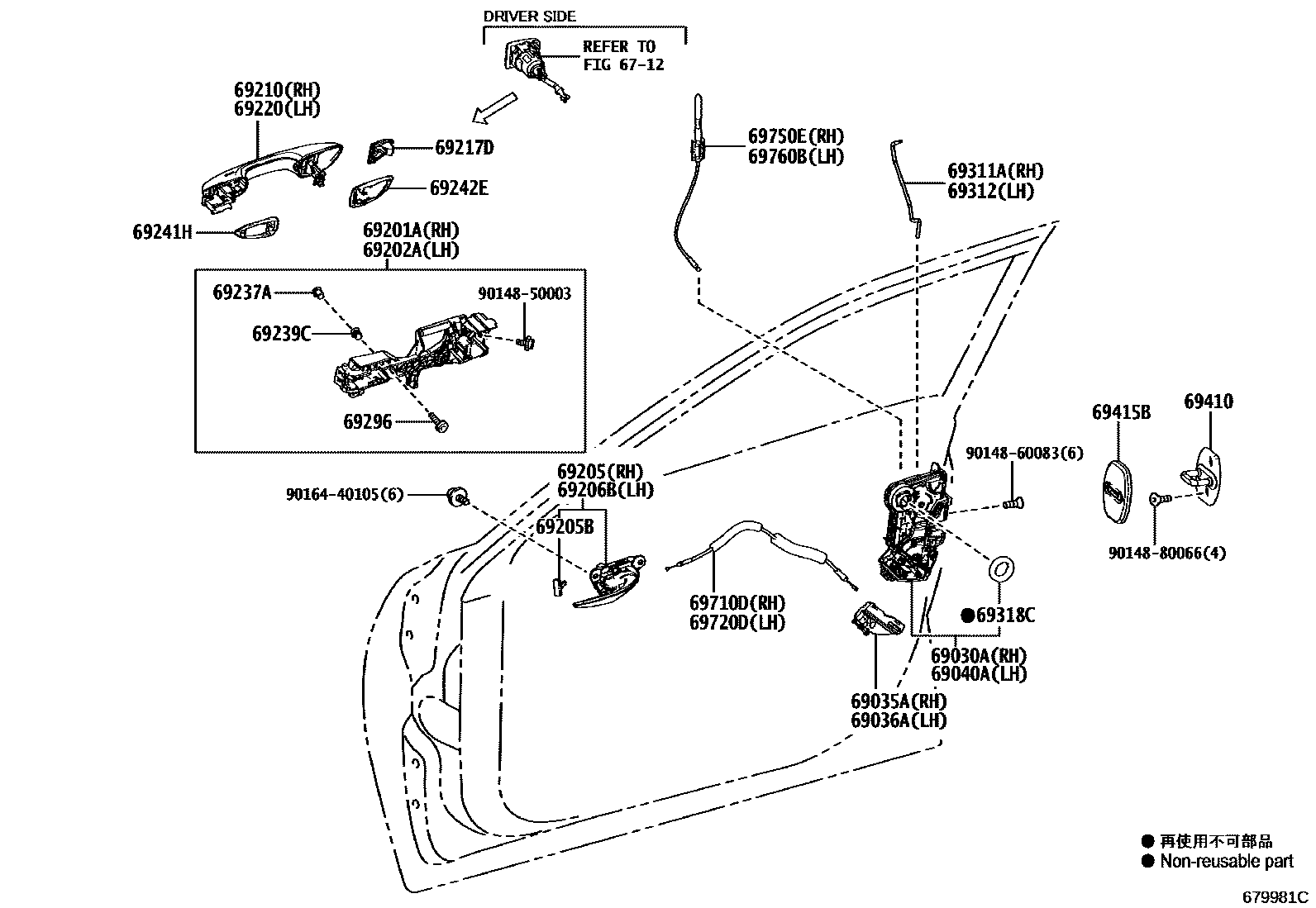

Diagram
32 parts
