Lexus ES350-300H 2018 — Cowl Panel & Windshield Glass
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 53383-33170 | SEAL, HOOD TO COWL TOP | 1 | |
Note:AXZH10 Production:2018-07 – 2020-08 Spec:KOREA SPEC | |||
| 55701-33320 | PANEL SUB-ASSY, COWL TOP, OUTER | 1 | |
Note:AXZH1#,GSZ10 Production:2018-06 – … | |||
| 55705-33050 | PANEL SUB-ASSY, COWL TOP SIDE, RH | 1 | |
Note:AXZH1#,GSZ10 Production:2018-06 – … | |||
| 55706-33050 | PANEL SUB-ASSY, COWL TOP SIDE, LH | 1 | |
Note:AXZH1#,GSZ10 Production:2018-06 – … | |||
| 55708-33320 | LOUVER SUB-ASSY, COWL TOP VENTILATOR | 1 | |
Note:AXZH10 Production:2018-07 – 2020-08 Replacements:55708-33310 (fitment: unknown) Spec:KOREA SPEC | |||
| 55737-33070 | STOPPER, COWL BODY MOUNTING BOLT | 2 | |
Note:AXZH1#,GSZ10 Production:2018-06 – … | |||
| 67867-12150 | CLIP, COWL TOP VENTILATOR LOUVER | 4 | |
Note:AXZH1#,GSZ10 Production:2018-06 – … | |||
| 55789-33050 | INSULATOR, COWL TOP PANEL, NO.2 | 1 | |
Note:AXZH1#,GSZ10 Production:2018-06 – … | |||
| 55789-33060 | INSULATOR, COWL TOP PANEL, NO.3 | 1 | |
Note:AXZH1#,GSZ10 Production:2018-06 – … | |||
| 55797-33040 | RETAINER, FRONT PANEL WIPER MOTOR BRACKET | 1 | |
Note:AXZH1#,GSZ10 Production:2018-06 – … | |||
| 56114-48010 | RETAINER, WINDSHIELD GLASS | 2 | |
Note:AXZH10,GSZ10 Production:2018-06 – 2019-05 | |||
| 56115-30120 | STOPPER, WINDSHIELD GLASS | 1 | |
Note:AXZH1#,GSZ10 Production:2018-06 – … | |||
| 56116-22050 | STOPPER, WINDSHIELD GLASS, NO.2 | 1 | |
Note:AXZH1#,GSZ10 Production:2018-06 – … | |||
| 61163-33040 | PILLAR, FRONT BODY, LOWER INNER RH | 1 | |
Note:AXZH1#,GSZ10 Production:2018-06 – … | |||
| 61164-33040 | PILLAR, FRONT BODY, LOWER INNER LH | 1 | |
Note:AXZH1#,GSZ10 Production:2018-06 – … | |||
| 55783-33130 | PAD, COWL TOP SILENCER | 1 | |
Note:AXZH1#,GSZ10 Production:2018-06 – … | |||
| 56117-64010 | DAM, WINDOW GLASS ADHESIVE | 1 | |
Note:AXZH10 Production:2018-07 – 2020-08 Spec:L=3003,KOREA SPEC&ULTRA LUXURY PACKAGE&WINDSHIELD DEICER-WITH&WINDSHIELD WIPER CONTROL-AUTO WIPER(RAIN SENSOR)&HEAD-UP DISPLAY-WITH&AUDIO-12.3INCH DISPLAY & DVD & *MAR & DAB | |||
| 75533-33120 | MOULDING, WINDSHIELD, OUTSIDE | 1 | |
Note:AXZH1#,GSZ10 Production:2018-06 – … | |||
| 56153-33020 | MOULDING, FRONT WINDOW, INNER CENTER | 1 | |
Note:AXZH1#,GSZ10 Production:2018-06 – … | |||
| 55783-33120 | LOUVER, COWL TOP VENTILATOR, CENTER | 2 | |
Note:AXZH1#,GSZ10 Production:2018-06 – … | |||
| 56101-3Y907 | GLASS, WINDSHIELD | 1 | |
Note:AXZH10 Production:2018-07 – 2019-04 Replacements:56101-3Y939 (fitment: unknown) Spec:KOREA SPEC&ULTRA LUXURY PACKAGE&WINDSHIELD DEICER-WITH&WINDSHIELD WIPER CONTROL-AUTO WIPER(RAIN SENSOR)&HEAD-UP DISPLAY-WITH&AUDIO-12.3INCH DISPLAY & DVD & *MAR & DAB | |||
| 90178-06006 | standard | — | |
| 90467-06155 | standard | — | |

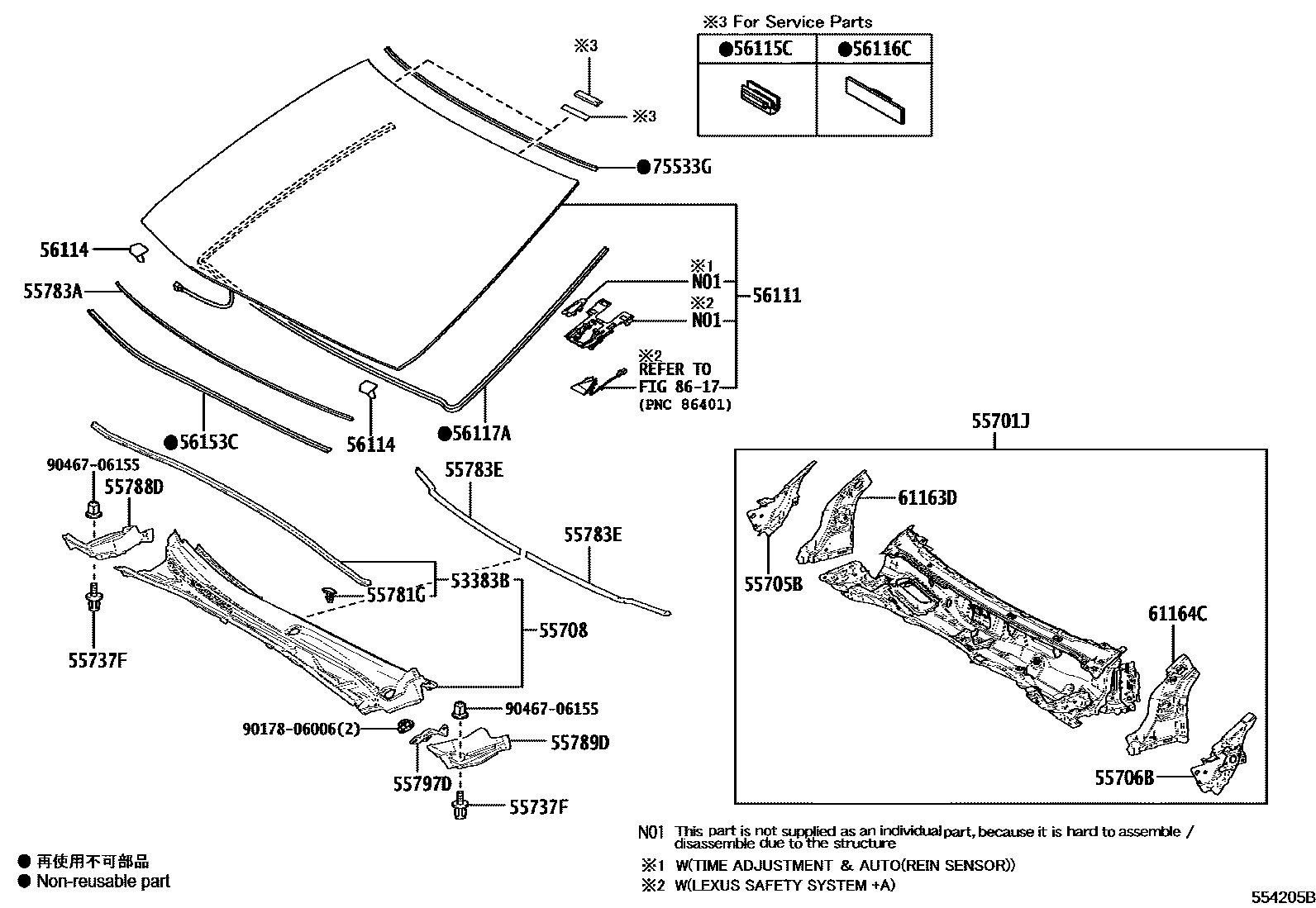

Diagram
23 parts
