Europe 2022 Rio/Stonic 20 H8W5K7615
Catalog: KIA202602 Model: H8W5K7615 Model Year: 2022 Engine Number: G4LFND027641 Transmission Number: MD22 0205816 Destination: EUR Nation: D27 Plant: K4 Exterior Color: AURORA BLACK PEARL Interior Color: BLACK Drive Type: DRIVE TYPE - LHD Weather Type: WEATHER - THE TEMPERATE ZONE Body Type: WAGON - 5DR 5P Engine Capacity: 1200 CC - KAPPA PE Engine Type: DOHC - MPI Fuel Type: GASOLINE - UNLEADED Transaxle: MANUAL T/M - 5 SPEED 2WD Build Date: 2022-02-19 Nation Code: D27 Area: K4 Drive Type: L Weather Type: 3 Order Number: E2202A012D27A Full Specification Code: D27AH8W5K7615 B85519 Exterior Color Code: ABP Interior Color Code: WK Engine Mip Code: 99MH Transmission Mip Code: 8TE2 Vin Tag: 1 Model Year Code: 20 Catalog Information: (W5) WAGON - 5DR 5P,(K7) 1200 CC - KAPPA PE,(6) DOHC - MPI,(1) GASOLINE - UNLEADED,(5) MANUAL T/M - 5 SPEED 2WD,(L) DRIVE TYPE - LHD,(3) WEATHER - THE TEMPERATE ZONE Region: EU Native Region: KEURPH820

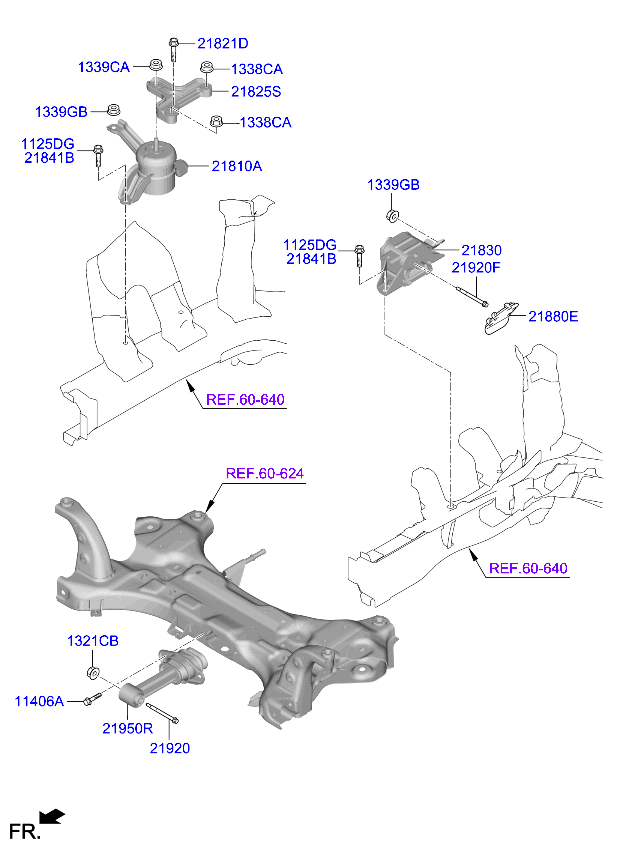

Kia Rio/Stonic 20 2022 — Engine & Transaxle Mounting [1200 CC - Kappa Pe]

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
1140610257K BOLT - FLANGE 2
Production:2019-02-27 – …
1339712007K NUT 1
Production:2019-02-27 – …
1338610007K NUT 2
Production:2019-02-27 – …
1338712007K NUT 1
Production:2019-02-27 – …
1339610007K NUT 1
Production:2019-02-27 – …
21810H8500 BRACKET ASSY - ENGINE MOUNTING 1
Production:2019-02-27 – …
218911J000 BOLT ASSY - ENGINE MOUNTING 1
Production:2019-02-27 – …
21825H8500 BRACKET - ENGINE MOUNTING SUPPORT 1
Production:2019-02-27 – …
21830H8050 BRACKET ASSY - TRANSMISSION MOUNTING 1
Production:2019-02-27 – …
218411G000 BOLT 2
Production:2019-02-27 – …
21880H8000 PACKING - TRANSMISSION MOUNTING SIDE PANEL 1
Production:2019-02-27 – …
219202T000 BOLT 1
Production:2019-02-27 – …
219200U000 BOLT 2
Production:2019-02-27 – …
21950H8100 BRACKET ASSY - ROLL ROD 1
Production:2019-02-27 – …

Diagram

14 parts
Kia Rio/Stonic 20 2022 — Engine & Transaxle Mounting [1200 CC - Kappa Pe]
