Open RegionYearModelModelCode Details
Europe 2019 Picanto 17 G6S6K361B
Catalog: KIA202602 Model: G6S6K361B Model Year: 2019 Engine Number: G4LAKP021716 Transmission Number: EK5FD3499833 Destination: EUR Nation: B34 Plant: K4 Exterior Color: SPARKLING SILVER Interior Color: BLACK Drive Type: DRIVE TYPE - LHD Weather Type: WEATHER - THE TROPICAL ZONE Body Type: SEDAN - 5DR 5P Engine Capacity: 1200 CC - KAPPA Engine Type: DOHC - MPI Fuel Type: GASOLINE - UNLEADED Transaxle: AUTO - 4 SPEED 2WD Build Date: 2019-02-20 Nation Code: B34 Area: K4 Drive Type: L Weather Type: 1 Order Number: E1902D001B34A Vehicle Factory: 148 Full Specification Code: B34AG6S6K361B GCHU28 Exterior Color Code: KCS Interior Color Code: WK Engine Mip Code: 54MP Transmission Mip Code: 2FA7 Vin Tag: 1 Model Year Code: 17 Catalog Information: (S6) SEDAN - 5DR 5P,(K3) 1200 CC - KAPPA,(6) DOHC - MPI,(1) GASOLINE - UNLEADED,(B) AUTO - 4 SPEED 2WD,(L) DRIVE TYPE - LHD,(1) WEATHER - THE TROPICAL ZONE Region: EU Native Region: KEURPG617

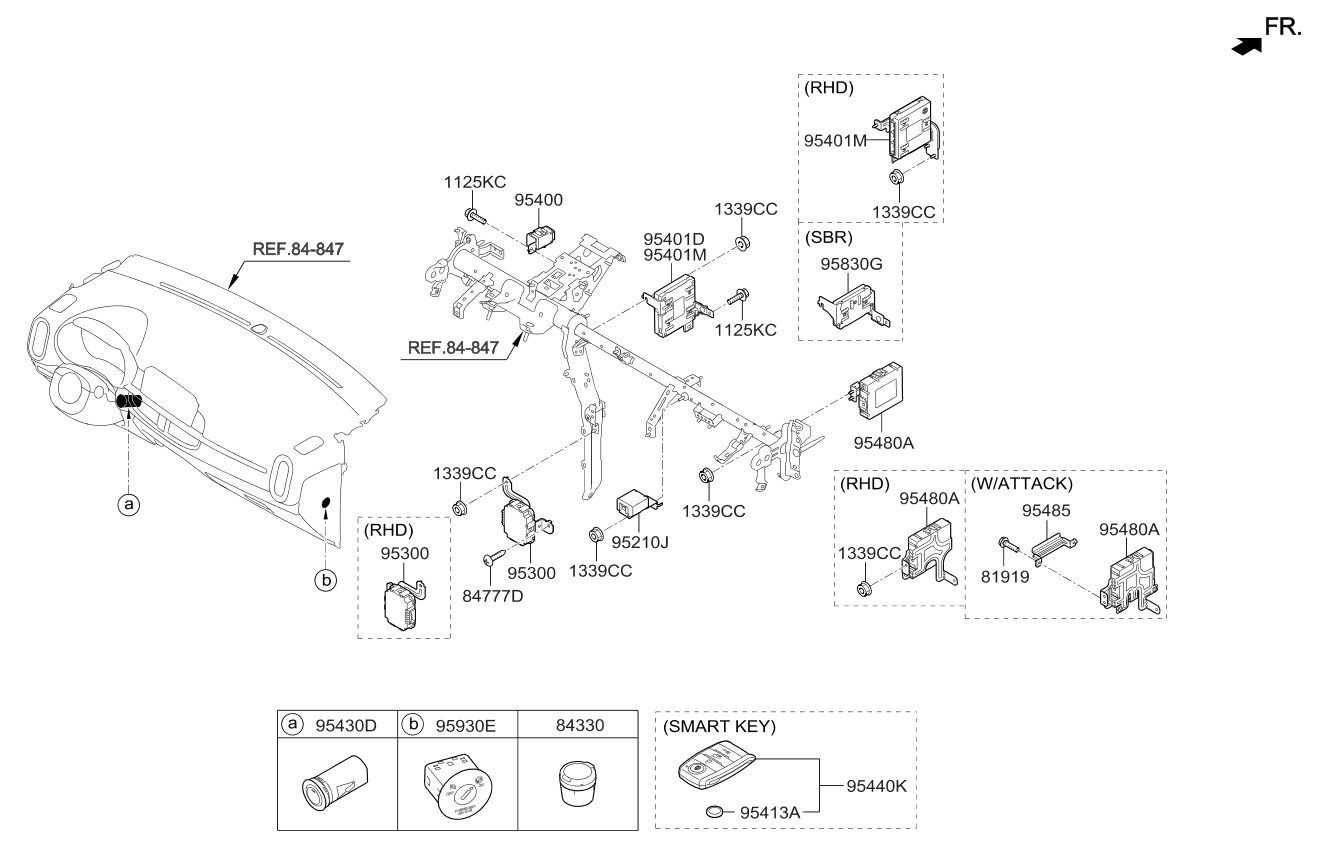

Kia Picanto 17 2019 — Relay & Module

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
1125406206B BOLT 1125AD 1
Production:2016-08-01 – …
1125406201 BOLT [W/ WASHER] 1
Production:2016-06-17 – …
1125406201 BOLT [W/ WASHER] 1
Production:2016-04-01 – …
1127806256B BOLT 1127AA 2
Production:2016-11-01 – …
1144206251 BOLT 1129EX 2
Production:2016-04-01 – …
1141506143 BOLT 1141AE 3
Production:2016-04-01 – …
1339506001 NUT - FLANGE 1
Production:2016-06-17 – …
1339506001 NUT - FLANGE 1
Production:2016-04-01 – …
84550G6000 ASHTRAY ASSY 1
Production:2016-11-01 – …
8418428000 PAD ASSY - ANTI-NOISE, RH 85864 3
Production:2016-04-01 – …
91711G6000 WIRING ASSY-AIR BAG EXTENSION,LH 91711B 1
Production:2016-04-01 – …
91712G6000 WIRING HARNESS - AIRBAG EXTENSION, RH 91712B 1
Production:2016-04-01 – …
95210G6001 UNIT ASSY - REAR SEATBELT REMINDER 1
Production:2017-04-26 – …
95420D4000 MODULE ASSY - IMMOBILIZER 1
Production:2016-04-01 – …
95400G6310 UNIT ASSY - BCM & RECEIVER 1
Production:2016-06-17 – …
95910G6200 MODULE ASSY - AIRBAG CONTROL 95910 1
Production:2016-04-01 – …
95920G6000 SENSOR ASSY-IMPACT 95920U 2
Production:2016-04-01 – …
95940B4100 SWITCH ASSY - PASSENGER AIRBAG ON/OFF 1
Production:2016-04-01 – …
95920G6100 SENSOR ASSY-IMPACT 95930J 2
Production:2016-04-01 – …
96630G6000 HORN ASSY - BURGLAR ALARM 96620B 1
Production:2016-04-01 – …

Diagram

20 parts
Kia Picanto 17 2019 — Relay & Module
