Isuzu TFR/TFS(Thailand) 2007 — Engine Electrical Control Parts — Starter,Generator And Thermo Switch

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
8980281990 STARTER ASM 1
Production:2007-09 – 2007-09 Usage:SEE FIG-NO 0-65 FOR COMPONENT.(B)12V 2.3KWTHA Manufacturer:ISUZU Applied Date:0709-0709 Applied Model:DE
8973697161 GENERATOR ASM 1
Production:2005-01 – 2010-04 Usage:SEE FIG-NO 0-66 FOR COMPONENT.12V 90ATHA Manufacturer:ISUZU Applied Date:0501-1004 Itc:C Applied Model:E
8971618461 BOLT; STARTER 2
Production:2007-09 – 2007-09 Usage:M12X60THA Manufacturer:ISUZU Applied Date:0709-0709 Applied Model:DE
0911801120 NUT; STARTER 2
Production:2007-09 – 2007-09 Usage:M12 FLANGETHA Manufacturer:ISUZU Applied Date:0709-0709 Applied Model:DE
8972264701 BOLT; GEN 1
Production:2007-09 – 2007-09 Usage:M10X125 FLANGETHA Manufacturer:ISUZU Applied Date:0709-0709 Applied Model:DE
8973560201 BRACKET; GEN 1
Production:2007-09 – 2007-09 Usage:(B)THA Manufacturer:ISUZU Applied Date:0709-0709 Applied Model:DE
0911802100 NUT; GEN 1
Production:2007-09 – 2007-09 Usage:M10 FLANGETHA Manufacturer:ISUZU Applied Date:0709-0709 Applied Model:DE
0286510350 BOLT; GEN BRKT 1
Production:2007-09 – 2007-09 Usage:(A)M10X35 FLANGETHA Manufacturer:ISUZU Applied Date:0709-0709 Applied Model:DE
0286510400 BOLT; GEN BRKT 2
Production:2007-09 – 2007-09 Usage:(B)M10X40 FLANGETHA Manufacturer:ISUZU Applied Date:0709-0709 Applied Model:DE
8980237170 SENSOR; GLOW PLUG,THERMO 1
Production:2007-09 – 2007-09 Usage:NIPPON THERMOSTATIMA Manufacturer:ISUZU Applied Date:0709-0709 Applied Model:DE
8973121081 SENSOR; CAMSHAFT POSITION 1
Production:2007-09 – 2007-09 Usage:IMA Manufacturer:ISUZU Applied Date:0709-0709 Applied Model:DE
8973694040 GASKET; SENSOR 1
Production:2007-09 – 2007-09 Usage:ID=14.2 OD=18.8IMA Manufacturer:ISUZU Applied Date:0709-0709 Applied Model:DE
0280506160 BOLT; SENSOR 1
Production:2007-09 – 2007-09 Usage:(A)M6X16 FLANGETHA Manufacturer:ISUZU Applied Date:0709-0709 Applied Model:DE
— Part does not apply to this vehicle configuration. 24 —
— Part does not apply to this vehicle configuration. 8 —
— Part does not apply to this vehicle configuration. 83 —
— Part does not apply to this vehicle configuration. 108 —

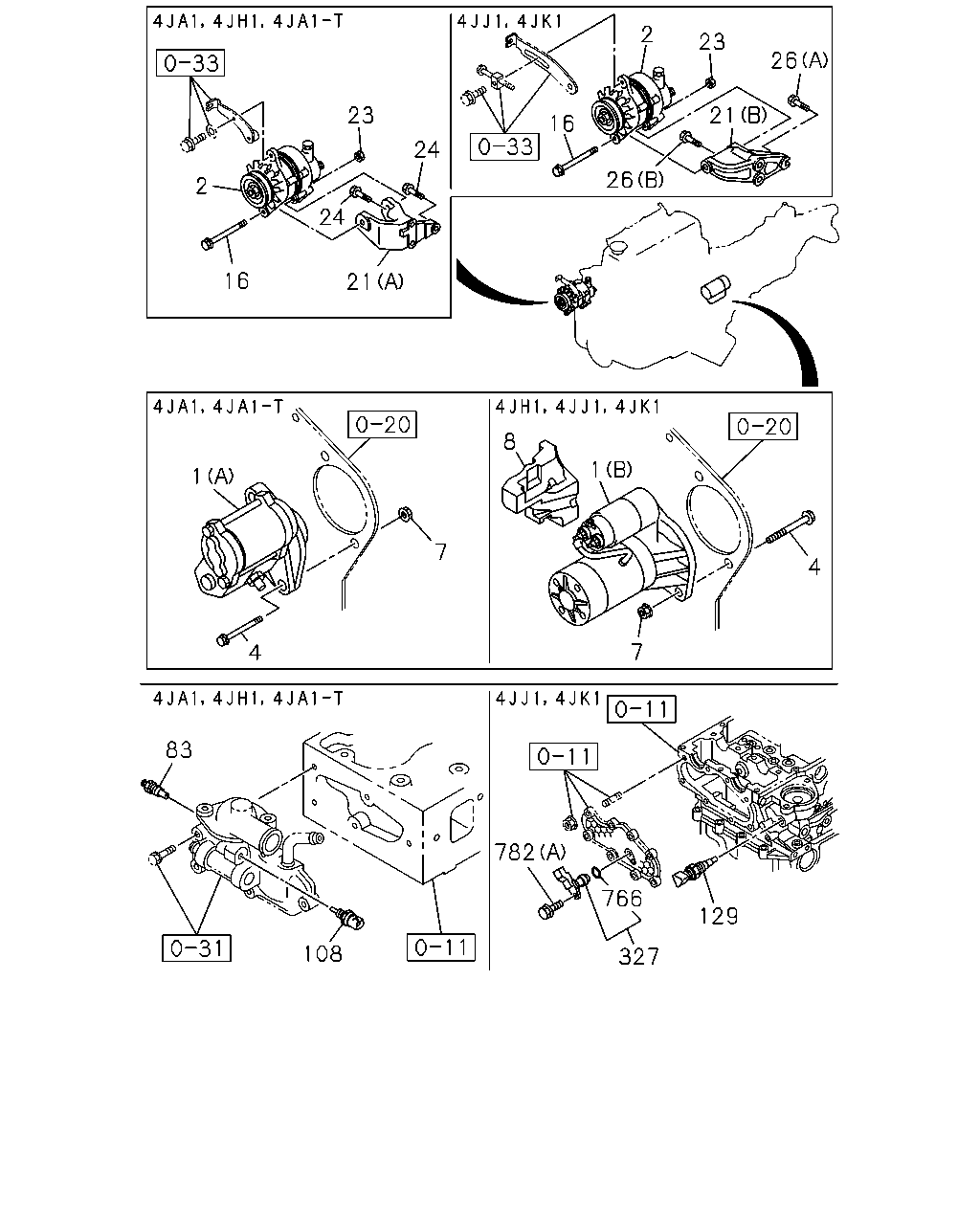

Diagram

13 parts
