Open RegionYearModelModelCode Details
Europe 2020 Gv80 20 JRW79DC5K
Catalog: GENESIS202602 Model: JRW79DC5K Model Year: 2021 Engine Number: D6JALD016430 Transmission Number: VFLDAU194014 Destination: EUR Nation: ISRAEL Plant: K4 Exterior Color: ALTA WHITE(SOLID) Interior Color: VANILLA BEIGE Drive Type: DRIVE TYPE - LHD Weather Type: WEATHER - THE TROPICAL ZONE Body Type: WAGON - 5DR 7P Engine Capacity: 3000 CC - I6 Engine Type: DOHC - TCI Fuel Type: DIESEL - DIESEL Transaxle: AUTO - 8 SPEED 4WD Build Date: 2020-12-18 Nation Code: D06 Area: K4 Drive Type: L Weather Type: 1 Order Number: E2012E021D06A Vehicle Factory: 084 Full Specification Code: D06AJRW79DC5K GEGT Exterior Color Code: WHT Interior Color Code: VNB Engine Mip Code: KL54 Transmission Mip Code: ZB92 Seat Code: L5YH Vin Tag: 1 Model Year Code: 20 Catalog Information: (W7) WAGON - 5DR 7P,(9D) 3000 CC - I6,(C) DOHC - TCI,(5) DIESEL - DIESEL,(K) AUTO - 8 SPEED 4WD,(L) DRIVE TYPE - LHD,(1) WEATHER - THE TROPICAL ZONE Region: EU Native Region: EUR

Genesis GV80 20 2020 — Console

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
1125406201 BOLT [W/ WASHER] 8
Production:2019-07-15 – …
1125406201 BOLT [W/ WASHER] 2
Production:2019-07-15 – …
1339506001 NUT - FLANGE 4
Production:2019-07-15 – 2022-03-07
467W0T6200 LEVER ASSY-SHIFT BY WIRE(CONSOLE) 1
Production:2019-01-01 – …
46712T1150 DIAL ASSY 1
Production:2019-01-01 – …
46750T6100 INDICATOR ASSY - SHIFT LEVER 1
Production:2019-01-01 – …
84610T6000NNB CONSOLE ASSY - FLOOR 1
Production:2019-07-15 – …
84614T6000NNB COVER ASSY - FRONT CONSOLE SIDE, LH 1
Production:2019-07-15 – …
84615T6000NNB COVER ASSY - FRONT CONSOLE SIDE, RH 1
Production:2019-07-15 – …
84610T6032 MAT - CONSOLE TRAY 1
Production:2019-07-15 – …
84622T6000VNB COVER - SIDE, LH 1
Production:2019-10-28 – …
84642T6000VNB COVER - SIDE, RH 1
Production:2019-10-28 – …
84630T6010LA1 TRAY ASSY - FLOOR CONSOLE 1
Production:2019-11-01 – …
84670T6000LA1 CUP HOLDER ASSY 1
Production:2019-01-01 – …
84692T6200VNB GARNISH - CONSOLE REAR 1
Production:2019-07-15 – …
84646T60004X MAT - REAR CONSOLE TRAY 1
Production:2019-07-15 – …
84650T6000LA1 COVER ASSY - CONSOLE UPPER 1
Production:2019-01-01 – …
84654T6000VCA UPPER COVER - GARNISH 1
Production:2019-11-01 – …
84660T6000VNB ARMREST ASSY - CONSOLE 1
Production:2019-07-15 – …
84640T6300NNB COVER ASSY - CONSOLE REAR 1
Production:2019-11-01 – …
84689T6000 BRACKET - CONSOLE FLOOR 1
Production:2019-01-01 – …
84616T6000 MAT - CONSOLE STORAGE BOX 1
Production:2019-07-15 – …
84690T6100VNB CONSOLE ASSY-SIDE GARNISH 1
Production:2019-07-15 – …
846T5T6000 TRAY - SMALL 1
Production:2019-11-15 – …
91876T6360 WIRING HARNESS - CONSOLE EXTENSION 1
Production:2019-07-15 – …
91875T6130 WIRING ASSY - CONSOLE EXTENSION 1
Production:2019-01-01 – …
93350T6300VC9 SWITCH ASSY - DRIVE MODE 1
Production:2019-04-01 – …
95120T6000 SOCKET ASSY - ACCESSORY 1
Production:2019-07-15 – …
95260T6100NNB POWER OUTLET ASSY-INVERTER 1
Production:2019-11-01 – …
95460T6200 ANTENNA ASSY - SMART KEY 1
Production:2019-07-15 – …
95560T6100 UNIT ASSY - WIRELESS CHARGING 1
Production:2019-11-01 – …
95570T6100 PAD - WIRELESS CHARGING 1
Production:2019-11-01 – …
95580T6000 INDICATOR - WIRELESS CHARGING 1
Production:2019-11-01 – …
96120T1000 JACK ASSY - AUXILIARY & USB 1
Production:2019-11-01 – …
96125T6000NNB CHARGER ASSY - USB 1
Production:2019-11-01 – …
96110T6100RET KEYBOARD ASSY - AUDIO 1
Production:2019-11-01 – …
96596T6000 CABLE ASSY - USB 1
Production:2019-11-01 – …
96540T6000VCS KEYBOARD ASSY - AVN 1
Production:2019-01-01 – …
97010T6000 DUCT ASSY - REAR VENTILATOR 1
Production:2019-07-15 – …
97040T6200VNB AIR VENTILATOR ASSY - CONSOLE 1
Production:2019-07-15 – …
97250T6000RET CONTROL ASSY - HEATER 1
Production:2019-03-01 – …
84635T6000 BRACKET 1
Production:2019-07-15 – …

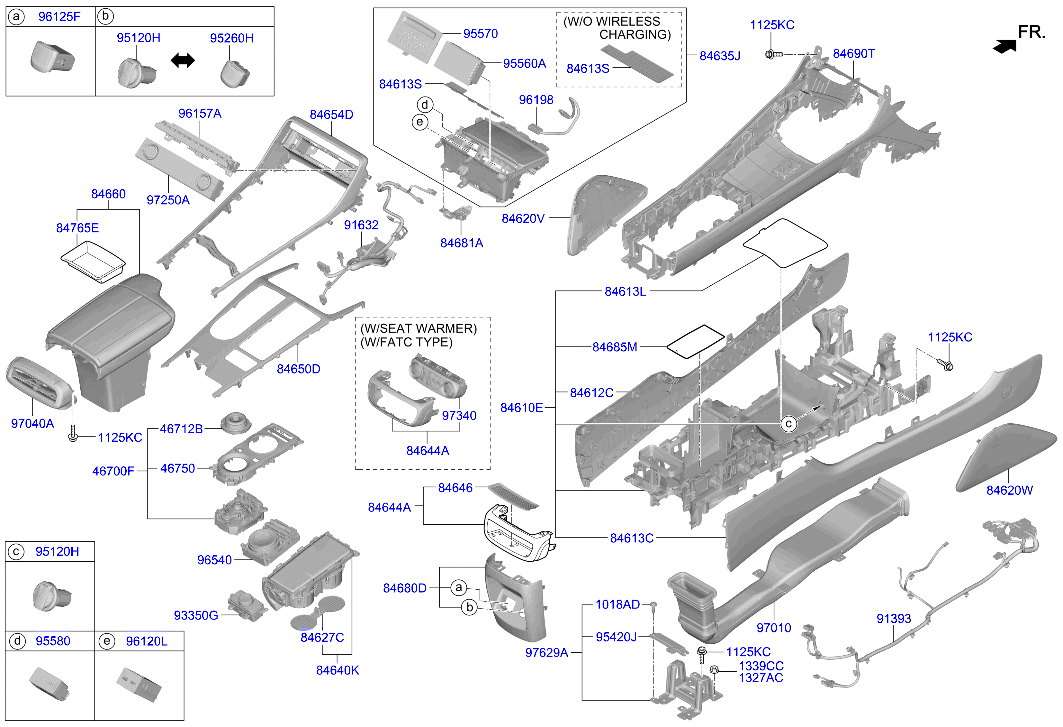

Diagram

42 parts
Genesis GV80 20 2020 — Console
