Genesis GV80 20 2020 — Relay & Module
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 1125106166B | BOLT - WASHER ASSY | 1 | |
Production:2019-05-07 – … | |||
| 1125406201 | BOLT [W/ WASHER] | 1 | |
Production:2018-12-01 – … | |||
| 1125406201 | BOLT [W/ WASHER] | 2 | |
Production:2019-05-03 – … | |||
| 1125406203 | BOLT [W/ WASHER] | 2 | |
Production:2019-01-01 – … | |||
| 1144206206B | BOLT | 2 | |
Production:2019-01-01 – 2021-10-18 | |||
| 1327006007K | NUT [Washer Assy] | 2 | |
Production:2019-05-03 – … | |||
| 1327006007K | NUT [Washer Assy] | 3 | |
Production:2019-01-01 – … | |||
| 1336506007K | NUT - FLANGE | 6 | |
Production:2019-01-01 – … | |||
| 1336606001 | NUT - FLANGE PAINT CLEAR | 3 | |
Production:2019-01-01 – … | |||
| 1339506001 | NUT - FLANGE | 2 | |
Production:2019-07-15 – … | |||
| 1339506001 | NUT - FLANGE | 2 | |
Production:2019-05-03 – … | |||
| 1339506001 | NUT - FLANGE | 2 | |
Production:2018-12-01 – … | |||
| 1339506001 | NUT - FLANGE | 1 | |
Production:2019-05-03 – … | |||
| 1339506001 | NUT - FLANGE | 2 | |
Production:2019-05-07 – … | |||
| 1339506001 | NUT - FLANGE | 2 | |
Production:2020-03-05 – … | |||
| 81996T6000 | KEY - BLANKING PIC | 81996H | 3 |
Production:2019-12-16 – … | |||
| 95250T6000 | UNIT ASSY-INVERTER | 1 | |
Production:2019-05-03 – … | |||
| 95310T6000 | UNIT ASSY - LDC | 1 | |
Note:400W Production:2019-05-03 – … | |||
| 95300T6000 | UNIT ASSY - LDC | 95300A | 1 |
Note:200W Production:2019-01-01 – … | |||
| 95400T6600 | UNIT ASSY - IBU | 95400U | 1 |
Production:2019-01-01 – 2021-01-18 | |||
| 954133A000 | BATTERY - TRANSMITTER | 95413A | 2 |
Note:220MA.H Production:2019-12-16 – … | |||
| 95460L1100 | ANTENNA ASSY - SMART KEY | 1 | |
Production:2019-05-07 – … | |||
| 95460L1100 | ANTENNA ASSY - SMART KEY | 1 | |
Production:2019-01-01 – … | |||
| 93502T6000VCA | SWITCH ASSY - BUTTON START | 95430D | 1 |
Production:2019-08-19 – … | |||
| 95432T6000 | COVER - BATTERY | 95432A | 2 |
Production:2019-12-16 – … | |||
| 95440T6020 | FOB - SMART KEY | 95440K | 2 |
Production:2019-12-16 – … | |||
| 95442T6000 | CASE ASSY - FOB | 95441D | 2 |
Production:2019-12-16 – … | |||
| 95910T6500 | MODULE ASSY - AIRBAG CONTROL | 1 | |
Production:2019-01-01 – … | |||
| 95930S1000 | SENSOR ASSY-PRESS TYPE CRASH | 2 | |
Production:2019-05-03 – … | |||
| 95920L1000 | SENSOR ASSY-A TYPE CRASH | 2 | |
Production:2019-05-03 – … | |||
| 95920T1000 | SENSOR ASSY-A TYPE CRASH | 2 | |
Production:2019-05-03 – … | |||
| 95920T1100 | SENSOR ASSY-A TYPE CRASH | 2 | |
Production:2019-05-03 – … | |||
| 96000T6000 | MODULE & SENSOR ASSY - RAIN | 1 | |
Production:2019-08-01 – … | |||
| 96001A2000 | PAD-RAIN SENSOR SILICON | 1 | |
Production:2019-01-01 – … | |||
| 96030T6010VNB | COVER ASSY-MULTI SENSOR | 1 | |
Production:2019-04-29 – … | |||
| 96032T6000VNB | COVER-MULTI SENSOR BLANKING | 1 | |
Production:2019-04-29 – … | |||
| 92900T6000 | UNIT ASSY - MOOD LAMP | 96120P | 1 |
Production:2019-03-01 – 2022-11-29 | |||
| 96630T6000 | HORN ASSY - BURGLAR ALARM | 1 | |
Production:2019-05-01 – … | |||
| 99110T6000 | UNIT ASSY-FRONT RADAR | 1 | |
Production:2019-01-01 – … | |||
| 99140T6000 | UNIT ASSY-REAR CORNER RADAR,LH | 1 | |
Production:2019-01-01 – … | |||
| 99150T6000 | UNIT ASSY-REAR CORNER RADAR,RH | 1 | |
Production:2019-01-01 – … | |||
| 99211T6000 | UNIT-FRONT VIEW CAMERA | 1 | |
Production:2019-01-01 – … | |||
| 99810T6000 | UNIT ASSY-ADAS DRIVE ECU | 99810D | 1 |
Production:2019-01-01 – … | |||
| 957101R000 | BUZZER ASSY - PIEZO | 1 | |
Production:2020-10-23 – … | |||

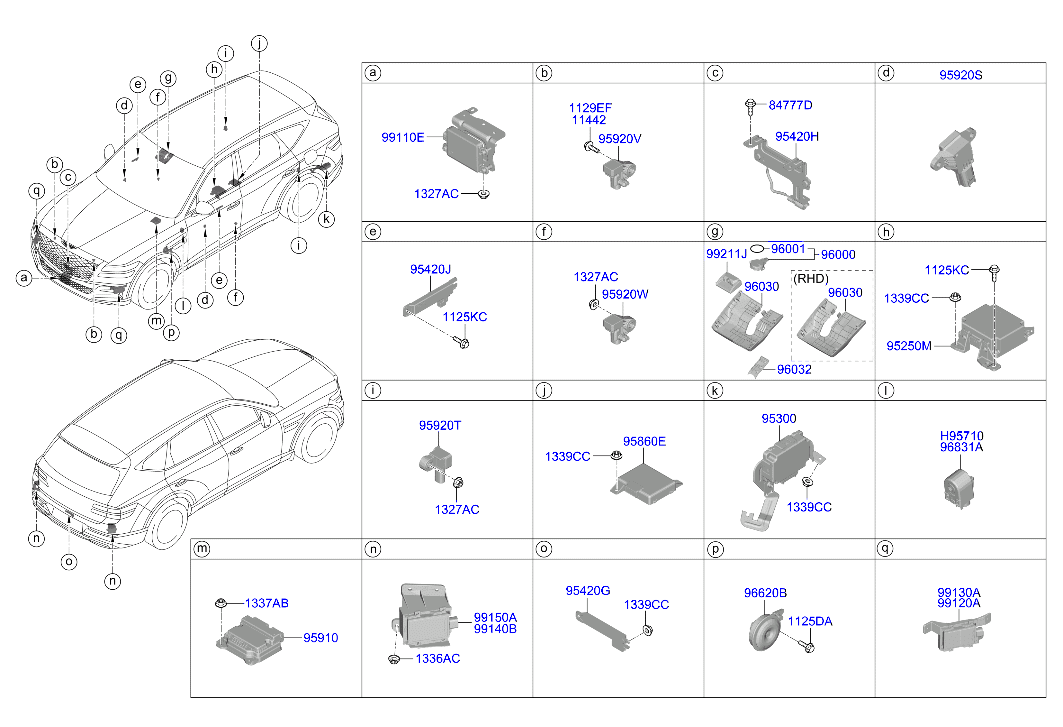

Diagram
44 parts
