Open RegionYearModelModelCode Details
Europe 2020 Gv80 20 JRW79DC5K
Catalog: GENESIS202602 Model: JRW79DC5K Model Year: 2021 Engine Number: D6JALD016430 Transmission Number: VFLDAU194014 Destination: EUR Nation: ISRAEL Plant: K4 Exterior Color: ALTA WHITE(SOLID) Interior Color: VANILLA BEIGE Drive Type: DRIVE TYPE - LHD Weather Type: WEATHER - THE TROPICAL ZONE Body Type: WAGON - 5DR 7P Engine Capacity: 3000 CC - I6 Engine Type: DOHC - TCI Fuel Type: DIESEL - DIESEL Transaxle: AUTO - 8 SPEED 4WD Build Date: 2020-12-18 Nation Code: D06 Area: K4 Drive Type: L Weather Type: 1 Order Number: E2012E021D06A Vehicle Factory: 084 Full Specification Code: D06AJRW79DC5K GEGT Exterior Color Code: WHT Interior Color Code: VNB Engine Mip Code: KL54 Transmission Mip Code: ZB92 Seat Code: L5YH Vin Tag: 1 Model Year Code: 20 Catalog Information: (W7) WAGON - 5DR 7P,(9D) 3000 CC - I6,(C) DOHC - TCI,(5) DIESEL - DIESEL,(K) AUTO - 8 SPEED 4WD,(L) DRIVE TYPE - LHD,(1) WEATHER - THE TROPICAL ZONE Region: EU Native Region: EUR

Genesis GV80 20 2020 — Control Wiring

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
1127306207K BOLT 7
Production:2019-07-01 – …
1141506207B BOLT 1
Production:2019-07-01 – …
1327106007K NUT [Washer Assy] 3
Production:2019-07-01 – …
1339606007K NUT - FLANGE 1
Production:2019-07-01 – …
1339508007K NUT - FLANGE 1
Production:2019-07-01 – …
1127306167K BOLT 9
Production:2019-07-01 – …
91420T6050 WIRING ASSY - CONTROL 1
Production:2020-02-17 – 2021-02-22
91931T1120 BRACKET - WIRING MOUNTING 1
Production:2019-07-01 – …
91931T1130 BRACKET - WIRING MOUNTING 1
Production:2019-07-01 – …
91961T6460 PROTECTOR - WIRING 91973N 1
Production:2019-01-01 – …
91961T6160 PROTECTOR - WIRING 1
Production:2019-09-01 – …
91961T6170 PROTECTOR - WIRING 1
Production:2019-09-01 – …
91961T6240 PROTECTOR - WIRING 91974C 1
Production:2019-09-01 – …
91961T6250 PROTECTOR - WIRING 91974D 1
Production:2019-09-01 – …
91961T6260 PROTECTOR - WIRING 91974E 1
Production:2019-09-01 – …

Diagram

15 parts

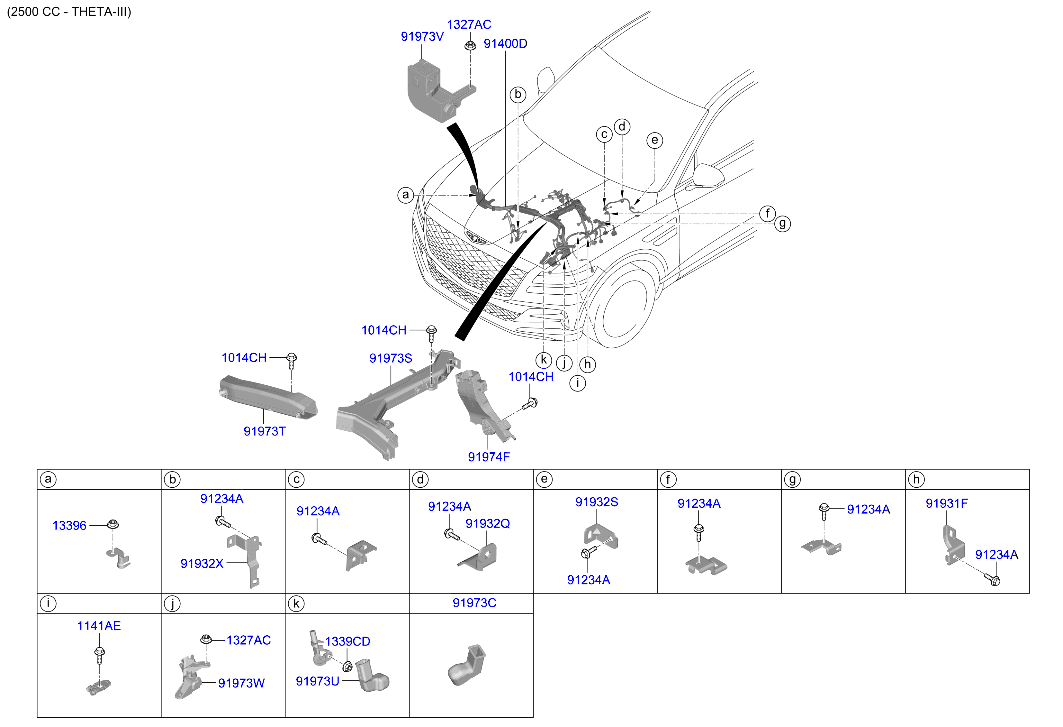

Genesis GV80 20 2020 — Control Wiring
