Open RegionYearModelModelCode Details
USA / Canada 2021 G70 21 G9S4J5G1K
Catalog: GENESIS202602 Model: G9S4J5G1K Model Year: 2022 Engine Number: G6DPMA782195 Transmission Number: VDMLT1083185 Destination: USA Nation: U.S.A Plant: K7 Exterior Color: ALTA WHITE(SOLID) Interior Color: DUNE Drive Type: DRIVE TYPE - LHD Weather Type: WEATHER - THE TEMPERATE ZONE Body Type: SEDAN - 4DR 5P Engine Capacity: 3300 CC - LAMBDA 2 Engine Type: DOHC - TCI/GDI Fuel Type: GASOLINE - UNLEADED Transaxle: AUTO - 8 SPEED 4WD Build Date: 2021-11-02 Nation Code: B28 Area: K7 Drive Type: L Weather Type: 3 Order Number: E2110H109B28A Full Specification Code: B28AG9S4J5G1K H01B09 Exterior Color Code: WHT Interior Color Code: DUE Engine Mip Code: GP12 Transmission Mip Code: 2DN4 Vin Tag: 1 Model Year Code: 21 Catalog Information: (S4) SEDAN - 4DR 5P,(J5) 3300 CC - LAMBDA 2,(G) DOHC - TCI/GDI,(1) GASOLINE - UNLEADED,(K) AUTO - 8 SPEED 4WD,(L) DRIVE TYPE - LHD,(3) WEATHER - THE TEMPERATE ZONE Region: NA Native Region: HMA

Genesis G70 21 2021 — Windshield Washer

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
1125406167K BOLT 2
Production:2020-01-22 – 2021-11-09
1125406207K BOLT 1
Production:2020-02-03 – …
1472024006B CLIP - HOSE 2
Production:2020-02-03 – …
97333A3000 QUICK CONNECTOR 1
Production:2020-02-03 – …
98622G9100 FUNNEL ASSY 1
Production:2020-02-03 – …
98510G8000 MOTOR & PUMP ASSY - WINDSHIELD WASHER 1
Production:2020-02-03 – …
9851621100 CONNECTOR - WINDSHIELD WASHER 1
Production:2020-02-03 – …
98521D9000 LEVEL SWITCH 1
Production:2020-02-03 – …
98610G9100 RESERVOIR & PUMP ASSY - WASHER 1
Production:2020-02-03 – …
9862214200 GROMMET - WINDSHIELD WASHER 1
Production:2020-02-03 – …
986223L000 GROMMET - WINDSHIELD LEVEL SWITCH 1
Production:2020-02-03 – …
98623G2000 CAP - WINDSHIELD WASHER RESERVOIR 1
Production:2020-02-03 – …
98624G9000 GROMMET-FUNNEL 1
Production:2020-02-03 – …
9J70031047 HOSE 1
Production:2020-02-03 – …
9J70031047 HOSE 1
Production:2020-02-03 – …

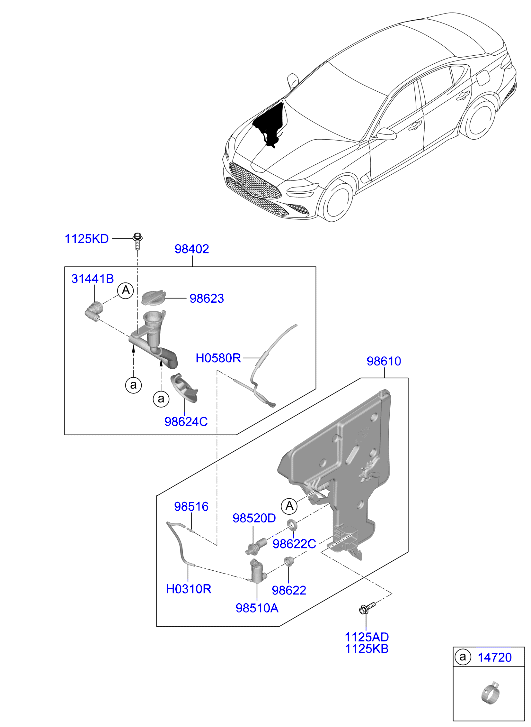

Diagram

15 parts
Genesis G70 21 2021 — Windshield Washer
