Genesis G70 21 2021 — Engine Cooling System

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
1125406206B BOLT 4
Production:2020-02-18 – …
1125306206B BOLT [W/ WASHER] 4
Production:2019-12-27 – 2023-06-01
1129306206B BOLT 8
Production:2020-02-18 – …
1140306606K BOLT 2
Production:2020-02-18 – …
252353K020 SCREW - TAPPING 2
Production:2020-02-18 – …
25310J5020 RADIATOR ASSY 1
Production:2020-02-18 – …
253183K100 PLUG - RADIATOR DRAIN 1
Production:2020-02-18 – …
25328B1000 LABEL - RADIATOR CAP 1
Production:2020-02-18 – …
25330B1000 CAP ASSY - RADIATOR 1
Production:2020-02-18 – …
253312P044 CLAMP - (HOSE) 4
Production:2020-02-18 – …
25333J5000 BRACKET ASSY - RADIATOR MOUNTING, UPPER 2
Production:2020-02-18 – …
25336J5000 INSULATOR - RADIATOR MOUNTING, LOWER 2
Production:2020-02-18 – …
25380G9100 BLOWER ASSY 1
Production:2020-02-18 – …
25414J5000 HOSE ASSY - RADIATOR, UPPER 1
Production:2020-02-18 – …
25415J5000 HOSE ASSY - RADIATOR, LOWER 1
Production:2020-02-18 – …
25430J5050 TANK ASSY - RESERVOIR 1
Production:2020-02-18 – …
25441J5050 CAP - RADIATOR RESERVOIR 1
Production:2020-02-18 – …
25451J5000 HOSE - RADIATOR TO RESERVOIR 1
Production:2020-02-18 – …
25460J5000 COOLER ASSY - OIL 1
Production:2020-02-18 – …
25470J5400 TUBE ASSY - OIL COOLER 1
Production:2020-02-18 – …
25485C1500 CONNECTOR 1
Production:2020-02-18 – …
25630D2000 VALVE - BY-PASS 1
Production:2020-02-18 – …
29135G9000 GUARD - AIR 1
Production:2020-02-18 – …
97606J5000 CONDENSER ASSY - COOLER 1
Production:2020-02-18 – …
97690D2000 O-RING 1
Production:2020-02-18 – …
9780217000 DESICCANT - RECEIVER DRIER 1
Production:2020-02-18 – …
978033L000 CAP ASSY - RECEIVER DRYER 1
Production:2020-02-18 – …

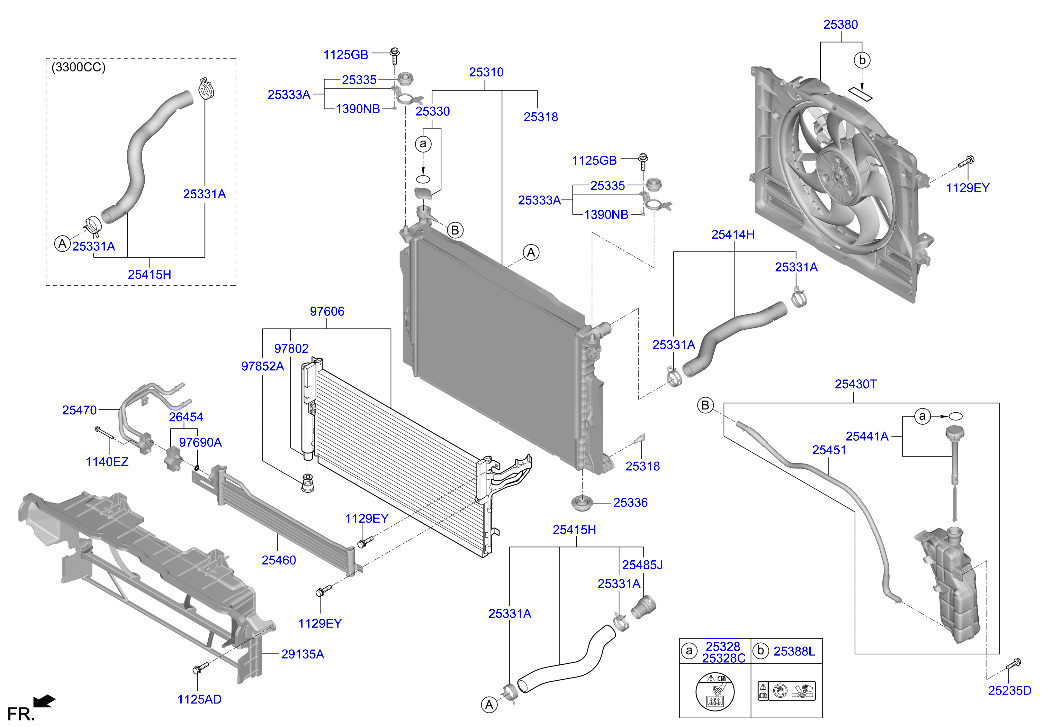

Diagram

27 parts
Genesis G70 21 2021 — Engine Cooling System
