Genesis G70 17 2018 — Engine & Transaxle Mounting [2000 CC - Theta 2 Fr]

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
21819B1200 BOLT 6
Production:2017-01-11 – …
1151306146K STUD 1152AA 1
Production:2017-01-11 – …
1339608007K NUT 1339GA 2
Production:2017-01-11 – …
1339612007K NUT 2
Production:2017-01-11 – …
1351012006K WASHER - [PLAIN] 4
Production:2017-07-17 – …
1360212006K WASHER - SPRING 4
Production:2017-07-17 – 2020-03-02
21850G9100 BRACKET ASSY - ENGINE MOUNTING, LH 1
Production:2018-06-19 – 9999-12-31
21840G9100 BRACKET ASSY - ENGINE MOUNTING, RH 1
Production:2018-06-19 – 9999-12-31
21819B1000 BOLT 9
Production:2017-01-11 – …
21823G9000 DAMPER - DYNAMIC 21818C 1
Production:2017-07-17 – …
21819B1100 BOLT 2
Production:2017-01-11 – …
21826J5100 BRACKET - ENGINE SUPPORT, LH 1
Production:2017-01-11 – …
21825J5100 BRACKET - ENGINE SUPPORT, RH 1
Production:2017-01-11 – …
21730G9100 CROSSMEMBER ASSY - TRANSMISSION MOUNTING 21870 1
Production:2017-01-11 – …
21893D2000 BOLT - WASHER ASSY 6
Production:2017-01-11 – …
287613M300 HANGER - EXHAUST PIPE 1
Production:2017-07-17 – …
28785G9000 SUPPORT - HANGER 1
Production:2017-07-17 – …
493293M000 NUT 1
Production:2017-07-17 – …
55419G9000 BOLT 55419 1
Production:2017-07-17 – …
55419B1000 BOLT 4
Production:2017-07-17 – …

Diagram

20 parts

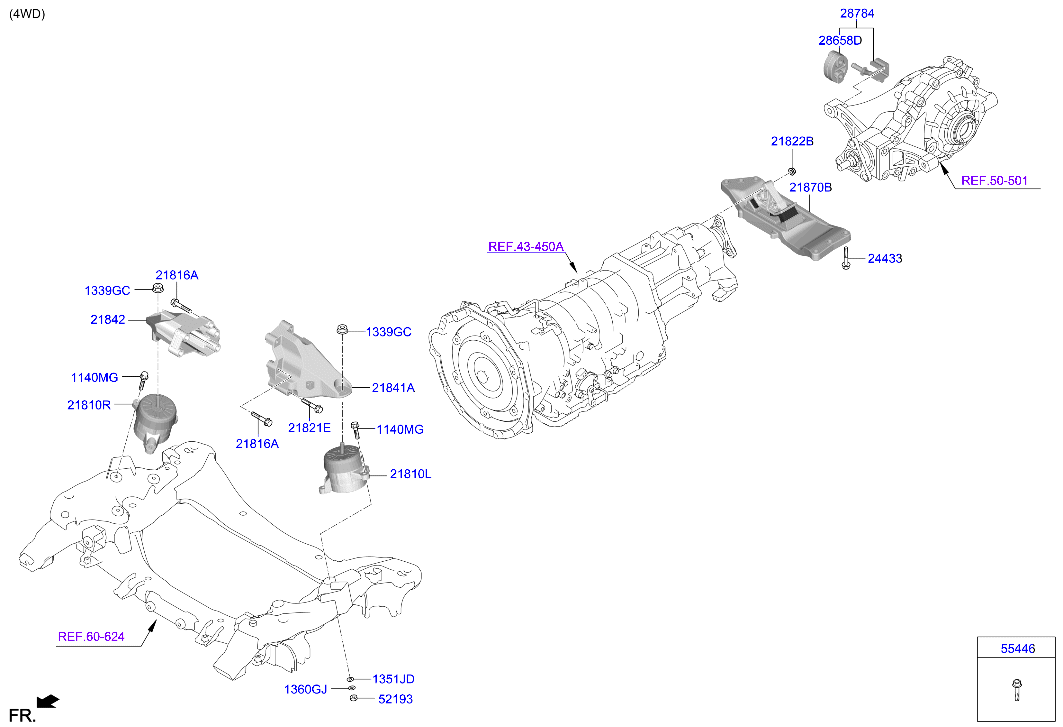

Genesis G70 17 2018 — Engine & Transaxle Mounting [2000 CC - Theta 2 Fr]
