Open RegionJahrModellModellcode Details
General 2008 L200 L200 SPORTERO G EXP MMTH KB8T
Catalog: MMC202408 Color Code: W32B Frame Mask: KA,B0# Model Short: KB8T Modification: 3200DIESEL/4WD(TRUCK) - H-LINE(DOUBLE CAB/WIDE/SS4),5FM/T Options: M51: LSD (C); AL/WHL (B); ANTI-SKID BRAKE CONTROL SYSTEM; AUTO SPEED CONTROL (= CRUISE CONTROL); LEATHER COVER STEERING WHEEL; AM/FM MULTI ETR RADIO + CAS/PLAY (C); ANTENNA + 6 SPEAKER; SHIFT KNOB (LEATHER); POWER WINDOW (BACK WINDOW); BUMPER CHANGE; FOG LAMP; P/W + CTR DOOR LOCK + SIDE PROT MOULDING; SEAT HEATER + AIR BAG + POWER SEAT; LEATHER + CRU/CONT; KEY LESS ENTRY (2SET) Production: 200506-201304 Production Date: 200804 Trim Code: 42A Year: 2008 Region: OTHER Native Region: M80

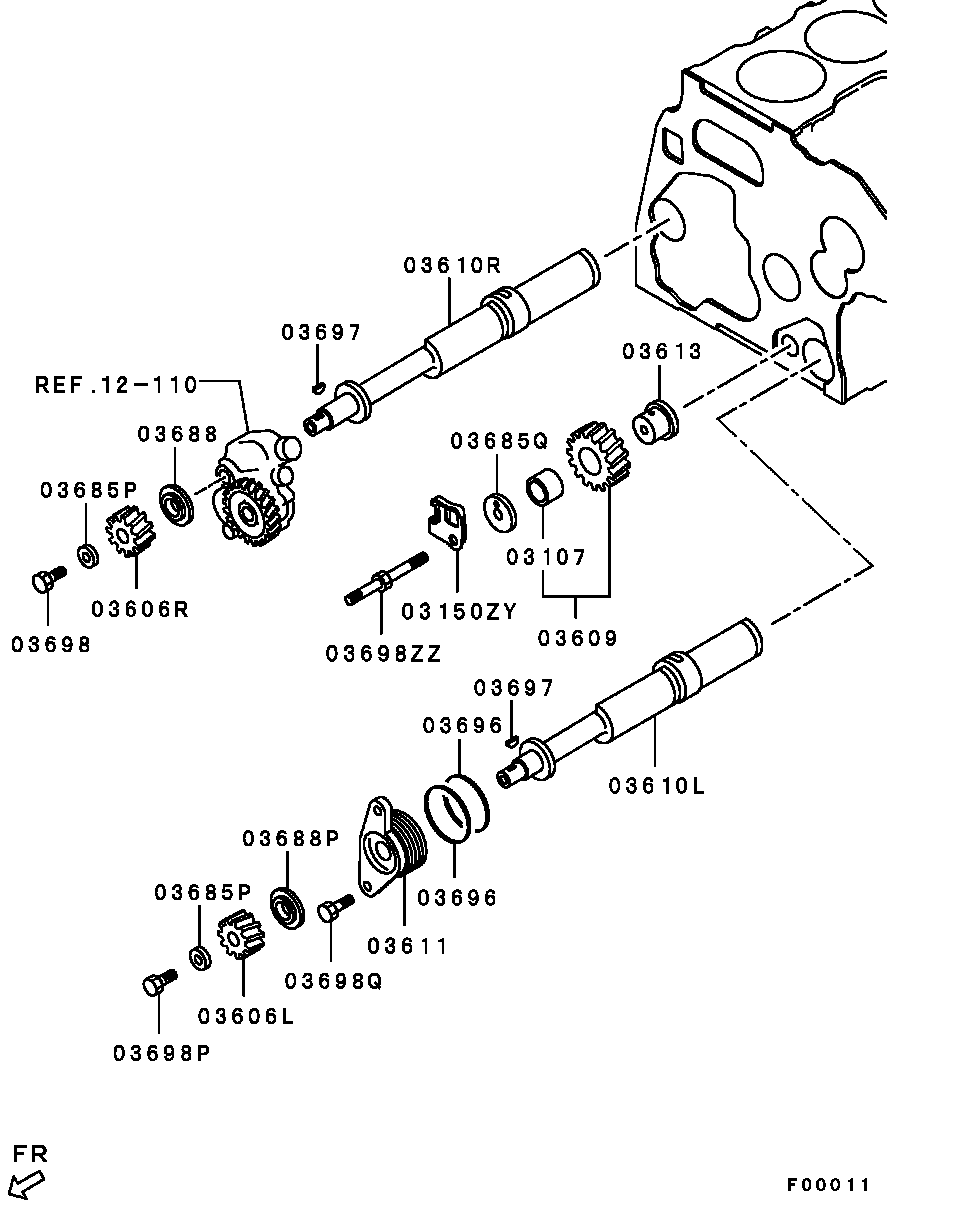

Mitsubishi L200-L200-SPORTERO-G-EXP-MMTH 2008 — Balancer / All

Fahrzeugzeichnungen ansehen

Ersatzteile

TeilenummerBeschreibungPNCMenge
MD040758 BOLT,BALANCER 1
Note:ALL Production:2005-06 – 2013-04 Spec:FLANGE,8X16 Size:8X16 Shape:FLANGE
ME200276 SPACER,BALANCER BELT TRAIN 1
Note:ALL Production:2005-06 – 2013-04 Spec:7 Size:7
ME204154 SHAFT,BALANCER,LH 1
Note:ALL Production:2005-06 – 2013-04
ME204157 GEAR,BALANCER SHAFT DRIVEN,LH 1
Note:ALL Production:2005-06 – 2013-04 Replacements:1125A218 (fitment: unknown) Spec:N=14 Standard:N=14
ME200272 WASHER,BALANCER BELT TRAIN 2
Note:ALL Production:2005-06 – 2013-04 Spec:PLANE,8 Size:8 Shape:PLANE
MF476204 KEY,BALANCER 2
Note:ALL Production:2005-06 – 2013-04 Spec:WOODRUFF,3X10 Size:3X10 Shape:WOODRUFF
ME200275 WASHER,BALANCER BELT TRAIN 1
Note:ALL Production:2005-06 – 2013-04 Spec:10.5 Size:10.5
ME203368 SHAFT,BALANCER,RH 1
Note:ALL Production:2005-06 – 2013-04
ME203372 SPACER,BALANCER BELT TRAIN 1
Note:ALL Production:2005-06 – 2013-04 Spec:T=7 Size:T=7
MH001567 BOLT,BALANCER 2
Note:ALL Production:2005-06 – 2013-04 Spec:FLANGE,6X22 Size:6X22 Shape:FLANGE
ME200552 O-RING,BALANCER 2
Note:ALL Production:2005-06 – 2013-04 Spec:45 Size:45
MH001568 BOLT,BALANCER 1
Note:ALL Production:2005-06 – 2013-04 Spec:FLANGE,8X16 Size:8X16 Shape:FLANGE
ME204071 PLATE,BALANCER SHAFT THRUST 1
Note:ALL Production:2005-06 – 2013-04 Replacements:1125A166 (fitment: unknown)
1125A110 GEAR,BALANCER SHAFT IDLER 1
Note:ALL Production:2008-01 – 2013-04 Replacements:1132A117 (fitment: unknown)
ME202202 GEAR,BALANCER SHAFT DRIVEN,RH 1
Note:ALL Production:2005-06 – 2013-04 Spec:N=14 Standard:N=14
1140A025 BRACKET,TIMING CHAIN TRAIN 1
Note:ALL Production:2005-07 – 2010-11
— Dieses Teil ist für diese Fahrzeugkonfiguration nicht vorgesehen. 03107 —
ME200274 SHAFT,BALANCER IDLER GEAR 1
Note:ALL Production:2005-06 – 2013-04
1141A010 BOLT,BALANCER 1
Note:ALL Production:2005-06 – 2013-04
12 110 standard — —

Diagramm

19 Teile
Mitsubishi L200-L200-SPORTERO-G-EXP-MMTH 2008 — Balancer / All
