Open RegionJahrModellModellcode Details
Europe 2005 Sportage VAFQWDS85
Catalog: KIA202602 Model: VAFQWDS85 Model Year: 2005 Engine Number: D4EA5H126127 Transmission Number: L5H263349 Destination: EUR Nation: E49 Plant: C51 Exterior Color: SMART BLUE Interior Color: BLACK Drive Type: LEFT HAND DRIVE Body Type: 5 DR WAGON Grade: MIDDLE GRADE Engine Capacity: 2000 CC Fuel Type: T/C INTER COOLER Transmission: 5 SPEED MT 2WD Build Date: 2005-06-20 Nation Code: E49 Area: C51 Drive Type: L Order Number: E0503A001E49VA Full Specification Code: 4E49VAFQWDS85 2004001 Exterior Color Code: K6 Interior Color Code: WK Engine Mip Code: R13S Transmission Mip Code: TJ54 Vin Tag: 2 Catalog Information: (W) 5 DR WAGON,(D) MIDDLE GRADE,(S) 2000 CC,(8) T/C INTER COOLER,(5) 5 SPEED MT 2WD,(L) LEFT HAND DRIVE Region: EU Native Region: EURK1F004A

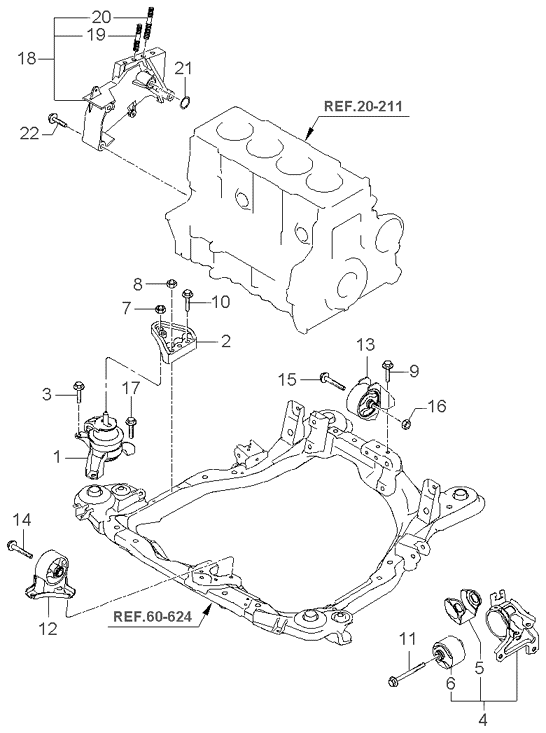

Kia Sportage 2005 — Engine & Transaxle Mounting [2000 CC, T/C Inter Cooler]

Fahrzeugzeichnungen ansehen

Ersatzteile

TeilenummerBeschreibungPNCMenge
218102E100 BRACKET ASSY - ENGINE MOUNTING 1
Note:(S) 2000 CC> (8) T/C INTER COOLER Production:2004-08-25 – 2005-09-05
218152E200 BRACKET - ENGINE MOUNTING SUPPORT 1
Note:(S) 2000 CC> (8) T/C INTER COOLER Production:2004-08-25 – 2006-12-31
218302E000 BRACKET ASSY - TRANSMISSION MOUNTING 1
Note:(S) 2000 CC> (8) T/C INTER COOLER Production:2004-08-25 – 2006-12-31
218142E000 STOPPER 1
Note:(S) 2000 CC> (8) T/C INTER COOLER Production:2004-08-25 – 2006-12-31
1339612007B NUT 1
Note:(S) 2000 CC> (8) T/C INTER COOLER Production:2004-08-25 – 2006-12-31
218221F000 NUT ASSY 2
Note:(S) 2000 CC> (8) T/C INTER COOLER Production:2004-08-25 – 2006-12-31
1125210306K BOLT 7
Note:(S) 2000 CC> (8) T/C INTER COOLER Production:2005-01-18 – 2006-12-31
218213K503 BOLT ASSY - ENGINE MOUNTING 1
Note:(S) 2000 CC> (8) T/C INTER COOLER Production:2004-08-25 – 2006-12-31
218902E000 BOLT 1
Note:(S) 2000 CC> (8) T/C INTER COOLER Production:2004-08-25 – 2006-12-31
219102E100 BRACKET ASSY - ROLL STOPPER, FRONT 1
Note:(S) 2000 CC> (8) T/C INTER COOLER> (5) 5 SPEED MT 2WD Production:2004-08-25 – 2006-12-31
219301F300 BRACKET ASSY - ROLL STOPPER, REAR 1
Note:(S) 2000 CC> (8) T/C INTER COOLER> (5) 5 SPEED MT 2WD Production:2004-08-25 – 2006-12-31
219202E100 BOLT 1
Note:(S) 2000 CC> (8) T/C INTER COOLER Production:2004-08-25 – 2006-12-31
219202E200 BOLT 1
Note:(S) 2000 CC> (8) T/C INTER COOLER Production:2004-08-25 – 2006-12-31
1339710007B NUT 2
Note:(S) 2000 CC> (8) T/C INTER COOLER Production:2005-01-18 – 2006-12-31
218313K253 BOLT - BRACKET TO INSULATOR 6
Note:(S) 2000 CC> (8) T/C INTER COOLER Production:2005-01-24 – 2006-12-31
2167027000 BRACKET ASSY - ENGINE SUPPORT 1
Note:(S) 2000 CC> (8) T/C INTER COOLER Production:2004-08-25 – 2005-11-01
2167126000 STUD 1
Note:(S) 2000 CC> (8) T/C INTER COOLER Production:2004-08-25 – 2006-12-31
2167227000 STUD 1
Note:(S) 2000 CC> (8) T/C INTER COOLER Production:2004-08-25 – 2006-12-31
2167827000 RUBBER SEAL 1
Note:(S) 2000 CC> (8) T/C INTER COOLER Production:2004-08-25 – 2006-12-31
1140410903 BOLT 4
Note:(S) 2000 CC> (8) T/C INTER COOLER Production:2004-08-25 – 2006-12-13

Diagramm

20 Teile
Kia Sportage 2005 — Engine & Transaxle Mounting [2000 CC, T/C Inter Cooler]
