Open RegionJahrModellModellcode Details
General 2014 TFR/TFS LHD 51473~2013~2013
Catalog: ISUZU201809 Vehicle Class: PICKUP Model Qualifier: TF Source Catalog Name: TFR/TFS-LHD 13 - 13 Source Production Code: 20140901 Production Date: 20140901 Ak6: AIR BAG DRIVER & PASSENGER DELETE Gw1: FINAL GEAR RATIO 43/11 Am6: FRONT SEAT SPLIT BENCH TYPE V89: GUARD FRAME BAR CARGO TIE DOWN E63: REAR BODY DBL WALL CTR PULL Vf6: REAR STEP BUMPER C60: AIR CONDITIONER MANUAL CONTROL 6 Rj: UNDER FRT GUARD D20: SUNVISOR PASSENGER SIDE 7 We: SKID PLATE 117: INTERIOR COLOR UPR LIGHT GRAY LWR DARK GRAY Q8 H: FORMED MUD FLAP FRT & RR K75: EMISSION SYSTEM R15-04 Rt9: DOOR MIRROR MANUAL MATERIAL BLACK Ul5: RADIO DELETE Yj3: DECAL 4X4 Tm1: BATTERY 80D26L 7 Nu: DRIVER SIDE FOOT REST C49: REAR DEFOGGER G80: AXLE POSITRACTION LIMITED SLIP Ts6: HIGH MOUNT STOP LAMP 8 Lj: SEAT TRIM VINYL Qb5: DISC WHEEL 16X6.5-33 STEEL U95: 2-SPEAKER SYSTEM BASE E28: ASSIST HANDLE 527: BODY COLOR SPLASH WHITE 8 Mt: ISUZU UNIQUE PARTS PKG 7 Wl: ISUZU BRAND Kf0: POOR QUALITY DIESEL FUEL B38: COVERING FLOOR VINYL Cuy: FRT&RR 205R16C Region: OTHER Native Region: WW

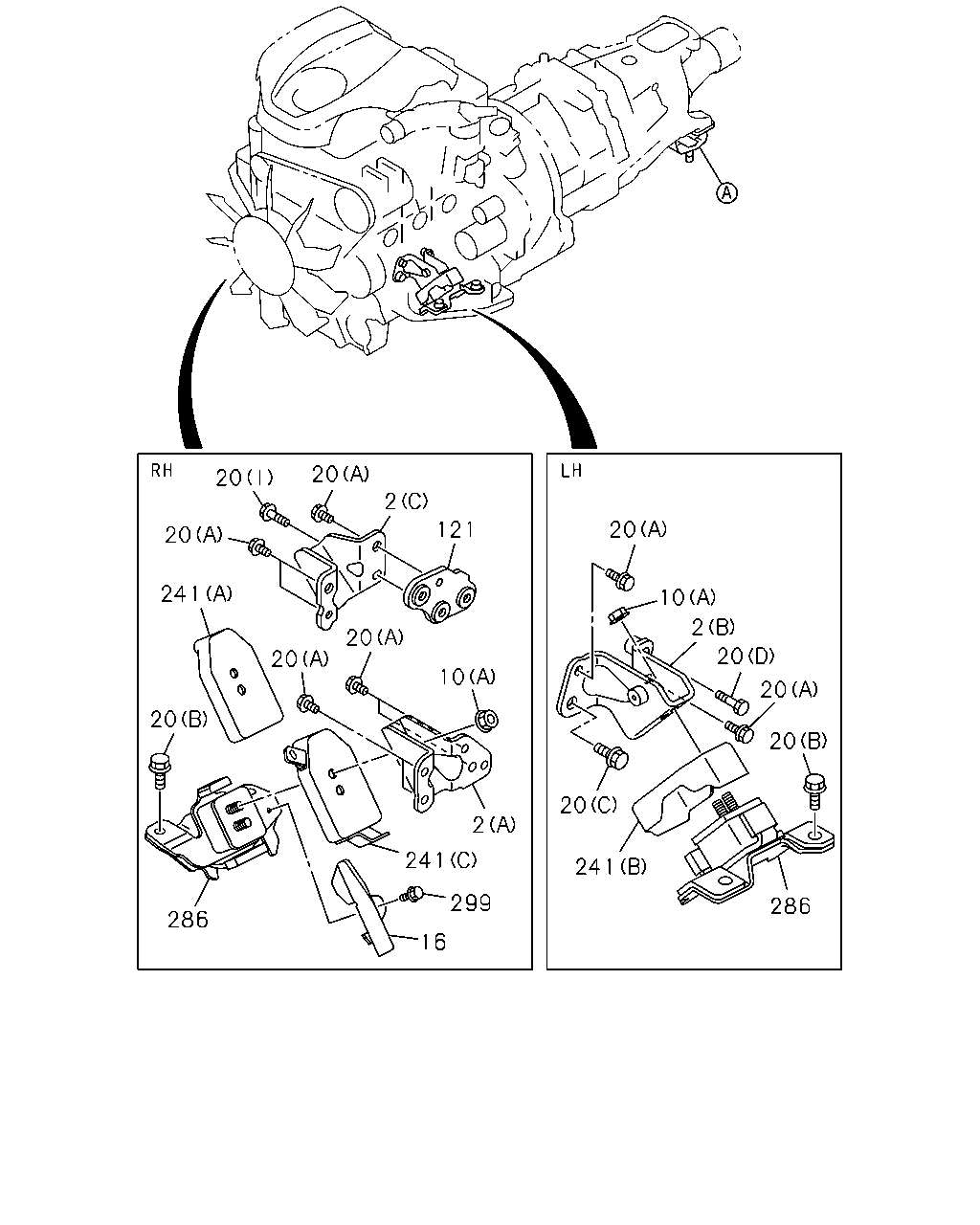

Isuzu TFR/TFS-LHD 2014 — Engine Mounting — Front

Fahrzeugzeichnungen ansehen

Ersatzteile

TeilenummerBeschreibungPNCMenge
8981321010 00.029 FOOT; ENG 1
Production:2013-04 – 9999-99 Usage:(B) Position:L Manufacturer:ISUZU Applied Model:ABCDE Applied Date:1304- 8 Digit P/n:98132101
8981321000 00.029 FOOT; ENG 1
Production:2013-04 – 9999-99 Usage:(A) Position:R Manufacturer:ISUZU Applied Model:BCDE Applied Date:1304- 8 Digit P/n:98132100
0911802100 04.085 NUT; MTG RUBBER 2
Production:2013-04 – 9999-99 Usage:4X2(TFB***)M/T MUA 5 SPEED 5H(MWQ),M/T AISIN 6SPEED(RNU)(A)M10 FLANGE Manufacturer:ISUZU Applied Model:BCDE Applied Date:1304- 8 Digit P/n:94012045
0911802100 04.085 NUT; MTG RUBBER 4
Production:2013-04 – 9999-99 Usage:(A)M10 FLANGE Manufacturer:ISUZU Applied Model:ABCDE Applied Date:1304- 8 Digit P/n:94012045
0911802120 04.085 NUT; MTG RUBBER 2
Production:2013-04 – 9999-99 Usage:05.816(B)M12 FLANGE Manufacturer:ISUZU Applied Model:ABCDE Applied Date:1304- 8 Digit P/n:94012046
8981829161 07.039 PROTECTOR; HEAT,ENG MTG,FRT 1
Production:2013-04 – 9999-99 Position:R Manufacturer:ISUZU Applied Model:BCDE Applied Date:1304- 8 Digit P/n:98182916
8980138000 00.029 BOLT; ENG FOOT 4
Production:2013-04 – 9999-99 Usage:(B)M10X30 FLANGE Manufacturer:ISUZU Applied Model:ABCDE Applied Date:1304- 8 Digit P/n:98013800
0287510350 00.029 BOLT; ENG FOOT 2
Production:2013-04 – 9999-99 Usage:4X4(TFS***)A/T 5 SPEED-AISIN(MA1),M/T MUA 5SPEED5H(MWQ)(E)M10X35 FLANGE Manufacturer:ISUZU Applied Model:BCDE Applied Date:1304- 8 Digit P/n:94012204
0288514200 00.029 BOLT; ENG FOOT 1
Production:2013-04 – 9999-99 Usage:09.171(C)M14X20 FLANGE Manufacturer:ISUZU Applied Model:ABCDE Applied Date:1304- 8 Digit P/n:94011807
0507410350 00.029 BOLT; ENG FOOT 1
Production:2013-04 – 9999-99 Usage:(D)M10X35 W/LK WASHER Manufacturer:ISUZU Applied Model:ABCDE Applied Date:1304- 8 Digit P/n:94015285
0280510200 00.029 BOLT; ENG FOOT 6
Production:2013-04 – 9999-99 Usage:(A)M10X20 FLANGE Manufacturer:ISUZU Applied Model:BCDE Applied Date:1304- 8 Digit P/n:94012253
8981019571 00.027 COVER; ENG MTG 1
Production:2013-04 – 9999-99 Usage:M/T MUA 5 SPEED 5H(MWQ)(B) Position:L Manufacturer:ISUZU Applied Model:BCD Applied Date:1304- 8 Digit P/n:98101957
8981019562 00.027 COVER; ENG MTG 1
Production:2013-04 – 9999-99 Usage:M/T MUA 5 SPEED 5H(MWQ)(A) Position:R Manufacturer:ISUZU Applied Model:BCD Applied Date:1304- 8 Digit P/n:98101956
8982505920 00.027 MOUNTING ASM; ENGINE 1
Production:2013-09 – 9999-99 Position:R Manufacturer:ISUZU Applied Model:ABCDE Applied Date:1309- 8 Digit P/n:98250592
8980753762 00.027 MOUNTING ASM; ENGINE 1
Production:2013-04 – 9999-99 Position:L Manufacturer:ISUZU Applied Model:ABCDE Applied Date:1304- 8 Digit P/n:98075376
0280506100 00.029 BOLT 1
Production:2013-04 – 9999-99 Usage:03.671M6X10 FLANGE Position:R Manufacturer:ISUZU Applied Model:ABCDE Applied Date:1304- 8 Digit P/n:94011755
— Dieses Teil ist für diese Fahrzeugkonfiguration nicht vorgesehen. 121 —

Diagramm

16 Teile
Isuzu TFR/TFS-LHD 2014 — Engine Mounting — Front
