Isuzu TFR/TFS LHD 2016 — Cylinder Head — 4JK1-TCY

Fahrzeugzeichnungen ansehen

Ersatzteile

TeilenummerBeschreibungPNCMenge
8982703782 00.269 HEAD ASM; CYL 1
Production:2015-09 – 9999-99 Manufacturer:ISUZU Applied Model:CF 8 Digit P/n:98270378 Applied Date:1509-
8982613180 00.289 GASKET; CYL HD 1
Production:2015-09 – 9999-99 Usage:ALSO INCLUDED IN GASKET SET(ENG. & HEAD)STD GRADE AT=1.14 1-HOLE Manufacturer:ISUZU Applied Model:CF 8 Digit P/n:98261318 Applied Date:1509-
8982613190 00.289 GASKET; CYL HD 1
Production:2015-09 – 9999-99 Usage:ALSO INCLUDED IN GASKET SET(ENG. & HEAD)STD GRADE BT=1.19 2-HOLE Manufacturer:ISUZU Applied Model:CF 8 Digit P/n:98261319 Applied Date:1509-
8982613200 00.289 GASKET; CYL HD 1
Production:2015-09 – 9999-99 Usage:ALSO INCLUDED IN GASKET SET(ENG. & HEAD)STD GRADE CT=1.24 3-HOLE Manufacturer:ISUZU Applied Model:CF 8 Digit P/n:98261320 Applied Date:1509-
8982010190 00.293 BOLT; CYL HD TO BLOCK 18
Production:2015-09 – 9999-99 Usage:(A)M11X114 W/WASHER Manufacturer:ISUZU Applied Model:BCDEF 8 Digit P/n:98201019 Applied Date:1509-
8942394230 00.283 GUIDE; VLV 16
Production:2015-09 – 9999-99 Usage:L=42 Manufacturer:ISUZU Applied Model:CDF 8 Digit P/n:94239423 Applied Date:1509-
8973113780 00.253 SEAT; VLV INSERT 8
Production:2015-09 – 9999-99 Usage:(C) INLETID=29 OD=35 Manufacturer:ISUZU Applied Model:BCEF 8 Digit P/n:97311378 Applied Date:1509-
8973113790 00.253 SEAT; VLV INSERT 8
Production:2015-09 – 9999-99 Usage:(D) EXHAUSTID=26 OD=32 Manufacturer:ISUZU Applied Model:BCEF 8 Digit P/n:97311379 Applied Date:1509-
5112190080 00.253 CUP; SEALING,CYL HEAD 1
Production:2015-09 – 9999-99 Usage:HEATER & DEFROSTER(C42),AIRCONDITIONER MANUAL CONT(C60),AIR CONDITIONERAUTOMATIC CONT(C61)(B)OD=18 Manufacturer:ISUZU Applied Model:CF 8 Digit P/n:94026342 Applied Date:1509-
8972334290 00.253 CUP; SEALING,CYL HEAD 1
Production:2015-09 – 9999-99 Usage:(H)OD=8 Manufacturer:ISUZU Applied Model:CF 8 Digit P/n:97233429 Applied Date:1509-
8973331200 00.253 CUP; SEALING,CYL HEAD 5
Production:2015-09 – 9999-99 Usage:(I)OD=24 Manufacturer:ISUZU Applied Model:CF 8 Digit P/n:97333120 Applied Date:1509-
5112190080 00.253 CUP; SEALING,CYL HEAD 6
Production:2015-09 – 9999-99 Usage:(B)OD=18 Manufacturer:ISUZU Applied Model:CF 8 Digit P/n:94026342 Applied Date:1509-
5112190110 00.253 CUP; SEALING,CYL HEAD 2
Production:2015-09 – 9999-99 Usage:00.034(C)OD=14 Manufacturer:ISUZU Applied Model:CF 8 Digit P/n:94029800 Applied Date:1509-
8981175671 02.270 PLUG; GLOW 4
Production:2015-09 – 9999-99 Usage:NGK Manufacturer:ISUZU Applied Model:BCEF 8 Digit P/n:98117567 Applied Date:1509-
8982393640 00.004 HANGER; ENG,RR 1
Production:2015-09 – 9999-99 Usage:(B) Manufacturer:ISUZU Applied Model:CF 8 Digit P/n:98239364 Applied Date:1509-
0583308200 00.004 BOLT; HANGER 1
Production:2015-09 – 9999-99 Usage:01.758(C)M8X20 HEX SOCKET Manufacturer:ISUZU Applied Model:CF 8 Digit P/n:94012815 Applied Date:1509-
0583308300 00.004 BOLT; HANGER 1
Production:2015-09 – 9999-99 Usage:00.206(D)M8X30 HEX SOCKET Manufacturer:ISUZU Applied Model:CF 8 Digit P/n:94012817 Applied Date:1509-
8973291291 00.413 DOWEL; CAP,CM/SHF 26
Production:2015-09 – 9999-99 Manufacturer:ISUZU Applied Model:CF 8 Digit P/n:97329129 Applied Date:1509-
8982284140 08.846 PIPE; HTR 2
Production:2015-09 – 9999-99 Usage:AUTO COOLER SYSTEM(CJ2),COOLERW/FRESH AIR(C65) Manufacturer:ISUZU Applied Model:CF 8 Digit P/n:98228414 Applied Date:1509-
8982284140 08.846 PIPE; HTR 1
Production:2015-09 – 9999-99 Usage:HEATER & DEFROSTER(C42),AIRCONDITIONER MANUAL CONT(C60),AIR CONDITIONERAUTOMATIC CONT(C61) Manufacturer:ISUZU Applied Model:CF 8 Digit P/n:98228414 Applied Date:1509-
0280508200 00.206 BOLT; COVER 3
Production:2015-09 – 9999-99 Usage:04.338M8X20 FLANGE Manufacturer:ISUZU Applied Model:CF 8 Digit P/n:94012248 Applied Date:1509-
0583306100 00.349 BOLT; BAFFLE PLATE 8
Production:2015-09 – 9999-99 Usage:M6X10 HEX SOCKET Manufacturer:ISUZU Applied Model:BCDEF 8 Digit P/n:94012808 Applied Date:1509-
8982504840 00.207 PLATE; BAFFLE,CYL HD 1
Production:2015-09 – 9999-99 Manufacturer:ISUZU Applied Model:CF 8 Digit P/n:98250484 Applied Date:1509-
0280506300 00.413 BOLT; BRKT 8
Production:2015-09 – 9999-99 Usage:01.531(A)M6X30 FLANGE Manufacturer:ISUZU Applied Model:CF 8 Digit P/n:94012245 Applied Date:1509-
1090440740 00.413 BOLT; BRKT 21
Production:2015-09 – 9999-99 Usage:01.531(B)M8X85 Manufacturer:ISUZU Applied Model:CF 8 Digit P/n:97722763 Applied Date:1509-
0911802080 00.349 NUT; COVER 4
Production:2015-09 – 9999-99 Usage:01.540M8 FLANGE Manufacturer:ISUZU Applied Model:BCDEF 8 Digit P/n:94012044 Applied Date:1509-
8979450220 00.349 STUD; COVER 2
Production:2015-09 – 9999-99 Usage:M8X20 L=31 Manufacturer:ISUZU Applied Model:BCDEF 8 Digit P/n:97945022 Applied Date:1509-
8979439550 03.300 GASKET; SLEEVE,INJECTOR 4
Production:2015-09 – 9999-99 Usage:ALSO INCLUDED IN GASKET SET(ENG. & HEAD) Manufacturer:ISUZU Applied Model:BCDEF 8 Digit P/n:97943955 Applied Date:1509-
8982432260 00.206 COVER; CYL HEAD 1
Production:2015-09 – 9999-99 Manufacturer:ISUZU Applied Model:CF 8 Digit P/n:98243226 Applied Date:1509-
0280508600 00.293 BOLT; CYL HD 1
Production:2015-09 – 9999-99 Usage:04.686(A)M8X60 FLANGE Manufacturer:ISUZU Applied Model:BCDEF 8 Digit P/n:94011768 Applied Date:1509-
0286508350 00.293 BOLT; CYL HD 3
Production:2015-09 – 9999-99 Usage:01.060(B)M8X35 FLANGE Manufacturer:ISUZU Applied Model:BCDEF 8 Digit P/n:94012131 Applied Date:1509-
— Dieses Teil ist für diese Fahrzeugkonfiguration nicht vorgesehen. 109 —
— Dieses Teil ist für diese Fahrzeugkonfiguration nicht vorgesehen. 232 —
— Dieses Teil ist für diese Fahrzeugkonfiguration nicht vorgesehen. 143 —

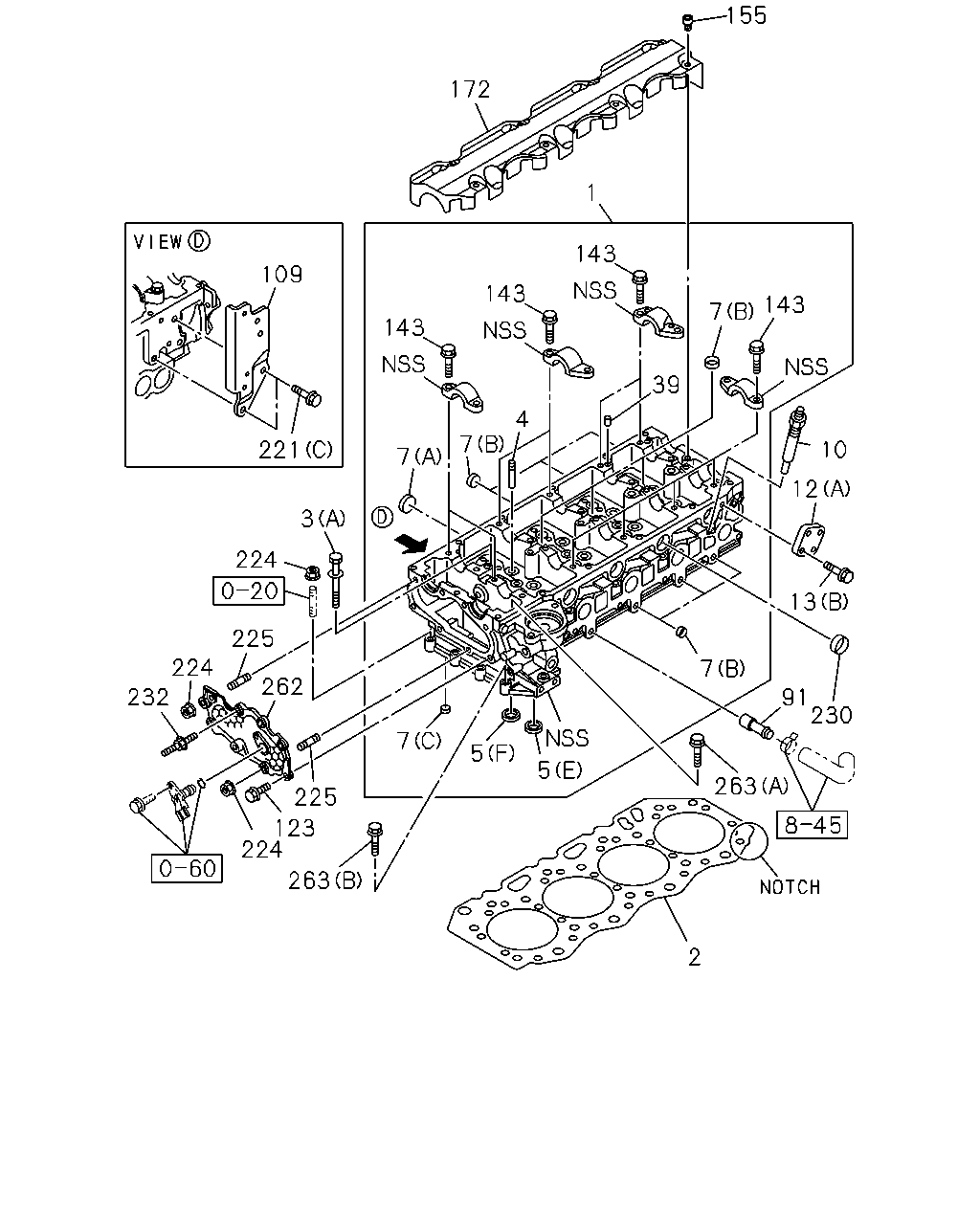

Diagramm

31 Teile
