Open RégionAnnéeModèleCode modèle Détails
General 2017 COROLLA ALTIS ZRE171L-GEXDKV
Catalog: TOYOTA202608 Engine: 1600CC 16-VALVE DOHC EFI Transmission Description: CONTINUOUSLY VARIABLE TRANSMISSION Body Description: SEDAN Vehicle Grade: XLI TYPE Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: GULF CORPORATION COUNCIL Doors Description: 4-DOOR Color Code: 070 Trim Code: FA01 Production: 201511-201609 Model Short: ZRE171L-GEXDKV Region: OTHER Native Region: GR

Toyota Corolla-Altis 2017 — Culasse

Voir les schémas du véhicule

Pièces de rechange

Numéro de pièceDescriptionPNCQuantité
15330-37010 ENSEMB. DISTRIBUTEUR HYDRAULIQUE DIST. ARBRE CAMES 1
Note:2ZRFE..ZRE172..18E..VN;2ZRFE,3ZRFE..ZRE172,173..CVT..(18G,20V,GLI,XLI);1ZRF,1ZRFBE,1ZRFE,2ZR#..ZRE171,172..ARL,GCC,GEN,IDN,IND,MA,PHL,TAIW,TH Production:2016-10 – 2018-07 Spec:NO.1
15330-37020 ENSEMB. DISTRIBUTEUR HYDRAULIQUE DIST. ARBRE CAMES 1
Note:2ZRFE..ZRE172..18E..VN;2ZRFE,3ZRFE..ZRE172,173..CVT..(18G,20V,GLI,XLI);1ZRF,1ZRFBE,1ZRFE,2ZR#..ZRE171,172..ARL,GCC,GEN,IDN,IND,MA,PHL,TAIW,TH Production:2016-10 – 2018-07 Spec:NO.2
90919-05060 CAPTEUR ARBRE A CAMES 2
Note:2ZRFE..ZRE172..18E..VN;2ZRFE,3ZRFE..ZRE172,173..CVT..(18G,20V,GLI,XLI);1ZRF,1ZRFBE,1ZRFE,2ZR#..ZRE171,172..ARL,GCC,GEN,IDN,IND,MA,PHL,TAIW,TH Production:2016-10 – 2017-12
11103-0T060 SOUS-ENS. DE BOITIER D'ARBRE A CAMES 1
Note:2ZRFE..ZRE172..CVT..VN;2ZRFE..ZRE172..18E..VN;2ZRFE..ZRE172..ARL,IDN,IND,MA,TAIW;1ZRF,1ZRFBE,1ZRFE,2ZRFBE,3ZRFE..ZRE17#..GCC,GEN,MA,PHL,TH,VN Production:2016-10 – 2022-01 Replacements:11103-37021 (fitment: unknown) Spec:(L) Spec Note:(Local made)
11103-37021 SOUS-ENS. DE BOITIER D'ARBRE A CAMES 1
Note:2ZRFE..ZRE172..18E..VN;1ZRFE..ZRE171..4FC..GEN;2ZRFE..ZRE172..6F..(ARL,IDN,IND);2ZRFE..ZRE172..CVT..(ARL,IDN,IND,MA,PKN,TAIW);1ZRF,1ZRFBE,1ZRFE,2ZRFBE,3ZRFE..ZRE17#..CVT,MTM Production:2016-10 – … Spec:(J) Spec Note:(Japan made)
11159-0T010 JOINT ETANC., ORIFICE GRAISSAGE CHAP. PAL. ARB. CAMES 2
Note:2ZRFE..ZRE172..CVT..VN;2ZRFE..ZRE172..18E..VN;2ZRFE..ZRE172..ARL,IDN,IND,MA,TAIW;1ZRF,1ZRFBE,1ZRFE,2ZRFBE,3ZRFE..ZRE17#..GCC,GEN,MA,PHL,TH,VN Production:2016-10 – 2022-01 Replacements:11159-37010 (fitment: unknown) Spec:(L) Spec Note:(Local made)
11159-37010 JOINT ETANC., ORIFICE GRAISSAGE CHAP. PAL. ARB. CAMES 2
Note:2ZRFE..ZRE172..18E..VN;1ZRFE..ZRE171..4FC..GEN;2ZRFE..ZRE172..6F..(ARL,IDN,IND);2ZRFE..ZRE172..CVT..(ARL,IDN,IND,MA,PKN,TAIW);1ZRF,1ZRFBE,1ZRFE,2ZRFBE,3ZRFE..ZRE17#..CVT,MTM Production:2016-10 – … Spec:(J) Spec Note:(Japan made)
11193-0T040 JOINT DE TUBE DE BOUGIE 4
Note:2ZRFE..ZRE172..CVT..VN;2ZRFE..ZRE172..18E..VN;2ZRFE..ZRE172..ARL,IDN,IND,MA,TAIW;1ZRF,1ZRFBE,1ZRFE,2ZRFBE,3ZRFE..ZRE17#..GCC,GEN,MA,PHL,TH,VN Production:2016-10 – 2022-01 Replacements:11193-37020 (fitment: unknown) Spec:(L) Spec Note:(Local made)
11193-37020 JOINT DE TUBE DE BOUGIE 4
Note:2ZRFE..ZRE172..CVT..VN;2ZRFE..ZRE172..18E..VN;2ZRFE..ZRE172..ARL,IDN,IND,MA,TAIW;1ZRF,1ZRFBE,1ZRFE,2ZRFBE,3ZRFE..ZRE17#..GCC,GEN,MA,PHL,TH,VN Production:2016-10 – 2022-01 Spec:(J) Spec Note:(Japan made)
11201-0T070 SOUS-ENS. DE COUVERCLE DE CULASSE 1
Note:2ZRFE..ZRE172..CVT..VN;2ZRFE..ZRE172..18E..VN;2ZRFE..ZRE172..ARL,IDN,IND,MA,TAIW;1ZRFBE,1ZRFE,2ZRFBE,3ZRFE..ZRE17#..GCC,GEN,MA,PHL,TH,VN Production:2016-10 – 2022-01 Replacements:11201-37022 (fitment: unknown) Spec:(L) Spec Note:(Local made)
11201-37022 SOUS-ENS. DE COUVERCLE DE CULASSE 1
Note:2ZRFE..ZRE172..CVT..VN;2ZRFE..ZRE172..18E..VN;2ZRFE..ZRE172..ARL,IDN,IND,MA,TAIW;1ZRFBE,1ZRFE,2ZRFBE,3ZRFE..ZRE17#..GCC,GEN,MA,PHL,TH,VN Production:2016-10 – 2022-01 Spec:(J) Spec Note:(Japan made)
16258-0T020 RONDELLE D'ETANCHEITE (P. COUVERCLE DE CULASSE) 1
Note:2ZRFE..ZRE172..CVT..VN;2ZRFE..ZRE172..18E..VN;2ZRFE..ZRE172..ARL,IDN,IND,MA,TAIW;1ZRF,1ZRFBE,1ZRFE,2ZRFBE,3ZRFE..ZRE17#..GCC,GEN,MA,PHL,TH,VN Production:2016-10 – 2022-01 Replacements:16258-37010 (fitment: unknown) Spec:(L),T/P B:REF.ILLUST Spec Note:(Local made),T/P B:REF.ILLUST
16258-37010 RONDELLE D'ETANCHEITE (P. COUVERCLE DE CULASSE) 1
Note:2ZRFE..ZRE172..18E..VN;1ZRFE..ZRE171..4FC..GEN;2ZRFE..ZRE172..6F..(ARL,IDN,IND);2ZRFE..ZRE172..CVT..(ARL,IDN,IND,MA,PKN,TAIW);1ZRF,1ZRFBE,1ZRFE,2ZRFBE,3ZRFE..ZRE17#..CVT,MTM Production:2016-10 – … Spec:(J),T/P B:REF.ILLUST Spec Note:(Japan made),T/P B:REF.ILLUST
90210-06013 RONDELLE D'ETANCHEITE (P. COUVERCLE DE CULASSE) 1
Note:2ZRFE..ZRE172..18E..VN;1ZRFE..ZRE171..4FC..GEN;2ZRFE..ZRE172..6F..(ARL,IDN,IND);1ZR#,2ZRFBE,3ZRFE..ZRE17#..CVT,MTM;2ZRFE..ZRE172..CVT..(ARL,IDN,IND,MA,PKN,TAIW) Production:2016-10 – … Spec:TYPE A:REFER ILLUST.
90105-T0287 BOULON (P. COUVERCLE DE CULASSE) 1
Note:2ZRFE..ZRE172..CVT..VN;2ZRFE..ZRE172..18E..VN;2ZRFE..ZRE172..ARL,IDN,IND,MA,TAIW;1ZRF,1ZRFBE,1ZRFE,2ZRFBE,3ZRFE..ZRE17#..GCC,GEN,MA,PHL,TH,VN Production:2016-10 – 2022-01 Replacements:91551-80670 (fitment: unknown) Spec:(L) Spec Note:(Local made)
91551-80670 BOULON (P. COUVERCLE DE CULASSE) 1
Note:2ZRFE..ZRE172..CVT..VN;2ZRFE..ZRE172..18E..VN;2ZRFE..ZRE172..ARL,IDN,IND,MA,TAIW;1ZRF,1ZRFBE,1ZRFE,2ZRFBE,3ZRFE..ZRE17#..GCC,GEN,MA,PHL,TH,VN Production:2016-10 – 2022-01 Spec:(J) Spec Note:(Japan made)
11213-37021 JOINT DE CULASSE 1
Note:2ZRFE..ZRE172..CVT..VN;2ZRFE..ZRE172..18E..VN;2ZRFE..ZRE172..ARL,IDN,IND,MA,TAIW;1ZRF,1ZRFBE,1ZRFE,2ZRFBE,3ZRFE..ZRE17#..GCC,GEN,MA,PHL,TH,VN Production:2016-10 – 2022-01 Spec:(J) Spec Note:(Japan made)
12180-0H020 SOUS-ENS. DE BOUCHON DE REMPLISSAGE D'HUILE 1
Note:2ZRFE..ZRE172..CVT..VN;2ZRFE..ZRE172..18E..VN;2ZRFE..ZRE172..ARL,IDN,IND,MA,TAIW;1ZRF,1ZRFBE,1ZRFE,2ZRFBE,3ZRFE..ZRE17#..GCC,GEN,MA,PHL,TH,VN Production:2016-10 – 2022-01 Replacements:12180-38010 (fitment: unknown) Spec:(L) Spec Note:(Local made)
12180-38010 SOUS-ENS. DE BOUCHON DE REMPLISSAGE D'HUILE 1
Note:2ZRFE..ZRE172..CVT..VN;2ZRFE..ZRE172..18E..VN;2ZRFE..ZRE172..ARL,IDN,IND,MA,TAIW;1ZRF,1ZRFBE,1ZRFE,2ZRFBE,3ZRFE..ZRE17#..GCC,GEN,MA,PHL,TH,VN Production:2016-10 – 2022-01 Spec:(J) Spec Note:(Japan made)
90080-43027 JOINT (P. BOUCHON DE REMPLISSAGE D'HUILE) 1
Note:2ZRFE..ZRE172..CVT..VN;2ZRFE..ZRE172..18E..VN;2ZRFE..ZRE172..ARL,IDN,IND,MA,TAIW;1ZRF,1ZRFBE,1ZRFE,2ZRFBE,3ZRFE..ZRE17#..GCC,GEN,MA,PHL,TH,VN Production:2016-10 – 2022-01 Replacements:90430-37140 (fitment: unknown) Spec:(L) Spec Note:(Local made)
90430-35001 JOINT (P. BOUCHON DE REMPLISSAGE D'HUILE) 1
Note:2ZRFE..ZRE172..CVT..VN;2ZRFE..ZRE172..18E..VN;2ZRFE..ZRE172..ARL,IDN,IND,MA,TAIW;1ZRF,1ZRFBE,1ZRFE,2ZRFBE,3ZRFE..ZRE17#..GCC,GEN,MA,PHL,TH,VN Production:2016-10 – 2022-01 Spec:(J) Spec Note:(Japan made)
15678-0T010 FILTRE DISTRIBUTEUR HYDRAULIQUE 1
Note:2ZRFE..ZRE172..CVT..VN;2ZRFE..ZRE172..18E..VN;2ZRFE..ZRE172..ARL,IDN,IND,MA,TAIW;1ZRF,1ZRFBE,1ZRFE,2ZRFBE,3ZRFE..ZRE17#..GCC,GEN,MA,PHL,TH,VN Production:2016-10 – 2022-01 Replacements:15678-37010 (fitment: unknown) Spec:(L) Spec Note:(Local made)
15678-37010 FILTRE DISTRIBUTEUR HYDRAULIQUE 1
Note:2ZRFE..ZRE172..CVT..VN;2ZRFE..ZRE172..18E..VN;2ZRFE..ZRE172..ARL,IDN,IND,MA,TAIW;1ZRF,1ZRFBE,1ZRFE,2ZRFBE,3ZRFE..ZRE17#..GCC,GEN,MA,PHL,TH,VN Production:2016-10 – 2022-01 Spec:(J) Spec Note:(Japan made)
90250-06001 GOUPILLE RECTILIGNE 2
Note:2ZRFE..ZRE172..18E..VN;1ZRFE..ZRE171..4FC..GEN;2ZRFE..ZRE172..6F..(ARL,IDN,IND);2ZRFE..ZRE172..CVT..(ARL,IDN,IND,MA,PKN,TAIW);1ZRF,1ZRFBE,1ZRFE,2ZRFBE,3ZRFE..ZRE17#..CVT,MTM Production:2016-10 – … Spec:L=14,OD=6
90480-07008 COUSSIN DE CULASSE 4
Note:2ZRFE..ZRE172..18E..VN;1ZRFE..ZRE171..4FC..GEN;2ZRFE..ZRE172..6F..(ARL,IDN,IND);2ZRFE..ZRE172..CVT..(ARL,IDN,IND,MA,PKN,TAIW);1ZRFAE,1ZRFBE,1ZRFE,2ZRFBE,3ZRFE..ZRE17#..CVT,MTM Production:2016-10 – …
11212-37011 COUVERCLE DE CULASSE NO. 2 1
Note:1ZRFE,2ZRFE,3ZRFE..ZRE17#..ARL,GCC Production:2016-10 – 2019-07
11101-09510 SOUS-ENS. DE CULASSE 1
Note:2ZRFE..ZRE172..CVT..VN;2ZRFE..ZRE172..18E..VN;2ZRFE..ZRE172..ARL,IDN,IND,MA,TAIW;1ZRFE,3ZRFE..ZRE171,173..GCC,GEN,MA,PHL,VN Production:2016-10 – 2022-01 Replacements:11101-39686 (fitment: unknown) Spec:(L) Spec Note:(Local made)
11101-39686 SOUS-ENS. DE CULASSE 1
Note:2ZRFE..ZRE172..CVT..VN;2ZRFE..ZRE172..18E..VN;2ZRFE..ZRE172..ARL,IDN,IND,MA,TAIW;1ZRFE,3ZRFE..ZRE171,173..GCC,GEN,MA,PHL,VN Production:2016-10 – 2022-01 Spec:(J) Spec Note:(Japan made)
90341-20002 BOUCHON FILETE AVEC TETE CONIQUE NO. 2 3
Note:2ZRFE..ZRE172..18E..VN;1ZR#,2ZRFBE,3ZRFE..ZRE17#;2ZRFE..ZRE172..6F..(ARL,IDN,IND);2ZRFE..ZRE172..CVT..(ARL,IDN,IND,MA,PKN,TAIW) Production:2016-10 – 2022-07
90430-20004 JOINT 3
Note:2ZRFE..ZRE172..18E..VN;2ZRFE..ZRE172..6F..(ARL,IDN,IND);1ZRF,1ZRFAE,1ZRFE,3ZRFE..ZRE171,173;2ZRFE..ZRE172..CVT..(ARL,IDN,IND,MA,PKN,TAIW) Production:2016-10 – 2022-07
11122-31050 MANCHON, GUIDE DE SOUPAPE D'ADMISSION 8
Note:3ZRFE..ZRE173..20G,GLI,XLI;2ZRFE..ZRE172..CVT..(PKN,TAIW);1ZRFBE,1ZRFE,2ZRFBE..ZRE171,172..(CVT,MTM)..(GCC,PKN,TH) Production:2016-10 – … Replacements:11122-31090 (fitment: unknown) Spec:STD
11123-31050 MANCHON, GUIDE DE SOUPAPE D'ADMISSION 8
Note:3ZRFE..ZRE173..20G,GLI,XLI;2ZRFE..ZRE172..CVT..(PKN,TAIW);1ZRFBE,1ZRFE,2ZRFBE..ZRE171,172..(CVT,MTM)..(GCC,PKN,TH) Production:2016-10 – … Replacements:11123-31090 (fitment: unknown) Spec:O/S 0.05
11126-31030 MANCHON, GUIDE DE SOUPAPE D'ECHAPPEMENT 8
Note:3ZRFE..ZRE173..20G,GLI,XLI;2ZRFE..ZRE172..CVT..(PKN,TAIW);1ZRFBE,1ZRFE,2ZRFBE..ZRE171,172..(CVT,MTM)..(GCC,PKN,TH) Production:2016-10 – … Replacements:11126-31040 (fitment: unknown) Spec:STD
11127-31030 MANCHON, GUIDE DE SOUPAPE D'ECHAPPEMENT 8
Note:3ZRFE..ZRE173..20G,GLI,XLI;2ZRFE..ZRE172..CVT..(PKN,TAIW);1ZRFBE,1ZRFE,2ZRFBE..ZRE171,172..(CVT,MTM)..(GCC,PKN,TH) Production:2016-10 – … Replacements:11127-31040 (fitment: unknown) Spec:O/S 0.05
11131-37040 SIEGE, SOUPAPE D'ADMISSION 8
Note:2ZRFE..ZRE172..CVT..VN;2ZRFE..ZRE172..18E..VN;2ZRFE..ZRE172..ARL,IDN,IND,MA,TAIW;1ZRFE,3ZRFE..ZRE171,173..GCC,GEN,MA,PHL,VN Production:2016-10 – 2020-06 Spec:STD,(J) Spec Note:STD,(Japan made)
11131-37040 SIEGE, SOUPAPE D'ADMISSION 8
Note:2ZRFE..ZRE172..18E..VN;1ZRFAE,1ZRFE,3ZRFE..ZRE171,173;2ZRFE..ZRE172..6F..(ARL,IDN,IND);2ZRFE..ZRE172..CVT..(ARL,IDN,IND,MA,PKN,TAIW) Production:2016-10 – 2022-07 Spec:STD
11132-37040 SIEGE, SOUPAPE D'ADMISSION 8
Note:2ZRFE..ZRE172..18E..VN;1ZRFE..ZRE171..4FC..GEN;2ZRFE..ZRE172..6F..(ARL,IDN,IND);1ZRFAE,1ZRFE,3ZRFE..ZRE171,173..CVT,MTM;2ZRFE..ZRE172..CVT..(ARL,IDN,IND,MA,PKN,TAIW) Production:2016-10 – … Spec:O/S 0.03
11135-37020 SIEGE, SOUPAPE D'ECHAPPEMENT 8
Note:2ZRFE..ZRE172..CVT..VN;2ZRFE..ZRE172..18E..VN;2ZRFE..ZRE172..ARL,IDN,IND,MA,TAIW;1ZRFAE,1ZRFE,3ZRFE..ZRE171,173..GCC,GEN,MA,PHL,SGP,VN Production:2016-10 – 2022-01 Spec:STD
11136-37040 SIEGE, SOUPAPE D'ECHAPPEMENT 8
Note:2ZRFE..ZRE172..18E..VN;1ZRFE..ZRE171..4FC..GEN;2ZRFE..ZRE172..6F..(ARL,IDN,IND);1ZRFAE,1ZRFE,3ZRFE..ZRE171,173..CVT,MTM;2ZRFE..ZRE172..CVT..(ARL,IDN,IND,MA,PKN,TAIW) Production:2016-10 – … Spec:O/S 0.03
90253-12002 GOUPILLE DE BAGUE 2
Note:2ZRFE..ZRE172..18E..VN;1ZRFE..ZRE171..4FC..GEN;2ZRFE..ZRE172..6F..(ARL,IDN,IND);1ZR#,2ZRFBE,3ZRFE..ZRE17#..CVT,MTM;2ZRFE..ZRE172..CVT..(ARL,IDN,IND,MA,PKN,TAIW) Production:2016-10 – …
12282-0T050 CROCHET SUSPENSION MOTEUR NO.2 1
Note:2ZRFE..ZRE172..CVT..VN;2ZRFE..ZRE172..18E..VN;2ZRFE..ZRE172..ARL,IDN,IND,MA,TAIW;1ZRF,1ZRFBE,1ZRFE,2ZRFBE,3ZRFE..ZRE17#..GCC,GEN,MA,PHL,TH,VN Production:2016-10 – 2022-01 Replacements:12282-37011 (fitment: unknown) Spec:W(PAINTED)
12282-37011 CROCHET SUSPENSION MOTEUR NO.2 1
Note:2ZRFE..ZRE172..18E..VN;1ZRFE..ZRE171..4FC..GEN;2ZRFE..ZRE172..6F..(ARL,IDN,IND);2ZRFE..ZRE172..CVT..(ARL,IDN,IND,MA,PKN,TAIW);1ZRF,1ZRFBE,1ZRFE,2ZRFBE,3ZRFE..ZRE17#..CVT,MTM Production:2016-10 – … Spec:W/O(PAINTED)
11115-37061 JOINT DE CULASSE 1
Note:2ZRFE..ZRE172..CVT..VN;2ZRFE..ZRE172..18E..VN;1ZR#,2ZRFBE,3ZRFE..ZRE17#;2ZRFE..ZRE172..ARL,IDN,IND,MA,PKN,TAIW Production:2016-10 – 2021-09 Replacements:11115-37062 (fitment: unknown)
12281-0T050 CROCHET SUSPENSION MOTEUR NO.1 1
Note:2ZRFE..ZRE172..CVT..VN;2ZRFE..ZRE172..18E..VN;2ZRFE..ZRE172..ARL,IDN,IND,MA,TAIW;1ZRF,1ZRFBE,1ZRFE,2ZRFBE,3ZRFE..ZRE17#..GCC,GEN,MA,PHL,TH,VN Production:2016-10 – 2022-01 Replacements:12281-37021 (fitment: unknown) Spec:W(PAINTED)
12281-37021 CROCHET SUSPENSION MOTEUR NO.1 1
Note:2ZRFE..ZRE172..18E..VN;1ZRFE..ZRE171..4FC..GEN;2ZRFE..ZRE172..6F..(ARL,IDN,IND);2ZRFE..ZRE172..CVT..(ARL,IDN,IND,MA,PKN,TAIW);1ZRF,1ZRFBE,1ZRFE,2ZRFBE,3ZRFE..ZRE17#..CVT,MTM Production:2016-10 – … Spec:W/O(PAINTED)
90253-13005 GOUPILLE ANNULAIRE (P.POSE DE CHAP. PALIER D'ARBRE CAME) 10
Note:2ZRFE..ZRE172..18E..VN;1ZRFE..ZRE171..4FC..GEN;2ZRFE..ZRE172..6F..(ARL,IDN,IND);2ZRFE..ZRE172..CVT..(ARL,IDN,IND,MA,PKN,TAIW);1ZRF,1ZRFBE,1ZRFE,2ZRFBE,3ZRFE..ZRE17#..CVT,MTM Production:2016-10 – … Spec:L=12.5,OD=8
90109-06385 standard —
90109-T0062 standard —
Replacements:90109-06385 (fitment: unknown)
90099-14137 standard —
90430-T0015 standard —
Replacements:90430-10024 (fitment: unknown)
90430-10024 standard —
90105-T0051 standard —
Replacements:91551-80616 (fitment: unknown)
91551-80616 standard —
91551-80625 standard —
90105-T0052 standard —
Replacements:91551-80625 (fitment: unknown)
91671-80616 standard —
90119-T0260 standard —
Replacements:91671-80616 (fitment: unknown)
91552-81050 standard —
90105-T0270 standard —
Replacements:91552-81050 (fitment: unknown)
90301-T0086 standard —
Replacements:96721-24015 (fitment: unknown)
96721-24015 standard —

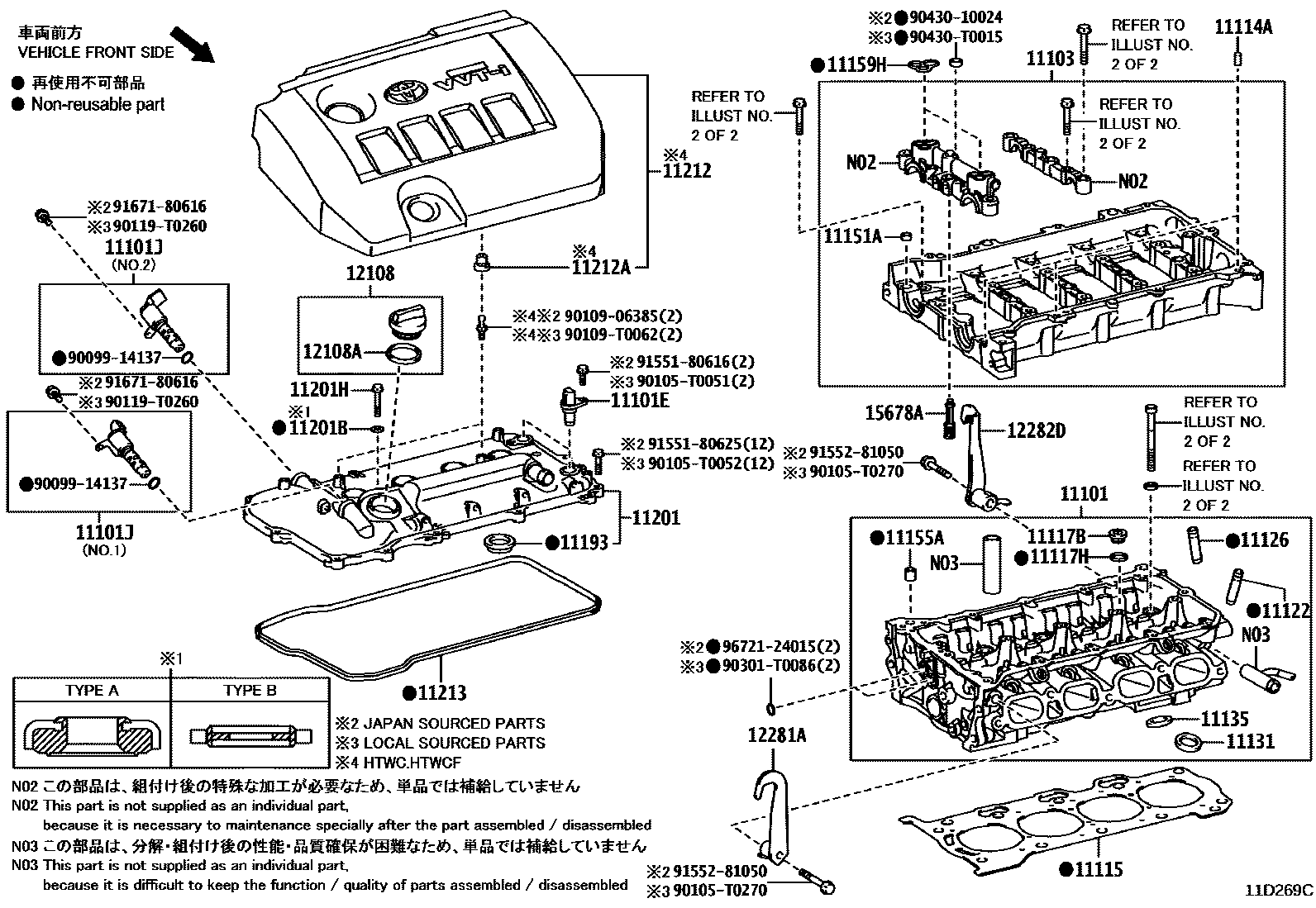

Schéma

61 pièces
Toyota Corolla-Altis 2017 — Culasse
