Open RégionAnnéeModèleCode modèle Détails
General 2022 AVALON CHINA MXXA50L-JEXBBC
Catalog: TOYOTA202608 Engine: 2000CC 16-VALVE DOHC Transmission Description: CONTINUOUSLY VARIABLE TRANSMISSION Body Description: SEDAN Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: CHINA Doors Description: 4-DOOR Color Code: 209 Trim Code: LC20 Production: 201910-202106 Model Short: MXXA50L-JEXBBC Region: OTHER Native Region: GR

Toyota Avalon-China 2022 — Culasse

Voir les schémas du véhicule

Pièces de rechange

Numéro de pièceDescriptionPNCQuantité
11101-29635 SOUS-ENS. DE CULASSE 1
Note:M20..MXXA50 Production:2021-06 – 2022-02 Replacements:11101-29636 (fitment: unknown) Spec:*132 Spec Note:*132(ENGINE NO.=0XXXXXX-9XXXXXX)
11101-F9020 SOUS-ENS. DE CULASSE 1
Note:M20..MXXA50 Production:2021-06 – 2022-11 Replacements:11101-F9021 (fitment: unknown) Spec:*633 Spec Note:*633(ENGINE NO.=GA*****-GZ***** OR KA*****-KZ*****)
11103-24011 SOUS-ENS. DE BOITIER D'ARBRE A CAMES 1
Note:M20..MXXA50 Production:2021-06 – 2022-02 Spec:*132 Spec Note:*132(ENGINE NO.=0XXXXXX-9XXXXXX)
11103-F2051 SOUS-ENS. DE BOITIER D'ARBRE A CAMES 1
Note:M20..MXXA50 Production:2021-06 – 2022-08 Spec:*633 Spec Note:*633(ENGINE NO.=GA*****-GZ***** OR KA*****-KZ*****)
11115-24040 JOINT DE CULASSE 1
Note:M20..MXXA50 Production:2021-06 – 2022-02 Spec:*132 Spec Note:*132(ENGINE NO.=0XXXXXX-9XXXXXX)
11115-F2020 JOINT DE CULASSE 1
Note:M20..MXXA50 Production:2021-06 – 2023-03 Spec:*633 Spec Note:*633(ENGINE NO.=GA*****-GZ***** OR KA*****-KZ*****)
90253-12002 AXE, BAGUE 2
Note:M20..MXXA50 Production:2021-06 – 2022-02 Spec:*132 Spec Note:*132(ENGINE NO.=0XXXXXX-9XXXXXX)
90253-C0002 AXE, BAGUE 2
Note:M20..MXXA50 Production:2021-06 – 2023-03 Spec:*633 Spec Note:*633(ENGINE NO.=GA*****-GZ***** OR KA*****-KZ*****)
90341-14015 OBTURATEUR FILETE AVEC TETE RECTILIGNE NO. 1 4
Note:M20..MXXA50 Production:2021-06 – 2022-02 Spec:*132 Spec Note:*132(ENGINE NO.=0XXXXXX-9XXXXXX)
90341-C0012 OBTURATEUR FILETE AVEC TETE RECTILIGNE NO. 1 4
Note:M20..MXXA50 Production:2021-06 – 2023-03 Replacements:90341-14015 (fitment: unknown) Spec:*633 Spec Note:*633(ENGINE NO.=GA*****-GZ***** OR KA*****-KZ*****)
11122-31090 MANCHON, GUIDE DE SOUPAPE D'ADMISSION 8
Note:M20..MXXA50 Production:2021-06 – 2022-02 Spec:STD,*132 Spec Note:STD,*132(ENGINE NO.=0XXXXXX-9XXXXXX)
11123-31090 MANCHON, GUIDE DE SOUPAPE D'ADMISSION 8
Note:M20..MXXA50 Production:2021-06 – 2022-02 Spec:O/S 0.05,*132 Spec Note:O/S 0.05,*132(ENGINE NO.=0XXXXXX-9XXXXXX)
11122-31090 MANCHON, GUIDE DE SOUPAPE D'ADMISSION 8
Note:M20..MXXA50 Production:2021-06 – 2023-03 Spec:STD,*633 Spec Note:STD,*633(ENGINE NO.=GA*****-GZ***** OR KA*****-KZ*****)
11123-31090 MANCHON, GUIDE DE SOUPAPE D'ADMISSION 8
Note:M20..MXXA50 Production:2021-06 – 2023-03 Spec:O/S 0.05,*633 Spec Note:O/S 0.05,*633(ENGINE NO.=GA*****-GZ***** OR KA*****-KZ*****)
11122-31041 MANCHON, GUIDE DE SOUPAPE D'ECHAPPEMENT 8
Note:M20..MXXA50 Production:2021-06 – 2022-02 Replacements:11122-47010 (fitment: unknown) Spec:STD,*132 Spec Note:STD,*132(ENGINE NO.=0XXXXXX-9XXXXXX)
11123-31041 MANCHON, GUIDE DE SOUPAPE D'ECHAPPEMENT 8
Note:M20..MXXA50 Production:2021-06 – 2022-02 Replacements:11123-47010 (fitment: unknown) Spec:O/S 0.05,*132 Spec Note:O/S 0.05,*132(ENGINE NO.=0XXXXXX-9XXXXXX)
11122-47010 MANCHON, GUIDE DE SOUPAPE D'ECHAPPEMENT 8
Note:M20..MXXA50 Production:2021-06 – 2023-03 Spec:STD,*633 Spec Note:STD,*633(ENGINE NO.=GA*****-GZ***** OR KA*****-KZ*****)
11123-47010 MANCHON, GUIDE DE SOUPAPE D'ECHAPPEMENT 8
Note:M20..MXXA50 Production:2021-06 – 2023-03 Spec:O/S 0.05,*633 Spec Note:O/S 0.05,*633(ENGINE NO.=GA*****-GZ***** OR KA*****-KZ*****)
11135-24020 SIEGE, SOUPAPE D'ECHAPPEMENT 8
Note:M20..MXXA50 Production:2021-06 – 2022-02 Spec:STD,*132 Spec Note:STD,*132(ENGINE NO.=0XXXXXX-9XXXXXX)
11135-F2030 SIEGE, SOUPAPE D'ECHAPPEMENT 8
Note:M20..MXXA50 Production:2021-06 – 2023-03 Replacements:11135-24020 (fitment: unknown) Spec:STD,*633 Spec Note:STD,*633(ENGINE NO.=GA*****-GZ***** OR KA*****-KZ*****)
90119-07009 BOULON (INSTAL. BOITIER CHAP. PAL. ARB. CAMES) 9
Note:M20..MXXA50 Production:2021-06 – 2022-02 Spec:*132 Spec Note:*132(ENGINE NO.=0XXXXXX-9XXXXXX)
90119-C0469 BOULON (INSTAL. BOITIER CHAP. PAL. ARB. CAMES) 9
Note:M20..MXXA50 Production:2021-06 – 2023-03 Spec:(L),*633 Spec Note:(Local made),*633(ENGINE NO.=GA*****-GZ***** OR KA*****-KZ*****)
90253-13005 GOUPILLE, BAGUE 10
Note:M20..MXXA50 Production:2021-06 – 2022-02 Spec:*132 Spec Note:*132(ENGINE NO.=0XXXXXX-9XXXXXX)
90253-13005 GOUPILLE, BAGUE 10
Note:M20..MXXA50 Production:2021-06 – 2022-05 Spec:*633 Spec Note:*633(ENGINE NO.=GA*****-GZ***** OR KA*****-KZ*****)
11159-31040 JOINT ETANC., ORIFICE GRAISSAGE CHAP. PAL. ARB. CAMES 1
Note:M20..MXXA50 Production:2021-06 – 2022-02 Spec:*132 Spec Note:*132(ENGINE NO.=0XXXXXX-9XXXXXX)
11159-F2010 JOINT ETANC., ORIFICE GRAISSAGE CHAP. PAL. ARB. CAMES 1
Note:M20..MXXA50 Production:2021-06 – 2023-03 Spec:*633 Spec Note:*633(ENGINE NO.=GA*****-GZ***** OR KA*****-KZ*****)
11193-37030 JOINT DE TUBE DE BOUGIE 4
Note:M20..MXXA50 Production:2021-06 – 2022-02 Spec:*132 Spec Note:*132(ENGINE NO.=0XXXXXX-9XXXXXX)
11193-F2020 JOINT DE TUBE DE BOUGIE 4
Note:M20..MXXA50 Production:2021-06 – 2023-03 Spec:*633 Spec Note:*633(ENGINE NO.=GA*****-GZ***** OR KA*****-KZ*****)
11201-24032 SOUS-ENS. DE COUVERCLE DE CULASSE 1
Note:M20..MXXA50 Production:2021-12 – 2022-02 Spec:*132 Spec Note:*132(ENGINE NO.=0XXXXXX-9XXXXXX)
11201-F2050 SOUS-ENS. DE COUVERCLE DE CULASSE 1
Note:M20..MXXA50 Production:2021-06 – 2022-05 Replacements:11201-F2051 (fitment: unknown) Spec:*633 Spec Note:*633(ENGINE NO.=GA*****-GZ***** OR KA*****-KZ*****)
11213-24020 JOINT DE CULASSE 1
Note:M20..MXXA50 Production:2021-06 – 2022-02 Spec:*132 Spec Note:*132(ENGINE NO.=0XXXXXX-9XXXXXX)
11213-24020 JOINT DE CULASSE 1
Note:M20..MXXA50 Production:2021-06 – 2022-06 Spec:*633 Spec Note:*633(ENGINE NO.=GA*****-GZ***** OR KA*****-KZ*****)
11213-31080 JOINT DE CULASSE NO. 2 6
Note:M20..MXXA50 Production:2021-06 – 2022-02 Spec:*132 Spec Note:*132(ENGINE NO.=0XXXXXX-9XXXXXX)
11213-31080 JOINT DE CULASSE NO. 2 6
Note:M20..MXXA50 Production:2021-06 – 2023-03 Spec:*633 Spec Note:*633(ENGINE NO.=GA*****-GZ***** OR KA*****-KZ*****)
12204-25010 SOUS.-ENS. DE SOUPAPE D'AERAGE 1
Note:M20..MXXA50 Production:2021-06 – 2022-02 Spec:*132 Spec Note:*132(ENGINE NO.=0XXXXXX-9XXXXXX)
12204-F2020 SOUS.-ENS. DE SOUPAPE D'AERAGE 1
Note:M20..MXXA50 Production:2021-06 – 2023-03 Replacements:12204-25010 (fitment: unknown) Spec:*633 Spec Note:*633(ENGINE NO.=GA*****-GZ***** OR KA*****-KZ*****)
96741-19010 JOINT, TORIQUE(POUR GUIDE JAUGE NIVEAU HUILE) 1
Note:M20..MXXA50 Production:2021-06 – 2022-02 Spec:*132 Spec Note:*132(ENGINE NO.=0XXXXXX-9XXXXXX)
96741-19010 JOINT, TORIQUE(POUR GUIDE JAUGE NIVEAU HUILE) 1
Note:M20..MXXA50 Production:2021-06 – 2022-08 Spec:*633 Spec Note:*633(ENGINE NO.=GA*****-GZ***** OR KA*****-KZ*****)
11452-24020 GUIDE, JAUGE NIVEAU HUILE 1
Note:M20..MXXA50 Production:2021-06 – 2022-02 Spec:*132 Spec Note:*132(ENGINE NO.=0XXXXXX-9XXXXXX)
11452-F2050 GUIDE, JAUGE NIVEAU HUILE 1
Note:M20..MXXA50 Production:2021-06 – 2023-03 Spec:*633 Spec Note:*633(ENGINE NO.=GA*****-GZ***** OR KA*****-KZ*****)
15301-24030 SOUS-ENSEMBLE JAUGE NIVEAU HUILE 1
Note:M20..MXXA50 Production:2021-06 – 2022-02 Spec:*132 Spec Note:*132(ENGINE NO.=0XXXXXX-9XXXXXX)
15301-F2070 SOUS-ENSEMBLE JAUGE NIVEAU HUILE 1
Note:M20..MXXA50 Production:2021-06 – 2023-03 Replacements:15301-F2030 (fitment: unknown) Spec:*633 Spec Note:*633(ENGINE NO.=GA*****-GZ***** OR KA*****-KZ*****)
96741-19005 JOINT TORIQUE (JAUGE NIVEAU HUILE) 1
Note:M20..MXXA50 Production:2021-06 – 2022-02 Spec:*132 Spec Note:*132(ENGINE NO.=0XXXXXX-9XXXXXX)
90301-C0083 JOINT TORIQUE (JAUGE NIVEAU HUILE) 1
Note:M20..MXXA50 Production:2021-07 – 2023-03 Spec:(L),*633 Spec Note:(Local made),*633(ENGINE NO.=GA*****-GZ***** OR KA*****-KZ*****)
96741-19005 JOINT TORIQUE (JAUGE NIVEAU HUILE) 1
Note:M20..MXXA50 Production:2021-07 – 2023-03 Spec:(J),*633 Spec Note:(Japan made),*633(ENGINE NO.=GA*****-GZ***** OR KA*****-KZ*****)
12282-25010 CROCHET SUSPENSION MOTEUR NO.2 1
Note:M20..MXXA50 Production:2021-06 – 2022-02 Spec:*132 Spec Note:*132(ENGINE NO.=0XXXXXX-9XXXXXX)
12282-F2010 CROCHET SUSPENSION MOTEUR NO.2 1
Note:M20..MXXA50 Production:2021-06 – 2023-03 Spec:*633 Spec Note:*633(ENGINE NO.=GA*****-GZ***** OR KA*****-KZ*****)
25759-24010 SUPPORT, RESERV ACCUMUL DEPRESSION 1
Note:M20..MXXA50 Production:2021-06 – 2022-02 Spec:*132 Spec Note:*132(ENGINE NO.=0XXXXXX-9XXXXXX)
25759-F2020 SUPPORT, RESERV ACCUMUL DEPRESSION 1
Note:M20..MXXA50 Production:2021-06 – 2023-03 Spec:*633 Spec Note:*633(ENGINE NO.=GA*****-GZ***** OR KA*****-KZ*****)
11492-24010 PLAQUE DE JOINT D'EAU 1
Note:M20..MXXA50 Production:2021-06 – 2022-02 Spec:*132 Spec Note:*132(ENGINE NO.=0XXXXXX-9XXXXXX)
11492-24010 PLAQUE DE JOINT D'EAU 1
Note:M20..MXXA50 Production:2021-06 – 2022-07 Spec:*633 Spec Note:*633(ENGINE NO.=GA*****-GZ***** OR KA*****-KZ*****)
16258-24010 JOINT DE PLAQUE DE JOINT D'EAU 1
Note:M20..MXXA50 Production:2021-06 – 2022-02 Spec:*132 Spec Note:*132(ENGINE NO.=0XXXXXX-9XXXXXX)
16258-F2030 JOINT DE PLAQUE DE JOINT D'EAU 1
Note:M20..MXXA50 Production:2021-06 – 2023-01 Spec:*633 Spec Note:*633(ENGINE NO.=GA*****-GZ***** OR KA*****-KZ*****)
90919-05096 CAPTEUR, POSITION DE ARBRE A CAMES 2
Note:M20..MXXA50 Production:2021-06 – 2022-02 Spec:*132 Spec Note:*132(ENGINE NO.=0XXXXXX-9XXXXXX)
90919-05096 CAPTEUR, POSITION DE ARBRE A CAMES 2
Note:M20..MXXA50 Production:2021-06 – 2023-03 Spec:*633 Spec Note:*633(ENGINE NO.=GA*****-GZ***** OR KA*****-KZ*****)
90430-35001 JOINT (P. BOUCHON DE REMPLISSAGE D'HUILE) 1
Note:M20..MXXA50 Production:2021-06 – 2022-02 Spec:*132 Spec Note:*132(ENGINE NO.=0XXXXXX-9XXXXXX)
90430-35001 JOINT (P. BOUCHON DE REMPLISSAGE D'HUILE) 1
Note:M20..MXXA50 Production:2021-06 – 2023-03 Spec:*633 Spec Note:*633(ENGINE NO.=GA*****-GZ***** OR KA*****-KZ*****)
12180-38010 ASS.CAPUCHON, REMPLISSEUR HUILE 1
Note:M20..MXXA50 Production:2021-06 – 2022-02 Spec:*132 Spec Note:*132(ENGINE NO.=0XXXXXX-9XXXXXX)
12180-0V010 ASS.CAPUCHON, REMPLISSEUR HUILE 1
Note:M20..MXXA50 Production:2021-06 – 2023-03 Replacements:12180-38010 (fitment: unknown) Spec:*633 Spec Note:*633(ENGINE NO.=GA*****-GZ***** OR KA*****-KZ*****)
12601-F2050 SOUS-ENS. COUVERCLE MOTEUR NO.1 1
Note:M20..MXXA50 Production:2021-06 – 2023-03
12611-F2040 COUVERCLE MOTEUR NO.1 1
Note:M20..MXXA50 Production:2021-06 – 2023-03
90301-11038 JOINT TORIQUE, CAPTEUR DE POSITION D'ARBRE A CAMES 2
Note:M20..MXXA50 Production:2021-06 – 2022-02 Spec:*132 Spec Note:*132(ENGINE NO.=0XXXXXX-9XXXXXX)
90301-11038 JOINT TORIQUE, CAPTEUR DE POSITION D'ARBRE A CAMES 2
Note:M20..MXXA50 Production:2021-06 – 2023-03 Spec:*633 Spec Note:*633(ENGINE NO.=GA*****-GZ***** OR KA*****-KZ*****)
— Cette pièce ne correspond pas à la configuration de ce véhicule. 11117G —
90119-06A12 standard —
90119-C0671 standard —
90105-06352 standard —
90105-06359 standard —
90105-C0367 standard —
91552-F1040 standard —
90105-C0423 standard —

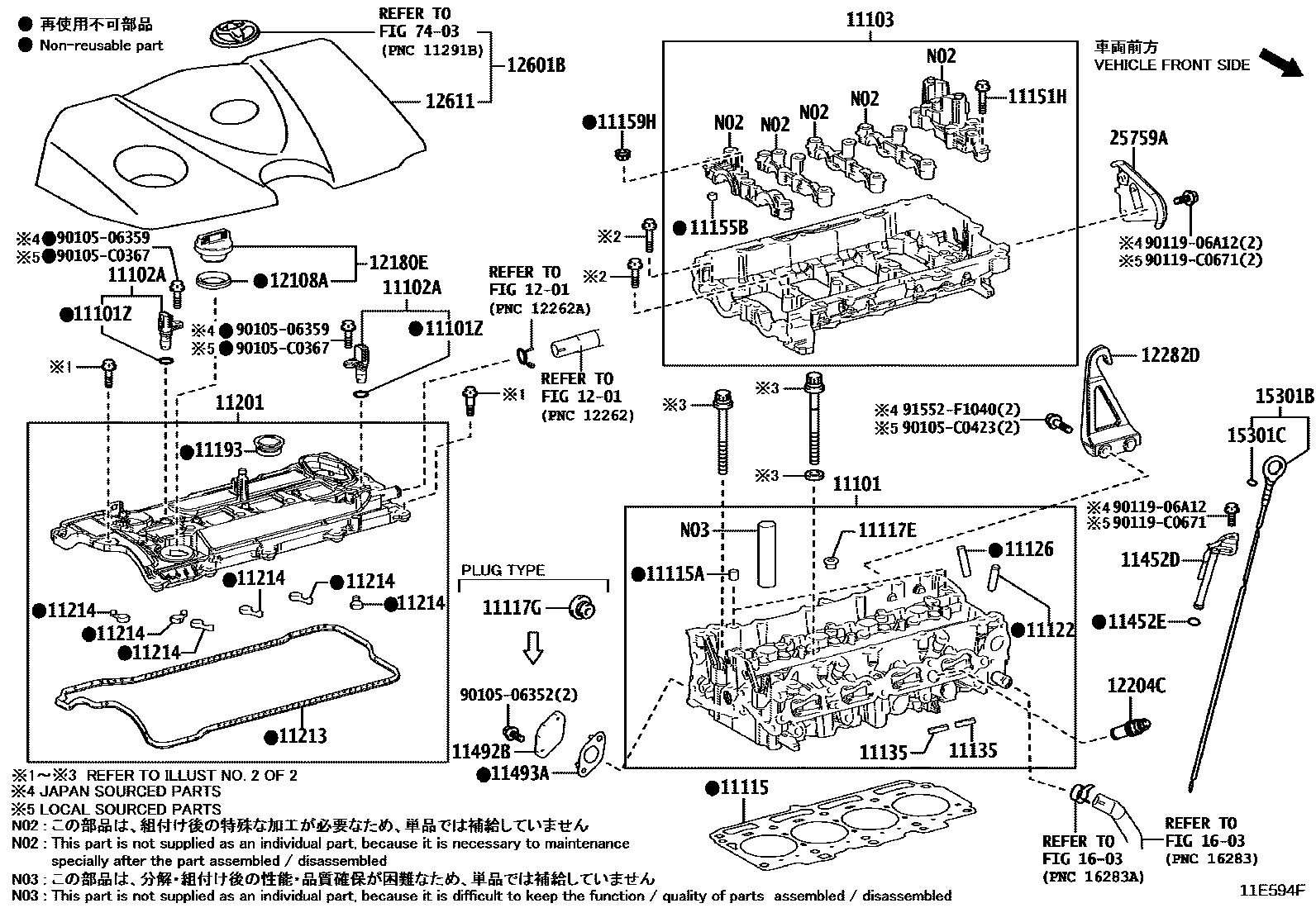

Schéma

70 pièces
Toyota Avalon-China 2022 — Culasse
