Open RegiónAñoModeloCódigo de modelo Detalles
General 2014 Rio 12 IHS4K3615
Catalog: KIA202602 Model: IHS4K3615 Model Year: 2015 Engine Number: G4LAEP001863 Transmission Number: HA131130015 Destination: GEN Nation: B08 Plant: K2 Exterior Color: CLEAR WHITE Interior Color: ARMANI BLACK Drive Type: DRIVE TYPE - LHD Weather Type: WEATHER - THE TROPICAL ZONE Body Type: SEDAN - 4DR 5P Engine Capacity: 1200 CC - KAPPA Engine Type: DOHC - MPI Fuel Type: GASOLINE - UNLEADED Transaxle: MANUAL T/M - 5 SPEED 2WD Build Date: 2014-01-11 Nation Code: B08 Area: K2 Drive Type: L Weather Type: 1 Order Number: E1401B001B08A Vehicle Factory: 148 Full Specification Code: B08AIHS4K3615 GNW203 Exterior Color Code: UD Interior Color Code: HU Engine Mip Code: WN39 Transmission Mip Code: 930 Vin Tag: 1 Model Year Code: 12 Catalog Information: (S4) SEDAN - 4DR 5P,(K3) 1200 CC - KAPPA,(6) DOHC - MPI,(1) GASOLINE - UNLEADED,(5) MANUAL T/M - 5 SPEED 2WD,(L) DRIVE TYPE - LHD,(1) WEATHER - THE TROPICAL ZONE Region: OTHER Native Region: KGENPIH12

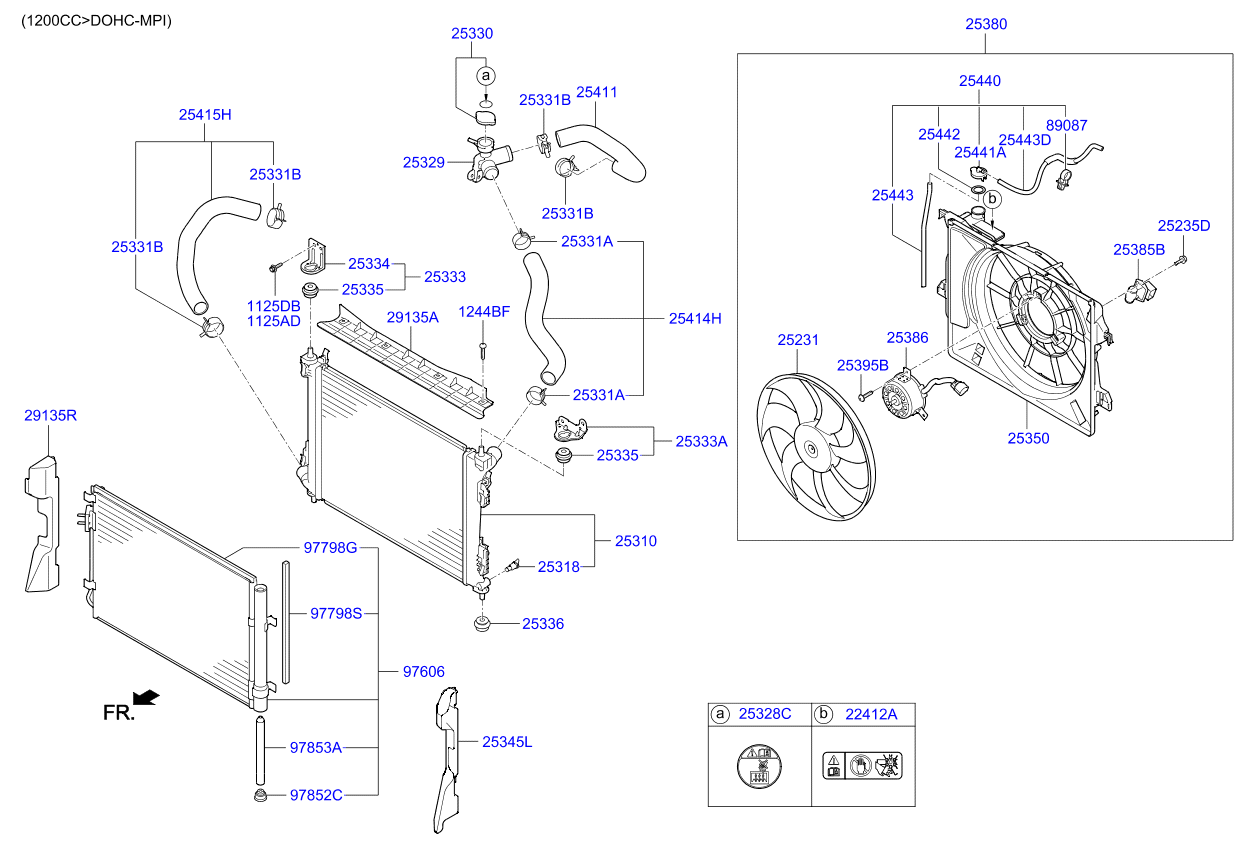

Kia Rio 12 2014 — Engine Cooling System

Ver los diagramas del vehículo

Piezas de repuesto

Número de parteDescripciónPNCCantidad
1125106206B BOLT 2
Production:2011-05-11 – 2015-03-11
1125106206B BOLT 4
Production:2010-12-01 – …
1244105167B SCREW - TAPPING 4
Production:2011-05-30 – …
253881P000 LABEL - CAUTION 1
Production:2011-03-31 – …
252311R390 FAN - COOLING 1
Production:2010-12-01 – …
253101R000 RADIATOR ASSY 1
Production:2010-12-01 – …
253181D100 PLUG - RADIATOR DRAIN 1
Production:2010-12-01 – …
253281P000 LABEL - RADIATOR CAP 1
Production:2011-03-02 – …
253291W100 FILLER NECK ASSY - RADIATOR 1
Production:2011-02-01 – …
253303Z000 CAP ASSY - RADIATOR 1
Production:2011-03-02 – …
253313D044 CLAMP - (HOSE) 2
Production:2010-12-01 – 2014-05-08
253313D041 CLAMP - (HOSE) 2
Production:2010-12-01 – 2014-05-08
253313D041 CLAMP - (HOSE) 2
Production:2011-03-02 – 2014-05-08
253331W000 BRACKET ASSY - RADIATOR MOUNTING, UPPER 1
Production:2010-12-01 – …
253331W100 BRACKET ASSY - RADIATOR MOUNTING, UPPER 1
Production:2010-12-01 – …
253341W000 BRACKET - RADIATOR UPPER MOUNTING 2
Production:2010-12-01 – …
253351P000 INSULATOR - RADIATOR MOUNTING, UPPER 2
Production:2010-12-01 – …
253361P000 INSULATOR - RADIATOR MOUNTING, LOWER 2
Production:2010-12-01 – …
253501W001 SHROUD - RADIATOR 1
Production:2013-05-31 – 2015-02-03
253801W012 BLOWER ASSY 1
Production:2013-05-31 – …
253861R120 MOTOR - RADIATOR COOLING FAN 1
Production:2010-12-01 – …
253951M000 TAP BOLT 3
Production:2010-12-01 – …
254111W000 HOSE - RADIATOR, UPPER 1
Production:2010-12-01 – …
254141W100 HOSE ASSY - RADIATOR, UPPER 1
Production:2010-12-01 – …
254151W100 HOSE ASSY - RADIATOR, LOWER 1
Production:2010-12-01 – …
254401W000 CAP ASSY - RADIATOR RESERVOIR 1
Production:2010-12-01 – …
254422F800 GASKET - RADIATOR RESERVOIR CAP 1
Production:2010-12-01 – …
254431R000 HOSE - RADIATOR RESERVOIR CAP 1
Production:2010-12-01 – …
254431W000 HOSE - RADIATOR RESERVOIR 1
Production:2010-12-01 – …
291351W000 GUARD - AIR 1
Production:2010-12-01 – …
911113B000 CABLE - BEND 1
Production:2011-03-31 – …
976061R000 CONDENSER ASSY - COOLER 1
Production:2010-12-01 – …
977981R100 SEAL - CONDENSER 1
Production:2010-12-01 – …
977981R000 SEAL - CONDENSER 2
Production:2010-12-01 – …
978031R000 CAP ASSY - RECEIVER DRYER 1
Production:2010-12-01 – …
978532F100 DESICCANT ASSY - RECEIVER DRIER 1
Production:2010-12-21 – …

Diagrama

36 piezas
Kia Rio 12 2014 — Engine Cooling System
