Open RegiónAñoModeloCódigo de modelo Detalles
General 2010 TFR/TFS(EUROPE) LHD 50966~2004~9999
Catalog: ISUZU201809 Vehicle Class: PICKUP Model Qualifier: TF Source Catalog Name: TFR/TFS(EUROPE)-LHD 04 - Source Production Code: 20100524 Production Date: 20100524 Color: 505-BODY COLOR ROYAL GRAY MET. Interior Color: 101-INTERIOR COLOR BLACK D34: SUNVISOR PASSENGER SIDE W/VANITY MIRROR Uca: ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER E63: REAR BODY DBL WALL CTR PULL T92: HEAD LAMP BEAM MODIFICATION Ujh: OUTSIDE TEMPERATURE GAGE A31: DRIVER POWER WINDOW W/AUTO DOOR DOWN D31: RR VIEW MIRROR TILT DAY & NIGHT 7 Kc: IMMOBILIZER SYSTEM S9 R: AIR CLEANER DRY ELEMENT C13: FRT WIPER 2 SPEED & INTERMITTENT N40: POWER STEERING Dk6: HEADER CONSOLE Nt4: EURO4 SPECIFICATION Vf6: REAR STEP BUMPER C60: AIR CONDITIONER MANUAL CONTROL E20: HANDLE O/S DOOR CHROME Gt4: FINAL GEAR RATIO 41/11 Px0: DISC WHEEL 16X7 ALUMI SILVER E09: EUROPE EQUIPMENT Ap5: REMOTE CONT DOOR LOCK KEYLESS ENTRY WITH BCM A50: FRONT SEAT BUCKET STANDARD Vy7: SHIFT KNOB LEATHER By9: KNOB DECORATION W/CHROME RING Vt4: FRT BUMPER UPPER BODY COLOR LOWER GRAY PAINT Au4: AUTO DOOR LOCK T79: RR FOG LAMP 7 We: SKID PLATE Bso: IDENTIFICATION BREAKING POINT 2010.5 M.Y. B74: OVER FENDER Nr4: SHIFT ON THE FLY Ny1: FUEL TANK SHIELD V22: BRIGHT RAD GRILLE E91: FRONT SEAT BACK POCKET U05: DUAL TONE HORN 8 Jg: WHEEL BALANCE WEIGHTED STEEL TYPE Ak5: AIR BAG DRIVER & PASSENGER Np5: LEATHER-WRAPPED STEERING WHEEL 4SPOKES A99: LOCK GLOVE BOX U16: TACHOMETER B30: VINYL CARPET U27: LAMP GLOVE COMPARTMENT 8 Lh: HEADLAMPS PROJECTOR BEAM 8 Mb: INTERIOR STEERING CENTER PAD BADGE Uw5: 6-SPEAKER SYSTEM BASE Dnq: DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL Kc5: ACCESSORY SOCKET FRT CONSOLE 7 Xw: SIDE TURN SIGNAL LAMP T96: FRT FOG LAMP C49: REAR DEFOGGER S8 C: REAR HEATER DUCT G80: AXLE POSITRACTION LIMITED SLIP T48: KEYS IN IGNITION REMINDER SYSTEM ALARM T63: HEAD LAMP WARNING ALARM Ts6: HIGH MOUNT STOP LAMP N08: FUEL LID OPENER A70: SEAT BELT TENSIONER FRT Qcq: FRT&RR 245/70R16 BRIDGESTONE DUELER H/T689 K30: MECHANICAL AUTO CRUISE E28: ASSIST HANDLE B84: PROTECTOR-BODY SIDE MOLDING Ue8: ELECTRIC DIGITAL CLOCK D55: FRONT CONSOLE W/LID 7 Ql: INST PANEL FOR DIN E SIZE AUDIO V2 K: DECAL ISUZU D-MAX 505: BODY COLOR ROYAL GRAY MET. N33: TILT STEERING 8 Lm: SEAT TRIM HIGH GRADE CLOTH JACQUARD 7 Wl: ISUZU BRAND U71: ROOF RADIO ANTENNA 8 Cm: POLLEN FILTER FOR AIR CONDITIONER Je5: ANTI-LOCK BRAKE-'93'94- 8 Aa: GOOD QUALITY ETHYLENE GLYCOL ANTIFREEZE 50% Tq8: BATTERY 95D31L 101: INTERIOR COLOR BLACK Region: OTHER Native Region: WW

Isuzu TFR/TFS(Europe)-LHD 2010 — Engine Electrical Control Parts — 4JJ1-TCX,4JK1-TCX(No.3)

Ver los diagramas del vehículo

Piezas de repuesto

Número de parteDescripciónPNCCantidad
8980508330 02.343 BRACKET; HARNESS TO BODY 1
Production:2006-10 – 9999-99 Usage:(D) Manufacturer:ISUZU Applied Date:0610- Applied Model:CD 8 Digit P/n:98050833
8980508840 02.343 BRACKET; HARNESS TO BODY 1
Production:2006-10 – 9999-99 Usage:(C) Manufacturer:ISUZU Applied Date:0610- Applied Model:CD 8 Digit P/n:98050884
0911801060 02.343 NUT; BRKT FIX 1
Production:2006-10 – 9999-99 Usage:BATTERY 75D26L-DUAL(TQ9),BATTERY80D26L-DUAL(8HU)01.062(A)M6 FLANGE Manufacturer:ISUZU Applied Date:0610- Applied Model:CD 8 Digit P/n:94012038
0911801060 02.343 NUT; BRKT FIX 1
Production:2006-10 – 9999-99 Usage:01.062(A)M6 FLANGE Manufacturer:ISUZU Applied Date:0610- Applied Model:CD 8 Digit P/n:94012038
8980086870 01.150 SENSOR; MASS AIR FLOW (MAF) 1
Production:2006-10 – 9999-99 Usage:OUTSIDE TEMPERATURE GAGE<UJH> Manufacturer:ISUZU Applied Date:0610- Applied Model:CD 8 Digit P/n:98008687
0280506120 02.559 BOLT 1
Production:2006-10 – 2010-07 Usage:ISUZU BRAND<7WL>03.162M6X12 FLANGE Manufacturer:ISUZU Applied Date:0610-1007 Applied Model:CD 8 Digit P/n:94011756
8981661340 02.510 DRM 1
Production:2010-03 – 2010-07 Usage:ISUZU BRAND<7WL> Manufacturer:ISUZU Applied Date:1003-1007 Applied Model:CD 8 Digit P/n:98166134

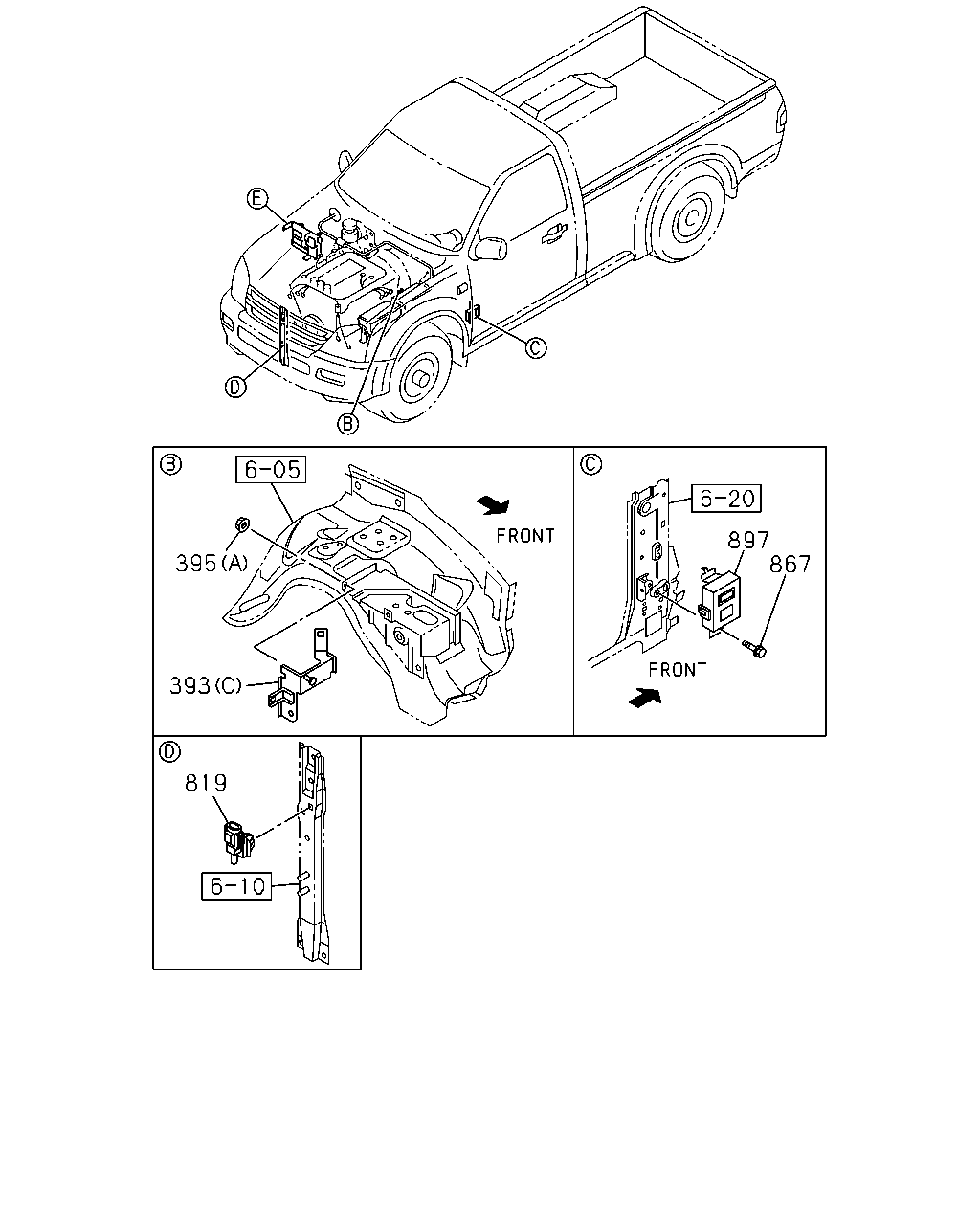

Diagrama

7 piezas
Isuzu TFR/TFS(Europe)-LHD 2010 — Engine Electrical Control Parts — 4JJ1-TCX,4JK1-TCX(No.3)
