Toyota Hilux 2012 — Pompe A Vide
Pièces de rechange
| Numéro de pièce | Description | PNC | Quantité |
|---|---|---|---|
| 29300-0L010 | ENS. DE POMPE A VIDE | 1 | |
Note:2KDFTV..KUN25;2KDFTV..KUN15..RHD;2KDFTV..KUN15..LHD..SCB..DCR;2KDFTV..KUN15..LHD..(DCB,XTR);1KDFTV..KUN26..(SADCB,THDCB)..4FC;1KDFTV..KUN26..LHD..DCB..4FC..GEN;2KDFTV..KUN35..(4FC,5F)..(CO,LA,PHL,SA,TH);1KDFTV,2KDFTV..KUN26,35..LHD..(DCB,THDCB)..5F..GEN;1KDFTV,2KDFTV..KUN10,16,26,36..CO,GCC,IDN,LA,MA,PHL,SA,TH Production:2011-07 – 2016-09 Replacements:29300-67020 (fitment: unknown) Spec:*130 Spec Note:*130(ENGINE NO.=0****-4****,6****,8****-9****,S****-U****) | |||
| 29300-67020 | ENS. DE POMPE A VIDE | 1 | |
Note:1KDFTV..KUN36..4FC;2KDFTV..KUN35..4FC,5FC;1KDFTV..KUN36..5F..(GEN,SA);2KDFTV..KUN15..(SMT,XTR)..SR;1KDFTV,2KDFTV..KUN10,16..4FC,5F;1KDFTV,2KDFTV..KUN2#..4FC..(IDN,TH);2KDFTV..KUN15,35..DCB..5F..SR..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN2#..ARL,GCC,GEN,MA,PHL,PKN,SA;2KDFTV..KUN15,35..(DLX,STD)..(GCC,GEN,PHL,PKN,SA,TH) Production:2011-07 – 2016-10 Spec:*360 Spec Note:*360(ENGINE NO.=5XXXXXX OR7XXXXXX OR AXXXXXX-CXXXXXX) | |||
| 29351-67020 | ENGRENAGE DE POMPE A DEPRESSION | 1 | |
Note:1KDFTV,2KDFTV..KUN1#,2#,3# Production:2011-07 – 2016-10 | |||
| 29342-58010 | JOINT TORIQUE | 1 | |
Note:1KDFTV,2KDFTV..KUN1#,2#,3# Production:2011-07 – 2016-10 | |||
| 90099-10185 | ROULEMENT DE POMPE A VIDE | 1 | |
Note:1KDFTV,2KDFTV..KUN1#,2#,3# Production:2011-07 – 2016-10 | |||
| 29303-67020 | SOUS-ENS. DE ROTOR DE POMPE A VIDE | 1 | |
Note:1KDFTV,2KDFTV..KUN1#,2#,3# Production:2011-07 – 2016-10 | |||
| 29336-58050 | ARBRE DE POMPE | 1 | |
Note:1KDFTV,2KDFTV..KUN1#,2#,3# Production:2011-07 – 2016-10 | |||
| 29331-67020 | PALETTE DE POMPE A VIDE A | 5 | |
Note:1KDFTV,2KDFTV..KUN1#,2#,3# Production:2011-07 – 2016-10 | |||
| 29311-76010 | GOUPILLE PRISONNIER DE POMPE A VIDE NO. 1 | 2 | |
Note:1KDFTV,2KDFTV..KUN1#,2#,3# Production:2011-07 – 2016-10 | |||
| 29364-66010 | RONDELLE DE POMPE A VIDE | 1 | |
Note:1KDFTV,2KDFTV,5LE..KUN1#,2#,3#,LAN15,25,35 Production:2011-07 – 2016-10 | |||
| 29369-64030 | SOUS-ENS. DE CLAPET DE RETENUE | 1 | |
Note:1KDFTV,2KDFTV,5LE..KUN1#,2#,3#,LAN15,25,35 Production:2011-07 – 2016-10 | |||
| 29342-67020 | GARNITURE DE POMPE A VIDE | 1 | |
Note:1KDFTV,2KDFTV..KUN1#,2#,3# Production:2011-07 – 2016-10 | |||
| 90560-T0019 | standard | — | |
Replacements:90201-14099 (fitment: unknown) | |||
| 90179-08184 | standard | — | |
| 90401-09001 | standard | — | |
Replacements:90401-09003 (fitment: unknown) | |||
| 95161-10413 | standard | — | |
| 90096-90031 | standard | — | |
| 90099-04577 | standard | — | |
| 90099-05185 | standard | — | |
| 29342-68010 | standard | — | |
| 90178-T0074 | standard | — | |
Replacements:90179-08184 (fitment: unknown) | |||

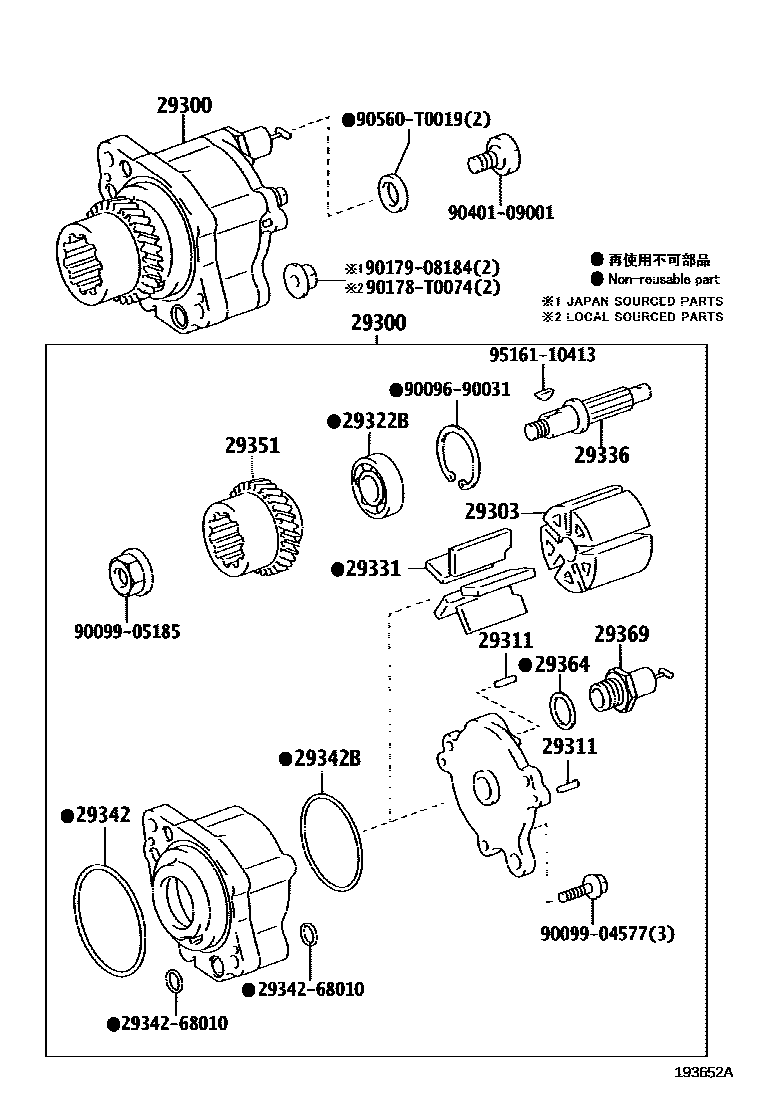

Schéma
21 pièces
