Open RégionAnnéeModèleCode modèle Détails
USA / Canada 2012 HILUX TGN16L-TRMSKV
Catalog: TOYOTA202608 Engine: 2700CC 16-VALVE DOHC EFI Transmission Description: MTM, 5-SPEED FLOOR SHIFT Vehicle Grade: SR TYPE Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: GULF CORPORATION COUNCIL Doors Description: SINGLE CAB Color Code: 5A7 Trim Code: HU30 Production: 201107-201504 Model Short: TGN16L-TRMSKV Region: NA Native Region: US

Toyota Hilux 2012 — Culasse

Voir les schémas du véhicule

Pièces de rechange

Numéro de pièceDescriptionPNCQuantité
12180-0H020 SOUS-ENS. DE BOUCHON DE REMPLISSAGE D'HUILE 1
Note:1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH Production:2011-07 – 2014-05 Replacements:12180-38010 (fitment: unknown)
90080-43027 JOINT (P. BOUCHON DE REMPLISSAGE D'HUILE) 1
Note:1TRFE,2TRFE..TGN1#,26,36 Production:2011-07 – … Replacements:90430-37140 (fitment: unknown) Spec:(L) Spec Note:(Local made)
90910-02091 BOULON (P. FIXATION DE CULASSE) 10
Note:1TRFE,2TRFE..TGN1#,26,36 Production:2011-07 – 2013-03 Replacements:90910-02187 (fitment: unknown)
11201-0C040 SOUS-ENS. DE COUVERCLE DE CULASSE 1
Note:1TRFE,2TRFE..TGN1#,26,36..HTWC,HTWCF Production:2012-05 – 2014-08 Replacements:11201-0C041 (fitment: unknown)
11214-0C010 JOINT DE CULASSE NO. 2 1
Note:1TRFE,2TRFE..TGN1#,26,36 Production:2011-07 – 2014-06 Replacements:11214-75010 (fitment: unknown)
11213-0C010 JOINT DE CULASSE 1
Note:1TRFE,2TRFE..TGN1#,26,36 Production:2011-07 – 2014-07 Replacements:11213-75040 (fitment: unknown)
12281-0C030 CROCHET SUSPENSION MOTEUR NO.2 1
Note:1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH Production:2011-07 – 2015-04 Replacements:12281-75040 (fitment: unknown)
90560-T0015 RONDELLE DE PLAQUE (P. FIXATION DE CULASSE) 10
Note:1TRFE,2TRFE..TGN1#,26,36 Production:2011-07 – … Replacements:90201-11034 (fitment: unknown)
11135-0C020 SIEGE, SOUPAPE D'ECHAPPEMENT 8
Note:2TRFE..TGN11,16..GCC;2TRFE..TGN26..SR..GEN;2TRFE..TGN16..(DCB,XTR)..GEN;2TRFE..TGN26..(DCB,SCB)..(GCC,GEN) Production:2011-07 – 2015-04 Replacements:11135-75100 (fitment: unknown) Spec:STD,(L) Spec Note:STD,(Local made)
11135-75100 SIEGE, SOUPAPE D'ECHAPPEMENT 8
Note:2TRFE..TGN11,16..GCC;2TRFE..TGN26..SR..GEN;2TRFE..TGN16..(DCB,XTR)..GEN;2TRFE..TGN26..(DCB,SCB)..(GCC,GEN) Production:2011-07 – 2015-04 Replacements:11135-75160 (fitment: unknown) Spec:STD,(J) Spec Note:STD,(Japan made)
11136-75100 SIEGE, SOUPAPE D'ECHAPPEMENT 8
Note:2TRFE..TGN11,16,26,36..HTWC Production:2011-07 – 2017-08 Replacements:11136-75160 (fitment: unknown) Spec:O/S 0.03
11101-0C030 SOUS-ENS. DE CULASSE 1
Note:2TRFE..TGN11,16..GCC;2TRFE..TGN26..SR..GEN;2TRFE..TGN16..(DCB,XTR)..GEN;2TRFE..TGN26..(DCB,SCB)..(GCC,GEN) Production:2011-07 – 2014-07 Replacements:11101-75200 (fitment: unknown) Spec:(L) Spec Note:(Local made)
11101-75170 SOUS-ENS. DE CULASSE 1
Note:2TRFE..TGN11,16..GCC;2TRFE..TGN26..SR..GEN;2TRFE..TGN16..(DCB,XTR)..GEN;2TRFE..TGN26..(DCB,SCB)..(GCC,GEN) Production:2011-07 – 2014-07 Replacements:11101-75171 (fitment: unknown) Spec:(J) Spec Note:(Japan made)
90119-07013 BOULON (P. TETE A CHAPEAU DE PALIER D'ARBRE A CAMES) 20
Note:1TRFE,2TRFE..TGN1#,26,36 Production:2011-07 – 2016-02
90430-20004 JOINT 3
Note:2TRFE..TGN16..CNG;2TRFE..TGN11,16..GCC;2TRFE..TGN26..SR..GEN;2TRFE..TGN16..(DCB,XTR)..GEN;2TRFE..TGN26..(DCB,SCB)..(GCC,GEN) Production:2011-07 – 2015-04 Spec:(J) Spec Note:(Japan made)
90430-T0010 JOINT 3
Note:2TRFE..TGN11,16..GCC;2TRFE..TGN26..SR..GEN;2TRFE..TGN16..(DCB,XTR)..GEN;2TRFE..TGN26..(DCB,SCB)..(GCC,GEN) Production:2011-07 – 2015-04 Spec:(L) Spec Note:(Local made)
90253-T0004 GOUPILLE ANNULAIRE (P.POSE DE CHAP. PALIER D'ARBRE CAME) 2
Note:2TRFE..TGN11,16..GCC;2TRFE..TGN26..SR..GEN;2TRFE..TGN16..(DCB,XTR)..GEN;2TRFE..TGN26..(DCB,SCB)..(GCC,GEN) Production:2011-07 – 2014-08 Replacements:90253-10006 (fitment: unknown) Spec:L=7,OD=10,(L) Spec Note:L=7,OD=10,(Local made)
90253-10006 GOUPILLE ANNULAIRE (P.POSE DE CHAP. PALIER D'ARBRE CAME) 2
Note:2TRFE..TGN16..CNG;2TRFE..TGN11,16..GCC;2TRFE..TGN26..SR..GEN;2TRFE..TGN16..(DCB,XTR)..GEN;2TRFE..TGN26..(DCB,SCB)..(GCC,GEN) Production:2011-07 – 2015-04 Spec:L=7,OD=10,(J) Spec Note:L=7,OD=10,(Japan made)
90430-32004 JOINT (POUR BOUCHON DE VIS DE CULASSE) 1
Note:1TRFE,2TRFE..TGN1#,26,36 Production:2011-07 – …
90341-32002 OBTURATEUR FILETE AVEC TETE RECTILIGNE NO. 2 1
Note:2TRFE..TGN16..CNG;2TRFE..TGN11,16..GCC;2TRFE..TGN26..SR..GEN;2TRFE..TGN16..(DCB,XTR)..GEN;2TRFE..TGN26..(DCB,SCB)..(GCC,GEN) Production:2011-07 – 2015-04 Spec:(J) Spec Note:(Japan made)
90341-T0009 OBTURATEUR FILETE AVEC TETE RECTILIGNE NO. 2 1
Note:2TRFE..TGN11,16..GCC;2TRFE..TGN26..SR..GEN;2TRFE..TGN16..(DCB,XTR)..GEN;2TRFE..TGN26..(DCB,SCB)..(GCC,GEN) Production:2011-07 – 2015-04 Replacements:90341-32002 (fitment: unknown) Spec:(L) Spec Note:(Local made)
11115-0C021 JOINT DE CULASSE 1
Note:2TRFE..TGN11,16,26,36..CNG,HTWC Production:2011-07 – … Replacements:11115-75051 (fitment: unknown)
15678-0C010 FILTRE DISTRIBUTEUR HYDRAULIQUE 1
Note:1TRFE,2TRFE..TGN1#,26,36 Production:2011-07 – … Replacements:15678-21010 (fitment: unknown)
11131-0C020 SIEGE, SOUPAPE D'ADMISSION 8
Note:2TRFE..TGN11,16..GCC;2TRFE..TGN26..SR..GEN;2TRFE..TGN16..(DCB,XTR)..GEN;2TRFE..TGN26..(DCB,SCB)..(GCC,GEN) Production:2011-07 – 2014-08 Replacements:11131-75080 (fitment: unknown) Spec:STD,(L) Spec Note:STD,(Local made)
11131-75080 SIEGE, SOUPAPE D'ADMISSION 8
Note:2TRFE..TGN11,16..GCC;2TRFE..TGN26..SR..GEN;2TRFE..TGN16..(DCB,XTR)..GEN;2TRFE..TGN26..(DCB,SCB)..(GCC,GEN) Production:2011-07 – 2014-08 Spec:STD,(J) Spec Note:STD,(Japan made)
11132-75080 SIEGE, SOUPAPE D'ADMISSION 8
Note:2TRFE..TGN11,16,26,36..HTWC..(ARL,GCC,GEN,TH) Production:2011-07 – 2014-08 Spec:O/S 0.03
90341-20002 OBTURATEUR FILETE AVEC TETE RECTILIGNE NO. 1 3
Note:1TRFE,2TRFE..TGN1#,26,36 Production:2011-07 – …
12281-0C030 CROCHET SUSPENSION MOTEUR NO.1 1
Note:1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH Production:2011-07 – 2015-04 Replacements:12281-75040 (fitment: unknown)
11122-75020 MANCHON, GUIDE DE SOUPAPE D'ECHAPPEMENT 8
Note:1TRFE,2TRFE..TGN1#,26,36 Production:2011-07 – … Spec:STD
11123-75020 MANCHON, GUIDE DE SOUPAPE D'ECHAPPEMENT 8
Note:1TRFE,2TRFE..TGN1#,26,36 Production:2011-07 – … Spec:O/S 0.05
11122-75020 MANCHON, GUIDE DE SOUPAPE D'ADMISSION 8
Note:1TRFE,2TRFE..TGN1#,26,36 Production:2011-07 – … Spec:STD
11123-75020 MANCHON, GUIDE DE SOUPAPE D'ADMISSION 8
Note:1TRFE,2TRFE..TGN1#,26,36 Production:2011-07 – … Spec:O/S 0.05
15330-75020 ENSEMB. DISTRIBUTEUR HYDRAULIQUE DIST. ARBRE CAMES 1
Note:1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH Production:2011-07 – 2015-02 Replacements:15330-75030 (fitment: unknown)
90099-14137 JOINT TORIQUE (CAME SYNCHRONISATION DISTRIBUTEUR HYDR.) 1
Note:1TRFE,2TRFE..TGN1#,26,36..ARL,GCC,GEN,IDN,TH Production:2011-07 – 2015-03
90105-06202 standard —
90126-06026 standard —
90430-14009 standard —
90341-T0012 standard —
Replacements:90341-14013 (fitment: unknown)
90341-T0019 standard —
Replacements:90341-14013 (fitment: unknown)
90178-T0018 standard —
90105-T0133 standard —
Replacements:91553-80628 (fitment: unknown)
90105-T0105 standard —
90105-T0129 standard —
Replacements:91552-A1020 (fitment: unknown)
91672-81025 standard —
90119-T0388 standard —
Replacements:91672-81025 (fitment: unknown)
91671-80614 standard —
90119-T0136 standard —
Replacements:91671-80614 (fitment: unknown)

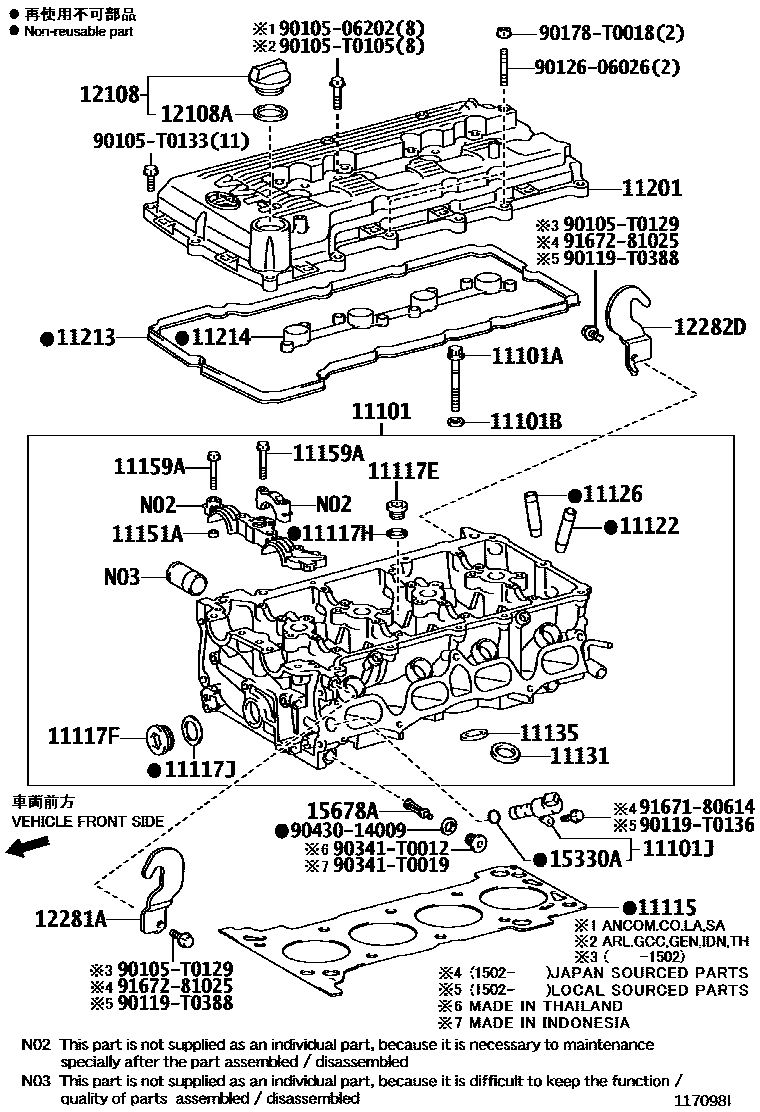

Schéma

47 pièces
Toyota Hilux 2012 — Culasse
