Open RégionAnnéeModèleCode modèle Détails
General 1998 COLT LANCER G EXP CK4A
Catalog: MMC202408 Color Code: W83D Frame Mask: CJ-CP# Model Short: CK4A Modification: 1600/2WD(SEDAN) - GLXI(MPI),4FA/T RHD Options: F92: ELEMENT CHANGE (D/PROOF); ANTENNA + SPEAKER; HIGH-MOUNT STOP LAMP; A/C; OTHER OPTION COMBINATION; RR SPEAKER + HMSL; FR HARNESS (OTHERS OPTION); RR HARNESS (OTHER OPTION); WAX INJECTION Production: 199511-200009 Production Date: 199804 Trim Code: 73A Year: 1998 Region: OTHER Native Region: M80

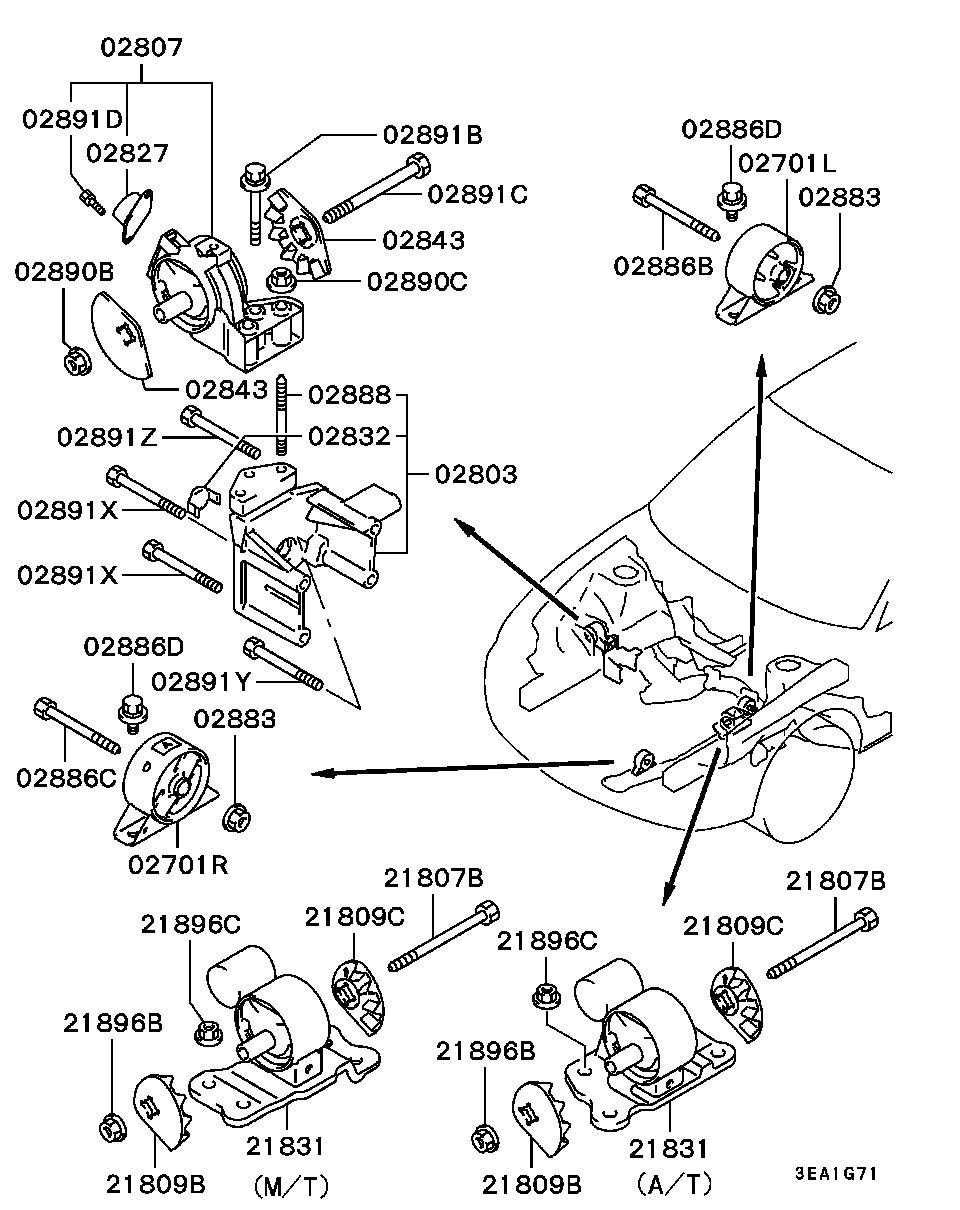

Mitsubishi COLT-LANCER-G-EXP 1998 — Engine Mounting & Support / SOHC

Voir les schémas du véhicule

Pièces de rechange

Numéro de pièceDescriptionPNCQuantité
MB176638 NUT,ENG MOUNTING 1
Note:ALL Production:1995-11 – 2000-09 Spec:WASHER ASSEMBLED,12 Size:12 Shape:WASHER ASSEMBLED
MR197536 STOPPER,ENG FR MOUNTING CUSHION 2
Note:ALL Production:1995-11 – 2000-09
MF241295 BOLT,ENG MOUNTING 1
Note:ALL Production:1995-11 – 2000-09 Spec:WASHER ASSEMBLED,10X75 Size:10X75 Shape:WASHER ASSEMBLED
MF241298 BOLT,ENG MOUNTING 1
Note:ALL Production:1996-01 – 2000-09 Spec:WASHER ASSEMBLED,10X90 Size:10X90 Shape:WASHER ASSEMBLED
MD314973 BRACKET,CYLINDER BLOCK ENG FR MOUNTING 1
Production:1997-12 – 1998-06
MB288462 NUT,ENG MOUNTING 2
Note:ALL Production:1995-11 – 2000-09 Spec:FLANGE SELF LOCKING,10 Size:10 Shape:FLANGE SELF LOCKING
MD171367 STUD,ENG MOUNTING 2
Note:ALL Production:1995-11 – 2000-09 Spec:10X65 Size:10X65
MS241088 BOLT,ENG MOUNTING 1
Note:ALL Production:1995-11 – 2000-09 Spec:WASHER ASSEMBLED,10X95 Size:10X95 Shape:WASHER ASSEMBLED
MU100027 BOLT,ENG MOUNTING 1
Note:ALL Production:1995-11 – 2000-09 Spec:12X108 Size:12X108
MB871932 BOLT,ENG MOUNTING 1
Note:ALL Production:1995-11 – 2000-09 Spec:WASHER ASSEMBLED,10X70 Size:10X70 Shape:WASHER ASSEMBLED
MF240022 BOLT,ENG MOUNTING 2
Note:ALL Production:1995-11 – 1998-06 Spec:WASHER ASSEMBLED,6X10 Size:6X10 Shape:WASHER ASSEMBLED
MB914969 DAMPER,ENG MOUNTING BRACKET DYNAMIC 1
Note:ALL Production:1995-11 – 1998-06
MR130551 BRACKET,ENG FR MOUNTING 1
Note:ALL Production:1995-11 – 1998-06
MD183192 COVER,ENG FR MOUNTING HOLE 1
Production:1997-12 – 1998-06
MF140273 BOLT,ENG SUPPORT ROD 1
Note:ALL Production:1995-11 – 2000-09 Spec:FLANGE,10X75 Size:10X75 Shape:FLANGE Remarks:7T
MF104928 BOLT,T/M MOUNTING 1
Production:1998-02 – 1998-05 Spec:BOLT,12X110 Size:12X110 Shape:BOLT Remarks:7T
MF434106 NUT,T/M MOUNTING 8
Note:ALL Production:1995-11 – 2000-09 Spec:FLANGE,12 Size:12 Shape:FLANGE
MF434106 NUT,T/M MOUNTING 2
Note:ALL Production:1995-11 – 2000-09 Spec:FLANGE,12 Size:12 Shape:FLANGE
MR197612 STOPPER,T/M MOUNTING 1
Production:1998-02 – 1998-05 Remarks:FOR RR
MR244826 BRACKET,T/M MOUNTING BODY SIDE 1
Production:1998-02 – 1998-06
MR197613 STOPPER,T/M MOUNTING 1
Production:1998-02 – 1998-05 Remarks:FOR FR
MF241280 BOLT,ENG SUPPORT ROD 4
Note:ALL Production:1995-11 – 2000-09 Spec:WASHER ASSEMBLED,10X20 Size:10X20 Shape:WASHER ASSEMBLED
MF434105 NUT,ENG SUPPORT ROD 2
Note:ALL Production:1995-11 – 2000-09 Spec:FLANGE,10 Size:10 Shape:FLANGE
MR333578 BRACKET,ENG ROLL STOPPER,RH 1
Production:1997-12 – 1998-06
MB871930 BOLT,ENG SUPPORT ROD 1
Note:ALL Production:1995-11 – 2000-09 Spec:CONE POINT,10X81 Size:10X81 Shape:CONE POINT
MR223674 BRACKET,ENG ROLL STOPPER,LH 1
Production:1997-12 – 1998-06

Schéma

26 pièces
Mitsubishi COLT-LANCER-G-EXP 1998 — Engine Mounting & Support / SOHC
