Open RégionAnnéeModèleCode modèle Détails
General 2012 TFR/TFS LHD 50964~2004~2011
Catalog: ISUZU201809 Vehicle Class: PICKUP Model Qualifier: TF Source Catalog Name: TFR/TFS-LHD 04 - 11 Source Production Code: 20120404 Production Date: 20120404 N30: DELUXE STEERING WHEEL URETHANE Gw1: FINAL GEAR RATIO 43/11 D34: SUNVISOR PASSENGER SIDE W/VANITY MIRROR Uca: ELECTRO LUMINESCENT INSTRUMENTATION CLUSTER E63: REAR BODY DBL WALL CTR PULL A31: DRIVER POWER WINDOW W/AUTO DOOR DOWN D31: RR VIEW MIRROR TILT DAY & NIGHT 7 Yc: 4X2 HIGH RIDE SUSPENSION C13: FRT WIPER 2 SPEED & INTERMITTENT 8 Cf: ANTI THEFT SYSTEM SPARE TIRE N40: POWER STEERING Nt4: EURO4 SPECIFICATION Vf6: REAR STEP BUMPER C60: AIR CONDITIONER MANUAL CONTROL 8 Kx: ZETAI NOSENAI C74: MAP LAMP K46: HEAVY DUTY AIR CLEANER A50: FRONT SEAT BUCKET STANDARD Vt4: FRT BUMPER UPPER BODY COLOR LOWER GRAY PAINT Au4: AUTO DOOR LOCK 7 We: SKID PLATE B74: OVER FENDER Bzc: FRT&RR 225/75R15C Ul5: RADIO DELETE K20: ELECTRONIC CONTROL U05: DUAL TONE HORN Ak5: AIR BAG DRIVER & PASSENGER 6 Ly: BRIGHT MIRROR A99: LOCK GLOVE BOX U16: TACHOMETER Ke1: CHILE EQUIPMENT B30: VINYL CARPET U27: LAMP GLOVE COMPARTMENT 8 Lh: HEADLAMPS PROJECTOR BEAM Vwx: VEHICLE BASE RAD GRILLE 8 Mb: INTERIOR STEERING CENTER PAD BADGE Tm1: BATTERY 80D26L 7 Xw: SIDE TURN SIGNAL LAMP T96: FRT FOG LAMP C49: REAR DEFOGGER G80: AXLE POSITRACTION LIMITED SLIP T63: HEAD LAMP WARNING ALARM Ts6: HIGH MOUNT STOP LAMP N08: FUEL LID OPENER U95: 2-SPEAKER SYSTEM BASE E28: ASSIST HANDLE Bsy: DISC WHEEL 15X6.5-41 STEEL Ue8: ELECTRIC DIGITAL CLOCK D55: FRONT CONSOLE W/LID Kae: SHIFT KNOB URETHAN N33: TILT STEERING 8 Lm: SEAT TRIM HIGH GRADE CLOTH JACQUARD Rwe: CHEVROLET BRAND U71: ROOF RADIO ANTENNA 8 Cm: POLLEN FILTER FOR AIR CONDITIONER 504: BODY COLOR TORNADE RED MICA Je5: ANTI-LOCK BRAKE-'93'94- 8 Aa: GOOD QUALITY ETHYLENE GLYCOL ANTIFREEZE 50% 101: INTERIOR COLOR BLACK Region: OTHER Native Region: WW

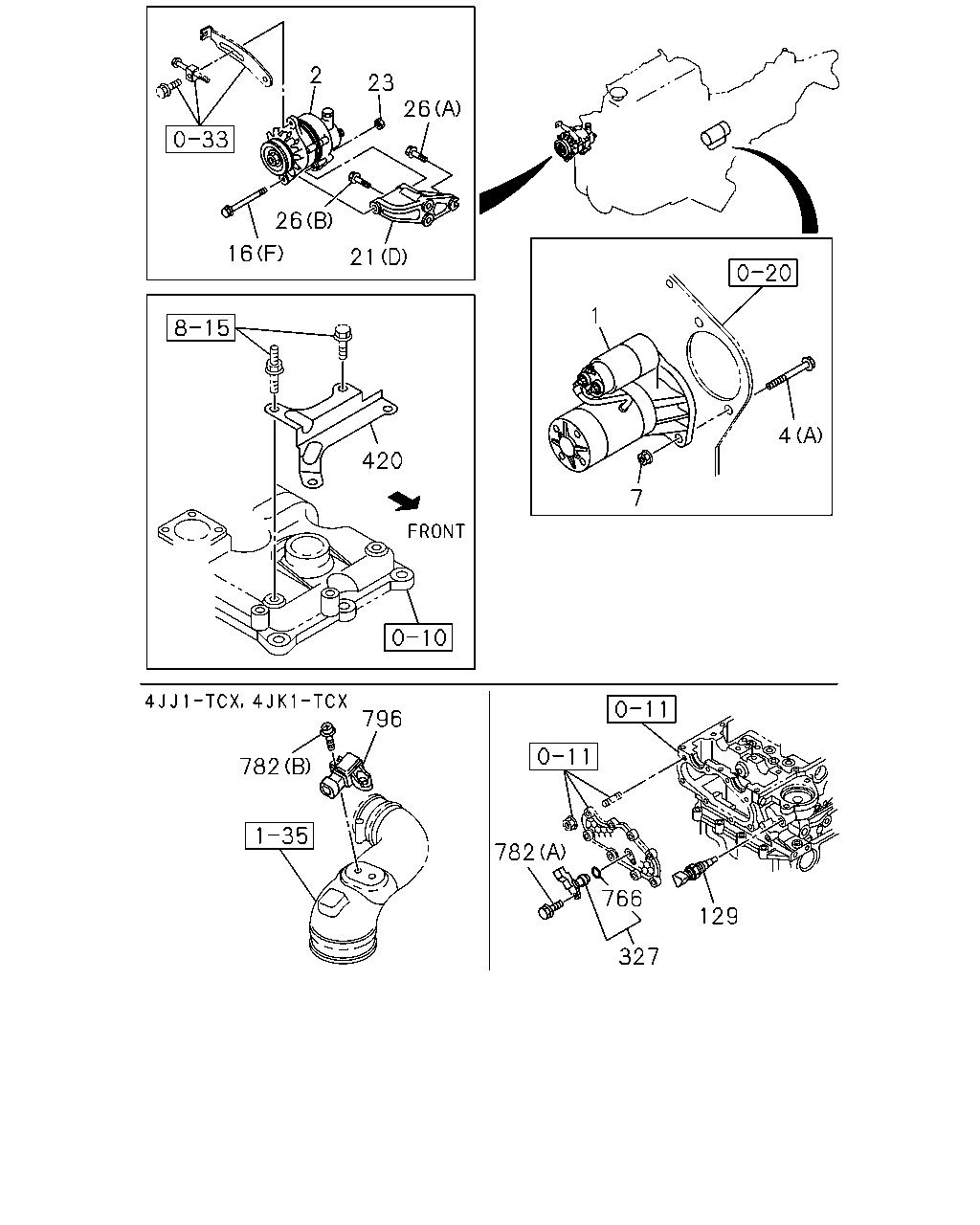

Isuzu TFR/TFS-LHD 2012 — Engine Electrical Control Parts — 4JJ1,4JK1(No.1)

Voir les schémas du véhicule

Pièces de rechange

Numéro de pièceDescriptionPNCQuantité
8980281990 02.041 STARTER ASM 1
Production:2010-08 – 9999-99 Usage:SEE FIG-NO 0-65 FOR COMPONENT.12V 2.3KW Manufacturer:ISUZU Applied Date:1008- Applied Model:FGH 8 Digit P/n:98028199
8981965850 02.275 GENERATOR ASM 1
Production:2011-09 – 2012-09 Replacements:8982903230 (fitment: unknown) Replacements:8982290711 (fitment: unknown) Usage:SEE FIG-NO 0-66 FOR COMPONENT.12V 90A Manufacturer:ISUZU Applied Model:FGH 8 Digit P/n:98196585 Applied Date:1109-1209
8971618461 02.042 BOLT; STARTER 2
Production:2010-08 – 2014-02 Usage:(A)M12X60 Manufacturer:ISUZU Applied Model:GH 8 Digit P/n:97161846 Applied Date:1008-1402
0911801120 02.042 NUT; STARTER 2
Production:2010-08 – 9999-99 Usage:M12 FLANGE Manufacturer:ISUZU Applied Date:1008- Applied Model:ACFGH 8 Digit P/n:94012041
8972264701 02.277 BOLT; GEN 1
Production:2010-08 – 9999-99 Usage:(C)M10X125 FLANGE Manufacturer:ISUZU Applied Date:1008- Applied Model:FGH 8 Digit P/n:97226470
8973560201 02.277 BRACKET; GEN 1
Production:2010-08 – 9999-99 Usage:(D) Manufacturer:ISUZU Applied Date:1008- Applied Model:FGH 8 Digit P/n:97356020
0911802100 02.277 NUT; GEN 1
Production:2010-08 – 9999-99 Usage:04.085M10 FLANGE Manufacturer:ISUZU Applied Date:1008- Applied Model:ACFGH 8 Digit P/n:94012045
0286510350 02.277 BOLT; GEN BRKT 1
Production:2010-08 – 9999-99 Usage:(A)M10X35 FLANGE Manufacturer:ISUZU Applied Date:1008- Applied Model:FGH 8 Digit P/n:94012144
0286510400 02.277 BOLT; GEN BRKT 2
Production:2010-08 – 9999-99 Usage:03.613(B)M10X40 FLANGE Manufacturer:ISUZU Applied Date:1008- Applied Model:FGH 8 Digit P/n:94012146
8980237170 01.150 SENSOR; GLOW PLUG,THERMO 1
Production:2010-08 – 9999-99 Usage:NIPPON THERMOSTAT Manufacturer:ISUZU Applied Date:1008- Applied Model:FGH 8 Digit P/n:98023717
8973121081 02.361 SENSOR; CAMSHAFT POSITION 1
Production:2010-08 – 9999-99 Manufacturer:ISUZU Applied Date:1008- Applied Model:FGH 8 Digit P/n:97312108
8980115380 02.183 BRACKET; HARNESS 1
Production:2010-08 – 9999-99 Manufacturer:ISUZU Applied Date:1008- Applied Model:FGH 8 Digit P/n:98011538
8973694040 02.363 GASKET; SENSOR 1
Production:2010-08 – 9999-99 Usage:00.724ID=14.2 OD=18.8 Manufacturer:ISUZU Applied Date:1008- Applied Model:FGH 8 Digit P/n:97369404
0362304120 02.510 BOLT; SENSOR 2
Production:2010-08 – 9999-99 Usage:(B)M4X12 W/LK&PL WASHER Manufacturer:ISUZU Applied Date:1008- Applied Model:GH 8 Digit P/n:94012926
0280506160 02.510 BOLT; SENSOR 1
Production:2010-08 – 9999-99 Usage:09.242(A)M6X16 FLANGE Manufacturer:ISUZU Applied Date:1008- Applied Model:FGH 8 Digit P/n:94012242
8980094180 01.150 SENSOR; MAP 1
Production:2010-08 – 9999-99 Manufacturer:ISUZU Applied Date:1008- Applied Model:GH 8 Digit P/n:98009418

Schéma

16 pièces
Isuzu TFR/TFS-LHD 2012 — Engine Electrical Control Parts — 4JJ1,4JK1(No.1)
