Isuzu TFR/TFS(Europe)-LHD 2009 — Fuel Injection System — 4JJ1-TCX,4JK1-TCX(No.2)

Voir les schémas du véhicule

Pièces de rechange

Numéro de pièceDescriptionPNCQuantité
8973152302 03.163 PIPE ASM; LEAK OFF 1
Production:2006-10 – 9999-99 Usage:(A) Manufacturer:ISUZU Applied Date:0610- Applied Model:CD 8 Digit P/n:97315230
8973152312 03.163 PIPE ASM; LEAK OFF 3
Production:2006-10 – 9999-99 Usage:(B) Manufacturer:ISUZU Applied Date:0610- Applied Model:CD 8 Digit P/n:97315231
8973579164 03.163 PIPE ASM; LEAK OFF 1
Production:2006-10 – 9999-99 Usage:(C) Manufacturer:ISUZU Applied Date:0610- Applied Model:CD 8 Digit P/n:97357916
8973729383 03.163 PIPE ASM; LEAK OFF 1
Production:2006-10 – 9999-99 Usage:(D) Manufacturer:ISUZU Applied Date:0610- Applied Model:CD 8 Digit P/n:97372938
1096300830 03.162 GASKET; EYE BOLT,OUTLET,FUEL FEE 2
Production:2006-10 – 9999-99 Usage:01.531ID=10.2 OD=15.2 Manufacturer:ISUZU Applied Date:0610- Applied Model:CD 8 Digit P/n:94034146
8976022180 03.332 GASKET; EYE BOLT 2
Production:2006-10 – 9999-99 Manufacturer:ISUZU Applied Date:0610- Applied Model:CD 8 Digit P/n:97602218
8980235810 03.320 SENSOR; FUEL TEMP 1
Production:2006-12 – 9999-99 Manufacturer:ISUZU Applied Date:0612- Applied Model:CD 8 Digit P/n:98023581
8973889020 03.330 PIPE; INJ,C/R 1
Production:2006-10 – 9999-99 Manufacturer:ISUZU Applied Date:0610- Applied Model:CD 8 Digit P/n:97388902
8980522381 03.331 RAIL ASM; COMMON 1
Production:2007-09 – 9999-99 Manufacturer:ISUZU Applied Date:0709- Applied Model:CD 8 Digit P/n:98052238
9881300880 03.162 BOLT; EYE 1
Production:2008-10 – 9999-99 Usage:03.280(B) Manufacturer:ISUZU Applied Date:0810- Applied Model:CD 8 Digit P/n:94055758
8980430330 03.162 BOLT; EYE 1
Production:2006-10 – 9999-99 Usage:(A)M10X23 EYE-BOLT Manufacturer:ISUZU Applied Date:0610- Applied Model:CD 8 Digit P/n:98043033
1096235410 03.162 GASKET 1
Production:2006-10 – 9999-99 Usage:ALSO INCLUDED IN GASKET SET(ENGINE).ID=49.7 Manufacturer:ISUZU Applied Date:0610- Applied Model:CD 8 Digit P/n:97730791
8980118901 03.163 BRACKET; COMMON RAIL 1
Production:2006-10 – 9999-99 Manufacturer:ISUZU Applied Date:0610- Applied Model:CD 8 Digit P/n:98011890
0280508700 03.330 BOLT; COMMON RAIL 2
Production:2006-10 – 9999-99 Usage:00.206(A)M8X70 FLANGE Manufacturer:ISUZU Applied Date:0610- Applied Model:CD 8 Digit P/n:94011769
8973545840 03.330 BOLT; COMMON RAIL 2
Production:2006-10 – 9999-99 Usage:(B)M8X81 FLANGE Manufacturer:ISUZU Applied Date:0610- Applied Model:CD 8 Digit P/n:97354584
1156410460 03.331 GASKET 1
Production:2006-10 – 9999-99 Usage:ID=11 OD=16.3 Manufacturer:ISUZU Applied Date:0610- Applied Model:CD 8 Digit P/n:97726943
8980325490 03.331 LIMITER; FUEL PRESS 1
Production:2006-10 – 9999-99 Manufacturer:ISUZU Applied Date:0610- Applied Model:CD 8 Digit P/n:98032549
8980143200 03.331 SENSOR; PRESS 1
Production:2007-09 – 2012-08 Usage:(A) Manufacturer:ISUZU Itc:C Applied Model:CD 8 Digit P/n:98014320 Applied Date:0709-1208
8980205140 03.331 SENSOR; PRESS 1
Production:2006-10 – 9999-99 Usage:(B) Manufacturer:ISUZU Applied Date:0610- Applied Model:CD 8 Digit P/n:98020514
9095661100 03.335 GASKET; SENSOR,FUEL TEMP 1
Production:2007-10 – 9999-99 Usage:03.304ID=9.8 OD=11.7 Manufacturer:ISUZU Applied Date:0710- Applied Model:CD 8 Digit P/n:94011610
8973113739 03.306 PUMP ASM; FUEL,SUPPLY 1
Production:2006-10 – 2010-07 Manufacturer:ISUZU Applied Date:0610-1007 Applied Model:CD 8 Digit P/n:97311373
8981454550 03.332 OVERHAUL KIT; SUPPLY PUMP 1
Production:2008-10 – 9999-99 Manufacturer:ISUZU Applied Date:0810- Applied Model:CD 8 Digit P/n:98145455
— Cette pièce ne correspond pas à la configuration de ce véhicule. 445 —
— Cette pièce ne correspond pas à la configuration de ce véhicule. 382 —

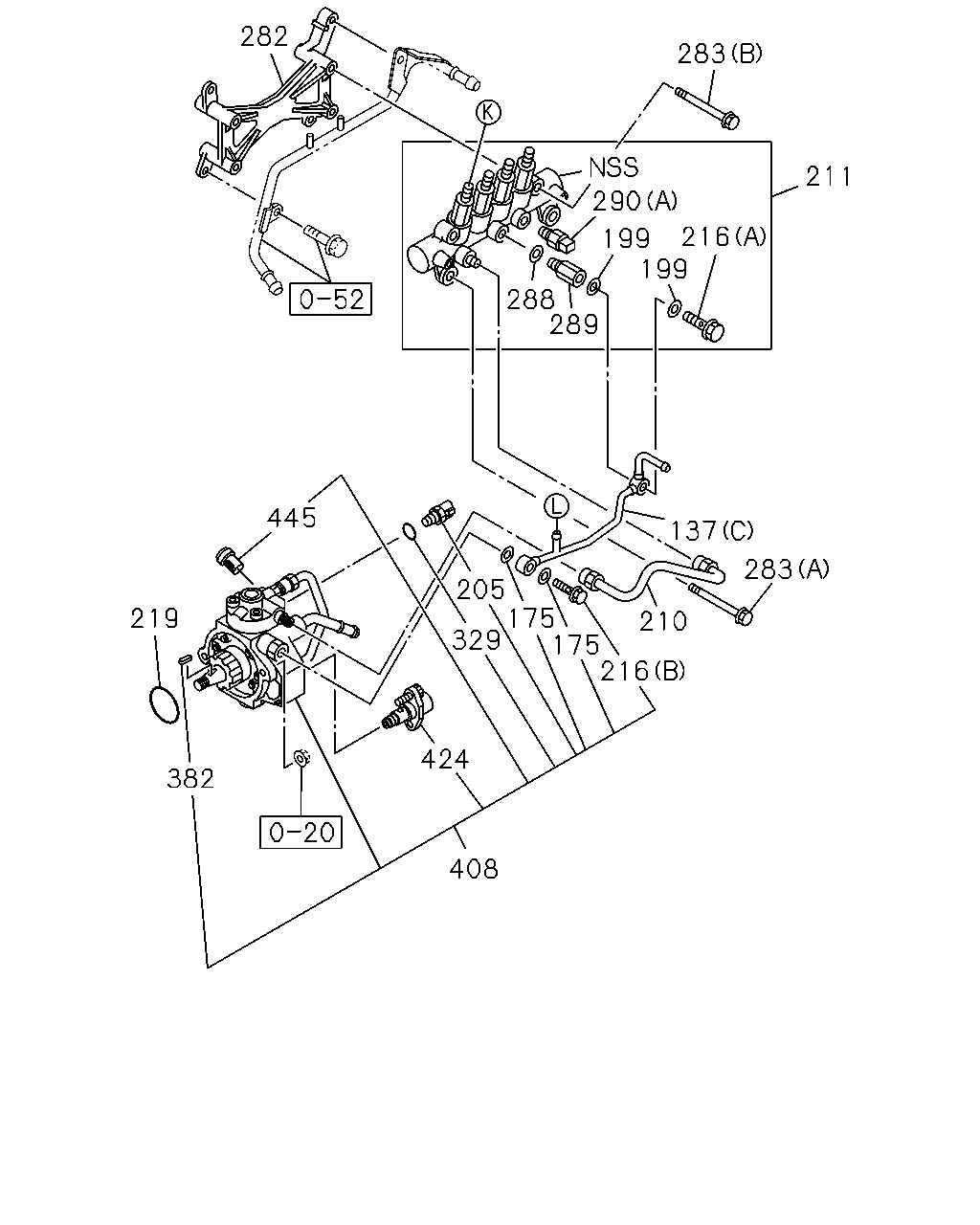

Schéma

22 pièces
