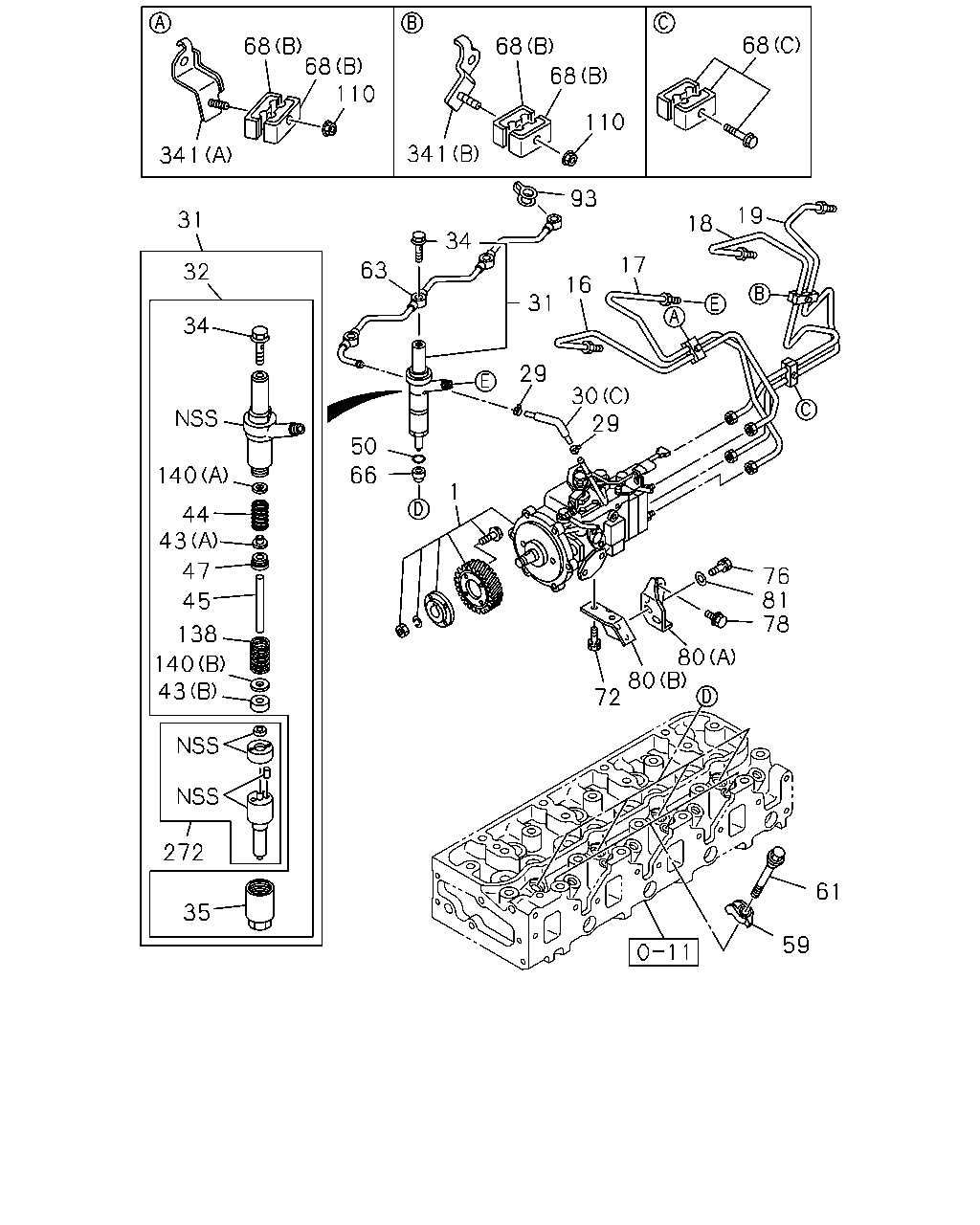

Isuzu TFR/TFS Middle East 2015 — Fuel Injection System — 4JA1

Voir les schémas du véhicule

Pièces de rechange

Numéro de pièceDescriptionPNCQuantité
8981105640 03.306 PUMP ASM; INJ 1
Production:2014-12 – 9999-99 Usage:SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.HEATER & DEFROSTER(C42) Manufacturer:ISUZU Applied Model:A 8 Digit P/n:98110564 Applied Date:1412-
8981105631 03.306 PUMP ASM; INJ 1
Production:2014-12 – 9999-99 Usage:SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.AIR CONDITIONER MANUAL CONT(C60) Manufacturer:ISUZU Applied Model:A 8 Digit P/n:98110563 Applied Date:1412-
8973737330 03.330 PIPE; INJ NO.1 1
Production:2014-12 – 9999-99 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97373733 Applied Date:1412-
8973652100 03.330 PIPE; INJ NO.2 1
Production:2014-12 – 9999-99 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97365210 Applied Date:1412-
8973737340 03.330 PIPE; INJ NO.3 1
Production:2014-12 – 9999-99 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97373734 Applied Date:1412-
8973737350 03.330 PIPE; INJ NO.4 1
Production:2014-12 – 9999-99 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97373735 Applied Date:1412-
8971732190 03.162 CLIP; HOSE 2
Production:2014-12 – 9999-99 Usage:03.163ID=11 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97173219 Applied Date:1412-
8981352631 03.163 HOSE; RUBBER,FUEL LEAK 1
Production:2014-12 – 9999-99 Usage:(C)L=320 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:98135263 Applied Date:1412-
8973829460 03.332 NOZZLE ASM; INJ 4
Production:2014-12 – 9999-99 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97382946 Applied Date:1412-
8972178350 03.332 HOLDER ASM; NOZZLE 4
Production:2014-12 – 9999-99 Replacements:8970843470 (fitment: unknown) Replacements:8973829460 (fitment: unknown) Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97217835 Applied Date:1412-
8943203070 03.330 BOLT; EYE,NOZZLE HOLDER 4
Production:2014-12 – 9999-99 Usage:03.306 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:94320307 Applied Date:1412-
1153490410 03.330 NUT; NOZZLE RET,NOZZLE HOLDER 4
Production:2014-12 – 9999-99 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97723917 Applied Date:1412-
8972233430 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE 4
Production:2014-12 – 9999-99 Usage:(B)T=2.00 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97223343 Applied Date:1412-
8972233440 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE 4
Production:2014-12 – 9999-99 Usage:(B)T=2.02 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97223344 Applied Date:1412-
8972233450 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE 4
Production:2014-12 – 9999-99 Usage:(B)T=2.04 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97223345 Applied Date:1412-
8972233460 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE 4
Production:2014-12 – 9999-99 Usage:(B)T=2.06 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97223346 Applied Date:1412-
8972233470 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE 4
Production:2014-12 – 9999-99 Usage:(B)T=2.08 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97223347 Applied Date:1412-
8972233480 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE 4
Production:2014-12 – 9999-99 Usage:(B)T=2.10 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97223348 Applied Date:1412-
8972233490 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE 4
Production:2014-12 – 9999-99 Usage:(B)T=2.12 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97223349 Applied Date:1412-
8972233500 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE 4
Production:2014-12 – 9999-99 Usage:(B)T=2.14 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97223350 Applied Date:1412-
8972233510 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE 4
Production:2014-12 – 9999-99 Usage:(B)T=2.16 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97223351 Applied Date:1412-
8972233520 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE 4
Production:2014-12 – 9999-99 Usage:(B)T=2.18 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97223352 Applied Date:1412-
8972233530 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE 4
Production:2014-12 – 9999-99 Usage:(B)T=2.20 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97223353 Applied Date:1412-
8972233540 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE 4
Production:2014-12 – 9999-99 Usage:(B)T=2.22 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97223354 Applied Date:1412-
8972233550 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE 4
Production:2014-12 – 9999-99 Usage:(B)T=2.24 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97223355 Applied Date:1412-
8972233560 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE 4
Production:2014-12 – 9999-99 Usage:(B)T=2.26 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97223356 Applied Date:1412-
8972233570 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE 4
Production:2014-12 – 9999-99 Usage:(B)T=2.28 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97223357 Applied Date:1412-
8972233580 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE 4
Production:2014-12 – 9999-99 Usage:(B)T=2.30 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97223358 Applied Date:1412-
8972233590 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE 4
Production:2014-12 – 9999-99 Usage:(B)T=2.32 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97223359 Applied Date:1412-
8972233600 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE 4
Production:2014-12 – 9999-99 Usage:(B)T=2.34 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97223360 Applied Date:1412-
8972233610 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE 4
Production:2014-12 – 9999-99 Usage:(B)T=2.36 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97223361 Applied Date:1412-
8972233620 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE 4
Production:2014-12 – 9999-99 Usage:(B)T=2.38 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97223362 Applied Date:1412-
8972233630 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE 4
Production:2014-12 – 9999-99 Usage:(B)T=2.40 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97223363 Applied Date:1412-
8972233640 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE 4
Production:2014-12 – 9999-99 Usage:(B)T=2.42 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97223364 Applied Date:1412-
8972233650 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE 4
Production:2014-12 – 9999-99 Usage:(B)T=2.44 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97223365 Applied Date:1412-
8972233660 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE 4
Production:2014-12 – 9999-99 Usage:(B)T=2.46 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97223366 Applied Date:1412-
8972233670 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE 4
Production:2014-12 – 9999-99 Usage:(B)T=2.48 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97223367 Applied Date:1412-
8972233680 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE 4
Production:2014-12 – 9999-99 Usage:(B)T=2.50 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97223368 Applied Date:1412-
8972233690 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE 4
Production:2014-12 – 9999-99 Usage:(B)T=2.52 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97223369 Applied Date:1412-
8972233700 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE 4
Production:2014-12 – 9999-99 Usage:(B)T=2.54 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97223370 Applied Date:1412-
8972233710 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE 4
Production:2014-12 – 9999-99 Usage:(B)T=2.56 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97223371 Applied Date:1412-
8972233720 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE 4
Production:2014-12 – 9999-99 Usage:(B)T=2.58 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97223372 Applied Date:1412-
8972233730 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE 4
Production:2014-12 – 9999-99 Usage:(B)T=2.60 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97223373 Applied Date:1412-
8972233740 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE 4
Production:2014-12 – 9999-99 Usage:(B)T=2.62 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97223374 Applied Date:1412-
8972233750 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE 4
Production:2014-12 – 9999-99 Usage:(B)T=2.64 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97223375 Applied Date:1412-
8972233760 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE 4
Production:2014-12 – 9999-99 Usage:(B)T=2.66 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97223376 Applied Date:1412-
8972233770 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE 4
Production:2014-12 – 9999-99 Usage:(B)T=2.68 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97223377 Applied Date:1412-
8972233780 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE 4
Production:2014-12 – 9999-99 Usage:(B)T=2.70 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97223378 Applied Date:1412-
8972233790 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE 4
Production:2014-12 – 9999-99 Usage:(B)T=2.72 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97223379 Applied Date:1412-
8972233800 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE 4
Production:2014-12 – 9999-99 Usage:(B)T=2.74 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97223380 Applied Date:1412-
8972233810 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE 4
Production:2014-12 – 9999-99 Usage:(B)T=2.76 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97223381 Applied Date:1412-
8972233820 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE 4
Production:2014-12 – 9999-99 Usage:(B)T=2.78 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97223382 Applied Date:1412-
8972233830 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE 4
Production:2014-12 – 9999-99 Usage:(B)T=2.80 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97223383 Applied Date:1412-
8972233840 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE 4
Production:2014-12 – 9999-99 Usage:(B)T=2.82 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97223384 Applied Date:1412-
8972233850 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE 4
Production:2014-12 – 9999-99 Usage:(B)T=2.84 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97223385 Applied Date:1412-
8972233860 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE 4
Production:2014-12 – 9999-99 Usage:(B)T=2.86 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97223386 Applied Date:1412-
8972233870 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE 4
Production:2014-12 – 9999-99 Usage:(B)T=2.88 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97223387 Applied Date:1412-
8972233880 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE 4
Production:2014-12 – 9999-99 Usage:(B)T=2.90 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97223388 Applied Date:1412-
8972233890 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE 4
Production:2014-12 – 9999-99 Usage:(B)T=2.92 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97223389 Applied Date:1412-
8972233900 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE 4
Production:2014-12 – 9999-99 Usage:(B)T=2.94 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97223390 Applied Date:1412-
8972233910 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE 4
Production:2014-12 – 9999-99 Usage:(B)T=2.96 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97223391 Applied Date:1412-
8972233920 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE 4
Production:2014-12 – 9999-99 Usage:(B)T=2.98 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97223392 Applied Date:1412-
8972233930 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE 4
Production:2014-12 – 9999-99 Usage:(B)T=3.00 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97223393 Applied Date:1412-
8973616970 03.332 SEAT; NOZZLE SPRING,NOZZLE HOLDE 4
Production:2014-12 – 9999-99 Usage:(A) Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97361697 Applied Date:1412-
1153430030 03.330 SPRING; NOZZLE,NOZZLE HOLDER 4
Production:2014-12 – 9999-99 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97723913 Applied Date:1412-
8973551120 03.330 ROD; PUSH,NOZZLE HOLDER 4
Production:2014-12 – 9999-99 Usage:L=38.25 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97355112 Applied Date:1412-
8973551130 03.330 ROD; PUSH,NOZZLE HOLDER 4
Production:2014-12 – 9999-99 Usage:L=38.26 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97355113 Applied Date:1412-
8973551140 03.330 ROD; PUSH,NOZZLE HOLDER 4
Production:2014-12 – 9999-99 Usage:L=38.27 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97355114 Applied Date:1412-
8973551150 03.330 ROD; PUSH,NOZZLE HOLDER 4
Production:2014-12 – 9999-99 Usage:L=38.28 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97355115 Applied Date:1412-
8973551160 03.330 ROD; PUSH,NOZZLE HOLDER 4
Production:2014-12 – 9999-99 Usage:L=38.29 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97355116 Applied Date:1412-
8973551170 03.330 ROD; PUSH,NOZZLE HOLDER 4
Production:2014-12 – 9999-99 Usage:L=38.30 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97355117 Applied Date:1412-
8973551180 03.330 ROD; PUSH,NOZZLE HOLDER 4
Production:2014-12 – 9999-99 Usage:L=38.31 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97355118 Applied Date:1412-
8973551190 03.330 ROD; PUSH,NOZZLE HOLDER 4
Production:2014-12 – 9999-99 Usage:L=38.32 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97355119 Applied Date:1412-
8973551200 03.330 ROD; PUSH,NOZZLE HOLDER 4
Production:2014-12 – 9999-99 Usage:L=38.33 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97355120 Applied Date:1412-
8973551210 03.330 ROD; PUSH,NOZZLE HOLDER 4
Production:2014-12 – 9999-99 Usage:L=38.34 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97355121 Applied Date:1412-
8973551220 03.330 ROD; PUSH,NOZZLE HOLDER 4
Production:2014-12 – 9999-99 Usage:L=38.35 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97355122 Applied Date:1412-
8973551230 03.330 ROD; PUSH,NOZZLE HOLDER 4
Production:2014-12 – 9999-99 Usage:L=38.36 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97355123 Applied Date:1412-
8973551240 03.330 ROD; PUSH,NOZZLE HOLDER 4
Production:2014-12 – 9999-99 Usage:L=38.37 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97355124 Applied Date:1412-
8973551250 03.330 ROD; PUSH,NOZZLE HOLDER 4
Production:2014-12 – 9999-99 Usage:L=38.38 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97355125 Applied Date:1412-
8973551260 03.330 ROD; PUSH,NOZZLE HOLDER 4
Production:2014-12 – 9999-99 Usage:L=38.39 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97355126 Applied Date:1412-
8973551270 03.330 ROD; PUSH,NOZZLE HOLDER 4
Production:2014-12 – 9999-99 Usage:L=38.40 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97355127 Applied Date:1412-
8973551280 03.330 ROD; PUSH,NOZZLE HOLDER 4
Production:2014-12 – 9999-99 Usage:L=38.41 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97355128 Applied Date:1412-
8973551290 03.330 ROD; PUSH,NOZZLE HOLDER 4
Production:2014-12 – 9999-99 Usage:L=38.42 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97355129 Applied Date:1412-
8973551300 03.330 ROD; PUSH,NOZZLE HOLDER 4
Production:2014-12 – 9999-99 Usage:L=38.43 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97355130 Applied Date:1412-
8973551310 03.330 ROD; PUSH,NOZZLE HOLDER 4
Production:2014-12 – 9999-99 Usage:L=38.44 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97355131 Applied Date:1412-
8973551320 03.330 ROD; PUSH,NOZZLE HOLDER 4
Production:2014-12 – 9999-99 Usage:L=38.45 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97355132 Applied Date:1412-
8973551330 03.330 ROD; PUSH,NOZZLE HOLDER 4
Production:2014-12 – 9999-99 Usage:L=38.46 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97355133 Applied Date:1412-
8973551340 03.330 ROD; PUSH,NOZZLE HOLDER 4
Production:2014-12 – 9999-99 Usage:L=38.47 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97355134 Applied Date:1412-
8973551350 03.330 ROD; PUSH,NOZZLE HOLDER 4
Production:2014-12 – 9999-99 Usage:L=38.48 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97355135 Applied Date:1412-
8973551360 03.330 ROD; PUSH,NOZZLE HOLDER 4
Production:2014-12 – 9999-99 Usage:L=38.49 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97355136 Applied Date:1412-
8973551370 03.330 ROD; PUSH,NOZZLE HOLDER 4
Production:2014-12 – 9999-99 Usage:L=38.50 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97355137 Applied Date:1412-
8973551380 03.330 ROD; PUSH,NOZZLE HOLDER 4
Production:2014-12 – 9999-99 Usage:L=38.51 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97355138 Applied Date:1412-
8973551390 03.330 ROD; PUSH,NOZZLE HOLDER 4
Production:2014-12 – 9999-99 Usage:L=38.52 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97355139 Applied Date:1412-
8973551400 03.330 ROD; PUSH,NOZZLE HOLDER 4
Production:2014-12 – 9999-99 Usage:L=38.53 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97355140 Applied Date:1412-
8973551410 03.330 ROD; PUSH,NOZZLE HOLDER 4
Production:2014-12 – 9999-99 Usage:L=38.54 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97355141 Applied Date:1412-
8973551420 03.330 ROD; PUSH,NOZZLE HOLDER 4
Production:2014-12 – 9999-99 Usage:L=38.55 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97355142 Applied Date:1412-
8973551430 03.330 ROD; PUSH,NOZZLE HOLDER 4
Production:2014-12 – 9999-99 Usage:L=38.56 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97355143 Applied Date:1412-
8973551440 03.330 ROD; PUSH,NOZZLE HOLDER 4
Production:2014-12 – 9999-99 Usage:L=38.57 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97355144 Applied Date:1412-
8973551450 03.330 ROD; PUSH,NOZZLE HOLDER 4
Production:2014-12 – 9999-99 Usage:L=38.58 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97355145 Applied Date:1412-
8973551460 03.330 ROD; PUSH,NOZZLE HOLDER 4
Production:2014-12 – 9999-99 Usage:L=38.59 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97355146 Applied Date:1412-
8973551470 03.330 ROD; PUSH,NOZZLE HOLDER 4
Production:2014-12 – 9999-99 Usage:L=38.60 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97355147 Applied Date:1412-
8973551480 03.330 ROD; PUSH,NOZZLE HOLDER 4
Production:2014-12 – 9999-99 Usage:L=38.61 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97355148 Applied Date:1412-
8973551490 03.330 ROD; PUSH,NOZZLE HOLDER 4
Production:2014-12 – 9999-99 Usage:L=38.62 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97355149 Applied Date:1412-
8973551500 03.330 ROD; PUSH,NOZZLE HOLDER 4
Production:2014-12 – 9999-99 Usage:L=38.63 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97355150 Applied Date:1412-
8973551510 03.330 ROD; PUSH,NOZZLE HOLDER 4
Production:2014-12 – 9999-99 Usage:L=38.64 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97355151 Applied Date:1412-
8973551520 03.330 ROD; PUSH,NOZZLE HOLDER 4
Production:2014-12 – 9999-99 Usage:L=38.65 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97355152 Applied Date:1412-
8973551530 03.330 ROD; PUSH,NOZZLE HOLDER 4
Production:2014-12 – 9999-99 Usage:L=38.66 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97355153 Applied Date:1412-
8973551540 03.330 ROD; PUSH,NOZZLE HOLDER 4
Production:2014-12 – 9999-99 Usage:L=38.67 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97355154 Applied Date:1412-
8973551550 03.330 ROD; PUSH,NOZZLE HOLDER 4
Production:2014-12 – 9999-99 Usage:L=38.68 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97355155 Applied Date:1412-
8973551560 03.330 ROD; PUSH,NOZZLE HOLDER 4
Production:2014-12 – 9999-99 Usage:L=38.69 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97355156 Applied Date:1412-
8973551570 03.330 ROD; PUSH,NOZZLE HOLDER 4
Production:2014-12 – 9999-99 Usage:L=38.70 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97355157 Applied Date:1412-
8973551580 03.330 ROD; PUSH,NOZZLE HOLDER 4
Production:2014-12 – 9999-99 Usage:L=38.71 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97355158 Applied Date:1412-
8973551590 03.330 ROD; PUSH,NOZZLE HOLDER 4
Production:2014-12 – 9999-99 Usage:L=38.72 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97355159 Applied Date:1412-
8973551600 03.330 ROD; PUSH,NOZZLE HOLDER 4
Production:2014-12 – 9999-99 Usage:L=38.73 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97355160 Applied Date:1412-
8973551610 03.330 ROD; PUSH,NOZZLE HOLDER 4
Production:2014-12 – 9999-99 Usage:L=38.74 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97355161 Applied Date:1412-
8973551620 03.330 ROD; PUSH,NOZZLE HOLDER 4
Production:2014-12 – 9999-99 Usage:L=38.75 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97355162 Applied Date:1412-
8973551630 03.330 ROD; PUSH,NOZZLE HOLDER 4
Production:2014-12 – 9999-99 Usage:L=38.76 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97355163 Applied Date:1412-
8973551640 03.330 ROD; PUSH,NOZZLE HOLDER 4
Production:2014-12 – 9999-99 Usage:L=38.77 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97355164 Applied Date:1412-
8973551650 03.330 ROD; PUSH,NOZZLE HOLDER 4
Production:2014-12 – 9999-99 Usage:L=38.78 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97355165 Applied Date:1412-
8973551660 03.330 ROD; PUSH,NOZZLE HOLDER 4
Production:2014-12 – 9999-99 Usage:L=38.79 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97355166 Applied Date:1412-
8973551670 03.330 ROD; PUSH,NOZZLE HOLDER 4
Production:2014-12 – 9999-99 Usage:L=38.80 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97355167 Applied Date:1412-
8973551680 03.330 ROD; PUSH,NOZZLE HOLDER 4
Production:2014-12 – 9999-99 Usage:L=38.81 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97355168 Applied Date:1412-
8973551690 03.330 ROD; PUSH,NOZZLE HOLDER 4
Production:2014-12 – 9999-99 Usage:L=38.82 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97355169 Applied Date:1412-
8973551700 03.330 ROD; PUSH,NOZZLE HOLDER 4
Production:2014-12 – 9999-99 Usage:L=38.83 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97355170 Applied Date:1412-
8973551710 03.330 ROD; PUSH,NOZZLE HOLDER 4
Production:2014-12 – 9999-99 Usage:L=38.84 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97355171 Applied Date:1412-
8973551720 03.330 ROD; PUSH,NOZZLE HOLDER 4
Production:2014-12 – 9999-99 Usage:L=38.85 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97355172 Applied Date:1412-
8973551730 03.330 ROD; PUSH,NOZZLE HOLDER 4
Production:2014-12 – 9999-99 Usage:L=38.86 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97355173 Applied Date:1412-
8973551740 03.330 ROD; PUSH,NOZZLE HOLDER 4
Production:2014-12 – 9999-99 Usage:L=38.87 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97355174 Applied Date:1412-
8973551750 03.330 ROD; PUSH,NOZZLE HOLDER 4
Production:2014-12 – 9999-99 Usage:L=38.88 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97355175 Applied Date:1412-
8973551760 03.330 ROD; PUSH,NOZZLE HOLDER 4
Production:2014-12 – 9999-99 Usage:L=38.89 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97355176 Applied Date:1412-
8973551770 03.330 ROD; PUSH,NOZZLE HOLDER 4
Production:2014-12 – 9999-99 Usage:L=38.90 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97355177 Applied Date:1412-
8973551780 03.330 ROD; PUSH,NOZZLE HOLDER 4
Production:2014-12 – 9999-99 Usage:L=38.91 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97355178 Applied Date:1412-
8973551790 03.330 ROD; PUSH,NOZZLE HOLDER 4
Production:2014-12 – 9999-99 Usage:L=38.92 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97355179 Applied Date:1412-
8973551800 03.330 ROD; PUSH,NOZZLE HOLDER 4
Production:2014-12 – 9999-99 Usage:L=38.93 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97355180 Applied Date:1412-
8973551820 03.330 ROD; PUSH,NOZZLE HOLDER 4
Production:2014-12 – 9999-99 Usage:L=38.94 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97355182 Applied Date:1412-
8972233400 03.332 SPACER; NOZZLE SPRING,NOZZLE HOL 4
Production:2014-12 – 9999-99 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97223340 Applied Date:1412-
8972874022 03.332 GASKET; NOZZLE HOLDER 4
Production:2014-12 – 9999-99 Usage:ALSO INCLUDED IN GASKET SET(ENG. & HEAD) Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97287402 Applied Date:1412-
8972598840 03.332 CLAMP; NOZZLE HOLDER 4
Production:2014-12 – 9999-99 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97259884 Applied Date:1412-
8944680202 03.332 BOLT; CLAMP NOZZLE HOLDER 4
Production:2014-12 – 9999-99 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:94468020 Applied Date:1412-
8944677273 03.163 PIPE; FUEL,NOZZLE LEAK OFF 1
Production:2014-12 – 9999-99 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:94467727 Applied Date:1412-
8971713310 03.332 GASKET; INJ NOZZLE 4
Production:2014-12 – 9999-99 Usage:ALSO INCLUDED IN GASKET SET(ENG. & HEAD)ID=7.2 OD=15.0 T=6.6 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97171331 Applied Date:1412-
1097012400 03.162 CLIP; INJ PIPE 4
Production:2014-12 – 9999-99 Replacements:8983804390 (fitment: unknown) Replacements:8983804420 (fitment: unknown) Usage:03.634(B)ID=5.5 & 5.5 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97726074 Applied Date:1412-
8982279260 03.162 CLIP; INJ PIPE 1
Production:2014-12 – 9999-99 Usage:(C) Manufacturer:ISUZU Applied Model:A 8 Digit P/n:98227926 Applied Date:1412-
0505510200 03.330 BOLT; BRKT TO INJ PUMP 2
Production:2014-12 – 9999-99 Usage:M10X20 W/LK WASHER Manufacturer:ISUZU Applied Model:A 8 Digit P/n:94012114 Applied Date:1412-
0505408250 03.330 BOLT; BRKT TO BRKT 2
Production:2014-12 – 9999-99 Usage:09.008M8X25 W/LK WASHER Manufacturer:ISUZU Applied Model:A 8 Digit P/n:94012093 Applied Date:1412-
0286508200 03.330 BOLT; BRKT TO C/BL 2
Production:2014-12 – 9999-99 Usage:01.531M8X20 FLANGE Manufacturer:ISUZU Applied Model:A 8 Digit P/n:94012125 Applied Date:1412-
8973686700 03.306 BRACKET; PUMP 1
Production:2014-12 – 9999-99 Usage:(A) Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97368670 Applied Date:1412-
8973686710 03.306 BRACKET; PUMP 1
Production:2014-12 – 9999-99 Usage:(B) Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97368671 Applied Date:1412-
0916147080 03.330 WASHER; PL,BRKT TO PUMP 2
Production:2014-12 – 9999-99 Usage:02.277ID=8.4 OD=22 T=2 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:94015238 Applied Date:1412-
8973752360 03.162 GASKET; LEAK OFF PIPE 4
Production:2014-12 – 9999-99 Usage:ALSO INCLUDED IN GASKET SET(ENGINE). Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97375236 Applied Date:1412-
0911801060 03.330 NUT; CLIP 2
Production:2014-12 – 2015-10 Usage:01.062M6 FLANGE Manufacturer:ISUZU Applied Model:ABC 8 Digit P/n:94012038 Applied Date:1412-1510
8941741410 03.330 SPRING; NOZZLE LWR,NOZZLE HOLDER 4
Production:2014-12 – 9999-99 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:94174141 Applied Date:1412-
1153490040 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 1
Production:2014-12 – 9999-99 Usage:(A)T=1.20 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97723915 Applied Date:1412-
1153490440 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 1
Production:2014-12 – 9999-99 Usage:(A)T=0.52 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97723920 Applied Date:1412-
1153490450 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 1
Production:2014-12 – 9999-99 Usage:(A)T=0.54 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97723921 Applied Date:1412-
1153490460 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 1
Production:2014-12 – 9999-99 Usage:(A)T=0.56 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97723922 Applied Date:1412-
1153490470 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 1
Production:2014-12 – 9999-99 Usage:(A)T=0.58 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97723923 Applied Date:1412-
1153490480 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 1
Production:2014-12 – 9999-99 Usage:(A)T=0.60 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97723924 Applied Date:1412-
1153490490 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 1
Production:2014-12 – 9999-99 Usage:(A)T=0.70 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97723925 Applied Date:1412-
8971160290 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 1
Production:2014-12 – 9999-99 Usage:(B)T=0.10 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97116029 Applied Date:1412-
8971160320 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 1
Production:2014-12 – 9999-99 Usage:(B)T=0.20 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97116032 Applied Date:1412-
8971160330 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 1
Production:2014-12 – 9999-99 Usage:(B)T=0.30 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97116033 Applied Date:1412-
8971160340 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 1
Production:2014-12 – 9999-99 Usage:(B)T=0.40 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97116034 Applied Date:1412-
8971160350 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 1
Production:2014-12 – 9999-99 Usage:(B)T=0.50 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97116035 Applied Date:1412-
8971160360 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 1
Production:2014-12 – 9999-99 Usage:(B)T=0.51 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97116036 Applied Date:1412-
8971160370 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 1
Production:2014-12 – 9999-99 Usage:(B)T=0.52 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97116037 Applied Date:1412-
8971160380 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 1
Production:2014-12 – 9999-99 Usage:(B)T=0.53 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97116038 Applied Date:1412-
8971160390 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 1
Production:2014-12 – 9999-99 Usage:(B)T=0.54 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97116039 Applied Date:1412-
8971160400 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 1
Production:2014-12 – 9999-99 Usage:(B)T=0.55 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97116040 Applied Date:1412-
8971160410 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 1
Production:2014-12 – 9999-99 Usage:(B)T=0.56 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97116041 Applied Date:1412-
8971160420 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 1
Production:2014-12 – 9999-99 Usage:(B)T=0.57 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97116042 Applied Date:1412-
8971160430 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 1
Production:2014-12 – 9999-99 Usage:(B)T=0.58 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97116043 Applied Date:1412-
8971160440 03.330 SHIM; NOZZLE SPRING,NOZZLE HOLDE 1
Production:2014-12 – 9999-99 Usage:(B)T=0.59 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97116044 Applied Date:1412-
8973625720 03.332 NOZZLE KIT; INJ 4
Production:2014-12 – 9999-99 Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97362572 Applied Date:1412-
8973338061 03.330 BRACKET; CLIP,INJ PIPE 1
Production:2014-12 – 9999-99 Usage:(B) Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97333806 Applied Date:1412-
8973652111 03.330 BRACKET; CLIP,INJ PIPE 1
Production:2014-12 – 9999-99 Usage:(A) Manufacturer:ISUZU Applied Model:A 8 Digit P/n:97365211 Applied Date:1412-

Schéma

176 pièces
Isuzu TFR/TFS Middle East 2015 — Fuel Injection System — 4JA1
