Genesis G70 21 2023 — Fuel System
Pièces de rechange
| Numéro de pièce | Description | PNC | Quantité |
|---|---|---|---|
| 31129A9000 | BOLT | 1014CJ | 5 |
Note:TI Automotive Production:2020-02-18 – … | |||
| 1249205123 | SCREW - TAPPING | 8 | |
Production:2020-02-18 – … | |||
| 1327006007K | NUT [Washer Assy] | 2 | |
Production:2020-02-18 – … | |||
| 1327106007K | NUT [Washer Assy] | 2 | |
Production:2020-02-18 – … | |||
| 1472019006B | CLIP - HOSE | 2 | |
Production:2020-02-18 – … | |||
| 1472018006B | CLIP - HOSE | 2 | |
Production:2020-02-18 – … | |||
| 31010J9800 | CAP ASSY - FUEL FILLER | 1 | |
Production:2020-11-09 – … | |||
| 31030G9950 | FILLER NECK ASSY - FUEL | 1 | |
Production:2020-02-18 – … | |||
| 31036J5100 | HOSE - FUEL FILLER | 1 | |
Production:2020-02-18 – … | |||
| 31037J5100 | HOSE ASSY - LEVELLING | 1 | |
Production:2020-02-18 – … | |||
| 31038M6900 | LABEL - FUEL FILLER DOOR | 31038 | 1 |
Production:2018-07-09 – … | |||
| 31033B1190 | PLATE | 2 | |
Production:2020-02-18 – … | |||
| 31101J5000 | PAD - FUEL TANK | 31101A | 7 |
Note:TI Automotive Production:2020-02-18 – … | |||
| 31102A9000 | PAD - FUEL TANK | 31101B | 2 |
Production:2020-02-18 – … | |||
| 31107J5500 | COVER - FUEL PUMP | 1 | |
Production:2020-02-18 – … | |||
| 31107J5000 | COVER - FUEL PUMP, LH | 1 | |
Production:2020-02-18 – … | |||
| 311092B000 | NUT - FLANGE LOCK | 31109 | 2 |
Production:2020-04-01 – … | |||
| 31110G9900 | COMPLETE - FUEL PUMP | 1 | |
Production:2020-02-18 – … | |||
| 31115A9000 | PACKING - FUEL PUMP | 1 | |
Note:TI Automotive Production:2020-02-18 – … | |||
| 31115J5000 | PACKING - FUEL PUMP | 1 | |
Production:2020-02-18 – … | |||
| 31141D2150 | CLAMP ASSY | 1 | |
Production:2020-02-18 – … | |||
| 31130J5150 | PLATE & SENDER ASSY - SUCTION | 1 | |
Production:2020-02-18 – … | |||
| 31141D3500 | CLAMP ASSY | 1 | |
Production:2020-02-18 – … | |||
| 31127J5000 | HOSE - TANK TO CANISTER | 1 | |
Production:2020-02-18 – … | |||
| 31150G9900 | TANK ASSY - FUEL | 1 | |
Production:2022-09-22 – … | |||
| 31150J5000 | TANK ASSY - FUEL | 1 | |
Production:2020-02-18 – … | |||
| 31152J5000 | COVER - FUEL PUMP PLATE | 1 | |
Production:2020-02-18 – … | |||
| 31152A9000 | RING - LOCK | 1 | |
Note:TI Automotive Production:2020-02-18 – … | |||
| 31210J5000 | BAND ASSY - FUEL TANK | 31210A | 2 |
Production:2020-02-18 – … | |||
| 31220J5100 | PROTECTOR - FUEL TANK HEAT | 31220 | 1 |
Production:2020-02-18 – … | |||
| 31323J5100 | CLIP - FUEL LINE | 2 | |
Production:2020-02-18 – … | |||
| 31354J5000 | CLIP - HOSE | 1 | |
Production:2020-02-18 – … | |||
| 33040J5000 | CONTROLLER - FUEL PUMP | 33041B | 1 |
Production:2020-02-18 – … | |||
| 311053M000 | GROMMET ASSY - SCREW | 8 | |
Production:2020-02-18 – … | |||
| 8574528000 | PAD - SEALING | 8 | |
Production:2020-02-18 – … | |||
| 94460J5050 | SENDER ASSY - FUEL PUMP | 1 | |
Production:2020-02-18 – … | |||
| 94460J5150 | SENDER ASSY - PLATE | 1 | |
Production:2020-02-18 – … | |||

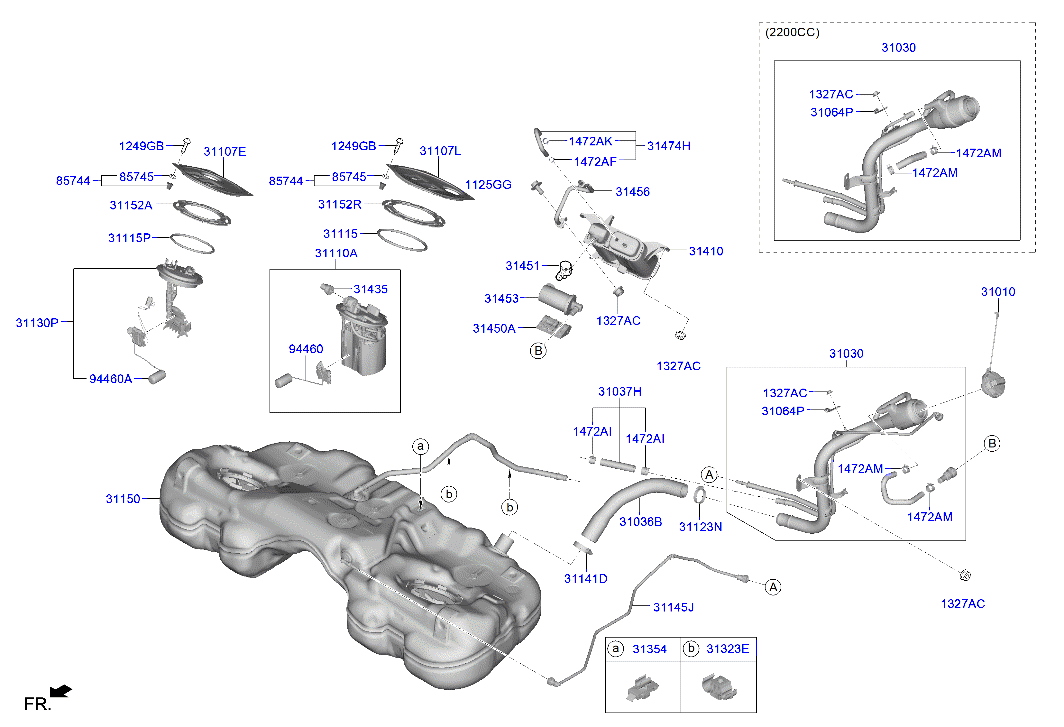

Schéma
37 pièces
