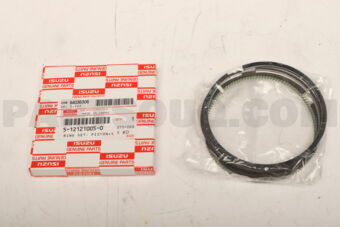

5121210050 Isuzu RING SET; PI, Price: 24.00$, Weight: 0.09kg
| Make | Number | Name | Availability | Weight, kg | Ship in, Days | Price |
|---|---|---|---|---|---|---|
Isuzu |
5121210050 |
RING SET; PI |
4 |
0.09 |
2-3 |
24.00$ |
Substitutions
| Make | Number | Name | Availability | Weight, kg | Processing, days | Price | |
|---|---|---|---|---|---|---|---|
| NPR |
SJI10065ZZSTD
|
PISTON RING SET
|
0 |
0.104
|
4-5
|
37.08$
|
Not Available |
Piston Ring Set for Isuzu Diesel Engines ?
This piston ring set is a vital internal engine spare part that seals the gap between the piston and cylinder wall. It is needed to keep strong compression, control engine oil, and transfer heat from the piston into the cylinder block. Without a good seal, even a healthy fuel system cannot deliver full power.
How It Works ⚙️
The set usually includes compression rings and an oil control ring. During each stroke, the compression rings hold combustion pressure inside the cylinder, helping the engine start easily and run efficiently. The oil ring scrapes extra oil off the cylinder wall and returns it to the sump, preventing oil from burning in the chamber. Proper ring tension keeps friction balanced for long engine life.
What Happens If It’s Worn or Broken ?
Damaged rings cause low compression, hard starting, weak acceleration, and higher fuel use. You may notice blue smoke, excessive crankcase pressure, oil consumption, and oily deposits on the injector tips or glow plugs. Ignoring the problem can lead to cylinder scoring, overheating, and a full rebuild.
Best Practice ✅
Replace rings during overhaul with correct sizing, honing, and end-gap checks for reliable Isuzu performance.
