Catalog
Brand Name Code

KIA

Kia KIA201803
Model
NameFamilyVehicle CategoryModel Year FromModel Year ToModel Option S
Shuma II/Sephia II/Mentor II/SpectraShuma II/Sephia II/Mentor II/SpectraPassenger19982004FXADB6BGRADE: (D) MIDDLE GRADE;Engine C

ENGINE

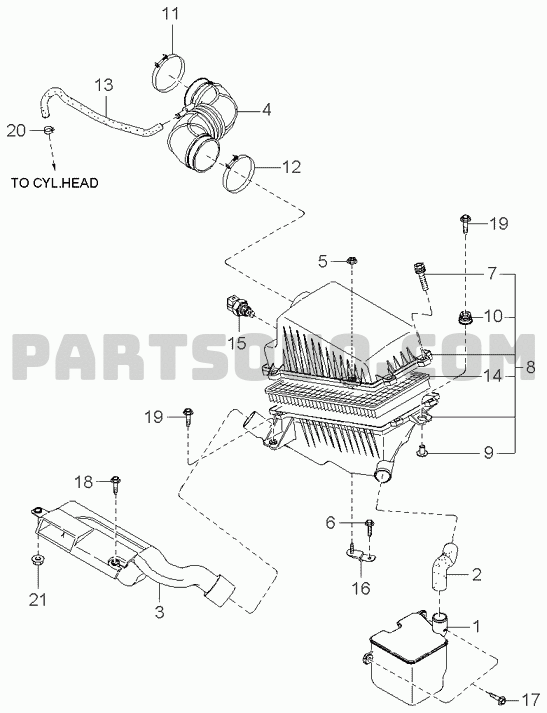

AIR CLEANER (-010522)

01/02
NumberNameCode
0BP0113735Clamp - (hose)14
0K2NA13735Clamp - (hose)14
K992831400Clip20
K992831400BClip - hose20
0K2A513741AHose - ventilation8
267112Y000Hose - ventilation8
0K2A513220Hose - air intake5
0F24913736Clamp - (hose)15
0K08013210Sensor assy - air flow4
0K9A052601Nut - flange18
0K2A513222Duct - inner6
K997960612BBolt24
0K2A113302Bolt9
0F20113302ABolt - air cleaner9
0K2A367BD1Bracket19
0K2AB18831Sensor - air temperature16
KK37118831Sensor - air temperature16
0K2A513311ABracket-a.f.m10
0K74P15201Label - caution27
0K30A15201Plate - caution27
0K2A513320CCleaner - air11
0K2A513320BCleaner - air11
0K2AA13200CDuct assy - fresh air3
0K2AA13200BDuct assy - fresh air3
0K2N51320XDuct assy - fresh air3
0K2A513Z40AFilter - air cleaner1
K999320600BNut - cap25
1317306003Nut - cap25
K907860620BScrew26
K907860835BScrew22
K907860835Screw - tapping22
KFE5113363Rubber - mounting13
0K2A113329Spacer12
MB3H713329Spacer12
K997860816BScrew23
K997860816Screw23
0K2A113228AHose - resonance7
0K2A520230ABracket assy - air cleaner17
0K2A11318XAChamber - resonance2
0K2NC1318XChamber - resonance2
0K2N31318XChamber - resonance2
K907860620Screw21
K907860620BScrew21

AIR CLEANER (-010522)

02/02
NumberNameCode
0BP0113735Clamp - (hose)14
0K2NA13735Clamp - (hose)14
K992831400BClip - hose20
K992831400Clip20
0K2A513741AHose - ventilation8
267112Y000Hose - ventilation8
0K2A513220Hose - air intake5
0K08013210Sensor assy - air flow4
0K9A052601Nut - flange18
0K2A513222Duct - inner6
0F20113302ABolt - air cleaner9
0K2A113302Bolt9
K997960612BBolt24
0K2A367BD1Bracket19
KK37118831Sensor - air temperature16
0K2AB18831Sensor - air temperature16
0K2A513311ABracket-a.f.m10
0K30A15201Plate - caution27
0K74P15201Label - caution27
0K2A513320BCleaner - air11
0K2A513320CCleaner - air11
0K2AA13200BDuct assy - fresh air3
0K2N51320XDuct assy - fresh air3
0K2AA13200CDuct assy - fresh air3
0K2A513Z40AFilter - air cleaner1
1317306003Nut - cap25
K999320600BNut - cap25
K907860835BScrew22
K907860835Screw - tapping22
K907860620BScrew26
KFE5113363Rubber - mounting13
MB3H713329Spacer12
0K2A113329Spacer12
K997860816BScrew23
K997860816Screw23
0F24913736Clamp - (hose)15
0K2A520230ABracket assy - air cleaner17
0K2NC1318XChamber - resonance2
0K2N31318XChamber - resonance2
0K2A11318XAChamber - resonance2

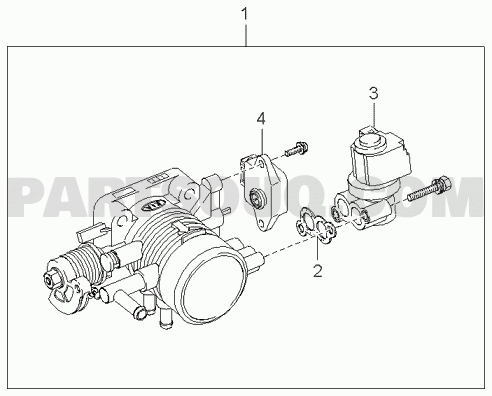

THROTTLE BODY

NumberNameCode
0K24718911Sensor assy - throttle position4
0K30A13453Bolt5
0K2A513640Body assy - throttle1
0K24013454Screw - throttle position sensor6
0K9A213W89Gasket - idle speed controller actuator3
0K9A220660AActuator assy - idle speed2
0K24720660Actuator assy - idle speed2

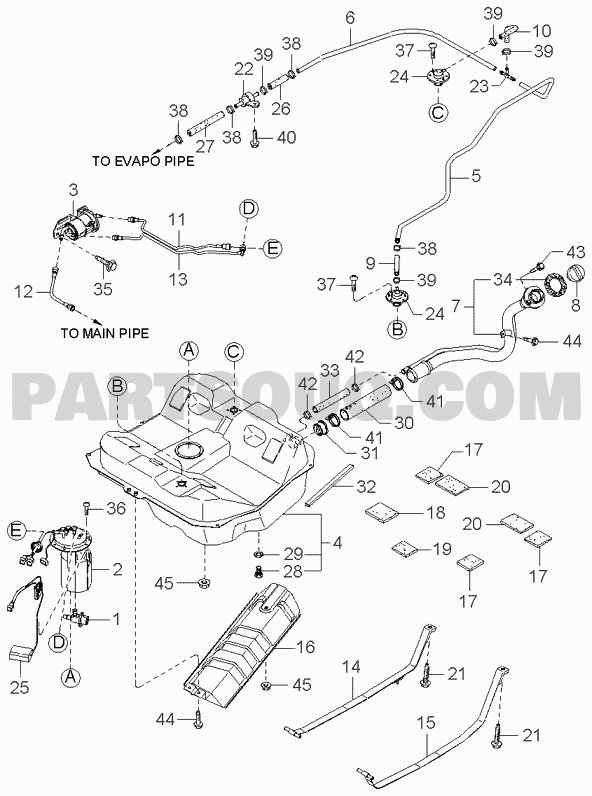

TANK - FUEL

NumberNameCode
K992831100Clip - hose40
0K2AC42512Hose - fuel6
0K2AC42562Hose - fuel10
0K2AC42562AHose - fuel10
K992831000Clip - hose39
K998330410BScrew38
KGA5R42910Valve - check22
3119029810Valve assy - fuel cut solenoid24
0K24T42980Valve-fuel evapo24
0K2A142161Joint - t23
K9935706060Hose - fuel26
K997860612Screw - machine41
K9935706220Hose - fuel27
0K2AC42511Pipe-evaporation5
0K2A120490AFilter assy - fuel3
0K2AA20490Filter assy - fuel3
0K2AA20490Filter assy - fuel3
0K2AA4261XPipe-fuel main "a"11
0K2DJ4261XAPipe-fuel main "a"11
0K2DJ4261XPipe-fuel main "a"11
K9G6600616BScrew - tapping44
M086642366BPacking34
0K2CA42561Hose - fuel9
0K2A142561Hose - fuel9
0K2DJ4262XPipe fuel - return13
0K2DJ4262XAPipe fuel - return13
0K2AA4262XPipe fuel - return13
0K2AC42210APipe assy - filler7
0K2AR42210Pipe assy - filler7
0K2AC42210Pipe assy - filler7
0K2B142210Pipe assy - filler7
K997200616Bolt36
0K2A14261YPipe-fuel main "b"12
0K2A14261YAPipe-fuel main "b"12
0K20142252O-ring35
0K20142250Cap assy - fuel filler8
3101006000Cap assy - fuel filler8
K992831900Clip - hose43
K9935714193Hose - fuel33
K907860612Screw45
0K2AC42231Hose - joint30
K992825400HClamp - (hose)42
MD06142270Valve - non return31
3115936000Bolt37
K998330410Screw37
0K2AA42762Pad18
0K95A56071Cover-edge32
0K2AA42764APad20
0K2AC42110ATank assy - fuel4
0K2B142110ATank assy - fuel4
0K2B142110Tank assy - fuel4
0K2AC42110Tank assy - fuel4
0086642046Packing29
MBC8842045Plug28
0K2A213280Regulator - fuel pressure1
0K2AA42763Pad19
0K2AA42741Insulator16
0K2KB42741Insulator16
0K2AA60960Gauge - fuel tank25
0K2DJ60960Gauge - fuel tank25
K999400601Nut - flange46
0K9A042761Pad17
0K2AA42761Pad17
0K2AA42710Strap - fuel tank14
0K2AA42710AStrap - fuel tank14
0K2A142780Bolt21
0K2KB42761Pad - fuel tank47
0K2A142720BStrap - fuel tank15
0K2A142720AStrap - fuel tank15
0K2NC1335ZAPump assy - fuel2
0K2NC1335ZPump assy - fuel2
0K2AC1335ZPump assy - fuel2

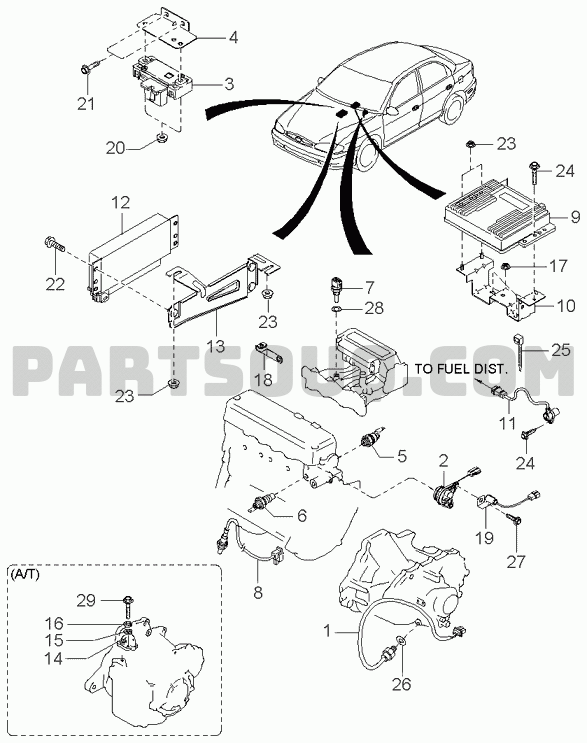

SWITCHES & RELAYS (ENGINE)

NumberNameCode
K997960612Bolt20
0K2A6189E1BUnit - control, electronic automatic transmission10
0K2A6189E1AUnit - control, electronic automatic transmission10
391102Y800Computer assy7
391102Y600Computer assy7
0K2A518881Electronic control unit7
K997400612Screw21
MFC6657K98Nut15
391002X885Bracket - ecu8
0K2A318885BBracket - ecu8
0K2A318885ABracket - ecu8
0K2A318885Bracket - ecu8
K997940614BBolt32
0K2CC1892XBracket - knock sensor30
0K90018501CSwitch - oil pressure3
K999400603Nut - flange27
0K2A2189E5Bracket - control unit, electronic automatic transmission11
0K2CC18921Sensor - knock31
0K2471813XASensor assy - phase2
K997960825Bolt33
0K24718201O-ring19
K995641200Packing26
0K95B18840Sensor - water temperature5
0K01118131Sensor - phase17
0K01118201O-ring29
0K24718132Bracket - phase sensor18
0K01366991Condenser assy - ignition coil16
0K01466991Condenser assy - ignition coil16
K997210612Bolt24
K907941825Bolt25
K907941825BBolt25
0K2A618891Sensor - crankshaft angle9
K997960625BBolt28
M997960625Bolt28
KK3701851XHgu sub-assy4
MFU0121446AWasher - dished14
MFU0121445AWasher - [plain]13
K997960616Bolt23
MFW3521444ASwitch - inhibitor12
0K2A518861Sensor - oxygen6
K995641400Packing22
