Catalog
Brand Name Code

TOYOTA

Toyota TOYOTA00
Model
NameModel DescriptionProdPeriodOption S
COROLLAAE91-AEPEKAE9#,CE9#,EE9#05.1988 - 06.1991ATM,MTM: AUTOMATIC TRANSMISSION;

Engine/Fuel/Tool

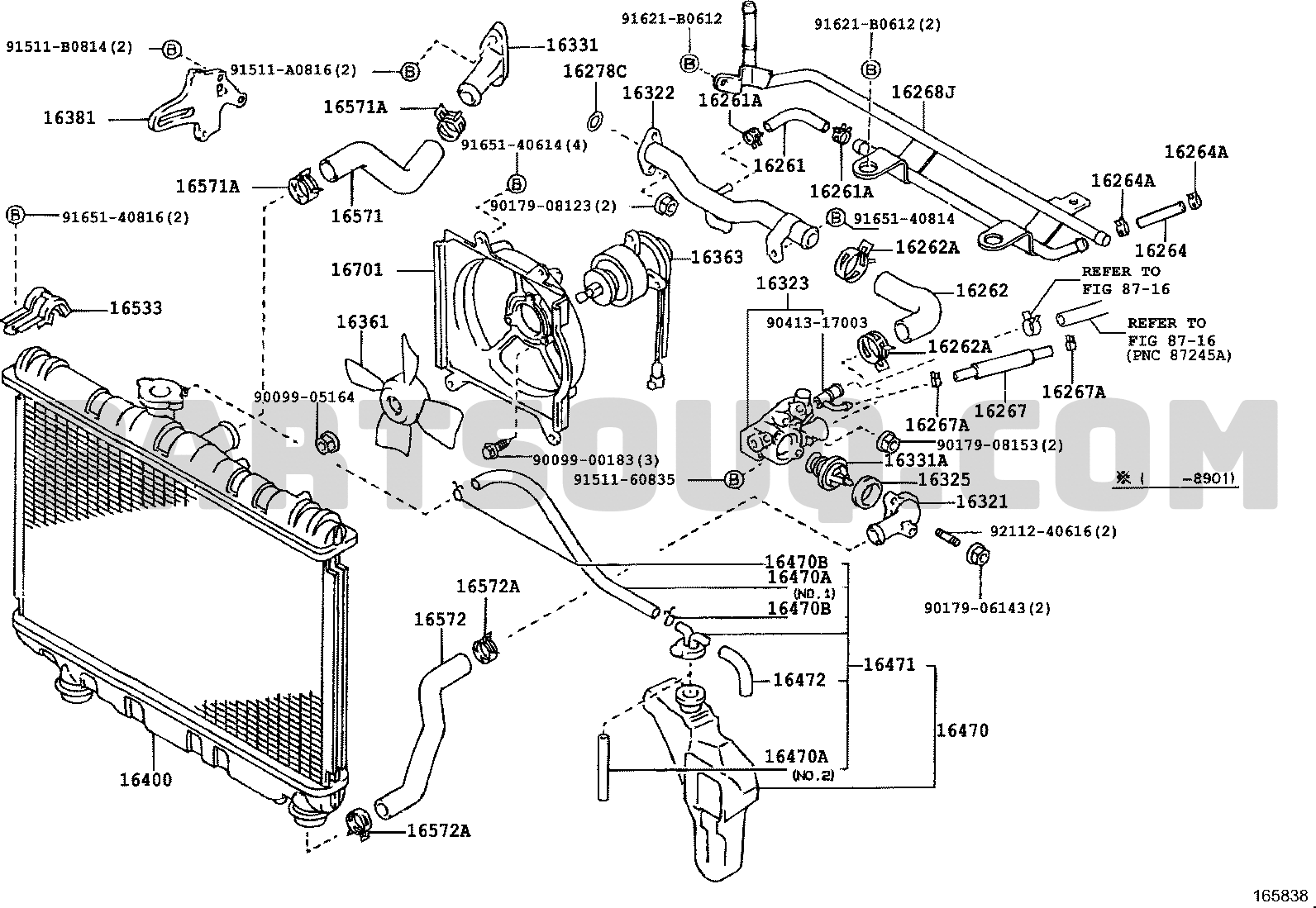

RADIATOR & WATER OUTLET

NumberNameCode
91621B0612BOLT W/WASHER91621B0612
1633115080OUTLET, WATER16331
91511B0814BOLT FLANGE91511B0814
91511A0816BOLT FLANGE91511A0816
9671124035RING, O(FOR WATER BY-PASS PIPE NO.2)16278C
9671124035RING, O(FOR WATER BY-PASS PIPE NO.2)16278C
9671124035RING, O(FOR WATER BY-PASS PIPE NO.2)16278C
1626815080PIPE, WATER BY-PASS, NO.516268J
1632215020PIPE, WATER INLET16322
1632215040PIPE, WATER INLET16322
9046713001CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)16261A
1638115060BAR, FAN BELT ADJUSTING16381
9165140614BOLT W/WASHER9165140614
9955510180HOSE, WATER BY-PASS16261
9046713001CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)16264A
9046713001CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)16264A
9046713001CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)16264A
9046734003CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)16571A
9017908123NUT9017908123
1657115150HOSE, RADIATOR, INLET16571
9165140816BOLT W/WASHER9165140816
9165140814BOLT W/WASHER9165140814
9046736001CLIP(FOR WATER INLET HOSE)16262A
9046736001CLIP(FOR WATER INLET HOSE)16262A
1626416050HOSE, WATER BY-PASS, NO.216264
9955510180HOSE, WATER BY-PASS, NO.216264
1636316030MOTOR, COOLING FAN16363
1636364010MOTOR, COOLING FAN16363
1636316030MOTOR, COOLING FAN16363
1671115220SHROUD SUB-ASSY, FAN16701
1671115220SHROUD SUB-ASSY, FAN16701
1671115230SHROUD SUB-ASSY, FAN16701
1632315080HOUSING, WATER INLET16323
1632315070HOUSING, WATER INLET16323
1626215030HOSE, WATER INLET16262
1626215030HOSE, WATER INLET16262
1653315090SUPPORT, RADIATOR, UPPER16533
1636115080FAN16361
1636164010FAN16361
1636115080FAN16361
1636164010FAN16361
9041317003WAY 39041317003
9009905164NUT9009905164
9044715021HOSE, WATER BY-PASS, NO.316267
1626716040HOSE, WATER BY-PASS, NO.316267
9044715021HOSE, WATER BY-PASS, NO.316267
9046713001CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)16267A
9046713001CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)16267A
9017908153NUT9017908153
9009900183SCREWW/WASHER9009900183
9091603046THERMOSTAT16331A
9091603046THERMOSTAT16331A
9091603046THERMOSTAT16331A
9091603046THERMOSTAT16331A
1632563010GASKET, WATER INLET HOUSING, NO.116325
1632563010GASKET, WATER INLET HOUSING, NO.116325
1632563010GASKET, WATER INLET HOUSING, NO.116325
9151160835BOLT (FOR PAWL STOPPER PLATE)9151160835
1632115020INLET, WATER16321
1632115020INLET, WATER16321
9211240616BOLT, STUD(FOR COLD START INJECTOR)9211240616
9046711085CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)16470B
9017906143NUT9017906143
1657215190HOSE, RADIATOR, OUTLET16572
1657202010HOSE, RADIATOR, OUTLET16572
1657215190HOSE, RADIATOR, OUTLET16572
1657215190HOSE, RADIATOR, OUTLET16572
1640515050CAP SUB-ASSY, RESERVE TANK16471
8533874040HOSE, BREATHER16472
1647015040TANK ASSY, RADIATOR RESERVE16470
9044512078HOSE OR PIPE(FOR RADIATOR RESERVE TANK)16470A
9044512078HOSE OR PIPE(FOR RADIATOR RESERVE TANK)16470A
9044512078HOSE OR PIPE(FOR RADIATOR RESERVE TANK)16470A
9044512117HOSE OR PIPE(FOR RADIATOR RESERVE TANK)16470A
9044512117HOSE OR PIPE(FOR RADIATOR RESERVE TANK)16470A
9044512117HOSE OR PIPE(FOR RADIATOR RESERVE TANK)16470A
1640015380RADIATOR ASSY16400
9046734003CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)16572A

RADIATOR & WATER OUTLET

NumberNameCode
1633115080OUTLET, WATER16331
91511B0814BOLT FLANGE91511B0814
9046713001CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)16264A
9046713001CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)16264A
9046713001CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)16264A
91511A0816BOLT FLANGE91511A0816
9671124035RING, O(FOR WATER BY-PASS PIPE NO.2)16278C
9671124035RING, O(FOR WATER BY-PASS PIPE NO.2)16278C
9671124035RING, O(FOR WATER BY-PASS PIPE NO.2)16278C
1632215020PIPE, WATER INLET16322
1632215040PIPE, WATER INLET16322
9955510180HOSE, WATER BY-PASS, NO.216264
1626416050HOSE, WATER BY-PASS, NO.216264
1638115060BAR, FAN BELT ADJUSTING16381
9046713001CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)16267A
9046713001CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)16267A
9011906334BOLT W/WASHER9011906334
9044715021HOSE, WATER BY-PASS, NO.316267
9044715021HOSE, WATER BY-PASS, NO.316267
1626716040HOSE, WATER BY-PASS, NO.316267
9046734003CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)16571A
9017908123NUT9017908123
1657115150HOSE, RADIATOR, INLET16571
9011908813BOLT W/WASHER9011908813
9165140814BOLT W/WASHER9165140814
1671115230SHROUD SUB-ASSY, FAN16701
1671115220SHROUD SUB-ASSY, FAN16701
1671115220SHROUD SUB-ASSY, FAN16701
1626215030HOSE, WATER INLET16262
1626215030HOSE, WATER INLET16262
1653315090SUPPORT, RADIATOR, UPPER16533
1636164010FAN16361
1636164010FAN16361
1636115080FAN16361
1636115080FAN16361
1636364010MOTOR, COOLING FAN16363
1636316030MOTOR, COOLING FAN16363
1636316030MOTOR, COOLING FAN16363
9046736001CLIP(FOR WATER INLET HOSE)16262A
9046736001CLIP(FOR WATER INLET HOSE)16262A
9041317003WAY 39041317003
9009905164NUT9009905164
1632315070HOUSING, WATER INLET16323
1632315080HOUSING, WATER INLET16323
9017908153NUT9017908153
9009900183SCREWW/WASHER9009900183
9091603046THERMOSTAT16331A
9091603046THERMOSTAT16331A
9091603046THERMOSTAT16331A
9091603046THERMOSTAT16331A
9151160835BOLT (FOR PAWL STOPPER PLATE)9151160835
1632563010GASKET, WATER INLET HOUSING, NO.116325
1632563010GASKET, WATER INLET HOUSING, NO.116325
1632563010GASKET, WATER INLET HOUSING, NO.116325
1632115020INLET, WATER16321
1632115020INLET, WATER16321
9011606136BOLT, STUD9011606136
9046711085CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)16470B
9017906143NUT9017906143
1657215190HOSE, RADIATOR, OUTLET16572
1657202010HOSE, RADIATOR, OUTLET16572
1657215190HOSE, RADIATOR, OUTLET16572
1657215190HOSE, RADIATOR, OUTLET16572
1640515050CAP SUB-ASSY, RESERVE TANK16471
8533874040HOSE, BREATHER16472
1647015040TANK ASSY, RADIATOR RESERVE16470
9044512078HOSE OR PIPE(FOR RADIATOR RESERVE TANK)16470A
9044512078HOSE OR PIPE(FOR RADIATOR RESERVE TANK)16470A
9044512078HOSE OR PIPE(FOR RADIATOR RESERVE TANK)16470A
9044512117HOSE OR PIPE(FOR RADIATOR RESERVE TANK)16470A
9044512117HOSE OR PIPE(FOR RADIATOR RESERVE TANK)16470A
9044512117HOSE OR PIPE(FOR RADIATOR RESERVE TANK)16470A
1640015380RADIATOR ASSY16400
9046734003CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)16572A
