Catalog
Brand Name Code

TOYOTA

Toyota TOYOTA00
Model
NameModel DescriptionProdPeriodOption S
COROLLA/ALTIS SED/WGNZE121R-AEMEKCE120,NZE12#,ZZE12#08.2000 - 12.2005ATM,MTM: MANUAL TRANSMISSION; Dr

Electrical

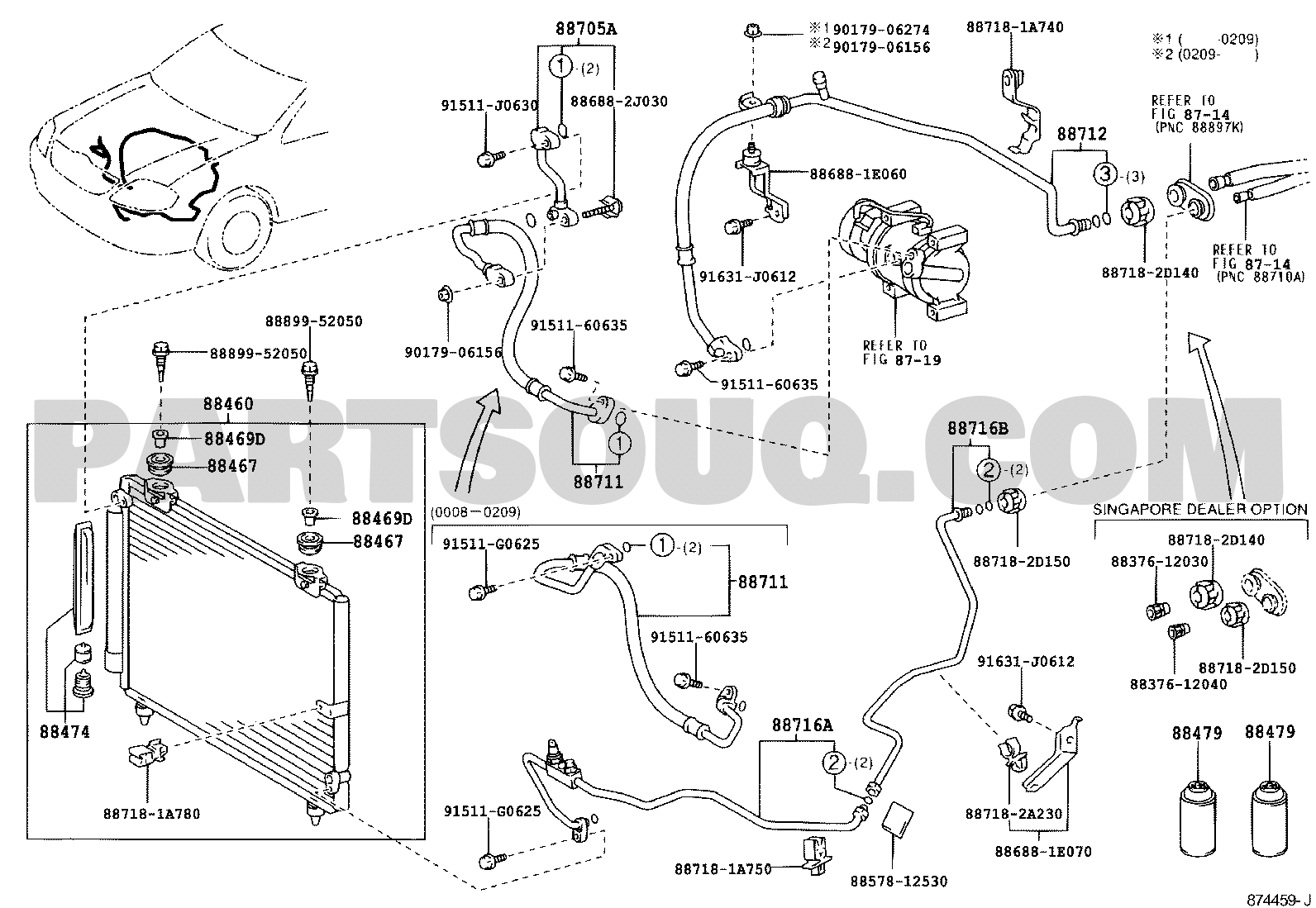

HEATING & AIR CONDITIONING - COOLER PIPING

NumberNameCode
887181A740887181A740
887181A880887181A880
9017906156NUT9017906156
887182D140CLAMP PIPING887182D140
8870312620HOSE, COOLER REFRIGERANT DISCHARGE, NO.188711
8870312700HOSE, COOLER REFRIGERANT DISCHARGE, NO.188711
8870312530HOSE, COOLER REFRIGERANT DISCHARGE, NO.188711
8870312760HOSE, COOLER REFRIGERANT DISCHARGE, NO.188711
886881E060886881E060
91511G0625BOLT FLANGE91511G0625
91631J0612BOLT W/WASHER91631J0612
8870412810HOSE, COOLER REFRIGERANT SUCTION, NO.188712
8870412810HOSE, COOLER REFRIGERANT SUCTION, NO.188712
887041A130HOSE, COOLER REFRIGERANT SUCTION, NO.188712
9151160635BOLT9151160635
8889952050BOLT W/WASHER8889952050
8871012510PIPE, COOLER REFRIGERANT LIQUID, A88716A
8871012570PIPE, COOLER REFRIGERANT LIQUID, A88716A
8871012570PIPE, COOLER REFRIGERANT LIQUID, A88716A
8871012510PIPE, COOLER REFRIGERANT LIQUID, A88716A
8871012510PIPE, COOLER REFRIGERANT LIQUID, A88716A
8845012241CONDENSER ASSY, COOLER88460
8845012241CONDENSER ASSY, COOLER88460
8845012241CONDENSER ASSY, COOLER88460
8845012240CONDENSER ASSY, COOLER88460
8846012561CONDENSER ASSY, COOLER88460
8846952010COLLAR, CONDENSER BRACKET, NO.188469D
8846952010COLLAR, CONDENSER BRACKET, NO.188469D
8846952010COLLAR, CONDENSER BRACKET, NO.188469D
8846952010COLLAR, CONDENSER BRACKET, NO.188469D
8846712180CUSHION, COOLER CONDENSER, NO.188467
8846712180CUSHION, COOLER CONDENSER, NO.188467
8846712180CUSHION, COOLER CONDENSER, NO.188467
8846712180CUSHION, COOLER CONDENSER, NO.188467
887182D150CLAMP PIPING887182D150
8847417010DRYER, COOLER88474
8847417010DRYER, COOLER88474
8847417010DRYER, COOLER88474
8847447010DRYER, COOLER88474
886881E070886881E070
887181A780CLAMP PIPING887181A780
887181A750CLAMP PIPING887181A750

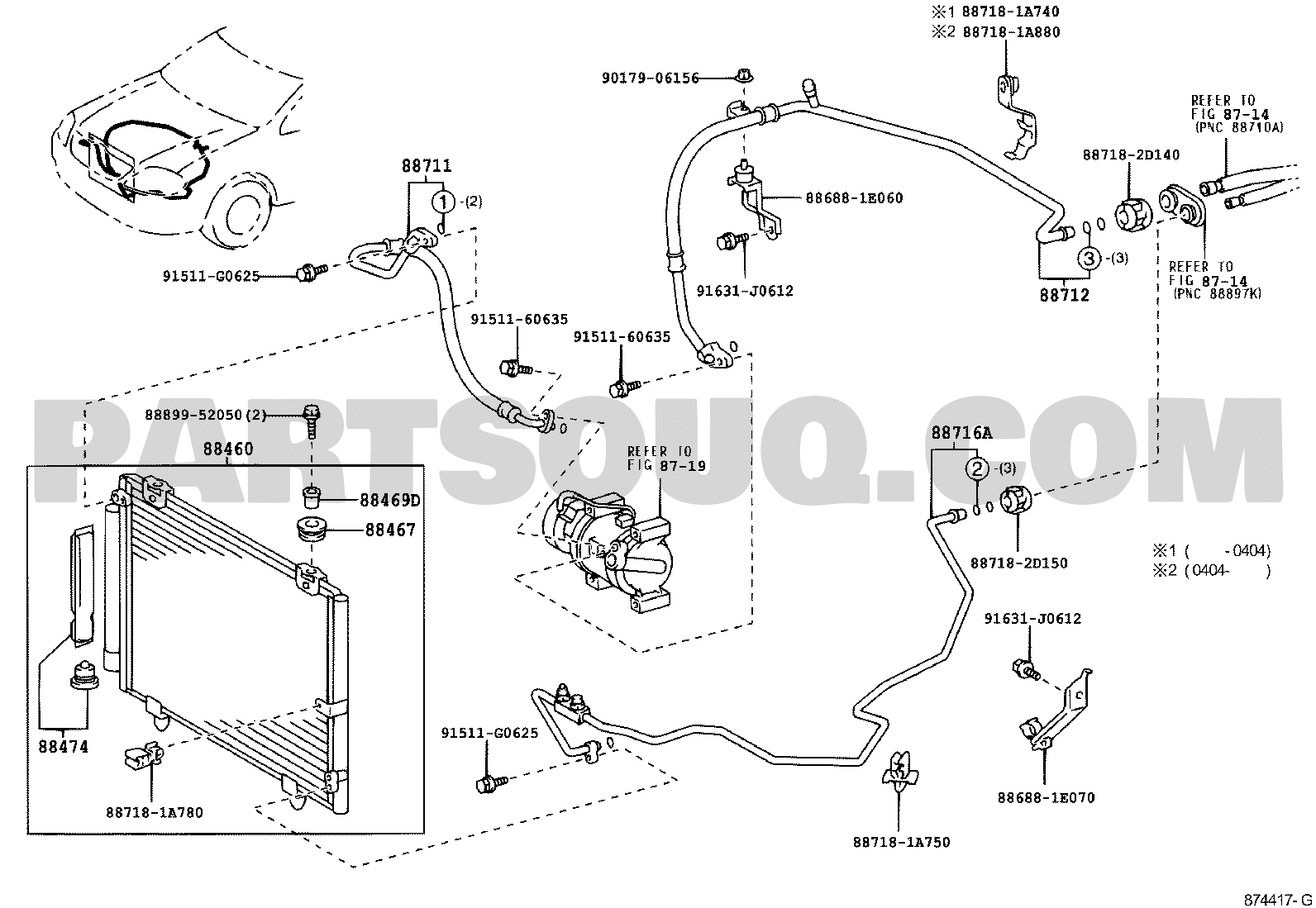

HEATING & AIR CONDITIONING - COOLER PIPING

NumberNameCode
887181A740887181A740
8870512200TUBE SUB-ASSY, DISCHARGE88705A
9017906274NUT9017906274
886882J030886882J030
91511J063091511J0630
8870412810HOSE, COOLER REFRIGERANT SUCTION, NO.188712
887041A130HOSE, COOLER REFRIGERANT SUCTION, NO.188712
8870412810HOSE, COOLER REFRIGERANT SUCTION, NO.188712
886881E060886881E060
887182D140CLAMP PIPING887182D140
91631J0612BOLT W/WASHER91631J0612
9151160635BOLT9151160635
9017906156NUT9017906156
8889952050BOLT W/WASHER8889952050
8846012561CONDENSER ASSY, COOLER88460
8845012241CONDENSER ASSY, COOLER88460
8845012241CONDENSER ASSY, COOLER88460
8845012241CONDENSER ASSY, COOLER88460
8845012240CONDENSER ASSY, COOLER88460
887161A640PIPE, COOLER REFRIGERANT LIQUID, B88716B
887161A640PIPE, COOLER REFRIGERANT LIQUID, B88716B
8846952010COLLAR, CONDENSER BRACKET, NO.188469D
8846952010COLLAR, CONDENSER BRACKET, NO.188469D
8846952010COLLAR, CONDENSER BRACKET, NO.188469D
8846952010COLLAR, CONDENSER BRACKET, NO.188469D
8846712180CUSHION, COOLER CONDENSER, NO.188467
8846712180CUSHION, COOLER CONDENSER, NO.188467
8846712180CUSHION, COOLER CONDENSER, NO.188467
8846712180CUSHION, COOLER CONDENSER, NO.188467
8870312620HOSE, COOLER REFRIGERANT DISCHARGE, NO.188711
8870312700HOSE, COOLER REFRIGERANT DISCHARGE, NO.188711
8870312530HOSE, COOLER REFRIGERANT DISCHARGE, NO.188711
8870312760HOSE, COOLER REFRIGERANT DISCHARGE, NO.188711
91511G0625BOLT FLANGE91511G0625
887182D150CLAMP PIPING887182D150
88376120308837612030
88376120408837612040
8871012510PIPE, COOLER REFRIGERANT LIQUID, A88716A
8871012510PIPE, COOLER REFRIGERANT LIQUID, A88716A
8871012570PIPE, COOLER REFRIGERANT LIQUID, A88716A
8871012510PIPE, COOLER REFRIGERANT LIQUID, A88716A
8871012570PIPE, COOLER REFRIGERANT LIQUID, A88716A
8847447010DRYER, COOLER88474
8847417010DRYER, COOLER88474
8847417010DRYER, COOLER88474
8847417010DRYER, COOLER88474
9098602007FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)88479
9098602007FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)88479
9098602008FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)88479
887181A780CLAMP PIPING887181A780
887182A230CLAMPPIPING887182A230
886881E070886881E070
887181A750CLAMP PIPING887181A750
88578125308857812530
