Catalog
Brand Name Code

TOYOTA

Toyota TOYOTA00
Model
NameModel DescriptionProdPeriodOption S
BLADEAZE156H-CHXEKAZE15#,GRE15612.2006 - 04.2012Grade: G TYPE; Gear Shift Type:

Body/Interior

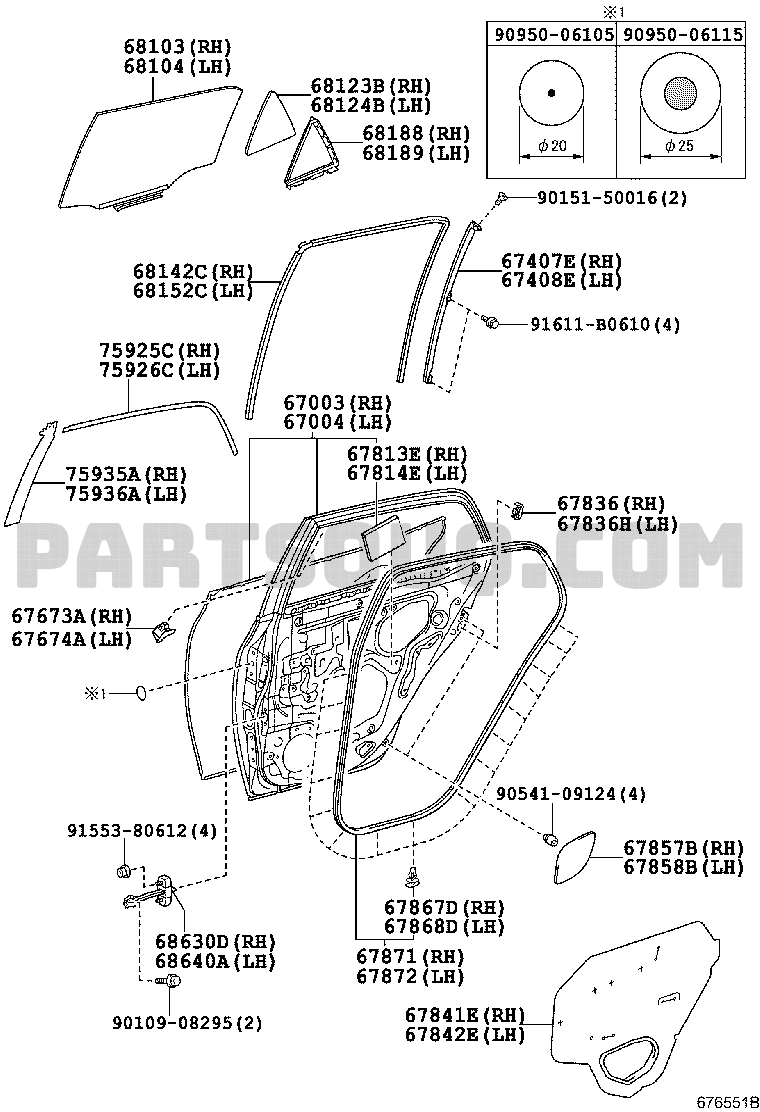

REAR DOOR PANEL & GLASS

NumberNameCode
9095006115COVER HOLE9095006115
9095006105COVER HOLE9095006105
6811312760GLASS SUB-ASSY, REAR DOOR, RH68103
6811312760GLASS SUB-ASSY, REAR DOOR, RH68103
6811412760GLASS SUB-ASSY, REAR DOOR, LH68104
6811412760GLASS SUB-ASSY, REAR DOOR, LH68104
6812312860GLASS, REAR DOOR QUARTER WINDOW, RH68123B
6812312860GLASS, REAR DOOR QUARTER WINDOW, RH68123B
6812412860GLASS, REAR DOOR QUARTER WINDOW, LH68124B
6812412860GLASS, REAR DOOR QUARTER WINDOW, LH68124B
6818812320WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH68188
6818812320WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH68188
6818912320WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH68189
6818912320WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH68189
9015150016SCREW CROSSRECESS9015150016
6740712280BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH67407E
6740712280BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH67407E
6814212270RUN, REAR DOOR GLASS, RH68142C
6814212270RUN, REAR DOOR GLASS, RH68142C
6740812280BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH67408E
6740812280BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH67408E
6815212180RUN, REAR DOOR GLASS, LH68152C
6815212180RUN, REAR DOOR GLASS, LH68152C
91611B0610BOLT W/WASHER91611B0610
7592512050TAPE, BLACK OUT, NO.3 RH75925C
7592512030TAPE, BLACK OUT, NO.3 RH75925C
7592512030TAPE, BLACK OUT, NO.3 RH75925C
7592612030TAPE, BLACK OUT, NO.3 LH75926C
7592612050TAPE, BLACK OUT, NO.3 LH75926C
7592612030TAPE, BLACK OUT, NO.3 LH75926C
6700312A10PANEL SUB-ASSY, REAR DOOR, RH67003
6700312A10PANEL SUB-ASSY, REAR DOOR, RH67003
6700412A10PANEL SUB-ASSY, REAR DOOR, LH67004
6700412A10PANEL SUB-ASSY, REAR DOOR, LH67004
6781747010SHEET, QUARTER PANEL SILENCER, RH67813E
6781747010SHEET, QUARTER PANEL SILENCER, RH67813E
6781747010SHEET, QUARTER PANEL SILENCER, LH67814E
6781747010SHEET, QUARTER PANEL SILENCER, LH67814E
6783612040COVER, REAR DOOR LOCK CHILD PROTECTION, RH67836
6783612040COVER, REAR DOOR LOCK CHILD PROTECTION, RH67836
6783612040COVER, REAR DOOR LOCK CHILD PROTECTION, LH67836H
6783612040COVER, REAR DOOR LOCK CHILD PROTECTION, LH67836H
6767348010GARNISH, REAR DOOR FRAME, RH67673A
6767348010GARNISH, REAR DOOR FRAME, RH67673A
6767448010GARNISH, REAR DOOR FRAME, LH67674A
6767448010GARNISH, REAR DOOR FRAME, LH67674A
9054109124CUSHION9054109124
9155380612BOLT FLANGE9155380612
6785712100PROTECTOR, REAR DOOR PANEL, RH67857B
6785712100PROTECTOR, REAR DOOR PANEL, RH67857B
6785812060PROTECTOR, REAR DOOR PANEL, LH67858B
6785812060PROTECTOR, REAR DOOR PANEL, LH67858B
6786712150RETAINER, REAR DOOR WEATHERSTRIP, RH67867D
6786712150RETAINER, REAR DOOR WEATHERSTRIP, RH67867D
6786712150RETAINER, REAR DOOR WEATHERSTRIP, LH67868D
6786712150RETAINER, REAR DOOR WEATHERSTRIP, LH67868D
6863012110CHECK ASSY, REAR DOOR, RH68630D
6863012110CHECK ASSY, REAR DOOR, RH68630D
6863012111CHECK ASSY, REAR DOOR, RH68630D
6787112520WEATHERSTRIP, REAR DOOR, RH67871
6787112520WEATHERSTRIP, REAR DOOR, RH67871
6787112521WEATHERSTRIP, REAR DOOR, RH67871
6863012110CHECK ASSY, REAR DOOR, LH68640A
6863012110CHECK ASSY, REAR DOOR, LH68640A
6863012111CHECK ASSY, REAR DOOR, LH68640A
6787212520WEATHERSTRIP, REAR DOOR, LH67872
6787212521WEATHERSTRIP, REAR DOOR, LH67872
6787212520WEATHERSTRIP, REAR DOOR, LH67872
6784112350COVER, REAR DOOR SERVICE HOLE, RH67841E
6784112350COVER, REAR DOOR SERVICE HOLE, RH67841E
9010908295BOLT9010908295
6784212160COVER, REAR DOOR SERVICE HOLE, LH67842E
6784212160COVER, REAR DOOR SERVICE HOLE, LH67842E

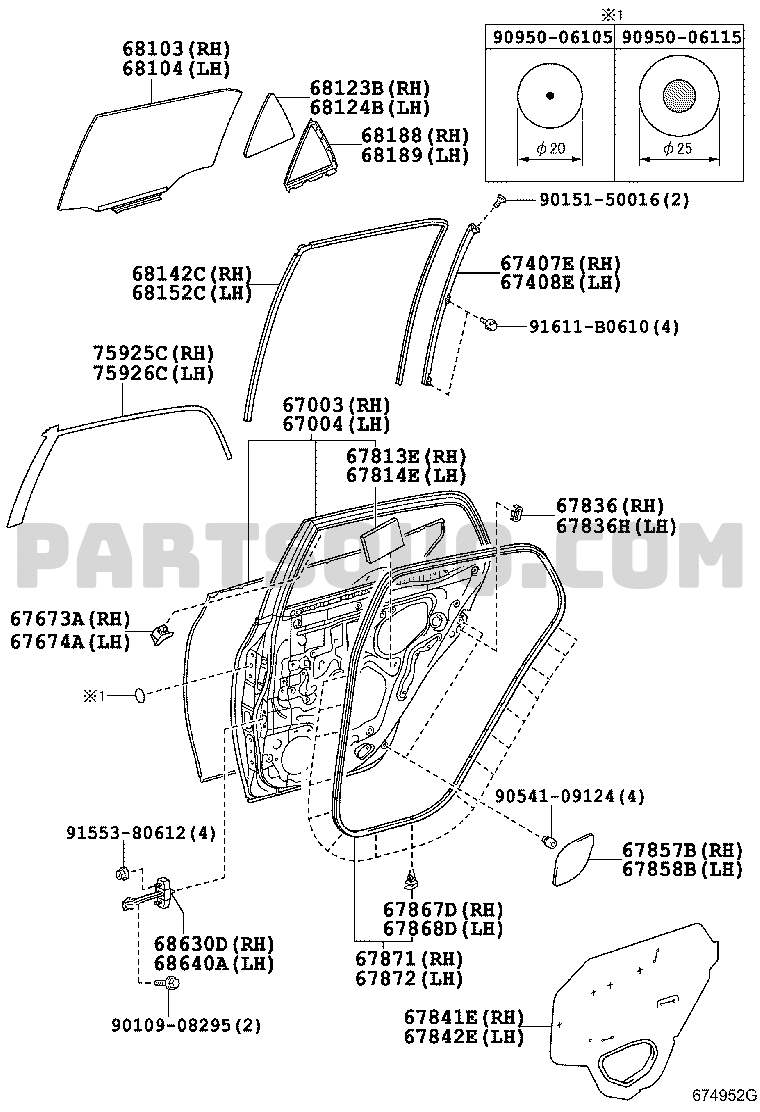

REAR DOOR PANEL & GLASS

NumberNameCode
9095006115COVER HOLE9095006115
9095006105COVER HOLE9095006105
6811312760GLASS SUB-ASSY, REAR DOOR, RH68103
6811312760GLASS SUB-ASSY, REAR DOOR, RH68103
6811412760GLASS SUB-ASSY, REAR DOOR, LH68104
6811412760GLASS SUB-ASSY, REAR DOOR, LH68104
6812312860GLASS, REAR DOOR QUARTER WINDOW, RH68123B
6812312860GLASS, REAR DOOR QUARTER WINDOW, RH68123B
6812412860GLASS, REAR DOOR QUARTER WINDOW, LH68124B
6812412860GLASS, REAR DOOR QUARTER WINDOW, LH68124B
6818812320WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH68188
6818812320WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH68188
6818912320WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH68189
6818912320WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH68189
9015150016SCREW CROSSRECESS9015150016
6740712280BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH67407E
6740712280BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH67407E
6814212270RUN, REAR DOOR GLASS, RH68142C
6814212270RUN, REAR DOOR GLASS, RH68142C
6740812280BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH67408E
6740812280BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH67408E
6815212180RUN, REAR DOOR GLASS, LH68152C
6815212180RUN, REAR DOOR GLASS, LH68152C
91611B0610BOLT W/WASHER91611B0610
7592512050TAPE, BLACK OUT, NO.3 RH75925C
7592512030TAPE, BLACK OUT, NO.3 RH75925C
7592512030TAPE, BLACK OUT, NO.3 RH75925C
7592612050TAPE, BLACK OUT, NO.3 LH75926C
7592612030TAPE, BLACK OUT, NO.3 LH75926C
7592612030TAPE, BLACK OUT, NO.3 LH75926C
6700312A10PANEL SUB-ASSY, REAR DOOR, RH67003
6700312A10PANEL SUB-ASSY, REAR DOOR, RH67003
6700412A10PANEL SUB-ASSY, REAR DOOR, LH67004
6700412A10PANEL SUB-ASSY, REAR DOOR, LH67004
6781747010SHEET, QUARTER PANEL SILENCER, RH67813E
6781747010SHEET, QUARTER PANEL SILENCER, RH67813E
6781747010SHEET, QUARTER PANEL SILENCER, LH67814E
6781747010SHEET, QUARTER PANEL SILENCER, LH67814E
7593512030TAPE, BLACK OUT, NO.6 RH75935A
7593612030TAPE, BLACK OUT, NO.6 LH75936A
6783612040COVER, REAR DOOR LOCK CHILD PROTECTION, RH67836
6783612040COVER, REAR DOOR LOCK CHILD PROTECTION, RH67836
6783612040COVER, REAR DOOR LOCK CHILD PROTECTION, LH67836H
6783612040COVER, REAR DOOR LOCK CHILD PROTECTION, LH67836H
6767348010GARNISH, REAR DOOR FRAME, RH67673A
6767348010GARNISH, REAR DOOR FRAME, RH67673A
6767448010GARNISH, REAR DOOR FRAME, LH67674A
6767448010GARNISH, REAR DOOR FRAME, LH67674A
9054109124CUSHION9054109124
9155380612BOLT FLANGE9155380612
6785712100PROTECTOR, REAR DOOR PANEL, RH67857B
6785712100PROTECTOR, REAR DOOR PANEL, RH67857B
6785812060PROTECTOR, REAR DOOR PANEL, LH67858B
6785812060PROTECTOR, REAR DOOR PANEL, LH67858B
6786712150RETAINER, REAR DOOR WEATHERSTRIP, RH67867D
6786712150RETAINER, REAR DOOR WEATHERSTRIP, RH67867D
6786712150RETAINER, REAR DOOR WEATHERSTRIP, LH67868D
6786712150RETAINER, REAR DOOR WEATHERSTRIP, LH67868D
6863012110CHECK ASSY, REAR DOOR, RH68630D
6863012110CHECK ASSY, REAR DOOR, RH68630D
6863012111CHECK ASSY, REAR DOOR, RH68630D
6787112520WEATHERSTRIP, REAR DOOR, RH67871
6787112520WEATHERSTRIP, REAR DOOR, RH67871
6787112521WEATHERSTRIP, REAR DOOR, RH67871
6863012110CHECK ASSY, REAR DOOR, LH68640A
6863012110CHECK ASSY, REAR DOOR, LH68640A
6863012111CHECK ASSY, REAR DOOR, LH68640A
6787212521WEATHERSTRIP, REAR DOOR, LH67872
6787212520WEATHERSTRIP, REAR DOOR, LH67872
6787212520WEATHERSTRIP, REAR DOOR, LH67872
6784112350COVER, REAR DOOR SERVICE HOLE, RH67841E
6784112350COVER, REAR DOOR SERVICE HOLE, RH67841E
9010908295BOLT9010908295
6784212160COVER, REAR DOOR SERVICE HOLE, LH67842E
6784212160COVER, REAR DOOR SERVICE HOLE, LH67842E
