Catalog
| Brand | Name | Code | |
|---|---|---|---|
 |
NISSAN |
Nissan | NISSAN201809 |
Model
| Name | Model Year From | Model Year To | Model | Market | Body Style | Engine | Grade | Transmission | |
|---|---|---|---|---|---|---|---|---|---|
| PATHFINDER | 07.1992 | 10.1995 | WD21 | Canada | WAGON | VG30E | SE | 5MT |
BODY(FRONT,ROOF & FLOOR)

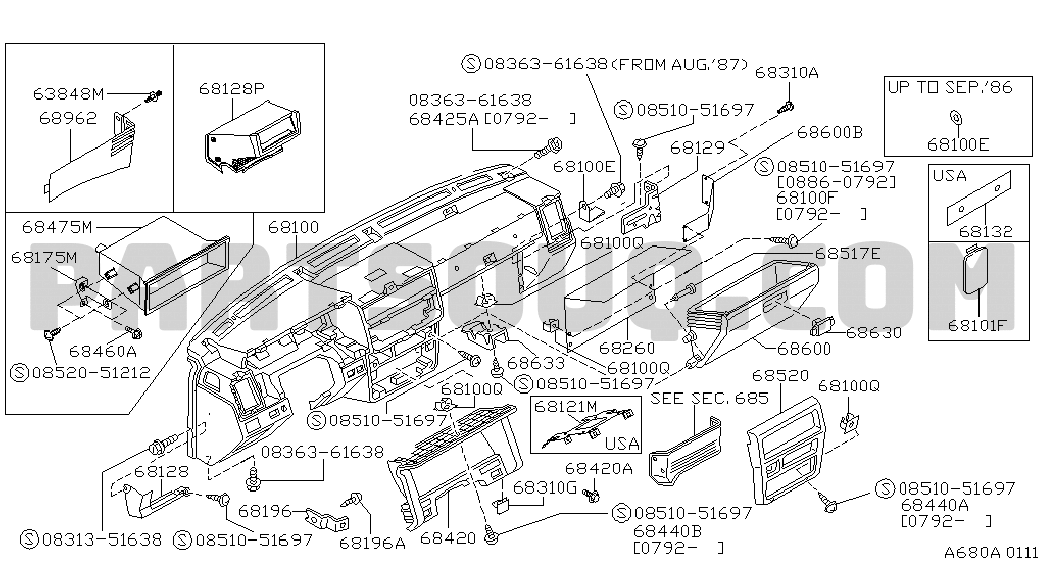

INSTRUMENT PANEL,PAD & CLUSTER LID; INSTRUMENT PANEL & CLUSTER LID
| Number | Name | Code | Qty Required | ApplicableModels | Partspec | Prod. Date |
|---|---|---|---|---|---|---|
| 0146100061 | SCREW | 68310A | 2 | W/4D | 07.1992 - 07.1993 | |
| 6893059G10 | COVER-INSTRUMENT STAY | 68128P | 1 | W/4D.MT.F5 | (K) | 07.1992 - 07.1993 |
| 6893059G11 | COVER-INSTRUMENT STAY | 68128P | 1 | W/4D.MT.F5 | (B) | 07.1992 - 07.1993 |
| 6893059G12 | COVER-INSTRUMENT STAY | 68128P | 1 | *W/4D.MT.F5 | (R) AM-5PB-E/T & WITH SPEAKER | 07.1992 - 07.1993 |
| 6893059G12 | COVER-INSTRUMENT STAY | 68128P | 1 | W/4D.MT.F5 | (R) | 07.1992 - 07.1993 |
| 6893059G10 | COVER-INSTRUMENT STAY | 68128P | 1 | *W/4D.MT.F5 | (K) AM-5PB-E/T & WITH SPEAKER | 07.1992 - 07.1993 |
| 6893059G11 | COVER-INSTRUMENT STAY | 68128P | 1 | *W/4D.MT.F5 | (B) AM-5PB-E/T & WITH SPEAKER | 07.1992 - 07.1993 |
| 0155301733 | CLIP-TRIM | 63848M | 1 | W/4D | 07.1993 - ... | |
| 0145100221 | SCREW | 68425A | 3 | W/4D | 07.1993 - ... | |
| 0145100221 | SCREW | 68425A | 4 | W/4D | 07.1992 - 07.1993 | |
| 6816241G00 | BRACKET-HAZARD | 68600B | 1 | W/4D | F/GLOVE BOX | 07.1992 - 07.1993 |
| 6812801G00 | BRACKET-INSTRUMENT SIDE,LH | 68129 | 1 | W/4D | 07.1992 - 07.1993 | |
| 6813241G10 | WASHER-SPECIAL | 68100E | 1 | W/4D | 07.1992 - 07.1993 | |
| 0145100221 | SCREW | 68100F | 2 | W/4D | 07.1992 - 07.1993 | |
| 6847535F00 | POCKET-DECK | 68475M | 1 | W/4D | 07.1993 - ... | |
| 6847535F00 | POCKET-DECK | 68475M | 1 | W/4D | 07.1992 - 07.1993 | |
| 6810059G00 | PANEL-INSTRUMENT | 68100 | 1 | W/4D | (K) | 07.1992 - 07.1993 |
| 6810059G01 | PANEL-INSTRUMENT | 68100 | 1 | W/4D | (B) | 07.1992 - 07.1993 |
| 6810059G02 | PANEL-INSTRUMENT | 68100 | 1 | W/4D | (R) | 07.1992 - 07.1993 |
| 6813275P00 | REINFORCE-INSTRUMENT PANEL | 68132 | 1 | W/4D | 07.1993 - ... | |
| 6855101S00 | PIN-HINGE | 68517E | 2 | W/4D | 07.1992 - 07.1993 | |
| 2803870N00 | BRACKET-AUDIO | 68175M | 2 | W/4D | 07.1992 - 07.1993 | |
| 68630V6900 | LOCK ASSY-GLOVE BOX LID | 68630 | 1 | W/4D | 07.1992 - 07.1993 | |
| 6813241G00 | REINFORCE-INSTRUMENT | 68260 | 1 | W/4D | 07.1992 - 07.1993 | |
| 6850075P11 | BOX ASSY-GLOVE | 68600 | 1 | W/4D | (B) | 07.1993 - ... |
| 6850075P12 | BOX ASSY-GLOVE | 68600 | 1 | W/4D | (R) | 07.1993 - 06.1994 |
| 6850001G01 | BOX ASSY-GLOVE | 68600 | 1 | W/4D | (B) | 07.1992 - 07.1993 |
| 6850075P10 | BOX ASSY-GLOVE | 68600 | 1 | W/4D | (K) | 07.1993 - ... |
| 6850055G00 | BOX ASSY-GLOVE | 68600 | 1 | W/4D | (K) | 07.1992 - 07.1993 |
| 6850001G02 | BOX ASSY-GLOVE | 68600 | 1 | W/4D | (R) | 07.1992 - 07.1993 |
| 0145100221 | SCREW | 68460A | 4 | W/4D | 07.1992 - 07.1993 | |
| 6864001E00 | STRIKER-LOCK | 68633 | 1 | W/4D | 07.1992 - 07.1993 | |
| 0852051212 | SCREW-TAPPING | 0852051212 | ||||
| 6826075P00 | LID-CLUSTER | 68520 | 1 | W/4D | 07.1993 - ... | |
| 6826001G00 | LID-CLUSTER | 68520 | 1 | W/4D | 07.1992 - 07.1993 | |
| 6819801E00 | NUT | 68100Q | 4 | W/4D | F/INST REINF | 07.1992 - 07.1993 |
| 6819801E00 | NUT | 68100Q | 2 | W/4D | F/CLUSTER LID | 07.1992 - 07.1993 |
| 6819801E00 | NUT | 68100Q | 4 | W/4D | F/CLUSTER LID C | 07.1992 - 07.1993 |
| 6819801E00 | NUT | 68100Q | 1 | W/4D | F/GLOVE BOX | 07.1992 - 07.1993 |
| 6819801E00 | NUT | 68100Q | 5 | W/4D | 07.1992 - 07.1993 | |
| 6812385P00 | BRACKET-INSTRUMENT PANEL | 68121M | 1 | W/4D | 07.1993 - ... | |
| 0836361638 | BOLT | 0836361638 | ||||
| 0145100221 | SCREW | 68420A | 1 | W/4D | 07.1992 - 07.1993 | |
| 0145100221 | SCREW | 68420A | 4 | W/4D | 07.1993 - ... | |
| 6812941G00 | BRACKET-INSTRUMENT SIDE,RH | 68128 | 1 | W/4D | 07.1992 - 07.1993 | |
| 68747V5000 | CLIP-TRIM | 68310G | 1 | W/4D | 07.1992 - 07.1993 | |
| 0145100221 | SCREW | 68440A | 2 | W/4D | 07.1993 - ... | |
| 0145100221 | SCREW | 68440A | 4 | W/4D | 07.1992 - 07.1993 | |
| 6812401G10 | BRACKET-CLUSTER LID | 68196 | 2 | W/4D | 07.1992 - 07.1993 | |
| 0145100221 | SCREW | 68440B | 5 | W/4D | 07.1992 - 07.1993 | |
| 0145100221 | SCREW | 68440B | 4 | W/4D | 07.1992 - 07.1993 | |
| 6824001G00 | LID-CLUSTER | 68420 | 1 | W/4D | 07.1992 - 07.1993 | |
| 6824075P00 | LID-CLUSTER | 68420 | 1 | W/4D | 07.1993 - ... | |
| 0851051697 | SCREW | 0851051697 | ||||
| 0831351638 | SCREW-MACHINE | 0831351638 | ||||
| 0146100061 | SCREW | 68196A | 2 | W/4D | 07.1992 - 07.1993 |

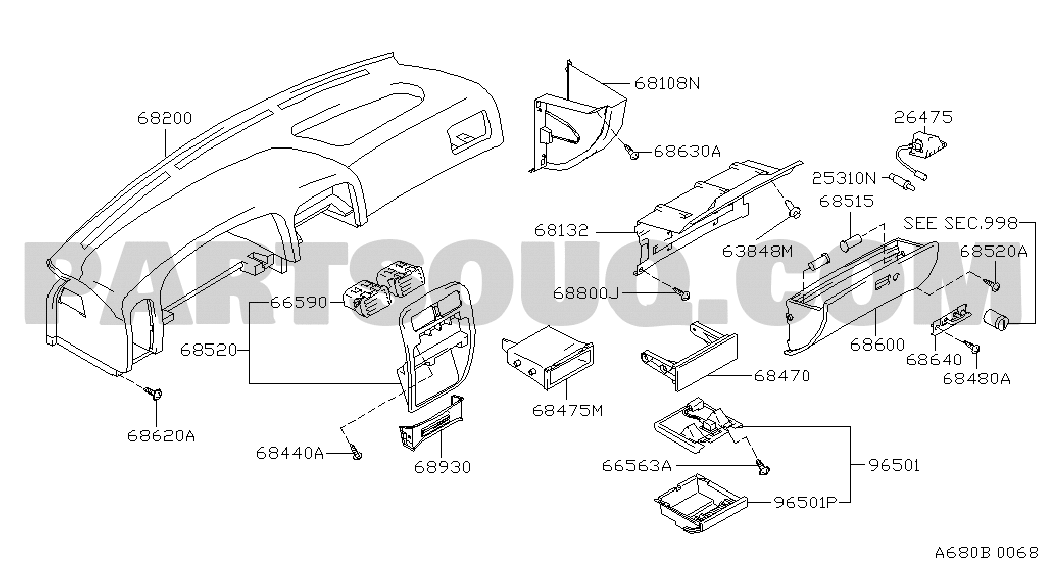

INSTRUMENT PANEL,PAD & CLUSTER LID; INSTRUMENT PANEL & CLUSTER LID
| Number | Name | Code | Qty Required | ApplicableModels | Partspec | Prod. Date |
|---|---|---|---|---|---|---|
| 6810875P02 | PANEL-INSTRUMENT LOWER,ASSIST | 68108N | 1 | W/4D | (R) | 07.1993 - 06.1994 |
| 6810875P00 | PANEL-INSTRUMENT LOWER,ASSIST | 68108N | 1 | W/4D | (K) | 07.1993 - ... |
| 6810875P01 | PANEL-INSTRUMENT LOWER,ASSIST | 68108N | 1 | W/4D | (B) | 07.1993 - ... |
| 26475F6100 | GLOVE BOX LAMP ASSY | 26475 | 1 | W/4D.SE | 07.1993 - 01.1994 | |
| 6820075P00 | PANEL & PAD ASSY-INSTRUMENT | 68200 | 1 | W/4D | (K) | 07.1993 - ... |
| 6820075P02 | PANEL & PAD ASSY-INSTRUMENT | 68200 | 1 | W/4D | (R) | 07.1993 - 06.1994 |
| 6820075P01 | PANEL & PAD ASSY-INSTRUMENT | 68200 | 1 | W/4D | (B) | 07.1993 - ... |
| 0145100221 | SCREW | 68630A | 1 | W/4D | 07.1993 - ... | |
| 2531071L00 | SWITCH ASSY-GLOVE BOX LAMP | 25310N | 1 | W/4D.SE | 07.1993 - 01.1994 | |
| 6851575P00 | STOPPER-GLOVE BOX LID | 68515 | 2 | W/4D | 07.1993 - ... | |
| 6813275P00 | REINFORCE-INSTRUMENT PANEL | 68132 | 1 | W/4D | 07.1993 - ... | |
| 0155301733 | CLIP-TRIM | 63848M | 1 | W/4D | 07.1993 - ... | |
| 0145100221 | SCREW | 68520A | 2 | W/4D | 07.1993 - ... | |
| 0145100221 | SCREW | 68800J | 6 | W/4D | 07.1993 - ... | |
| 0145100221 | SCREW | 68800J | 6 | W/4D | 07.1992 - 07.1993 | |
| 6875055G00 | VENTILATOR ASSY-CENTER | 66590 | 1 | W/4D | 07.1992 - 07.1993 | |
| 6875075P00 | VENTILATOR ASSY-CENTER | 66590 | 1 | W/4D | 07.1993 - ... | |
| 6850055G00 | BOX ASSY-GLOVE | 68600 | 1 | W/4D | (K) | 07.1992 - 07.1993 |
| 6850001G01 | BOX ASSY-GLOVE | 68600 | 1 | W/4D | (B) | 07.1992 - 07.1993 |
| 6850075P12 | BOX ASSY-GLOVE | 68600 | 1 | W/4D | (R) | 07.1993 - 06.1994 |
| 6850075P11 | BOX ASSY-GLOVE | 68600 | 1 | W/4D | (B) | 07.1993 - ... |
| 6850075P10 | BOX ASSY-GLOVE | 68600 | 1 | W/4D | (K) | 07.1993 - ... |
| 6850001G02 | BOX ASSY-GLOVE | 68600 | 1 | W/4D | (R) | 07.1992 - 07.1993 |
| 6826001G00 | LID-CLUSTER | 68520 | 1 | W/4D | 07.1992 - 07.1993 | |
| 6826075P00 | LID-CLUSTER | 68520 | 1 | W/4D | 07.1993 - ... | |
| 6864075P00 | STRIKER-GLOVE BOX LID | 68640 | 1 | W/4D | 07.1993 - ... | |
| 6847060M00 | MASK-RADIO | 68470 | 1 | W/4D | 07.1993 - ... | |
| 0145100221 | SCREW | 68480A | 3 | W/4D | 07.1993 - ... | |
| 6847535F00 | POCKET-DECK | 68475M | 1 | W/4D | 07.1993 - ... | |
| 6847535F00 | POCKET-DECK | 68475M | 1 | W/4D | 07.1992 - 07.1993 | |
| 0145100221 | SCREW | 68620A | 2 | W/4D | 07.1993 - ... | |
| 0145100221 | SCREW | 68440A | 2 | W/4D | 07.1993 - ... | |
| 0145100221 | SCREW | 68440A | 4 | W/4D | 07.1992 - 07.1993 | |
| 0145100221 | SCREW | 66563A | 2 | W/4D | 07.1992 - 07.1993 | |
| 6880075P10 | ASHTRAY-INSTRUMENT | 96501 | 1 | W/4D.SE | 07.1993 - ... | |
| 0145100221 | SCREW | 66563A | 2 | W/4D | 07.1993 - ... | |
| 6880055G10 | ASHTRAY-INSTRUMENT | 96501 | 1 | W/4D.SE | 07.1992 - 07.1993 | |
| 6893075P11 | COVER-INSTRUMENT STAY | 68930 | 1 | W/4D | (B) | 07.1993 - ... |
| 6893075P12 | COVER-INSTRUMENT STAY | 68930 | 1 | W/4D | (R) | 07.1993 - 06.1994 |
| 6893075P10 | COVER-INSTRUMENT STAY | 68930 | 1 | W/4D | (K) | 07.1993 - ... |
| 6881075P00 | ASHTRAY-INNER,INSTRUMENT | 96501P | 1 | W/4D | 07.1993 - ... |
