Catalog
Brand Name Code

KIA

Kia KIA201903
Model
NameFamilyVehicle CategoryModel Year FromModel Year ToModel Option S
Carnival/SedonaCarnival/SedonaR/V19982005FLSD285Body Type: (S) WGN SHORT 9;TRANS

CHASSIS

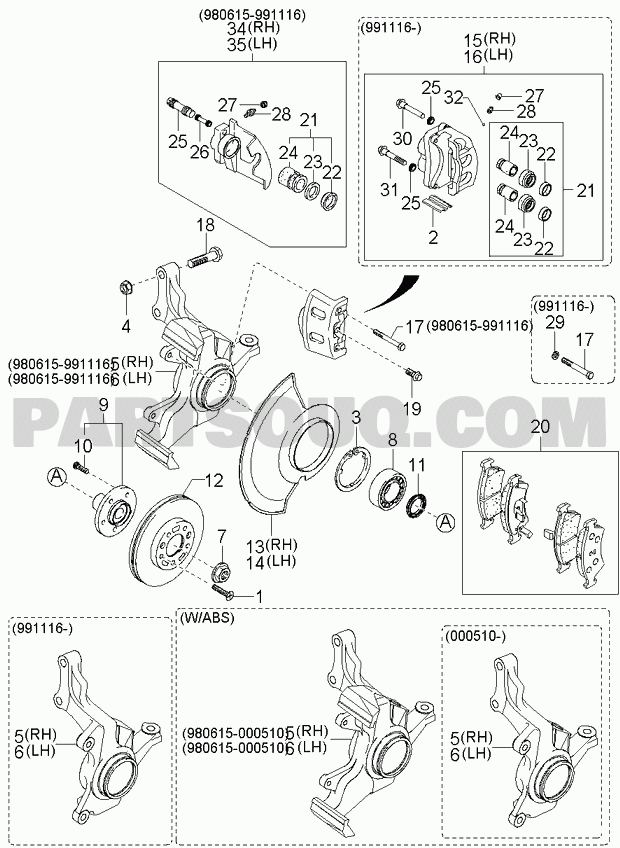

FRONT AXLE

NumberNameCode
0K55233620Body assy - caliper, rh34
0K56B33980Brake assy - front, rh15
0K56B33980Brake assy - front, rh15
0K58B33980Brake assy - front, rh15
0K56A33980BBrake assy - front, rh15
0K56B33980ABrake assy - front, rh15
0K56A33980ABrake assy - front, rh15
0K58B33980Brake assy - front, rh15
0K56A33980BBrake assy - front, rh15
0K56A33980ABrake assy - front, rh15
0K56B33980ABrake assy - front, rh15
0K55233720Body assy - caliper, lh35
0K58B33990Brake assy - front, lh16
0K56B33990Brake assy - front, lh16
0K56B33990Brake assy - front, lh16
0K56B33990ABrake assy - front, lh16
0K56A33990BBrake assy - front, lh16
0K56A33990BBrake assy - front, lh16
0K56A33990ABrake assy - front, lh16
0K56A33990ABrake assy - front, lh16
0K58B33990Brake assy - front, lh16
0K56B33990ABrake assy - front, lh16
0025933693Cap - bleeder screw27
0K01133684Cap - bleeder27
0025933693Cap - bleeder screw27
0K01133684Cap - bleeder27
0K56A3369XSteel ball32
0K56A3369XSteel ball32
0K01133691Screw - bleeder28
0K56A33691Screw - bleeder28
0K01133691Screw - bleeder28
0K56A33691Screw - bleeder28
0K75A33694Bolt "a" - slide, pin30
0K75A33694Bolt "a" - slide, pin30
0K75A33698Boot - pin25
0K55233692Boot - pin25
0K55233671Seal - piston23
0K55233671Seal - piston23
0K75A33671Seal - piston23
0K75A33671Seal - piston23
0K75A33698Boot - pin25
0K55233692Boot - pin25
0K55233694Sleeve bolt - main26
0K55233694Sleeve bolt - main26
0K55233242Boot - piston22
0K75A33681Boot - dust22
0K75A33681Boot - dust22
0K55233242Boot - piston22
0K75A33695Bolt "b" - slide, pin31
0K75A33695Bolt "b" - slide, pin31
0K75A3324ZPiston repair kit-frt21
0K75A3324ZPiston repair kit-frt21
0K5523324ZPiston repair kit-frt21
0K5523324ZPiston repair kit-frt21
0K55234097Bolt - flange18
0K75A33651Piston24
0K55233651Piston - caliper brake24
0K75A33651Piston24
0K55233651Piston - caliper brake24
0K56A33231ALiner - pad2
0K56A33231Liner - pad2
K999711400Washer - spring29
0K95A28091Nut4
0K72F33302Bolt17
0K55233998Bolt17
0K55233060Hub assy - front wheel9
KK15043694BBolt - connector19
KK15043694ABolt - connector19
0K55226139Ring - retaining3
0K56B3323ZAPad kit - front brake20
0K56B3323ZAPad kit - front brake20
0K5533323ZAPad kit - front brake20
0K58B3323ZPad set,frt20
0K56B3323ZPad set,frt20
0K56B3323ZPad set,frt20
0K56A3323ZPad kit - front brake20
0K5533323ZPad kit - front brake20
0K58B3323ZPad set,frt20
0K5553323ZPad kit - front brake20
0K5553323ZPad kit - front brake20
0K56A3323ZPad kit - front brake20
0K55233047Bearing - front wheel hub8
51720FL047Bearing-front wheel8
0K99333062BBolt - hub10
0K20133065ASeal - oil inner11
0K58B33251Disc - brake, front12
0K58B33251Disc - brake, front12
0K55233251Disc - front wheel brake12
0K55233251Disc - front wheel brake12
0K55B33251Plate - disc12
0K55A33251Disc - front wheel brake12
KJ00233251CDisc - front wheel brake12
KJ00233251CDisc - front wheel brake12
0K55B33251Plate - disc12
0K20133042Nut - lock7
0K55233261BCover - dust, rh13
0K55233261BCover - dust, rh13
0K56A33261Cover - dust, rh13
0K56A33261Cover - dust, rh13
0K55233271BCover - dust, lh14
0K55233271BCover - dust, lh14
0K56A33271Cover - dust, lh14
0K56A33271Cover - dust, lh14
K998310816Screw1
0K56B33021Knuckle, rh5
0K55333021AKnuckle, rh5
0K56A33021Knuckle, rh5
0K55233021AKnuckle, rh5
0K55333031BKnuckle, lh6
0K56B33031Knuckle, lh6
0K55233031AKnuckle, lh6
0K56A33031Knuckle, lh6
