Catalog
Brand Name Code

KIA

Kia KIA201903
Model
NameFamilyVehicle CategoryModel Year FromModel Year ToModel Option S
CeedCeedPassenger20102012BSS6B2615Engine Type: (6) DOHC - MPI;Body

ENGINE

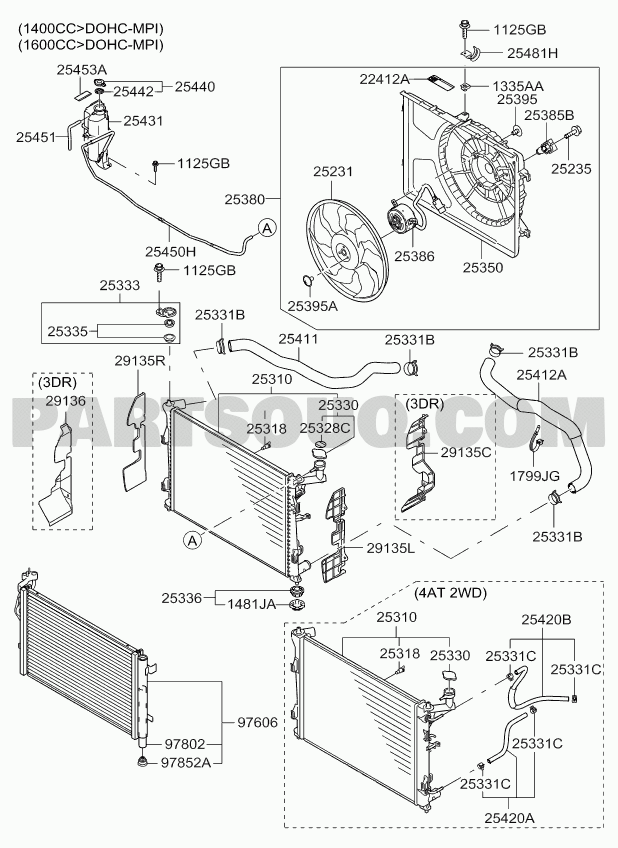

ENGINE COOLING SYSTEM

01/04
NumberNameCode
254812H000Clip - hose25481H
253881H000Label - caution22412A
1334106006BNut (spring)1335AA
254403K000Cap assy - radiator reservoir25440
254403K000Cap assy - radiator reservoir25440
254423K000Gasket - radiator reservoir cap25442
254423K000Gasket - radiator reservoir cap25442
253953F000Bolt25395
2538507550Resistor25385B
254311H500Reservoir assy - radiator25431
254311H500Reservoir assy - radiator25431
252353K016Screw - tapping25235
252312H000Fan - cooling25231
253801H250Blower assy25380
254501H000Hose assy - water25450H
253861H050Motor - radiator cooling fan25386
253501H200Shroud - radiator25350
1125306206BBolt [w/ washer]1125GB
253331H000Bracket assy - radiator mounting, upper25333
253953K047Tap bolt25395A
253353D000Insulator - radiator mounting, upper25335
254112H100Hose - radiator, upper25411
253313D041Clamp - (hose)25331B
291341H100Guard - air, rh29135R
254122H100Hose - radiator lower25412A
253102R010Radiator assy25310
253281H000Label - radiator cap25328C
253183K100Plug - radiator drain25318
253183K100Plug - radiator drain25318
291361H100Guard - air, lh29135L
253362H000Insulator - radiator mounting, lower25336
254613D500Clip1481JA
253301H000Cap assy - radiator25330
253301H000Cap assy - radiator25330
976062H010Condenser assy - cooler97606
976061H000Condenser assy - cooler97606
9780217000Desiccant - receiver drier97802
9780225000Desiccant - receiver drier97802
978033L000Cap assy - receiver dryer97852A

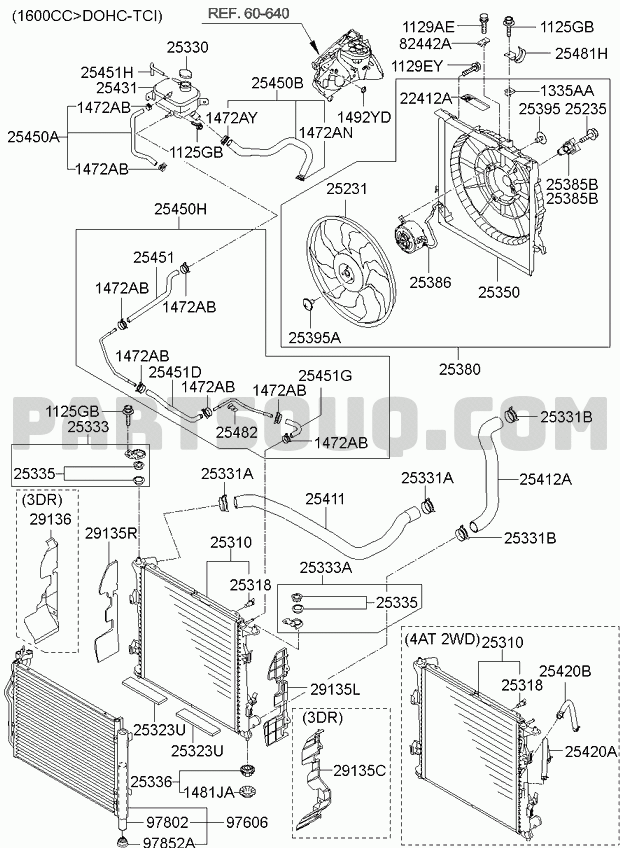

ENGINE COOLING SYSTEM

02/04
NumberNameCode
1125306206BBolt [w/ washer]1125GB
254812H000Clip - hose25481H
1334106006BNut (spring)1335AA
253881H000Label - caution22412A
253953F000Bolt25395
254403K000Cap assy - radiator reservoir25440
254403K000Cap assy - radiator reservoir25440
254423K000Gasket - radiator reservoir cap25442
254423K000Gasket - radiator reservoir cap25442
2538507550Resistor25385B
254311H500Reservoir assy - radiator25431
254311H500Reservoir assy - radiator25431
252312H000Fan - cooling25231
252353K016Screw - tapping25235
253801H250Blower assy25380
253861H050Motor - radiator cooling fan25386
253501H200Shroud - radiator25350
254501H000Hose assy - water25450H
253331H000Bracket assy - radiator mounting, upper25333
253953K047Tap bolt25395A
254112H100Hose - radiator, upper25411
253353D000Insulator - radiator mounting, upper25335
291341H100Guard - air, rh29135R
253102R010Radiator assy25310
253301H000Cap assy - radiator25330
253301H000Cap assy - radiator25330
253183K100Plug - radiator drain25318
253183K100Plug - radiator drain25318
253281H000Label - radiator cap25328C
254122H100Hose - radiator lower25412A
253313D041Clamp - (hose)25331B
291361H100Guard - air, lh29135L
253362H000Insulator - radiator mounting, lower25336
254613D500Clip1481JA
976062H010Condenser assy - cooler97606
976061H000Condenser assy - cooler97606
9780225000Desiccant - receiver drier97802
9780217000Desiccant - receiver drier97802
978033L000Cap assy - receiver dryer97852A

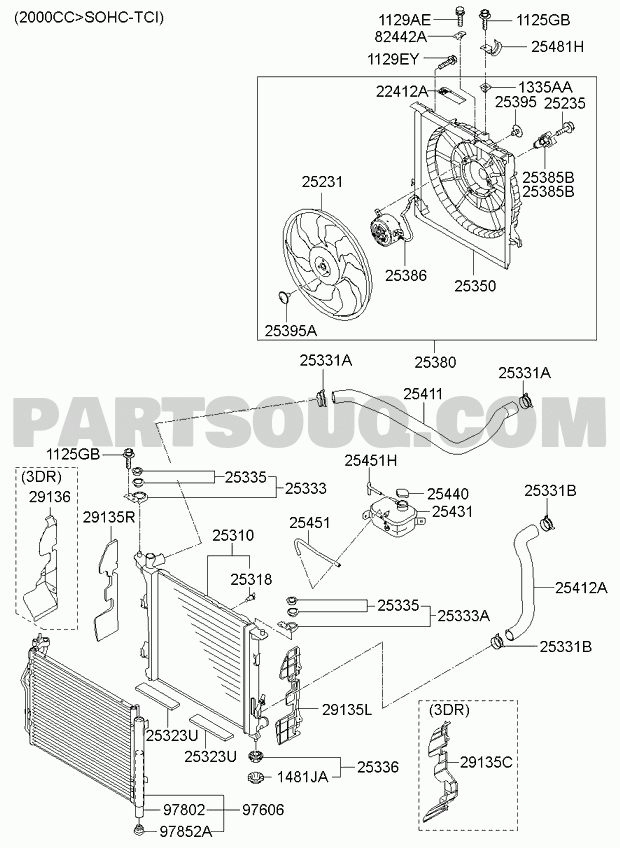

ENGINE COOLING SYSTEM

03/04
NumberNameCode
1125306206BBolt [w/ washer]1125GB
253301H000Cap assy - radiator25330
253301H000Cap assy - radiator25330
254812H000Clip - hose25481H
254311H500Reservoir assy - radiator25431
254311H500Reservoir assy - radiator25431
1334106006BNut (spring)1335AA
253881H000Label - caution22412A
253953F000Bolt25395
252353K016Screw - tapping25235
1492104490Clip - rod1492YD
2538507550Resistor25385B
252312H000Fan - cooling25231
254501H000Hose assy - water25450H
253861H050Motor - radiator cooling fan25386
253501H200Shroud - radiator25350
253953K047Tap bolt25395A
253801H250Blower assy25380
253331H000Bracket assy - radiator mounting, upper25333
253353D000Insulator - radiator mounting, upper25335
254122H100Hose - radiator lower25412A
254112H100Hose - radiator, upper25411
291341H100Guard - air, rh29135R
253313D041Clamp - (hose)25331B
253102R010Radiator assy25310
253183K100Plug - radiator drain25318
253183K100Plug - radiator drain25318
291361H100Guard - air, lh29135L
253362H000Insulator - radiator mounting, lower25336
254613D500Clip1481JA
9780225000Desiccant - receiver drier97802
9780217000Desiccant - receiver drier97802
976061H000Condenser assy - cooler97606
976062H010Condenser assy - cooler97606
978033L000Cap assy - receiver dryer97852A

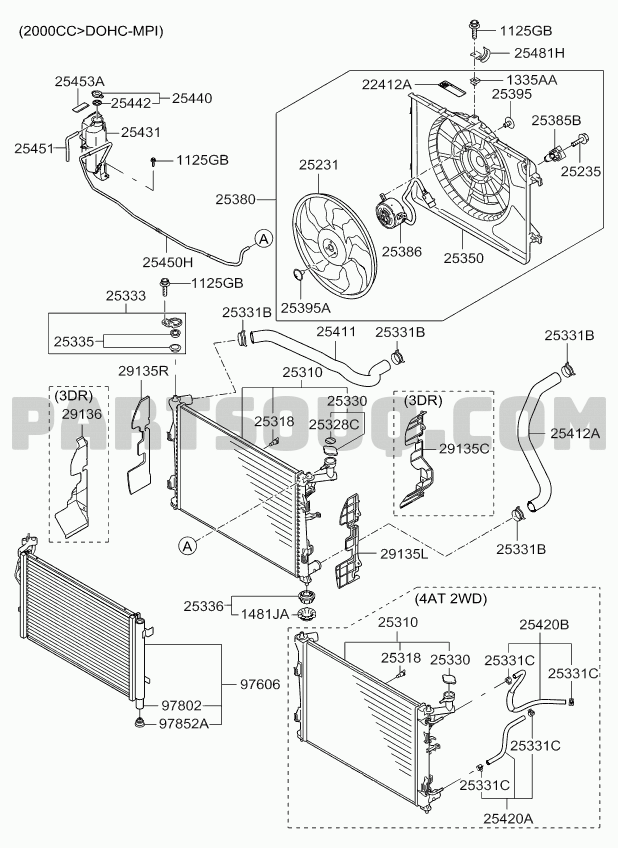

ENGINE COOLING SYSTEM

04/04
NumberNameCode
1125306206BBolt [w/ washer]1125GB
254812H000Clip - hose25481H
1334106006BNut (spring)1335AA
253881H000Label - caution22412A
253953F000Bolt25395
252353K016Screw - tapping25235
2538507550Resistor25385B
252312H000Fan - cooling25231
253861H050Motor - radiator cooling fan25386
253501H200Shroud - radiator25350
253953K047Tap bolt25395A
253801H250Blower assy25380
254112H100Hose - radiator, upper25411
253353D000Insulator - radiator mounting, upper25335
253331H000Bracket assy - radiator mounting, upper25333
253313D041Clamp - (hose)25331B
254403K000Cap assy - radiator reservoir25440
254403K000Cap assy - radiator reservoir25440
254311H500Reservoir assy - radiator25431
254311H500Reservoir assy - radiator25431
291341H100Guard - air, rh29135R
253102R010Radiator assy25310
253183K100Plug - radiator drain25318
253183K100Plug - radiator drain25318
254122H100Hose - radiator lower25412A
291361H100Guard - air, lh29135L
253362H000Insulator - radiator mounting, lower25336
254613D500Clip1481JA
9780225000Desiccant - receiver drier97802
9780217000Desiccant - receiver drier97802
976061H000Condenser assy - cooler97606
976062H010Condenser assy - cooler97606
978033L000Cap assy - receiver dryer97852A
