ELECTRICAL

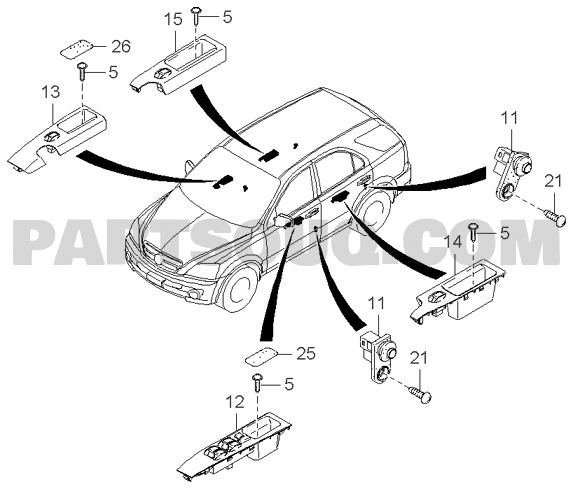

SWITCHES; 01/02
| Number | Name | Code | Date_range | Options | Qty Required |
|---|---|---|---|---|---|
| 935803E150FC | SWITCH ASSY - REAR POWER WINDOW SUB, RH | 15 | 01.06.2004 - 31.05.2006 | 1 | |
| 935803E200BL | SWITCH ASSY - REAR POWER WINDOW SUB, LH | 14 | 01.06.2002 - 01.02.2005 | 1 | |
| 935803E000CY | SWITCH ASSY - REAR POWER WINDOW SUB, LH | 14 | 01.07.2003 - 01.06.2004 | 1 | |
| 935803E000FC | SWITCH ASSY - REAR POWER WINDOW SUB, LH | 14 | 01.07.2003 - 01.06.2004 | 1 | |
| 935803E000GW | SWITCH ASSY - REAR POWER WINDOW SUB, LH | 14 | 01.06.2002 - 01.07.2003 | 1 | |
| 935803E000ND | SWITCH ASSY - REAR POWER WINDOW SUB, LH | 14 | 01.06.2002 - 01.07.2003 | 1 | |
| 935803E050CY | SWITCH ASSY - REAR POWER WINDOW SUB, LH | 14 | 01.06.2004 - 31.05.2006 | 1 | |
| 935803E050FC | SWITCH ASSY - REAR POWER WINDOW SUB, LH | 14 | 01.06.2004 - 31.05.2006 | 1 | |
| 935803E2008Z | SWITCH ASSY - REAR POWER WINDOW SUB, LH | 14 | 01.06.2005 - 31.05.2006 | 1 | |
| 935803E200EN | SWITCH ASSY - REAR POWER WINDOW SUB, LH | 14 | 01.02.2005 - 31.05.2006 | 1 | |
| 935753E050CY | SWITCH ASSY - POWER WINDOW PASSENGER | 13 | 01.06.2004 - 31.05.2006 | 1 | |
| 935803E100CY | SWITCH ASSY - REAR POWER WINDOW SUB, RH | 15 | 01.07.2003 - 01.06.2004 | 1 | |
| 935803E100FC | SWITCH ASSY - REAR POWER WINDOW SUB, RH | 15 | 01.07.2003 - 01.06.2004 | 1 | |
| 935803E100GW | SWITCH ASSY - REAR POWER WINDOW SUB, RH | 15 | 01.06.2002 - 01.07.2003 | 1 | |
| 935803E100ND | SWITCH ASSY - REAR POWER WINDOW SUB, RH | 15 | 01.06.2002 - 01.07.2003 | 1 | |
| 935803E150CY | SWITCH ASSY - REAR POWER WINDOW SUB, RH | 15 | 01.06.2004 - 31.05.2006 | 1 | |
| 935613E000 | PAD - FRONT, LH | 25 | 01.06.2002 - 31.05.2006 | 1 | |
| 935803E3008Z | SWITCH ASSY - REAR POWER WINDOW SUB, RH | 15 | 01.06.2005 - 31.05.2006 | 1 | |
| 935803E300BL | SWITCH ASSY - REAR POWER WINDOW SUB, RH | 15 | 01.06.2002 - 01.02.2005 | 1 | |
| 935753E050FC | SWITCH ASSY - POWER WINDOW PASSENGER | 13 | 01.06.2004 - 31.05.2006 | 1 | |
| 935753E010EN | SWITCH ASSY - POWER WINDOW PASSENGER | 13 | 01.02.2005 - 31.05.2006 | 1 | |
| 1229306163 | SCREW - MACHINE | 21 | 01.06.2002 - 31.05.2006 | 4 | |
| 935703E2108Z | SWITCH ASSY - POWER WINDOW MAIN | 12 | 01.06.2005 - 31.05.2006 | 1 | |
| 1249205123 | SCREW - TAPPING | 5 | 01.06.2002 - 31.05.2006 | 4 | |
| 935623E000 | PAD - FRONT, RH | 26 | 01.06.2002 - 31.05.2006 | 1 | |
| 935603B100 | SWITCH ASSY - DOOR | 11 | 01.06.2002 - 31.05.2006 | 4 | |
| 935703E200CY | SWITCH ASSY - POWER WINDOW MAIN | 12 | 01.07.2003 - 01.06.2004 | 1 | |
| 935703E200FC | SWITCH ASSY - POWER WINDOW MAIN | 12 | 01.07.2003 - 01.06.2004 | 1 | |
| 935703E200GW | SWITCH ASSY - POWER WINDOW MAIN | 12 | 01.06.2002 - 01.07.2003 | 1 | |
| 935703E200ND | SWITCH ASSY - POWER WINDOW MAIN | 12 | 01.06.2002 - 01.07.2003 | 1 | |
| 935703E210BL | SWITCH ASSY - POWER WINDOW MAIN | 12 | 01.06.2002 - 01.02.2005 | 1 | |
| 935753E010BL | SWITCH ASSY - POWER WINDOW PASSENGER | 13 | 01.06.2002 - 01.02.2005 | 1 | |
| 935703E210EN | SWITCH ASSY - POWER WINDOW MAIN | 12 | 01.02.2005 - 31.05.2006 | 1 | |
| 935703E250CY | SWITCH ASSY - POWER WINDOW MAIN | 12 | 01.06.2004 - 31.05.2006 | 1 | |
| 935703E250FC | SWITCH ASSY - POWER WINDOW MAIN | 12 | 01.06.2004 - 31.05.2006 | 1 | |
| 935753E000CY | SWITCH ASSY - POWER WINDOW PASSENGER | 13 | 01.07.2003 - 01.06.2004 | 1 | |
| 935753E000FC | SWITCH ASSY - POWER WINDOW PASSENGER | 13 | 01.07.2003 - 01.06.2004 | 1 | |
| 935753E000GW | SWITCH ASSY - POWER WINDOW PASSENGER | 13 | 01.06.2002 - 01.07.2003 | 1 | |
| 935753E000ND | SWITCH ASSY - POWER WINDOW PASSENGER | 13 | 01.06.2002 - 01.07.2003 | 1 | |
| 935753E0108Z | SWITCH ASSY - POWER WINDOW PASSENGER | 13 | 01.06.2005 - 31.05.2006 | 1 | |
| 935803E300EN | SWITCH ASSY - REAR POWER WINDOW SUB, RH | 15 | 01.02.2005 - 31.05.2006 | 1 | |
| 932503E000CY | SNOW PANEL ASSY | 1 | 01.07.2003 - 01.06.2004 | TRANSMISSION: 4 SPEED AT 2WD | 1 |
| 932503E000GW | SNOW PANEL ASSY | 1 | 01.06.2002 - 01.07.2003 | TRANSMISSION: 4 SPEED AT 2WD | 1 |
| 932503E000FC | SNOW PANEL ASSY | 1 | 01.06.2002 - 01.06.2004 | TRANSMISSION: 4 SPEED AT 2WD | 1 |
| 932503E200CY | EST PANEL ASSY | 2 | 01.07.2003 - 31.05.2006 | 1 | |
| 932503E200FC | EST PANEL ASSY | 2 | 01.06.2002 - 31.05.2006 | 1 | |
| 932503E200GW | EST PANEL ASSY | 2 | 01.06.2002 - 01.07.2003 | 1 | |
| 932503E100GW | TORQUE ON DEMAND PANEL ASSY | 27 | 01.06.2002 - 01.07.2003 | 1 | |
| 932503E100FC | TORQUE ON DEMAND PANEL ASSY | 27 | 01.06.2002 - 31.05.2006 | 1 | |
| 932503E100CY | TORQUE ON DEMAND PANEL ASSY | 27 | 01.07.2003 - 31.05.2006 | 1 | |
| 932503E020GW | BEZEL SWITCH LOWER PANEL | 28 | 01.06.2002 - 01.07.2003 | TRANSMISSION: 5 SPEED MT 2WD | 1 |
| 932503E020FC | BEZEL SWITCH LOWER PANEL | 28 | 01.06.2002 - 31.05.2006 | TRANSMISSION: 5 SPEED MT 2WD | 1 |
| 932503E020CY | BEZEL SWITCH LOWER PANEL | 28 | 01.07.2003 - 31.05.2006 | TRANSMISSION: 5 SPEED MT 2WD | 1 |
| 932203E100CY | SWITCH - RHEOSTAT | 7 | 01.07.2003 - 31.05.2006 | 1 | |
| 932203E100GW | SWITCH ASSY - RHEOSTAT | 7 | 01.06.2002 - 01.07.2003 | 1 | |
| 937103E000 | SWITCH ASSY - DEFOGGER | 20 | 01.06.2002 - 31.05.2006 | 1 | |
| 932203E100FC | SWITCH ASSY - RHEOSTAT | 7 | 01.06.2002 - 31.05.2006 | 1 | |
| 937753E000 | BLANKING - REAR FOG LAMP SWITCH | 10 | 01.06.2002 - 31.05.2006 | 1 | |
| 937403E000 | SWITCH ASSY - SEAT WARM, LH | 16 | 01.06.2002 - 31.05.2006 | 1 | |
| 932103E00044 | SWITCH ASSY AUTOMATIC CRUISE CONTROL | 4 | 01.06.2002 - 01.07.2003 | 1 | |
| 932103E000CY | SWITCH ASSY AUTOMATIC CRUISE CONTROL | 4 | 01.07.2003 - 31.05.2006 | 1 | |
| 932103E000FC | SWITCH ASSY AUTOMATIC CRUISE CONTROL | 4 | 01.06.2002 - 31.05.2006 | 1 | |
| 932153E00044 | BLANKING | 8 | 01.06.2002 - 01.07.2003 | 1 | |
| 932153E000CY | BLANKING | 8 | 01.07.2003 - 31.05.2006 | 1 | |
| 932153E000FC | BLANKING | 8 | 01.06.2002 - 31.05.2006 | 1 | |
| 937453E000 | BLANKING-SEAT WARM SW | 24 | 01.06.2002 - 31.05.2006 | 1 | |
| 937803E000 | SWITCH ASSY-W/WIPER DEICER | 9 | 01.06.2002 - 31.05.2006 | 1 | |
| 937653E000 | BLANKING HEADLAMP WASHER | 23 | 01.06.2002 - 31.05.2006 | 1 | |
| 937303E000 | SWITCH ASSY - HAZARD | 22 | 01.06.2002 - 31.05.2006 | 1 | |
| 0K95A66250A | CIGARETTE LIGHTER ASSY | 19 | 01.06.2002 - 31.05.2006 | 2 | |
| 937353E000 | BEZEL SWITCH HAZARD | 6 | 01.06.2002 - 31.05.2006 | 1 | |
| 937503E000 | SWITCH ASSY - SEAT WARM, RH | 17 | 01.06.2002 - 31.05.2006 | 1 | |
| 937553E000 | BLANKING-SEAT WARM SW | 3 | 01.06.2002 - 31.05.2006 | 1 | |
| 0K54A662P0 | SOCKET - POWER | 18 | 01.06.2002 - 31.05.2006 | 2 |
SWITCHES; 02/02
| Number | Name | Code | Date_range | Options | Qty Required |
|---|---|---|---|---|---|
| 932503E000CY | SNOW PANEL ASSY | 1 | 01.07.2003 - 01.06.2004 | TRANSMISSION: 4 SPEED AT 2WD | 1 |
| 932503E100GW | TORQUE ON DEMAND PANEL ASSY | 27 | 01.06.2002 - 01.07.2003 | 1 | |
| 937503E000 | SWITCH ASSY - SEAT WARM, RH | 17 | 01.06.2002 - 31.05.2006 | 1 | |
| 0K54A662P0 | SOCKET - POWER | 18 | 01.06.2002 - 31.05.2006 | 2 | |
| 0K95A66250A | CIGARETTE LIGHTER ASSY | 19 | 01.06.2002 - 31.05.2006 | 2 | |
| 932503E200CY | EST PANEL ASSY | 2 | 01.07.2003 - 31.05.2006 | 1 | |
| 932503E200FC | EST PANEL ASSY | 2 | 01.06.2002 - 31.05.2006 | 1 | |
| 932503E200GW | EST PANEL ASSY | 2 | 01.06.2002 - 01.07.2003 | 1 | |
| 937103E000 | SWITCH ASSY - DEFOGGER | 20 | 01.06.2002 - 31.05.2006 | 1 | |
| 937303E000 | SWITCH ASSY - HAZARD | 22 | 01.06.2002 - 31.05.2006 | 1 | |
| 937653E000 | BLANKING HEADLAMP WASHER | 23 | 01.06.2002 - 31.05.2006 | 1 | |
| 937453E000 | BLANKING-SEAT WARM SW | 24 | 01.06.2002 - 31.05.2006 | 1 | |
| 932503E100CY | TORQUE ON DEMAND PANEL ASSY | 27 | 01.07.2003 - 31.05.2006 | 1 | |
| 932503E100FC | TORQUE ON DEMAND PANEL ASSY | 27 | 01.06.2002 - 31.05.2006 | 1 | |
| 932503E020CY | BEZEL SWITCH LOWER PANEL | 28 | 01.07.2003 - 31.05.2006 | TRANSMISSION: 5 SPEED MT 2WD | 1 |
| 932503E000FC | SNOW PANEL ASSY | 1 | 01.06.2002 - 01.06.2004 | TRANSMISSION: 4 SPEED AT 2WD | 1 |
| 932503E020FC | BEZEL SWITCH LOWER PANEL | 28 | 01.06.2002 - 31.05.2006 | TRANSMISSION: 5 SPEED MT 2WD | 1 |
| 932503E020GW | BEZEL SWITCH LOWER PANEL | 28 | 01.06.2002 - 01.07.2003 | TRANSMISSION: 5 SPEED MT 2WD | 1 |
| 937553E000 | BLANKING-SEAT WARM SW | 3 | 01.06.2002 - 31.05.2006 | 1 | |
| 932103E00044 | SWITCH ASSY AUTOMATIC CRUISE CONTROL | 4 | 01.06.2002 - 01.07.2003 | 1 | |
| 932103E000CY | SWITCH ASSY AUTOMATIC CRUISE CONTROL | 4 | 01.07.2003 - 31.05.2006 | 1 | |
| 932103E000FC | SWITCH ASSY AUTOMATIC CRUISE CONTROL | 4 | 01.06.2002 - 31.05.2006 | 1 | |
| 937353E000 | BEZEL SWITCH HAZARD | 6 | 01.06.2002 - 31.05.2006 | 1 | |
| 932203E100CY | SWITCH - RHEOSTAT | 7 | 01.07.2003 - 31.05.2006 | 1 | |
| 932203E100FC | SWITCH ASSY - RHEOSTAT | 7 | 01.06.2002 - 31.05.2006 | 1 | |
| 932203E100GW | SWITCH ASSY - RHEOSTAT | 7 | 01.06.2002 - 01.07.2003 | 1 | |
| 932153E00044 | BLANKING | 8 | 01.06.2002 - 01.07.2003 | 1 | |
| 932153E000CY | BLANKING | 8 | 01.07.2003 - 31.05.2006 | 1 | |
| 932153E000FC | BLANKING | 8 | 01.06.2002 - 31.05.2006 | 1 | |
| 937403E000 | SWITCH ASSY - SEAT WARM, LH | 16 | 01.06.2002 - 31.05.2006 | 1 | |
| 937803E000 | SWITCH ASSY-W/WIPER DEICER | 9 | 01.06.2002 - 31.05.2006 | 1 | |
| 937753E000 | BLANKING - REAR FOG LAMP SWITCH | 10 | 01.06.2002 - 31.05.2006 | 1 | |
| 932503E000GW | SNOW PANEL ASSY | 1 | 01.06.2002 - 01.07.2003 | TRANSMISSION: 4 SPEED AT 2WD | 1 |
| 935803E150FC | SWITCH ASSY - REAR POWER WINDOW SUB, RH | 15 | 01.06.2004 - 31.05.2006 | 1 | |
| 935803E300BL | SWITCH ASSY - REAR POWER WINDOW SUB, RH | 15 | 01.06.2002 - 01.02.2005 | 1 | |
| 935803E3008Z | SWITCH ASSY - REAR POWER WINDOW SUB, RH | 15 | 01.06.2005 - 31.05.2006 | 1 | |
| 935803E300EN | SWITCH ASSY - REAR POWER WINDOW SUB, RH | 15 | 01.02.2005 - 31.05.2006 | 1 | |
| 935803E150CY | SWITCH ASSY - REAR POWER WINDOW SUB, RH | 15 | 01.06.2004 - 31.05.2006 | 1 | |
| 935803E100ND | SWITCH ASSY - REAR POWER WINDOW SUB, RH | 15 | 01.06.2002 - 01.07.2003 | 1 | |
| 935803E100GW | SWITCH ASSY - REAR POWER WINDOW SUB, RH | 15 | 01.06.2002 - 01.07.2003 | 1 | |
| 935803E100FC | SWITCH ASSY - REAR POWER WINDOW SUB, RH | 15 | 01.07.2003 - 01.06.2004 | 1 | |
| 935803E100CY | SWITCH ASSY - REAR POWER WINDOW SUB, RH | 15 | 01.07.2003 - 01.06.2004 | 1 | |
| 935623E000 | PAD - FRONT, RH | 26 | 01.06.2002 - 31.05.2006 | 1 | |
| 1249205123 | SCREW - TAPPING | 5 | 01.06.2002 - 31.05.2006 | 4 | |
| 935753E010EN | SWITCH ASSY - POWER WINDOW PASSENGER | 13 | 01.02.2005 - 31.05.2006 | 1 | |
| 935753E000CY | SWITCH ASSY - POWER WINDOW PASSENGER | 13 | 01.07.2003 - 01.06.2004 | 1 | |
| 935753E000FC | SWITCH ASSY - POWER WINDOW PASSENGER | 13 | 01.07.2003 - 01.06.2004 | 1 | |
| 935753E000GW | SWITCH ASSY - POWER WINDOW PASSENGER | 13 | 01.06.2002 - 01.07.2003 | 1 | |
| 935753E000ND | SWITCH ASSY - POWER WINDOW PASSENGER | 13 | 01.06.2002 - 01.07.2003 | 1 | |
| 935753E0108Z | SWITCH ASSY - POWER WINDOW PASSENGER | 13 | 01.06.2005 - 31.05.2006 | 1 | |
| 935753E010BL | SWITCH ASSY - POWER WINDOW PASSENGER | 13 | 01.06.2002 - 01.02.2005 | 1 | |
| 935753E050CY | SWITCH ASSY - POWER WINDOW PASSENGER | 13 | 01.06.2004 - 31.05.2006 | 1 | |
| 935753E050FC | SWITCH ASSY - POWER WINDOW PASSENGER | 13 | 01.06.2004 - 31.05.2006 | 1 | |
| 935803E050CY | SWITCH ASSY - REAR POWER WINDOW SUB, LH | 14 | 01.06.2004 - 31.05.2006 | 1 | |
| 935803E200BL | SWITCH ASSY - REAR POWER WINDOW SUB, LH | 14 | 01.06.2002 - 01.02.2005 | 1 | |
| 935803E2008Z | SWITCH ASSY - REAR POWER WINDOW SUB, LH | 14 | 01.06.2005 - 31.05.2006 | 1 | |
| 935803E050FC | SWITCH ASSY - REAR POWER WINDOW SUB, LH | 14 | 01.06.2004 - 31.05.2006 | 1 | |
| 935803E200EN | SWITCH ASSY - REAR POWER WINDOW SUB, LH | 14 | 01.02.2005 - 31.05.2006 | 1 | |
| 935803E000ND | SWITCH ASSY - REAR POWER WINDOW SUB, LH | 14 | 01.06.2002 - 01.07.2003 | 1 | |
| 935803E000GW | SWITCH ASSY - REAR POWER WINDOW SUB, LH | 14 | 01.06.2002 - 01.07.2003 | 1 | |
| 935803E000FC | SWITCH ASSY - REAR POWER WINDOW SUB, LH | 14 | 01.07.2003 - 01.06.2004 | 1 | |
| 935803E000CY | SWITCH ASSY - REAR POWER WINDOW SUB, LH | 14 | 01.07.2003 - 01.06.2004 | 1 | |
| 935603B100 | SWITCH ASSY - DOOR | 11 | 01.06.2002 - 31.05.2006 | 4 | |
| 935613E000 | PAD - FRONT, LH | 25 | 01.06.2002 - 31.05.2006 | 1 | |
| 1229306163 | SCREW - MACHINE | 21 | 01.06.2002 - 31.05.2006 | 4 | |
| 935703E250FC | SWITCH ASSY - POWER WINDOW MAIN | 12 | 01.06.2004 - 31.05.2006 | 1 | |
| 935703E250CY | SWITCH ASSY - POWER WINDOW MAIN | 12 | 01.06.2004 - 31.05.2006 | 1 | |
| 935703E210BL | SWITCH ASSY - POWER WINDOW MAIN | 12 | 01.06.2002 - 01.02.2005 | 1 | |
| 935703E2108Z | SWITCH ASSY - POWER WINDOW MAIN | 12 | 01.06.2005 - 31.05.2006 | 1 | |
| 935703E200ND | SWITCH ASSY - POWER WINDOW MAIN | 12 | 01.06.2002 - 01.07.2003 | 1 | |
| 935703E200GW | SWITCH ASSY - POWER WINDOW MAIN | 12 | 01.06.2002 - 01.07.2003 | 1 | |
| 935703E200FC | SWITCH ASSY - POWER WINDOW MAIN | 12 | 01.07.2003 - 01.06.2004 | 1 | |
| 935703E200CY | SWITCH ASSY - POWER WINDOW MAIN | 12 | 01.07.2003 - 01.06.2004 | 1 | |
| 935703E210EN | SWITCH ASSY - POWER WINDOW MAIN | 12 | 01.02.2005 - 31.05.2006 | 1 |
