Brand Name Code

HYUNDAI

Hyundai HYW201905
Model
NameFamilyVehicle CategoryModel Year FromModel Year ToModel Option S
ACCENT 00 (1999-)AccentPassenger19992006BAFDL35Fuel Type: (3) MPI-SOHC;Body Typ

TRIM

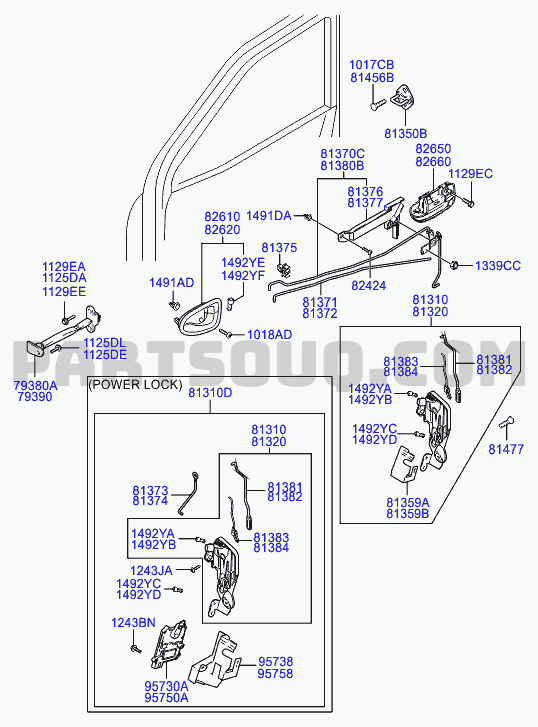

FRONT DOOR LOCKING

NumberNameCode
1017808223Screw - machine1017CB
1017808223Screw - machine1017CB
1017808221Screw - machine1017CB
1017808223Screw - machine1017CB
1017808223Screw - machine1017CB
1017808223Screw - machine1017CB
1017808223Screw - machine1017CB
1017808221Screw - machine1017CB
8145617000Screw - machine81456B
8135025000Striker assy - door81350B
8135025000Striker assy - door81350B
8135025001Striker assy - door81350B
8135025001Striker assy - door81350B
8135025001Striker assy - door81350B
8135025001Striker assy - door81350B
8135025001Striker assy - door81350B
8135025001Striker assy - door81350B
8265025000CAHandle assy - front door outside, lh82650
8265025000CAHandle assy - front door outside, lh82650
8265025000CAHandle assy - front door outside, lh82650
8265025000CAHandle assy - front door outside, lh82650
8265025000CAHandle assy - front door outside, lh82650
8265025000CAHandle assy - front door outside, lh82650
8265025000CAHandle assy - front door outside, lh82650
8265025000CAHandle assy - front door outside, lh82650
8265025000CAHandle assy - front door outside, lh82650
8265025000CAHandle assy - front door outside, lh82650
8265025000CAHandle assy - front door outside, lh82650
8265025000CAHandle assy - front door outside, lh82650
8137025000Rod assy - front door safety lock, lh81370C
8137025000Rod assy - front door safety lock, lh81370C
8137025000Rod assy - front door safety lock, lh81370C
8137025000Rod assy - front door safety lock, lh81370C
8137025000Rod assy - front door safety lock, lh81370C
8137025000Rod assy - front door safety lock, lh81370C
8266025000CAHandle assy - front door outside, rh82660
8266025000CAHandle assy - front door outside, rh82660
8266025000CAHandle assy - front door outside, rh82660
8266025000CAHandle assy - front door outside, rh82660
8266025000CAHandle assy - front door outside, rh82660
8266025000CAHandle assy - front door outside, rh82660
8266025000CAHandle assy - front door outside, rh82660
8266025000CAHandle assy - front door outside, rh82660
8266025000CAHandle assy - front door outside, rh82660
8266025000CAHandle assy - front door outside, rh82660
8266025000CAHandle assy - front door outside, rh82660
8266025000CAHandle assy - front door outside, rh82660
8138025000Rod assy - front door safety lock, rh81380B
8138025000Rod assy - front door safety lock, rh81380B
8138025000Rod assy - front door safety lock, rh81380B
8138025000Rod assy - front door safety lock, rh81380B
8138025000Rod assy - front door safety lock, rh81380B
8138025000Rod assy - front door safety lock, rh81380B
1129306121Bolt - washer assy1129EC
8137625000Cover - front door safety lock rod, lh81376
8137625000Cover - front door safety lock rod, lh81376
8137625000Cover - front door safety lock rod, lh81376
8137625000Cover - front door safety lock rod, lh81376
8137625000Cover - front door safety lock rod, lh81376
8137625000Cover - front door safety lock rod, lh81376
8137725000Cover - front door safety lock rod, rh81377
8137725000Cover - front door safety lock rod, rh81377
8137725000Cover - front door safety lock rod, rh81377
8137725000Cover - front door safety lock rod, rh81377
8137725000Cover - front door safety lock rod, rh81377
8137725000Cover - front door safety lock rod, rh81377
1491106000Grommet [ screw ]1491DA
8261025000YNHandle assy - door inside, lh82610
8261025000YNHandle assy - door inside, lh82610
8261025000Handle assy - door inside, lh82610
8261025000YNHandle assy - door inside, lh82610
8261025000YNHandle assy - door inside, lh82610
8261025000YNHandle assy - door inside, lh82610
8261025000Handle assy - door inside, lh82610
8261025000CAHandle assy - door inside, lh82610
8261025000CAHandle assy - door inside, lh82610
8261025000YNHandle assy - door inside, lh82610
8262025000YNHandle assy - door inside, rh82620
8262025000YNHandle assy - door inside, rh82620
8262025000YNHandle assy - door inside, rh82620
8262025000YNHandle assy - door inside, rh82620
8262025000Handle assy - door inside, rh82620
8262025000Handle assy - door inside, rh82620
8262025000YNHandle assy - door inside, rh82620
8262025000CAHandle assy - door inside, rh82620
8262025000YNHandle assy - door inside, rh82620
8262025000CAHandle assy - door inside, rh82620
8137538000Clip - door rod holding81375
1492942015Clip - rod1492YE
1339506001Nut - flange1339CC
1129306161Bolt1129EA
1492942025Clip - rod1492YF
1125106163Bolt - washer assy1125DA
1125106166BBolt - washer assy1125DA
1125106163Bolt - washer assy1125DA
1125106163Bolt - washer assy1125DA
1125106163Bolt - washer assy1125DA
1125106163Bolt - washer assy1125DA
1125106166BBolt - washer assy1125DA
1125106163Bolt - washer assy1125DA
1491005000Retainer - tapping screw1491AD
1129306163Bolt1129EE
8131025030Latch assy - front door, lh81310
8131025000Latch assy - front door, lh81310
8131025030Latch assy - front door, lh81310
8131025030Latch assy - front door, lh81310
8131025000Latch assy - front door, lh81310
8131025000Latch assy - front door, lh81310
8137125000Rod - front door inside handle, lh81371
8137125000Rod - front door inside handle, lh81371
8137125000Rod - front door inside handle, lh81371
8137125000Rod - front door inside handle, lh81371
8137125000Rod - front door inside handle, lh81371
8137125000Rod - front door inside handle, lh81371
8132025000Latch assy - front door, rh81320
8132025030Latch assy - front door, rh81320
8132025000Latch assy - front door, rh81320
8132025030Latch assy - front door, rh81320
8132025000Latch assy - front door, rh81320
8132025030Latch assy - front door, rh81320
8137225000Rod - front door inside handle, rh81372
8137225000Rod - front door inside handle, rh81372
8137225000Rod - front door inside handle, rh81372
8137225000Rod - front door inside handle, rh81372
8137225000Rod - front door inside handle, rh81372
8137225000Rod - front door inside handle, rh81372
1018805163Screw - tapping1018AD
1125108256BBolt [w/ washer]1125DL
1125108253Bolt - washer assy1125DE
8138125000Rod - front door outside handle, lh81381
8138125000Rod - front door outside handle, lh81381
8138125000Rod - front door outside handle, lh81381
8138125000Rod - front door outside handle, lh81381
8138125000Rod - front door outside handle, lh81381
8138125000Rod - front door outside handle, lh81381
8138325000Rod - front door lock, lh81383
8138325000Rod - front door lock, lh81383
8138325000Rod - front door lock, lh81383
8138325000Rod - front door lock, lh81383
8138325000Rod - front door lock, lh81383
8138325000Rod - front door lock, lh81383
8138425000Rod - front door lock, rh81384
8138425000Rod - front door lock, rh81384
8138425000Rod - front door lock, rh81384
8138425000Rod - front door lock, rh81384
8138425000Rod - front door lock, rh81384
8138425000Rod - front door lock, rh81384
7938025000Checker assy - front door, lh79380A
7938025001Checker assy - front door, lh79380A
7938025001Checker assy - front door, lh79380A
7938025001Checker assy - front door, lh79380A
7938025001Checker assy - front door, lh79380A
7938025001Checker assy - front door, lh79380A
7938025000Checker assy - front door, lh79380A
7938025001Checker assy - front door, lh79380A
7939025001Checker assy - front door, rh79390
7939025001Checker assy - front door, rh79390
7939025001Checker assy - front door, rh79390
7939025000Checker assy - front door, rh79390
7939025001Checker assy - front door, rh79390
7939025001Checker assy - front door, rh79390
7939025001Checker assy - front door, rh79390
7939025000Checker assy - front door, rh79390
814774A000Screw - machine81477
8147737000Screw - machine81477
814774A000Screw - machine81477
814774A000Screw - machine81477
814774A000Screw - machine81477
814774A000Screw - machine81477
814774A000Screw - machine81477
8147737000Screw - machine81477
8137325000Rod - front door actuator, lh81373
8137325000Rod - front door actuator, lh81373
8137325000Rod - front door actuator, lh81373
8138225000Rod - front door outside handle, rh81382
8138225000Rod - front door outside handle, rh81382
8138225000Rod - front door outside handle, rh81382
8138225000Rod - front door outside handle, rh81382
8138225000Rod - front door outside handle, rh81382
8138225000Rod - front door outside handle, rh81382
8137425000Rod assy - front door actuator, rh81374
8137425000Rod assy - front door actuator, rh81374
8137425000Rod assy - front door actuator, rh81374
8135825000Cover - front door latch, lh81359A
8135925000Cover - front door latch, rh81359B
1243304103Screw - tapping1243JA
1243104161Screw - tapping1243BN
9573825000Cover - front door actuator, lh95738
9573825000Cover - front door actuator, lh95738
9573825000Cover - front door actuator, lh95738
9574825000Cover - front door actuator, rh95758
9574825000Cover - front door actuator, rh95758
9574825000Cover - front door actuator, rh95758
9573525010Actuator assy - front door, lh95730A
9573525000Actuator assy - front door, lh95730A
9573525010Actuator assy - front door, lh95730A
9573625000Actuator assy - front door locking, rh95750A
9573625000Actuator assy - front door locking, rh95750A
9573625010Actuator assy - front door locking, rh95750A

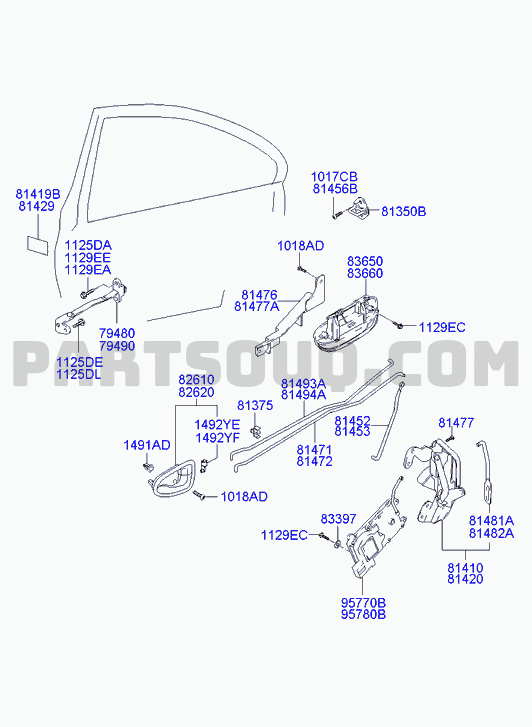

REAR DOOR LOCKING

NumberNameCode
1017808223Screw - machine1017CB
1017808223Screw - machine1017CB
1017808223Screw - machine1017CB
1017808221Screw - machine1017CB
1017808223Screw - machine1017CB
1017808221Screw - machine1017CB
8145617000Screw - machine81456B
8141934000DLabel - rear door latch, lh81419B
8141934000DLabel - rear door latch, lh81419B
8141934000DLabel - rear door latch, lh81419B
8141934000Label - rear door latch, lh81419B
8141934000DLabel - rear door latch, lh81419B
8141934000Label - rear door latch, lh81419B
8142934000DLabel - rear door latch, rh81429
8142934000DLabel - rear door latch, rh81429
8142934000DLabel - rear door latch, rh81429
8142934000DLabel - rear door latch, rh81429
8142934000Label - rear door latch, rh81429
8142934000Label - rear door latch, rh81429
8135025001Striker assy - door81350B
8135025001Striker assy - door81350B
8135025001Striker assy - door81350B
8135025000Striker assy - door81350B
8135025001Striker assy - door81350B
8135025000Striker assy - door81350B
1125106163Bolt - washer assy1125DA
1125106163Bolt - washer assy1125DA
1125106163Bolt - washer assy1125DA
1125106166BBolt - washer assy1125DA
1125106166BBolt - washer assy1125DA
1125106163Bolt - washer assy1125DA
1018805163Screw - tapping1018AD
1129306163Bolt1129EE
8365025000CAHandle assy - rear door outside, lh83650
8365025000CAHandle assy - rear door outside, lh83650
8365025000CAHandle assy - rear door outside, lh83650
8365025000CAHandle assy - rear door outside, lh83650
8365025000CAHandle assy - rear door outside, lh83650
8365025000CAHandle assy - rear door outside, lh83650
8365025000CAHandle assy - rear door outside, lh83650
8365025000CAHandle assy - rear door outside, lh83650
8365025000CAHandle assy - rear door outside, lh83650
8365025000CAHandle assy - rear door outside, lh83650
1129306161Bolt1129EA
8366025000CAHandle assy - rear door outside, rh83660
8366025000CAHandle assy - rear door outside, rh83660
8366025000CAHandle assy - rear door outside, rh83660
8366025000CAHandle assy - rear door outside, rh83660
8366025000CAHandle assy - rear door outside, rh83660
8366025000CAHandle assy - rear door outside, rh83660
8366025000CAHandle assy - rear door outside, rh83660
8366025000CAHandle assy - rear door outside, rh83660
8366025000CAHandle assy - rear door outside, rh83660
8366025000CAHandle assy - rear door outside, rh83660
8147625000Cover - rear door safety lock rod, lh81476
8147725000Cover - rear door safety lock rod, rh81477A
1129306121Bolt - washer assy1129EC
7948025000Checker assy - rear door, lh79480
7949025000Checker assy - rear door, rh79490
1125108253Bolt - washer assy1125DE
1125108256BBolt [w/ washer]1125DL
8261025000CAHandle assy - door inside, lh82610
8261025000YNHandle assy - door inside, lh82610
8261025000CAHandle assy - door inside, lh82610
8261025000YNHandle assy - door inside, lh82610
8261025000YNHandle assy - door inside, lh82610
8261025000YNHandle assy - door inside, lh82610
8261025000Handle assy - door inside, lh82610
8261025000Handle assy - door inside, lh82610
8149125000Rod - rear door safety lock, lh81493A
8262025000CAHandle assy - door inside, rh82620
8262025000CAHandle assy - door inside, rh82620
8262025000YNHandle assy - door inside, rh82620
8262025000YNHandle assy - door inside, rh82620
8262025000Handle assy - door inside, rh82620
8262025000YNHandle assy - door inside, rh82620
8262025000YNHandle assy - door inside, rh82620
8262025000Handle assy - door inside, rh82620
8149225000Rod - rear door safety lock, rh81494A
8137538000Clip - door rod holding81375
8145225000Rod - rear door actuator, lh81452
8147737000Screw - machine81477
8147737000Screw - machine81477
814774A000Screw - machine81477
814774A000Screw - machine81477
814774A000Screw - machine81477
814774A000Screw - machine81477
1492942015Clip - rod1492YE
8145325000Rod - rear door actuator, rh81453
1492942025Clip - rod1492YF
1491005000Retainer - tapping screw1491AD
8147125000Rod - rear door inside handle, lh81471
8147225000Rod - rear door inside handle, rh81472
8339737000Tape - blanking hole83397
8148125000Rod - rear door outside handle, lh81481A
8148225000Rod - rear door outside handle, rh81482A
8141025030Latch assy - rear door, lh81410
8141025000Latch assy - rear door, lh81410
8141025030Latch assy - rear door, lh81410
8141025000Latch assy - rear door, lh81410
8142025000Latch assy - rear door, rh81420
8142025000Latch assy - rear door, rh81420
8142025030Latch assy - rear door, rh81420
8142025030Latch assy - rear door, rh81420
9575525000Actuator - rear door locking, lh95770B
9575525000Actuator - rear door locking, lh95770B
9575625000Actuator - rear door locking, rh95780B
9575625000Actuator - rear door locking, rh95780B

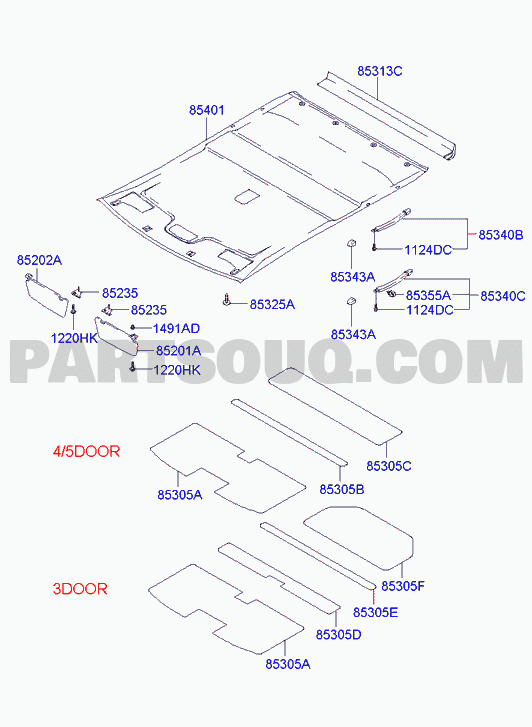

SUNVISOR & HEAD LINING

NumberNameCode
8531324201YLStrip - headlining, rear85313C
8530125000YLHeadlining assy85401
8530125001YLHeadlining assy85401
8530125900YLHeadlining assy85401
8530125901YLHeadlining assy85401
853402D500YLHandle assy - roof assist85340B
8534038000YLHandle assy - roof assist85340B
8522025100YLSunvisor assy, rh85202A
8522025100YLSunvisor assy, rh85202A
8520225500YLSunvisor assy, rh85202A
8520225450YLSunvisor assy, rh85202A
8520225400YLSunvisor assy, rh85202A
8522025100YLSunvisor assy, rh85202A
8522025800YLSunvisor assy, rh85202A
8520225400YLSunvisor assy, rh85202A
8522025810YLSunvisor assy, rh85202A
8522025110YLSunvisor assy, rh85202A
8522025110YLSunvisor assy, rh85202A
8522025100YLSunvisor assy, rh85202A
8522025100YLSunvisor assy, rh85202A
8522025810YLSunvisor assy, rh85202A
8520225000YLSunvisor assy, rh85202A
8520225000YLSunvisor assy, rh85202A
8523525100YLRetainer - sunvisor85235
8523526000YLRetainer - sunvisor85235
8523525100YLRetainer - sunvisor85235
8523525100YLRetainer - sunvisor85235
8523525000YLRetainer - sunvisor85235
8523526000YLRetainer - sunvisor85235
8523526000YLRetainer - sunvisor85235
8523526000YLRetainer - sunvisor85235
8523526000YLRetainer - sunvisor85235
8523526000YLRetainer - sunvisor85235
8523526000YLRetainer - sunvisor85235
8523525000YLRetainer - sunvisor85235
8523526000YLRetainer - sunvisor85235
8523526000YLRetainer - sunvisor85235
8523525000YLRetainer - sunvisor85235
853402D600YLHandle assy - roof assist85340C
8534038100YLHandle assy - roof assist85340C
8534638000YLHook - coat85355A
8532521000YLPlug - trim mounting85325A
1124106281Bolt1124DC
1491005000Retainer - tapping screw1491AD
8534325000YLCover - roof assist handle85343A
8520125100YLSunvisor assy, lh85201A
8520125400YLSunvisor assy, lh85201A
8520125450YLSunvisor assy, lh85201A
8520125450YLSunvisor assy, lh85201A
8520125150YLSunvisor assy, lh85201A
8521025810YLSunvisor assy, lh85201A
8521025100YLSunvisor assy, lh85201A
8521025100YLSunvisor assy, lh85201A
8521025100YLSunvisor assy, lh85201A
8520125500YLSunvisor assy, lh85201A
8521025110YLSunvisor assy, lh85201A
8521025110YLSunvisor assy, lh85201A
8521025800YLSunvisor assy, lh85201A
8521025800YLSunvisor assy, lh85201A
8521025110YLSunvisor assy, lh85201A
8521025110YLSunvisor assy, lh85201A
1243405203Screw - machine1220HK
8530525200Pad - roof no. 385305C
8530525100Pad - roof no. 285305B
8530525500Pad - roof no. 685305F
8530525400Pad - roof no. 585305E
8530525300Pad - roof no. 485305D
8530525000Pad - roof no. 185305A

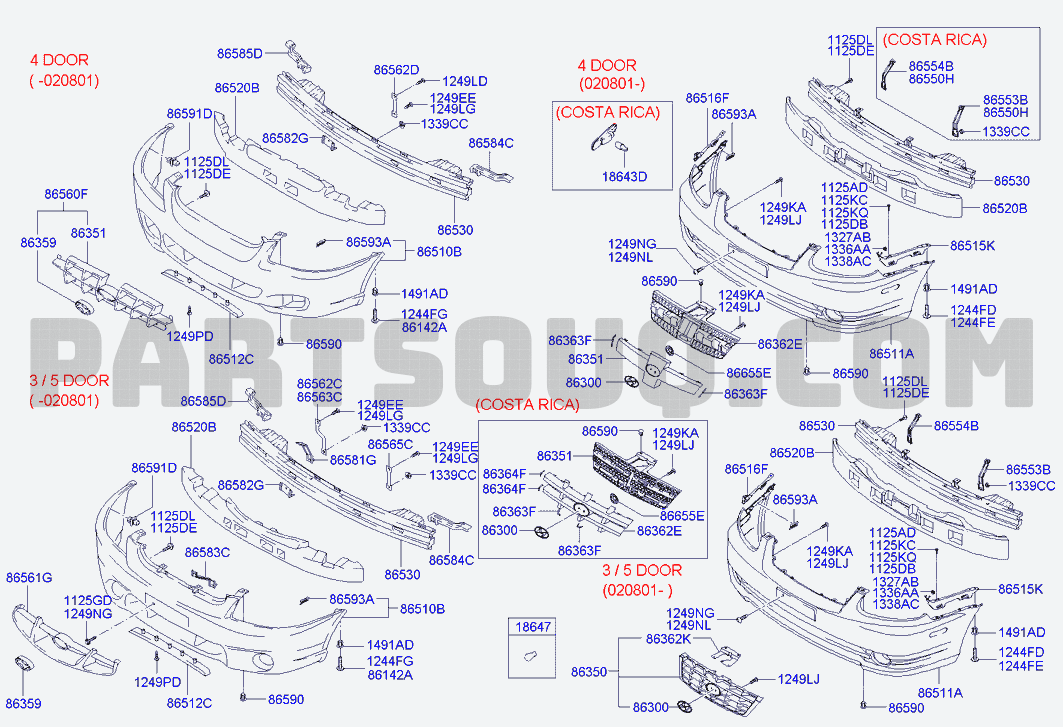

FRONT BUMPER

NumberNameCode
8658525000Bracket - front bumper corner support, rh86585D
8655425600Bracket assy - front bumper upper support, rh86554B
8656225000Bar - front upper support86562D
1249304123Screw - tapping1249LD
8652025000Absorber - front bumper energy86520B
8652025600Absorber - front bumper energy86520B
8652025000Absorber - front bumper energy86520B
8651625600Bracket assy - front bumper side, rh86516F
8655325600Bracket assy - front bumper upper support, lh86553B
1249304147BScrew - tapping1249LG
8658225000Bracket - front bumper lower support86582G
8658225000Bracket - front bumper lower support86582G
8658425000Bracket - front bumper corner support, lh86584C
1125406206KBolt1125AD
8656025010CAGrille assy - radiator86560F
8656025010CAGrille assy - radiator86560F
8656025010CAGrille assy - radiator86560F
1125406203Bolt [w/ washer]1125KC
8630038000Emblem - symbol mark86359
8630038000Emblem - symbol mark86359
1336305151Nut (spring)1336AA
1491005000Retainer - tapping screw1491AD
1491005000Retainer - tapping screw1491AD
826991G000Retainer - tapping screw1491AD
1491005000Retainer - tapping screw1491AD
1244205206BScrew - tapping1244FD
1244205203Screw - tapping1244FG
1244105207BScrew - tapping1244FE
1244205207BScrew - tapping1244FE
8614222000Screw - tapping86142A
1249306203Screw - tapping1249PD
1125108256BBolt [w/ washer]1125DL
1125108256KBolt [w/ washer]1125DL
8630025500Emblem - tailgate logo86300
8630025501Emblem - tailgate logo86300
8656225200Bar - front bumper upper cover support, lh86562C
8656325200Bar - front bumper upper cover support, rh86563C
1339506003Nut - flange1339CC
1339506003Nut - flange1339CC
1339506007KNut - flange1339CC
1339506003Nut - flange1339CC
8656525200Bar - front upper cover support86565C
1249304143Screw - tapping1249EE
8658125000Bracket - front bumper upper support86581G
8658125000Bracket - front bumper upper support86581G
8659125000Retainer assy - bumper side bracket86591D
1125108251Bolt - washer assy1125DE
8658325200Bracket - front bumper center support86583C
1125406207BBolt - washer assy1125KQ
1125106203Bolt1125DB
8653025000Rail assy - front bumper86530
8653025600Rail assy - front bumper86530
8653025000Rail assy - front bumper86530
1327006003Nut [w/ washer ]1327AB
8651525600Bracket assy - front bumper side, lh86515K
8659324000Clip86593A
1125306253Bolt1125GD
1338506003Nut - flange1338AC
1338506007KNut - flange1338AC
1338506007BNut - flange1338AC
8651025000Cover assy - front bumper86510B
8651025000Cover assy - front bumper86510B
1249305203Screw - tapping1249NG
1249305207BScrew - tapping1249NL
8636225620Cover - radiator grille, upper86362K
8636025620Grille assy - radiator86350
8651125610Cover - front bumper86511A
8651225000Grille - front bumper86512C
8651225000Grille - front bumper86512C
8659028000Retainer assy - bumper cover mounting86590

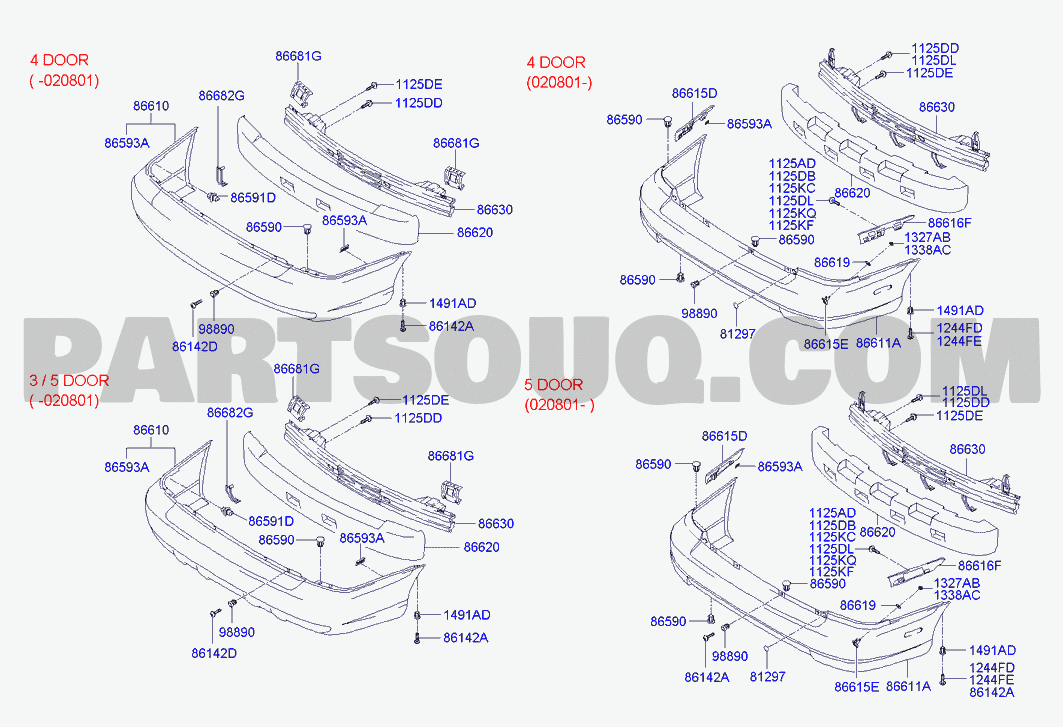

REAR BUMPER

NumberNameCode
8661025000Cover assy - rear bumper86610
8661025000Cover assy - rear bumper86610
1125406206KBolt1125AD
1125106203Bolt1125DB
1125406203Bolt [w/ washer]1125KC
8662025600Absorber - rear bumper energy86620
8662025600Absorber - rear bumper energy86620
8662025000Absorber - rear bumper energy86620
8662025000Absorber - rear bumper energy86620
8659324000Clip86593A
8661935000Pad - sealing86619
1491005000Retainer - tapping screw1491AD
1491005000Retainer - tapping screw1491AD
1491005000Retainer - tapping screw1491AD
826991G000Retainer - tapping screw1491AD
1491005000Retainer - tapping screw1491AD
826991G000Retainer - tapping screw1491AD
9751922000Retainer98890
1244205206BScrew - tapping1244FD
8129729500Tape - anti-abrasion81297
8661525610Bracket assy - rear bumper side upper86615E
8661525610Bracket assy - rear bumper side upper86615E
1125108256KBolt [w/ washer]1125DL
1125108206BBolt [w/ washer]1125DL
1125108206BBolt [w/ washer]1125DL
1125108256BBolt [w/ washer]1125DL
1125108206KBolt [w/ washer]1125DL
1125108206KBolt [w/ washer]1125DL
1125108256KBolt [w/ washer]1125DL
1125108256BBolt [w/ washer]1125DL
1125108251Bolt - washer assy1125DE
8668225000Bracket - rear bumper lower support86682G
8668225000Bracket - rear bumper lower support86682G
1125108201Bolt1125DD
8661525600Bracket assy - rear bumper side mounting86615D
8661525600Bracket assy - rear bumper side mounting86615D
8668125000Bracket - rear bumper upper support86681G
8668125000Bracket - rear bumper upper support86681G
8659125000Retainer assy - bumper side bracket86591D
8663025000Rail assy - rear bumper86630
8663025000Rail assy - rear bumper86630
8663025600Rail assy - rear bumper86630
8663025600Rail assy - rear bumper86630
1125406207BBolt - washer assy1125KQ
8661625600Bracket - rear bumper side mounting, rh86616F
8661625600Bracket - rear bumper side mounting, rh86616F
1125408256KBolt1125KF
1327006001Nut [w/ washer ]1327AB
1338506003Nut - flange1338AC
1338506007BNut - flange1338AC
1338506003Nut - flange1338AC
1338506007KNut - flange1338AC
1338506007BNut - flange1338AC
1338506007KNut - flange1338AC
8659028000Retainer assy - bumper cover mounting86590
8614222000Screw - tapping86142A
8614222000Screw - tapping86142A
8614222100Screw - tapping86142D
1244205207BScrew - tapping1244FE
1244105207BScrew - tapping1244FE
1244105207BScrew - tapping1244FE
1244205207BScrew - tapping1244FE
8661125600Cover - rear bumper86611A
8661125600Cover - rear bumper86611A
