Catalog
Brand Name Code

HYUNDAI

Hyundai HYW201905
Model
NameFamilyVehicle CategoryModel Year FromModel Year ToModel Option S
TERRACAN (2001-)TerracanR/V20012006EFZDZ8CGrade: (D) MIDDLE GRADE;Body Typ

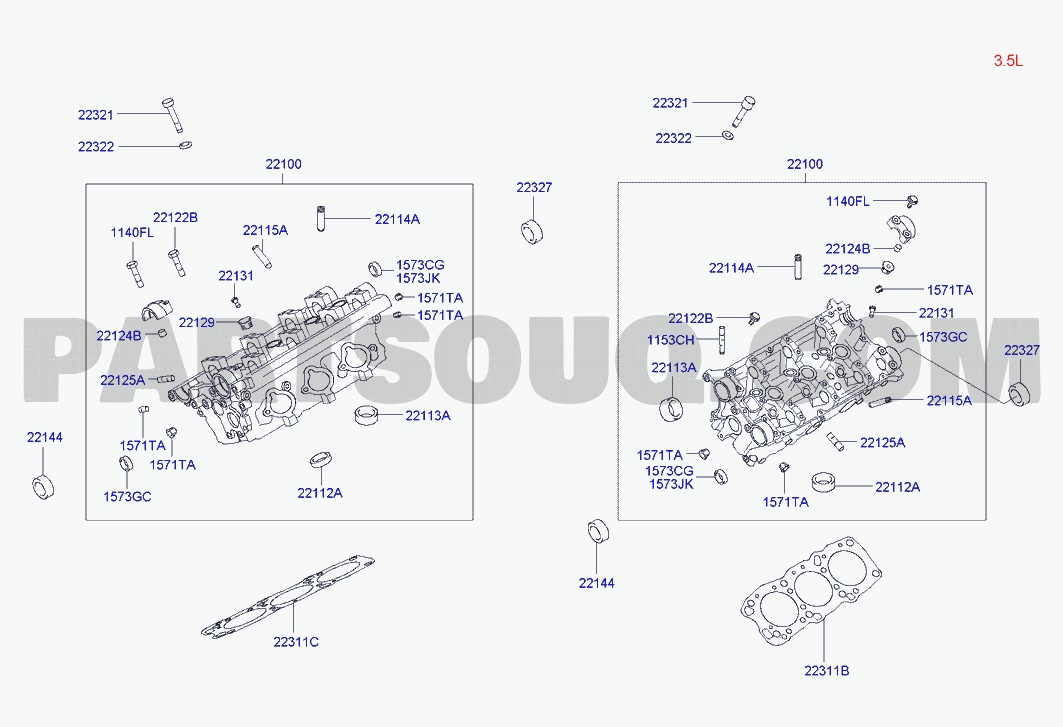

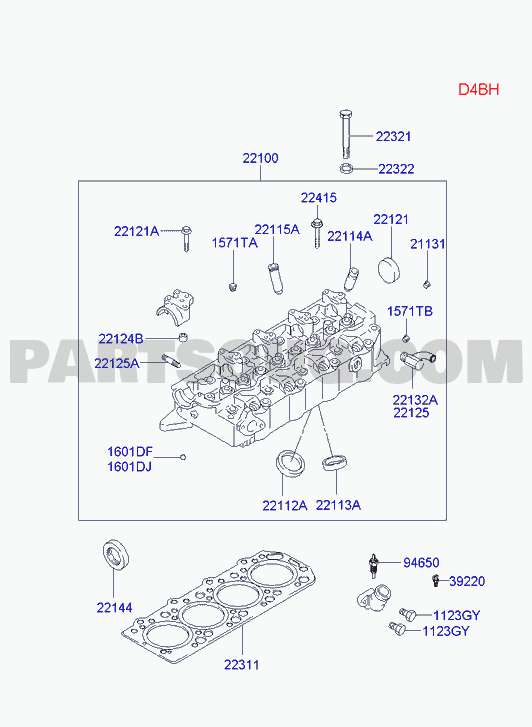

ENGINE

CYLINDER HEAD

01/03
NumberNameCode
2232142001Bolt - cylinder head22321
2232142001Bolt - cylinder head22321
2232142001Bolt - cylinder head22321
2232142001Bolt - cylinder head22321
2232142001Bolt - cylinder head22321
2232142001Bolt - cylinder head22321
2232242001Washer - cylinder head bolt22322
2232242001Washer - cylinder head bolt22322
2232242002Washer - cylinder head bolt22322
2232242002Washer - cylinder head bolt22322
2232242002Washer - cylinder head bolt22322
2232242001Washer - cylinder head bolt22322
2232242002Washer - cylinder head bolt22322
2232242001Washer - cylinder head bolt22322
2232242001Washer - cylinder head bolt22322
2232242001Washer - cylinder head bolt22322
2210042523Head assy - cylinder22100
2210042530Head assy - cylinder22100
2210042530Head assy - cylinder22100
2210042531Head assy - cylinder22100
2210042522Head assy - cylinder22100
2211442910Guide - intake valve22114A
2211442910Guide - intake valve22114A
2211442910Guide - intake valve22114A
2211442910Guide - intake valve22114A
2211442910Guide - intake valve22114A
2211442900Guide - intake valve22114A
2211442000Guide - intake valve22114A
2211442900Guide - intake valve22114A
2211442920Guide - intake valve22114A
2211442900Guide - intake valve22114A
2211442900Guide - intake valve22114A
2211442000Guide - intake valve22114A
2211442900Guide - intake valve22114A
2211442000Guide - intake valve22114A
2211442000Guide - intake valve22114A
2211442000Guide - intake valve22114A
2211442920Guide - intake valve22114A
2211442920Guide - intake valve22114A
2211442920Guide - intake valve22114A
2211442920Guide - intake valve22114A
2212432000Bush - knock22124B
2212432000Bush - knock22124B
2212432000Bush - knock22124B
2212432000Bush - knock22124B
2212432000Bush - knock22124B
2211342903Seat - exhaust valve22113A
2211342851Seat - exhaust valve22113A
2211342903Seat - exhaust valve22113A
2211342933Seat - exhaust valve22113A
2211342851Seat - exhaust valve22113A
2211342851Seat - exhaust valve22113A
2211342851Seat - exhaust valve22113A
2211342903Seat - exhaust valve22113A
2211342851Seat - exhaust valve22113A
2211342933Seat - exhaust valve22113A
2211342903Seat - exhaust valve22113A
2211342933Seat - exhaust valve22113A
2211342933Seat - exhaust valve22113A
2211342903Seat - exhaust valve22113A
2211342933Seat - exhaust valve22113A
2211542910Guide - exhaust valve22115A
2211542910Guide - exhaust valve22115A
2211542910Guide - exhaust valve22115A
2211542920Guide - exhaust valve22115A
2211542920Guide - exhaust valve22115A
2211542910Guide - exhaust valve22115A
2211542920Guide - exhaust valve22115A
2211542920Guide - exhaust valve22115A
2211542920Guide - exhaust valve22115A
2211542000Guide - exhaust valve22115A
2211542000Guide - exhaust valve22115A
2211542000Guide - exhaust valve22115A
2211542000Guide - exhaust valve22115A
2211542910Guide - exhaust valve22115A
2211542900Guide - exhaust valve22115A
2211542000Guide - exhaust valve22115A
2211542900Guide - exhaust valve22115A
2211542900Guide - exhaust valve22115A
2211542900Guide - exhaust valve22115A
2211542900Guide - exhaust valve22115A
2212442880Stud22125A
2212442880Stud22125A
2212442880Stud22125A
2212442880Stud22125A
2212442890Stud22125A
2212442880Stud22125A
2212442890Stud22125A
2212442890Stud22125A
2212442890Stud22125A
2212442890Stud22125A
2212442880Stud22125A
2212442880Stud22125A
2212442880Stud22125A
2212442880Stud22125A
2212442880Stud22125A
1571710083Plug - taper1571TA
1571710083Plug - taper1571TA
1571710083Plug - taper1571TA
1571710083Plug - taper1571TA
1571710083Plug - taper1571TA
2211242000Seat - intake valve22112A
2211242810Seat - intake valve22112A
2211242810Seat - intake valve22112A
2211242000Seat - intake valve22112A
2211242000Seat - intake valve22112A
2211242000Seat - intake valve22112A
2211242810Seat - intake valve22112A
2211242000Seat - intake valve22112A
2211242910Seat - intake valve22112A
2211242810Seat - intake valve22112A
2211242910Seat - intake valve22112A
2211242910Seat - intake valve22112A
2211242910Seat - intake valve22112A
2211242810Seat - intake valve22112A
2211242910Seat - intake valve22112A
2214435000Seal - oil22144
2214435000Seal - oil22144
2214435000Seal - oil22144
2214435000Seal - oil22144
2214435000Seal - oil22144

CYLINDER HEAD

02/03
NumberNameCode
2232142001Bolt - cylinder head22321
2232142001Bolt - cylinder head22321
2232142001Bolt - cylinder head22321
2232142001Bolt - cylinder head22321
2232142001Bolt - cylinder head22321
2232142001Bolt - cylinder head22321
2210042522Head assy - cylinder22100
2210042531Head assy - cylinder22100
2210042530Head assy - cylinder22100
2210042523Head assy - cylinder22100
2210042530Head assy - cylinder22100
2232242002Washer - cylinder head bolt22322
2232242002Washer - cylinder head bolt22322
2232242002Washer - cylinder head bolt22322
2232242001Washer - cylinder head bolt22322
2232242001Washer - cylinder head bolt22322
2232242002Washer - cylinder head bolt22322
2232242001Washer - cylinder head bolt22322
2232242001Washer - cylinder head bolt22322
2232242001Washer - cylinder head bolt22322
2232242001Washer - cylinder head bolt22322
2241542901Bolt22415
2212111000Cap - (sealing)22121
2211542900Guide - exhaust valve22115A
2211542900Guide - exhaust valve22115A
2211542000Guide - exhaust valve22115A
2211542000Guide - exhaust valve22115A
2211542000Guide - exhaust valve22115A
2211542910Guide - exhaust valve22115A
2211542000Guide - exhaust valve22115A
2211542900Guide - exhaust valve22115A
2211542000Guide - exhaust valve22115A
2211542900Guide - exhaust valve22115A
2211542900Guide - exhaust valve22115A
2211542920Guide - exhaust valve22115A
2211542920Guide - exhaust valve22115A
2211542920Guide - exhaust valve22115A
2211542910Guide - exhaust valve22115A
2211542920Guide - exhaust valve22115A
2211542920Guide - exhaust valve22115A
2211542910Guide - exhaust valve22115A
2211542910Guide - exhaust valve22115A
2211542910Guide - exhaust valve22115A
2212142000Bolt22121A
2211442900Guide - intake valve22114A
2211442900Guide - intake valve22114A
2211442900Guide - intake valve22114A
2211442900Guide - intake valve22114A
2211442000Guide - intake valve22114A
2211442900Guide - intake valve22114A
2211442000Guide - intake valve22114A
2211442000Guide - intake valve22114A
2211442000Guide - intake valve22114A
2211442920Guide - intake valve22114A
2211442920Guide - intake valve22114A
2211442920Guide - intake valve22114A
2211442000Guide - intake valve22114A
2211442920Guide - intake valve22114A
2211442910Guide - intake valve22114A
2211442910Guide - intake valve22114A
2211442910Guide - intake valve22114A
2211442910Guide - intake valve22114A
2211442910Guide - intake valve22114A
2211442920Guide - intake valve22114A
1571710083Plug - taper1571TA
1571710083Plug - taper1571TA
1571710083Plug - taper1571TA
1571710083Plug - taper1571TA
1571710083Plug - taper1571TA
2113138000Plug - taper21131
2113138000Plug - taper21131
2113138000Plug - taper21131
2113138000Plug - taper21131
2113132000Plug - taper21131
2113138000Plug - taper21131
2113132000Plug - taper21131
2113132000Plug - taper21131
2113132000Plug - taper21131
2113132000Plug - taper21131
1571713113Plug - taper1571TB
2212432000Bush - knock22124B
2212432000Bush - knock22124B
2212432000Bush - knock22124B
2212432000Bush - knock22124B
2212432000Bush - knock22124B
2212442880Stud22125A
2212442880Stud22125A
2212442890Stud22125A
2212442880Stud22125A
2212442880Stud22125A
2212442890Stud22125A
2212442890Stud22125A
2212442890Stud22125A
2212442890Stud22125A
2212442880Stud22125A
2212442880Stud22125A
2212442880Stud22125A
2212442880Stud22125A
2212442880Stud22125A
2212442880Stud22125A
2213242850Joint - oil pipe22132A
2212542550Joint - water by-pass22125
2212542540Joint - water by-pass22125
2212542550Joint - water by-pass22125
2212542540Joint - water by-pass22125
2212542540Joint - water by-pass22125
1601109000Ball - steel1601DF
1601114000Ball - steel1601DJ
2211342851Seat - exhaust valve22113A
2211342903Seat - exhaust valve22113A
2211342851Seat - exhaust valve22113A
2211342851Seat - exhaust valve22113A
2211342903Seat - exhaust valve22113A
2211342851Seat - exhaust valve22113A
2211342933Seat - exhaust valve22113A
2211342933Seat - exhaust valve22113A
2211342903Seat - exhaust valve22113A
2211342933Seat - exhaust valve22113A
2211342933Seat - exhaust valve22113A
2211342903Seat - exhaust valve22113A
2211342903Seat - exhaust valve22113A
2211342851Seat - exhaust valve22113A
2211342933Seat - exhaust valve22113A
2211242000Seat - intake valve22112A
2211242000Seat - intake valve22112A
2211242000Seat - intake valve22112A
2211242810Seat - intake valve22112A
2211242000Seat - intake valve22112A
2211242810Seat - intake valve22112A
2211242810Seat - intake valve22112A
2211242810Seat - intake valve22112A
2211242910Seat - intake valve22112A
2211242910Seat - intake valve22112A
2211242910Seat - intake valve22112A
2211242910Seat - intake valve22112A
2211242810Seat - intake valve22112A
2211242910Seat - intake valve22112A
2211242000Seat - intake valve22112A
9465042051Gauge module - coolant temperature94650
9465042052Gauge module - coolant temperature94650
3923042000Sensor assy - water temperature39220
2214435000Seal - oil22144
2214435000Seal - oil22144
2214435000Seal - oil22144
2214435000Seal - oil22144
2214435000Seal - oil22144
1123308281Bolt1123GY
1123308281Bolt1123GY
1123308281Bolt1123GY
1123308281Bolt1123GY
1123308281Bolt1123GY
1123308283Bolt1123GY
1123308283Bolt1123GY
1123308283Bolt1123GY
1123308283Bolt1123GY
1123308283Bolt1123GY
2231142525Gasket - cylinder head22311
2231142855Gasket - cylinder head22311
2231142515Gasket - cylinder head22311

CYLINDER HEAD

03/03
NumberNameCode
2232142001Bolt - cylinder head22321
2232142001Bolt - cylinder head22321
2232142001Bolt - cylinder head22321
2232142001Bolt - cylinder head22321
2232142001Bolt - cylinder head22321
2232142001Bolt - cylinder head22321
2231142525Gasket - cylinder head22311
2231142855Gasket - cylinder head22311
2231142515Gasket - cylinder head22311
