Catalog Hyundai IX55 07 (2007-2013) ix55 R/V ENGINE

Brand NameFamilyVehicle CategoryModel Year FromModel Year ToModel Option S
 HYUNDAI IX55 07 (2007-2013)Ix55R/V20082013EJW79BC5GEngine Capacity: (9B) 3000 CC -

ENGINE

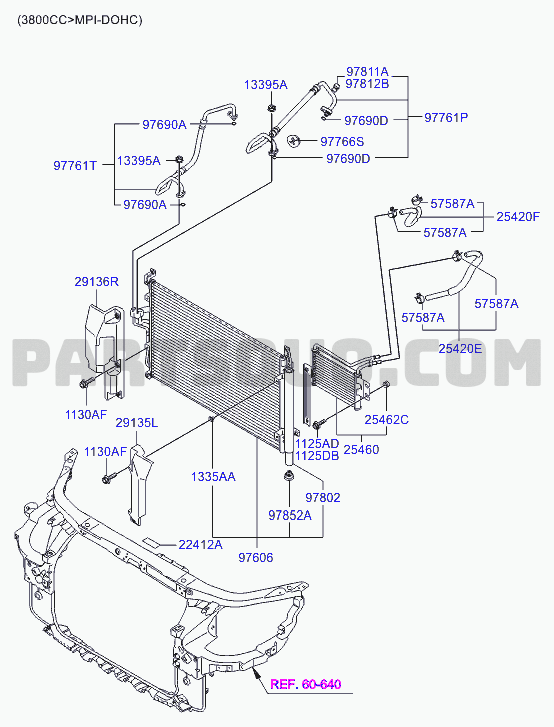

ENGINE COOLING SYSTEM

01/04
NumberNameCode
9781122301Cap - charge valve97811A
9781222301Core - charge valve97812B
977613J000Pipe & tube assy97761P
9769034350O-ring97690D
977663J000Sealing cover97766S
1339606007BNut - flange13395A
1339606007BNut - flange13395A
977613J010Pipe & tube assy97761T
9769034310O-ring97690A
1334106003Nut (spring)1334CA
5758734500Clip - hose57587A
291363J000Guard - air, rh29136R
254203J260Hose assy - oil cooling25420F
291353J001Guard - air, lh29135L
291353J002Guard - air, lh29135L
291353J000Guard - air, lh29135L
254603J150Cooler assy - oil25460
1130006256BBolt1130AF
254203J250Hose assy - oil cooling25420E
1334106006BNut (spring)1335AA
9780225000Desiccant - receiver drier97802
978033L000Cap assy - receiver dryer97852A
976063J001Condenser assy - cooler97606

ENGINE COOLING SYSTEM

03/04
NumberNameCode
9781122301Cap - charge valve97811A
9781222301Core - charge valve97812B
977613J000Pipe & tube assy97761P
9769034310O-ring97690A
977663J000Sealing cover97766S
9769034350O-ring97690D
1339606007BNut - flange13395A
1339606007BNut - flange13395A
977613J010Pipe & tube assy97761T
5758734500Clip - hose57587A
254203J260Hose assy - oil cooling25420F
291363J000Guard - air, rh29136R
254203J250Hose assy - oil cooling25420E
1130006256BBolt1130AF
291353J001Guard - air, lh29135L
291353J000Guard - air, lh29135L
291353J002Guard - air, lh29135L
1125406206BBolt1125AD
1125406206BBolt1125AD
254603J150Cooler assy - oil25460
1125106206BBolt1125DB
1334106006BNut (spring)1335AA
9780225000Desiccant - receiver drier97802
978033L000Cap assy - receiver dryer97852A
253881P000Label - caution22412A
976063J001Condenser assy - cooler97606
