Catalog
Brand Name Code

HYUNDAI

Hyundai HYW201905
Model
NameFamilyVehicle CategoryModel Year FromModel Year ToModel Option S
VERACRUZ 07: OCT.2006- (2007-2013)VeracruzR/V20062013EJW79CC5FFuel Type: (5) DIESEL - DIESEL;E

ENGINE

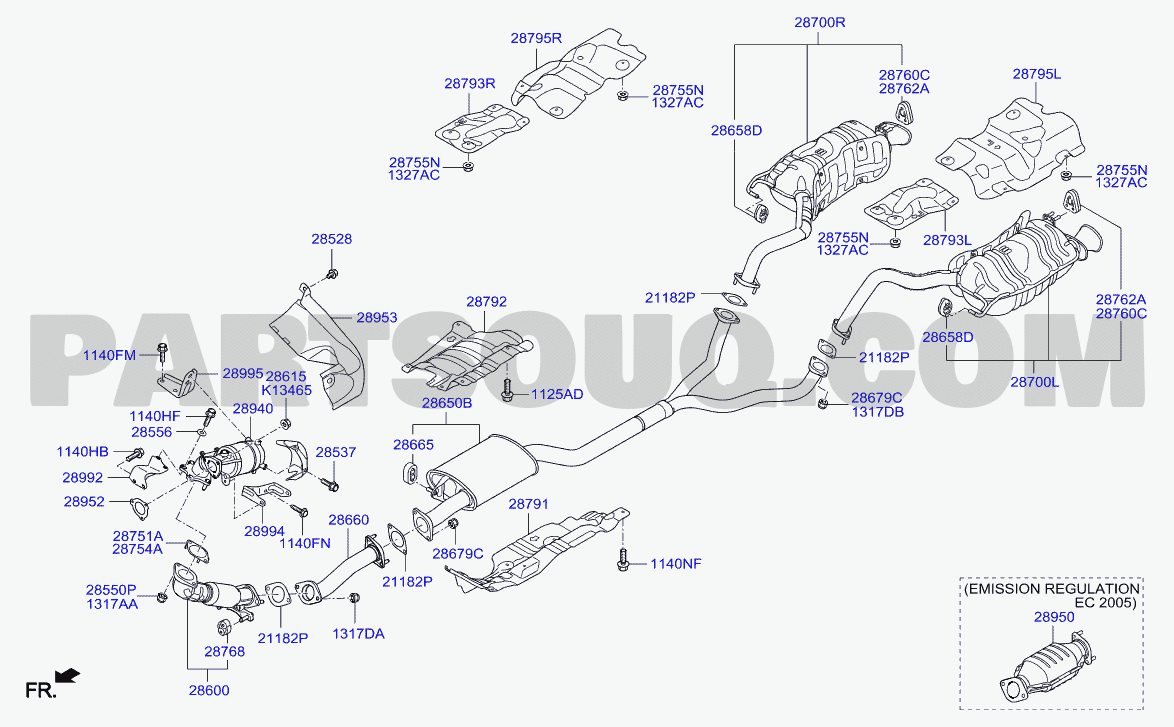

MUFFLER & EXHAUST PIPE

01/02
NumberNameCode
287003J300Pipe - tail w/ muffler, rh28700R
287003J300Pipe - tail w/ muffler, rh28700R
287003J350Pipe - tail w/ muffler, rh28700R
287963J100Protector - heat main, rh28795R
287963J100Protector - heat main, rh28795R
287953J100Protector - heat main, lh28795L
287953J100Protector - heat main, lh28795L
28760H1010Hanger28760C
28760H1010Hanger28760C
2865826000Hanger - exhaust pipe28658D
2865826000Hanger - exhaust pipe28658D
2865826000Hanger - exhaust pipe28658D
1327106007KNut [washer assy]1327AC
1327106007KNut [washer assy]1327AC
287682B000Hanger28762A
287923J000Protector - heat center28792
287923J000Protector - heat center28792
287013J350Pipe - tail w/ muffler, lh28700L
287013J300Pipe - tail w/ muffler, lh28700L
287013J300Pipe - tail w/ muffler, lh28700L
1125406206BBolt1125AD
1125406206BBolt1125AD
286503J300Pipe - exhaust, center28650B
1318310000Nut1317DB
1318310000Nut1317DB
1318310000Nut1317DB
287612B000Hanger28665
287612B000Hanger28665
287612B000Hanger28665
287913J500Protector - heat front28791
286603J310Damper - dynamic28660
287513J050Gasket - exhaust pipe28751A
287512B100Gasket - exhaust pipe28751A
287513J050Gasket - exhaust pipe28751A
287512B100Gasket - exhaust pipe28751A
287512B100Gasket - exhaust pipe28751A
287512B050Gasket - exhaust pipe28754A
287512B050Gasket - exhaust pipe28754A
287512B050Gasket - exhaust pipe28754A
1318312000Nut28679C
1318312000Nut28679C
286792B000Nut28679C
1318312000Nut28679C
1125306146BBolt1140NF
1318012000Nut1317DA
287513J000Gasket21182P
287513J000Gasket21182P
287513J000Gasket21182P
2876836000Hanger - exhaust pipe28768
2876836000Hanger - exhaust pipe28768
2876836000Hanger - exhaust pipe28768
286103J350Pipe - exhaust, front28600
286103J360Pipe - exhaust, front28600

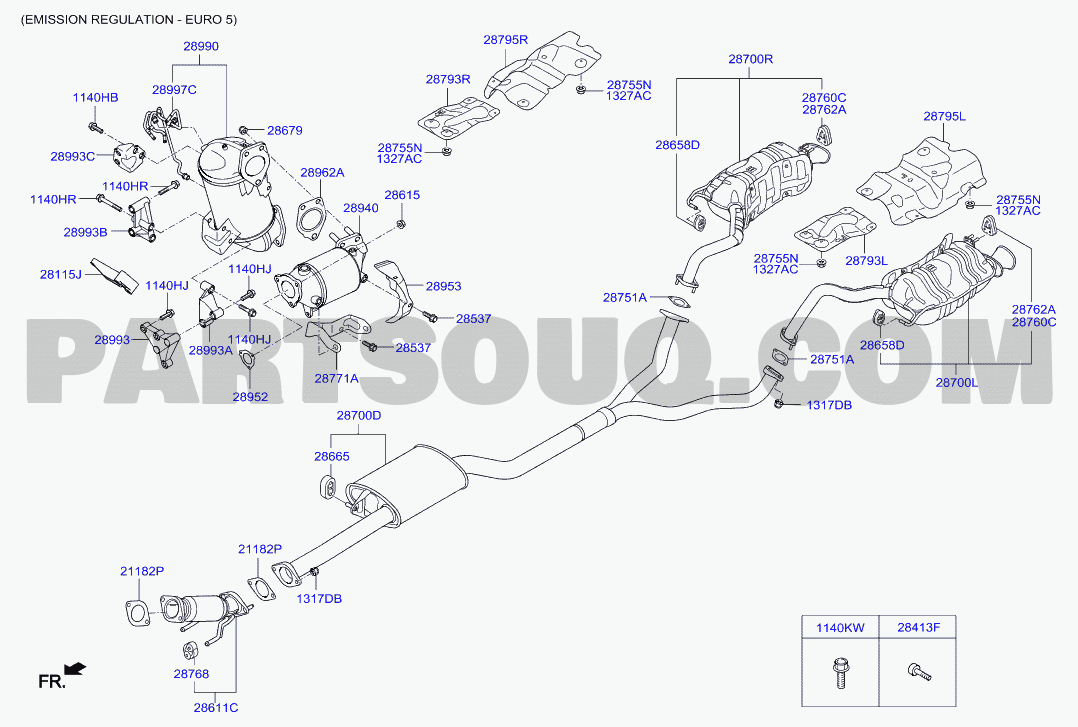

MUFFLER & EXHAUST PIPE

02/02
NumberNameCode
287963J100Protector - heat main, rh28795R
287963J100Protector - heat main, rh28795R
287003J300Pipe - tail w/ muffler, rh28700R
287003J350Pipe - tail w/ muffler, rh28700R
287003J300Pipe - tail w/ muffler, rh28700R
287682B000Hanger28762A
287953J100Protector - heat main, lh28795L
287953J100Protector - heat main, lh28795L
2865826000Hanger - exhaust pipe28658D
2865826000Hanger - exhaust pipe28658D
2865826000Hanger - exhaust pipe28658D
1327106007KNut [washer assy]1327AC
1327106007KNut [washer assy]1327AC
287512B100Gasket - exhaust pipe28751A
287512B100Gasket - exhaust pipe28751A
287512B100Gasket - exhaust pipe28751A
287513J050Gasket - exhaust pipe28751A
287513J050Gasket - exhaust pipe28751A
28760H1010Hanger28760C
28760H1010Hanger28760C
287013J300Pipe - tail w/ muffler, lh28700L
287013J350Pipe - tail w/ muffler, lh28700L
287013J300Pipe - tail w/ muffler, lh28700L
286003J500Muffler assy - center28700D
286503J520Muffler assy - center28700D
287612B000Hanger28665
287612B000Hanger28665
287612B000Hanger28665
287513J000Gasket21182P
287513J000Gasket21182P
287513J000Gasket21182P
1318310000Nut1317DB
1318310000Nut1317DB
1318310000Nut1317DB
2876836000Hanger - exhaust pipe28768
2876836000Hanger - exhaust pipe28768
2876836000Hanger - exhaust pipe28768
286103J520Muffler assy - front28611C
