Catalog
Brand Name Code

HYUNDAI

Hyundai HYW201905
Model
NameFamilyVehicle CategoryModel Year FromModel Year ToModel Option S
GETZ/CLICK 02: -OCT.2006 (2002-)GetzPassenger20022006BJ5DR65Engine Capacity: (R) 1600 CC;TRA

CHASSIS

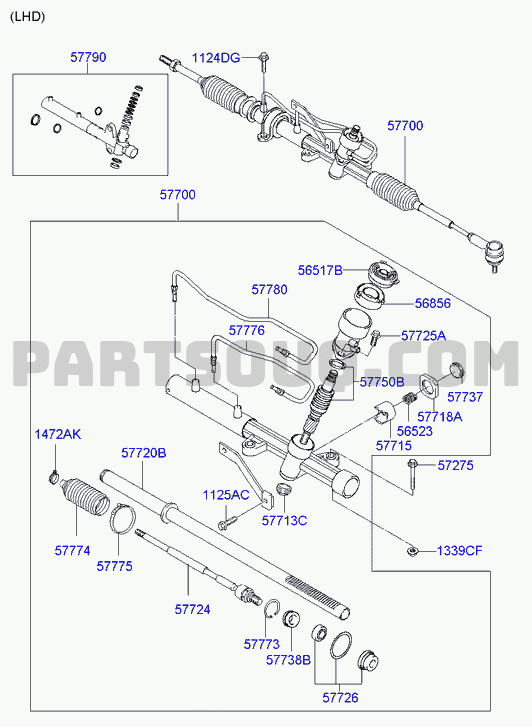

POWER STEERING GEARBOX

01/03
NumberNameCode
577901CA00Seal kit - power steering gear57790
577901CA10Seal kit - power steering gear57790
577901CA10Seal kit - power steering gear57790
1124112306KBolt1124DG
577001C080Gear & linkage assy - power steering57700
577001C000Gear & linkage assy - power steering57700
565171C000Packing - dust56517B
577521C080Tube assy - feed, rh57780
577521C000Tube assy - feed, rh57780
565161C000Cap - dust56856
577511C000Tube assy - feed, lh57776
577511C080Tube assy - feed, lh57776
5772524000Bolt57725A
577401C000Pinion & valve assy - power steering57750B
577401C000Pinion & valve assy - power steering57750B
577371C080Plug - yoke57737
577371C000Plug - yoke57737
577371C100Plug - yoke57737
5771824000Nut - lock57718A
565231C000Spring - steering gearbox56523
565231C000Spring - steering gearbox56523
565231C100Spring - steering gearbox56523
577292D020Clip1472AK
5771524000Yoke assy - rack support57715
577201C000Rack assy - power steering gearbox57720B
577201C000Rack assy - power steering gearbox57720B
572751C180Bolt - gearbox mounting57275
1125006166BBolt1125AC
1125006163Bolt1125AC
5771333100Plug - end57713C
1339512003Nut1339CF
5772817000Bellows - steering gearbox57774
5772728500Band - power steering gearbox57775
577551C000Joint assy - inner ball57724
5777333100Clip - circulation57773
5773222000Stopper - rack57738B
5773222000Stopper - rack57738B
5655325000Stopper - rack57738B
5772622000Bush assy - rack57726

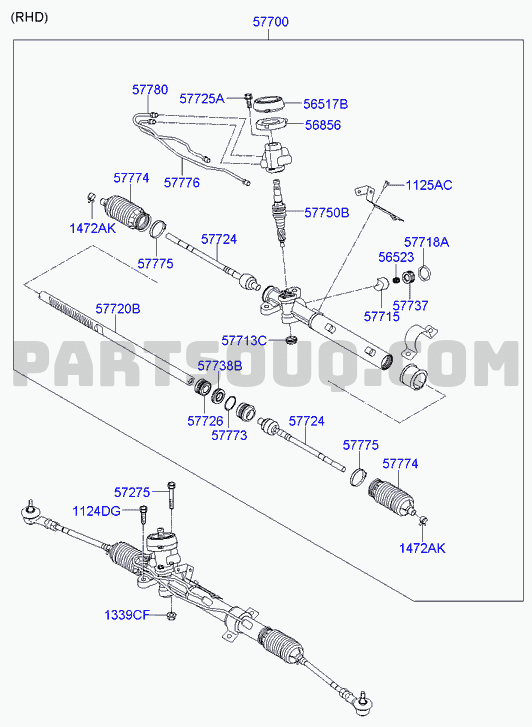

POWER STEERING GEARBOX

02/03
NumberNameCode
577001C000Gear & linkage assy - power steering57700
577001C080Gear & linkage assy - power steering57700
577521C080Tube assy - feed, rh57780
577521C000Tube assy - feed, rh57780
5772524000Bolt57725A
565171C000Packing - dust56517B
565161C000Cap - dust56856
577511C080Tube assy - feed, lh57776
577511C000Tube assy - feed, lh57776
1125006166BBolt1125AC
1125006163Bolt1125AC
577401C000Pinion & valve assy - power steering57750B
577401C000Pinion & valve assy - power steering57750B
577292D020Clip1472AK
5771824000Nut - lock57718A
565231C000Spring - steering gearbox56523
565231C000Spring - steering gearbox56523
565231C100Spring - steering gearbox56523
5772728500Band - power steering gearbox57775
577371C000Plug - yoke57737
577371C100Plug - yoke57737
577371C080Plug - yoke57737
577201C000Rack assy - power steering gearbox57720B
577201C000Rack assy - power steering gearbox57720B
5771524000Yoke assy - rack support57715
5771333100Plug - end57713C
5773222000Stopper - rack57738B
5655325000Stopper - rack57738B
5773222000Stopper - rack57738B
577551C000Joint assy - inner ball57724
5772622000Bush assy - rack57726
5777333100Clip - circulation57773
5772817000Bellows - steering gearbox57774
572751C180Bolt - gearbox mounting57275
1124112306KBolt1124DG
1339512003Nut1339CF
