Catalog
Brand Name Code

HYUNDAI

Hyundai HYW201905
Model
NameFamilyVehicle CategoryModel Year FromModel Year ToModel Option S
AZERA 05: NOV.2006- (2005-)AzeraPassenger20062010ELS4J162DEngine Type: (6) DOHC - MPI;Body

ENGINE

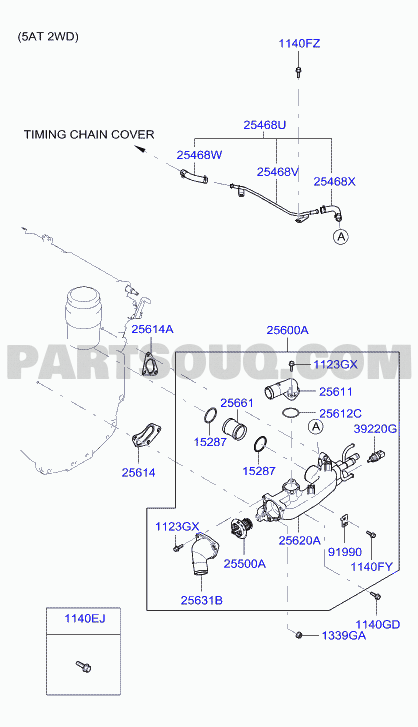

COOLANT PIPE & HOSE

01/02
NumberNameCode
1140306106KBolt1140FZ
1140306106KBolt1140FZ
254683C220Hose assy - water ventilator25468U
254683C202Hose - ventilator, "a"25468W
254683C204Pipe - ventilator air "a"25468V
254683C201Pipe - ventilator air "a"25468V
254683C203Hose - ventilator, "b"25468X
256143C200Gasket - thermostat case25614A
256143C200Gasket - thermostat case25614A
256003C111Control assy - coolant temperature25600A
256113C101Fitting - water outlet25611
256613C100Tube - center25661
256123C101Gasket - water outlet fitting25612C
3922038030Sensor & gauge unit - water temperature39220G
2546235504O-ring15287
256143C100Gasket - thermostat case25614
256143C100Gasket - thermostat case25614
1123308256KBolt1123GX
256203C111Housing assy - thermostat25620A
256203C110Housing assy - thermostat25620A
919803K230Bracket - water temperature switch91990
255003C100Thermostat assy25500A
1140306146KBolt1140FY
256313C100Fitting - coolant inlet25631B
1140306126KBolt1140EJ
1140308327SBolt1140GD
1140308287SBolt1140GD
1140308287SBolt1140GD
1339608007KNut1339GA
1339608007KNut1339GA

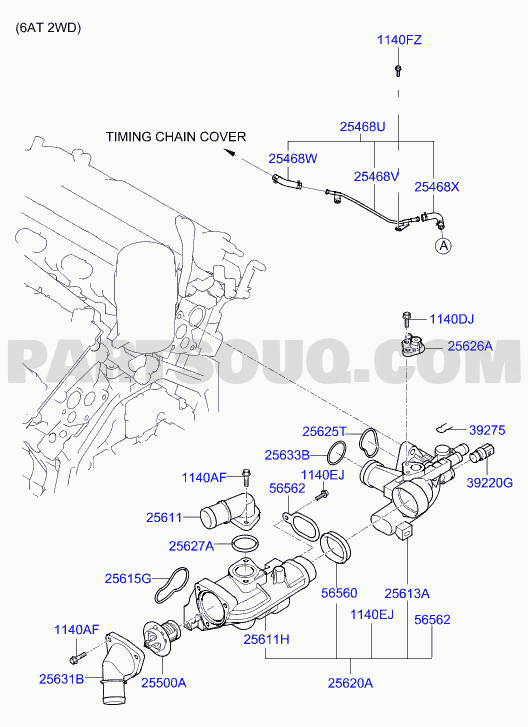

COOLANT PIPE & HOSE

02/02
NumberNameCode
1140306106KBolt1140FZ
1140306106KBolt1140FZ
254683C220Hose assy - water ventilator25468U
254683C202Hose - ventilator, "a"25468W
254683C204Pipe - ventilator air "a"25468V
254683C201Pipe - ventilator air "a"25468V
254683C203Hose - ventilator, "b"25468X
1140306126KBolt1140EJ
3922038030Sensor & gauge unit - water temperature39220G
256113C101Fitting - water outlet25611
256313C100Fitting - coolant inlet25631B
255003C100Thermostat assy25500A
256203C110Housing assy - thermostat25620A
256203C111Housing assy - thermostat25620A
