Catalog
| Brand | Name | Code | |
|---|---|---|---|
 |
HYUNDAI |
Hyundai | HYW201905 |
Model
| Name | Family | Vehicle Category | Model Year From | Model Year To | Model | Option S | |
|---|---|---|---|---|---|---|---|
| H-1 98 (1996-2000) | H-1 | R/V | 1997 | 2001 | GABKZ85 | Grade: (K) HIGH GRAND SALOON;Eng |
TRANSMISSION

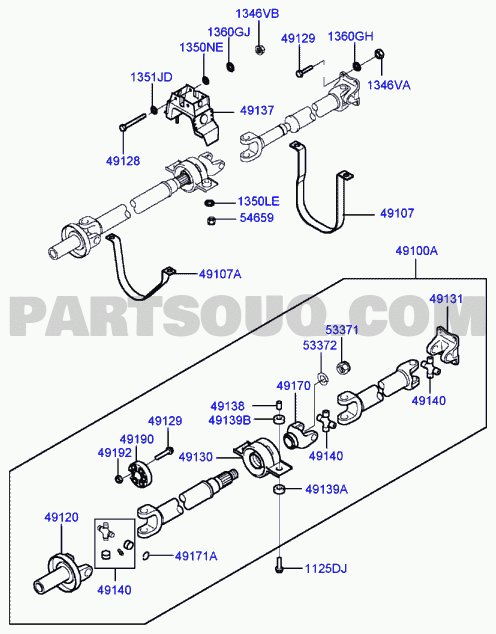

PROPELLER SHAFT
2WD,SHORT BODY
| Number | Name | Code | Note | Filter_note | Qty Required | Prod. Date |
|---|---|---|---|---|---|---|
| 1346812001 | Nut | 1346VB | Engine Capacity: (Z) 4D56 TCI; Special Car: (G) GENERAL; Body Type: (B) WGN SHORT 7 | 2 | ... - 01.07.2001 | |
| 1360212001 | Washer - spring | 1360GJ | Engine Capacity: (Z) 4D56 TCI; Special Car: (G) GENERAL; Body Type: (B) WGN SHORT 7 | 2 | ... - 01.07.2001 | |
| 1360210001 | Washer - spring | 1360GH | Engine Capacity: (Z) 4D56 TCI; Special Car: (G) GENERAL; Body Type: (B) WGN SHORT 7 | 4 | ... - 01.07.2001 | |
| 4912943000 | Bolt | 49129 | Engine Capacity: (Z) 4D56 TCI; Special Car: (G) GENERAL; Body Type: (B) WGN SHORT 7 | 4 | ... - 01.07.2001 | |
| 491294A000 | Bolt | 49129 | Engine Capacity: (Z) 4D56 TCI; Special Car: (G) GENERAL; Body Type: (B) WGN SHORT 7 | 6 | ... - 01.07.2001 | |
| 1350412301 | Washer - [plain] | 1350NE | Engine Capacity: (Z) 4D56 TCI; Special Car: (G) GENERAL; Body Type: (B) WGN SHORT 7 | 2 | ... - 01.07.2001 | |
| 1351012001 | Washer - [plain] | 1351JD | Engine Capacity: (Z) 4D56 TCI; Special Car: (G) GENERAL; Body Type: (B) WGN SHORT 7 | 8 | ... - 01.07.2001 | |
| 1346810001 | Nut | 1346VA | Engine Capacity: (Z) 4D56 TCI; Special Car: (G) GENERAL; Body Type: (B) WGN SHORT 7 | 4 | ... - 01.07.2001 | |
| 491374A150 | Bracket - center bearing mounting | 49137 | Engine Capacity: (Z) 4D56 TCI; Special Car: (G) GENERAL; Body Type: (B) WGN SHORT 7 | 1 | ... - 01.07.2001 | |
| 491284A100 | Bolt - center bearing mounting | 49128 | Engine Capacity: (Z) 4D56 TCI; Special Car: (G) GENERAL; Body Type: (B) WGN SHORT 7 | 2 | ... - 01.07.2001 | |
| 491074A100 | Band - steel | 49107 | Engine Capacity: (Z) 4D56 TCI; Special Car: (G) GENERAL; Body Type: (B) WGN SHORT 7 | 1 | 07.06.2000 - 01.07.2001 | |
| 491004A500 | Shaft assy - rear propeller | 49100A | Engine Capacity: (Z) 4D56 TCI; Special Car: (G) GENERAL; Body Type: (B) WGN SHORT 7 | 1 | ... - 15.10.1998 | |
| 491004A515 | Shaft assy - propeller | 49100A | Engine Capacity: (Z) 4D56 TCI; Special Car: (G) GENERAL; Body Type: (B) WGN SHORT 7 | 1 | 08.05.2000 - 01.07.2001 | |
| 491004A510 | Shaft assy - rear propeller | 49100A | Engine Capacity: (Z) 4D56 TCI; Special Car: (G) GENERAL; Body Type: (B) WGN SHORT 7 | 1 | 15.10.1998 - 08.05.2000 | |
| 491004A250 | Shaft assy - rear propeller | 49100A | Engine Capacity: (Z) 4D56 TCI; Special Car: (G) GENERAL; Body Type: (B) WGN SHORT 7; opt: ATM | 1 | ... - 25.06.2001 | |
| 491024A250 | Shaft assy - rear propeller | 49100A | Engine Capacity: (Z) 4D56 TCI; Special Car: (G) GENERAL; Body Type: (B) WGN SHORT 7; opt: ATM | 1 | 25.06.2001 - 01.07.2001 | |
| 491074A000 | Band - steel | 49107A | Engine Capacity: (Z) 4D56 TCI; Special Car: (G) GENERAL; Body Type: (B) WGN SHORT 7 | 1 | 07.06.2000 - 01.07.2001 | |
| 4913143000 | Yoke - propeller shaft flange | 49131 | Engine Capacity: (Z) 4D56 TCI; Special Car: (G) GENERAL; Body Type: (B) WGN SHORT 7 | 1 | ... - 01.07.2001 | |
| 5337143000 | Nut - self-locking | 53371 | Engine Capacity: (Z) 4D56 TCI; Special Car: (G) GENERAL; Body Type: (B) WGN SHORT 7 | 1 | ... - 01.07.2001 | |
| 5337243000 | Washer - axle | 53372 | Engine Capacity: (Z) 4D56 TCI; Special Car: (G) GENERAL; Body Type: (B) WGN SHORT 7 | 1 | ... - 01.07.2001 | |
| 491704A000 | Yoke assy - center | 49170 | Engine Capacity: (Z) 4D56 TCI; Special Car: (G) GENERAL; Body Type: (B) WGN SHORT 7 | 1 | ... - 01.07.2001 | |
| 491404A000 | Joint assy - universal | 49140 | Engine Capacity: (Z) 4D56 TCI; Special Car: (G) GENERAL; Body Type: (B) WGN SHORT 7 | 2 | ... - 01.07.2001 | |
| 491384A000 | Spacer - center bearing | 49138 | Engine Capacity: (Z) 4D56 TCI; Special Car: (G) GENERAL; Body Type: (B) WGN SHORT 7 | 2 | ... - 01.07.2001 | |
| 491394A010 | Insulator - center bearing mounting | 49139B | Engine Capacity: (Z) 4D56 TCI; Special Car: (G) GENERAL; Body Type: (B) WGN SHORT 7 | 2 | ... - 01.07.2001 | |
| 491904A000 | Rubber | 49190 | Engine Capacity: (Z) 4D56 TCI; Special Car: (G) GENERAL; Body Type: (B) WGN SHORT 7 | 1 | ... - 01.07.2001 | |
| 4919226000 | Nut - self-locking | 49192 | Engine Capacity: (Z) 4D56 TCI; Special Car: (G) GENERAL; Body Type: (B) WGN SHORT 7 | 6 | ... - 01.07.2001 | |
| 491304A000 | Bearing - center | 49130 | Engine Capacity: (Z) 4D56 TCI; Special Car: (G) GENERAL; Body Type: (B) WGN SHORT 7 | 1 | ... - 01.07.2001 | |
| 491394A000 | Insulator - center bearing mounting | 49139A | Engine Capacity: (Z) 4D56 TCI; Special Car: (G) GENERAL; Body Type: (B) WGN SHORT 7 | 2 | ... - 01.07.2001 | |
| 491204A700 | Yoke assy - slip | 49120 | Engine Capacity: (Z) 4D56 TCI; Special Car: (G) GENERAL; Body Type: (B) WGN SHORT 7; opt: ATM | 1 | ... - 01.07.2001 | |
| 4917111410 | Ring - snap universal journal | 49171A | T=1.47~1.49 | Engine Capacity: (Z) 4D56 TCI; Special Car: (G) GENERAL; Body Type: (B) WGN SHORT 7 | 1 | ... - 01.07.2001 |
| 1125110401 | Bolt | 1125DJ | W/WASHER | Engine Capacity: (Z) 4D56 TCI; Special Car: (G) GENERAL; Body Type: (B) WGN SHORT 7 | 2 | ... - 01.07.2001 |
