Catalog
Brand Name Code

HYUNDAI

Hyundai HYW201905
Model
NameFamilyVehicle CategoryModel Year FromModel Year ToModel Option S
ACCENT/VERNA 00 (1999-)AccentPassenger19992006BAFDR65Body Type: (F) 4 DR SEDAN;Engine

TRIM

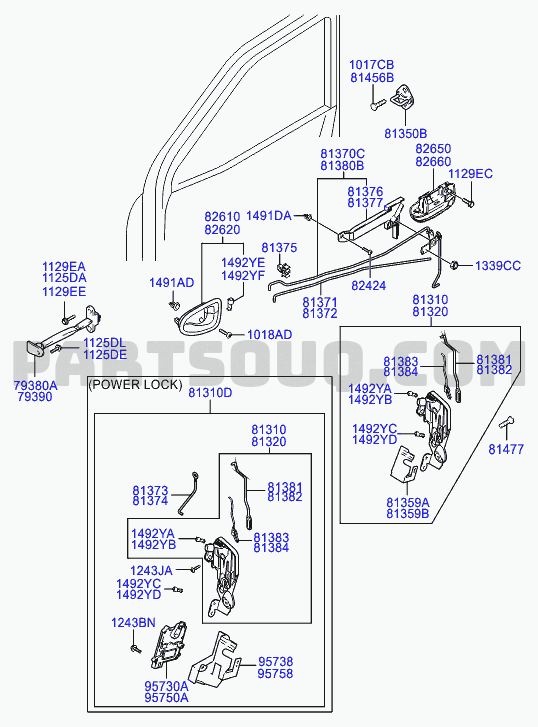

FRONT DOOR LOCKING

NumberNameCode
1017808223Screw - machine1017CB
1017808223Screw - machine1017CB
1017808223Screw - machine1017CB
1017808223Screw - machine1017CB
1017808221Screw - machine1017CB
1017808221Screw - machine1017CB
8145617000Screw - machine81456B
8135025000Striker assy - door81350B
8135025000Striker assy - door81350B
8135025001Striker assy - door81350B
8135025001Striker assy - door81350B
8135025001Striker assy - door81350B
8135025001Striker assy - door81350B
8265025000CAHandle assy - front door outside, lh82650
8265025000CAHandle assy - front door outside, lh82650
8265025000CAHandle assy - front door outside, lh82650
8265025000CAHandle assy - front door outside, lh82650
8265025000CAHandle assy - front door outside, lh82650
8137025000Rod assy - front door safety lock, lh81370C
8137025000Rod assy - front door safety lock, lh81370C
8137025000Rod assy - front door safety lock, lh81370C
8137025000Rod assy - front door safety lock, lh81370C
8266025000CAHandle assy - front door outside, rh82660
8266025000CAHandle assy - front door outside, rh82660
8266025000CAHandle assy - front door outside, rh82660
8266025000CAHandle assy - front door outside, rh82660
8266025000CAHandle assy - front door outside, rh82660
8138025000Rod assy - front door safety lock, rh81380B
8138025000Rod assy - front door safety lock, rh81380B
8138025000Rod assy - front door safety lock, rh81380B
8138025000Rod assy - front door safety lock, rh81380B
1129306121Bolt - washer assy1129EC
8137625000Cover - front door safety lock rod, lh81376
8137625000Cover - front door safety lock rod, lh81376
8137625000Cover - front door safety lock rod, lh81376
8137625000Cover - front door safety lock rod, lh81376
8137725000Cover - front door safety lock rod, rh81377
8137725000Cover - front door safety lock rod, rh81377
8137725000Cover - front door safety lock rod, rh81377
8137725000Cover - front door safety lock rod, rh81377
1491106000Grommet [ screw ]1491DA
8261025000YNHandle assy - door inside, lh82610
8261025000Handle assy - door inside, lh82610
8261025000YNHandle assy - door inside, lh82610
8261025000CAHandle assy - door inside, lh82610
8261025000YNHandle assy - door inside, lh82610
8261025000YNHandle assy - door inside, lh82610
8261025000Handle assy - door inside, lh82610
8262025000CAHandle assy - door inside, rh82620
8262025000Handle assy - door inside, rh82620
8262025000Handle assy - door inside, rh82620
8262025000YNHandle assy - door inside, rh82620
8262025000YNHandle assy - door inside, rh82620
8262025000YNHandle assy - door inside, rh82620
8262025000YNHandle assy - door inside, rh82620
8137538000Clip - door rod holding81375
1492942015Clip - rod1492YE
1339506001Nut - flange1339CC
1129306161Bolt1129EA
1492942025Clip - rod1492YF
1125106163Bolt - washer assy1125DA
1125106163Bolt - washer assy1125DA
1125106163Bolt - washer assy1125DA
1125106163Bolt - washer assy1125DA
1125106166BBolt - washer assy1125DA
1491005000Retainer - tapping screw1491AD
8242434010Screw - tapping82424
8137125000Rod - front door inside handle, lh81371
8137125000Rod - front door inside handle, lh81371
8137125000Rod - front door inside handle, lh81371
8137125000Rod - front door inside handle, lh81371
8137225000Rod - front door inside handle, rh81372
8137225000Rod - front door inside handle, rh81372
8137225000Rod - front door inside handle, rh81372
8137225000Rod - front door inside handle, rh81372
1018805163Screw - tapping1018AD
1125108256BBolt [w/ washer]1125DL
1125108253Bolt - washer assy1125DE
8138225000Rod - front door outside handle, rh81382
8138225000Rod - front door outside handle, rh81382
8138225000Rod - front door outside handle, rh81382
8138225000Rod - front door outside handle, rh81382
7938025001Checker assy - front door, lh79380A
7938025001Checker assy - front door, lh79380A
7938025001Checker assy - front door, lh79380A
7938025001Checker assy - front door, lh79380A
8131025210Latch & actuator assy - front door o/r, lh81310D
7939025001Checker assy - front door, rh79390
7939025001Checker assy - front door, rh79390
7939025001Checker assy - front door, rh79390
7939025001Checker assy - front door, rh79390
1492918025Clip - rod1492YB
1492922015Clip - rod1492YC
8131025030Latch assy - front door, lh81310
8131025030Latch assy - front door, lh81310
8131025000Latch assy - front door, lh81310
8131025030Latch assy - front door, lh81310
1492922025Clip - rod1492YD
8132025000Latch assy - front door, rh81320
8132025030Latch assy - front door, rh81320
8132025030Latch assy - front door, rh81320
8132025030Latch assy - front door, rh81320
814774A000Screw - machine81477
814774A000Screw - machine81477
814774A000Screw - machine81477
8147737000Screw - machine81477
814774A000Screw - machine81477
8147737000Screw - machine81477
8138125000Rod - front door outside handle, lh81381
8138125000Rod - front door outside handle, lh81381
8138125000Rod - front door outside handle, lh81381
8138125000Rod - front door outside handle, lh81381
8137325000Rod - front door actuator, lh81373
8137325000Rod - front door actuator, lh81373
8137325000Rod - front door actuator, lh81373
8137425000Rod assy - front door actuator, rh81374
8137425000Rod assy - front door actuator, rh81374
8137425000Rod assy - front door actuator, rh81374
8135825000Cover - front door latch, lh81359A
8135925000Cover - front door latch, rh81359B
1492918015Clip - rod1492YA
8138325000Rod - front door lock, lh81383
8138325000Rod - front door lock, lh81383
8138325000Rod - front door lock, lh81383
8138325000Rod - front door lock, lh81383
8138425000Rod - front door lock, rh81384
8138425000Rod - front door lock, rh81384
8138425000Rod - front door lock, rh81384
8138425000Rod - front door lock, rh81384
1243304103Screw - tapping1243JA
1243104161Screw - tapping1243BN
9573825000Cover - front door actuator, lh95738
9573825000Cover - front door actuator, lh95738
9573825000Cover - front door actuator, lh95738
9574825000Cover - front door actuator, rh95758
9574825000Cover - front door actuator, rh95758
9574825000Cover - front door actuator, rh95758
9573525010Actuator assy - front door, lh95730A
9573525010Actuator assy - front door, lh95730A
9573525000Actuator assy - front door, lh95730A
9573525010Actuator assy - front door, lh95730A
9573625010Actuator assy - front door locking, rh95750A
9573625000Actuator assy - front door locking, rh95750A
9573625000Actuator assy - front door locking, rh95750A
9573625000Actuator assy - front door locking, rh95750A

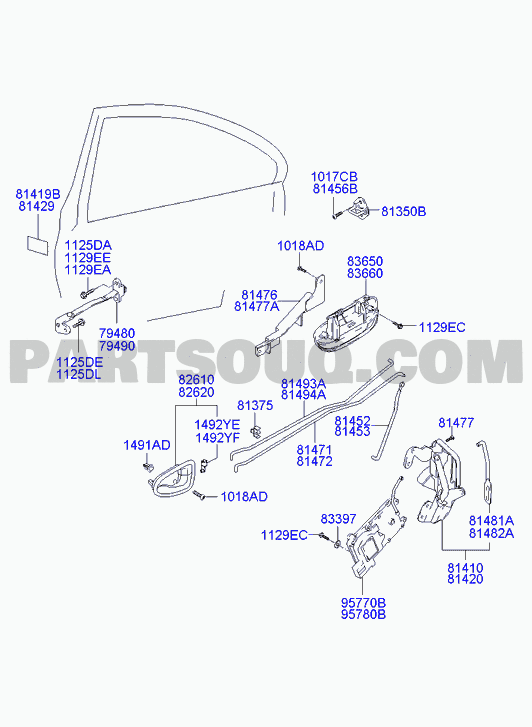

REAR DOOR LOCKING

NumberNameCode
1017808223Screw - machine1017CB
1017808223Screw - machine1017CB
1017808223Screw - machine1017CB
1017808221Screw - machine1017CB
8145617000Screw - machine81456B
8141934000Label - rear door latch, lh81419B
8141934000DLabel - rear door latch, lh81419B
8141934000DLabel - rear door latch, lh81419B
8141934000Label - rear door latch, lh81419B
8141934000DLabel - rear door latch, lh81419B
8142934000DLabel - rear door latch, rh81429
8142934000DLabel - rear door latch, rh81429
8142934000DLabel - rear door latch, rh81429
8142934000Label - rear door latch, rh81429
8142934000Label - rear door latch, rh81429
8135025001Striker assy - door81350B
8135025001Striker assy - door81350B
8135025000Striker assy - door81350B
8135025001Striker assy - door81350B
1125106163Bolt - washer assy1125DA
1125106166BBolt - washer assy1125DA
1125106166BBolt - washer assy1125DA
1125106163Bolt - washer assy1125DA
1125106163Bolt - washer assy1125DA
8365025000CAHandle assy - rear door outside, lh83650
8365025000CAHandle assy - rear door outside, lh83650
8365025000CAHandle assy - rear door outside, lh83650
8365025000CAHandle assy - rear door outside, lh83650
8365025000CAHandle assy - rear door outside, lh83650
1129306161Bolt1129EA
8366025000CAHandle assy - rear door outside, rh83660
8366025000CAHandle assy - rear door outside, rh83660
8366025000CAHandle assy - rear door outside, rh83660
8366025000CAHandle assy - rear door outside, rh83660
8366025000CAHandle assy - rear door outside, rh83660
8147625000Cover - rear door safety lock rod, lh81476
8147725000Cover - rear door safety lock rod, rh81477A
7948025000Checker assy - rear door, lh79480
7949025000Checker assy - rear door, rh79490
1125108256BBolt [w/ washer]1125DL
8261025000CAHandle assy - door inside, lh82610
8261025000YNHandle assy - door inside, lh82610
8261025000YNHandle assy - door inside, lh82610
8261025000Handle assy - door inside, lh82610
8261025000Handle assy - door inside, lh82610
8261025000YNHandle assy - door inside, lh82610
8149125000Rod - rear door safety lock, lh81493A
8262025000CAHandle assy - door inside, rh82620
8262025000YNHandle assy - door inside, rh82620
8262025000Handle assy - door inside, rh82620
8262025000Handle assy - door inside, rh82620
8262025000YNHandle assy - door inside, rh82620
8262025000YNHandle assy - door inside, rh82620
8149225000Rod - rear door safety lock, rh81494A
8137538000Clip - door rod holding81375
8145225000Rod - rear door actuator, lh81452
814774A000Screw - machine81477
814774A000Screw - machine81477
814774A000Screw - machine81477
8147737000Screw - machine81477
1492942015Clip - rod1492YE
8145325000Rod - rear door actuator, rh81453
1492942025Clip - rod1492YF
1491005000Retainer - tapping screw1491AD
8147125000Rod - rear door inside handle, lh81471
8147225000Rod - rear door inside handle, rh81472
1018805163Screw - tapping1018AD
8339737000Tape - blanking hole83397
8148125000Rod - rear door outside handle, lh81481A
8148225000Rod - rear door outside handle, rh81482A
1129306121Bolt - washer assy1129EC
8141025000Latch assy - rear door, lh81410
8141025030Latch assy - rear door, lh81410
8141025030Latch assy - rear door, lh81410
8142025030Latch assy - rear door, rh81420
8142025030Latch assy - rear door, rh81420
8142025000Latch assy - rear door, rh81420
9575525000Actuator - rear door locking, lh95770B
9575525000Actuator - rear door locking, lh95770B
9575625000Actuator - rear door locking, rh95780B
9575625000Actuator - rear door locking, rh95780B

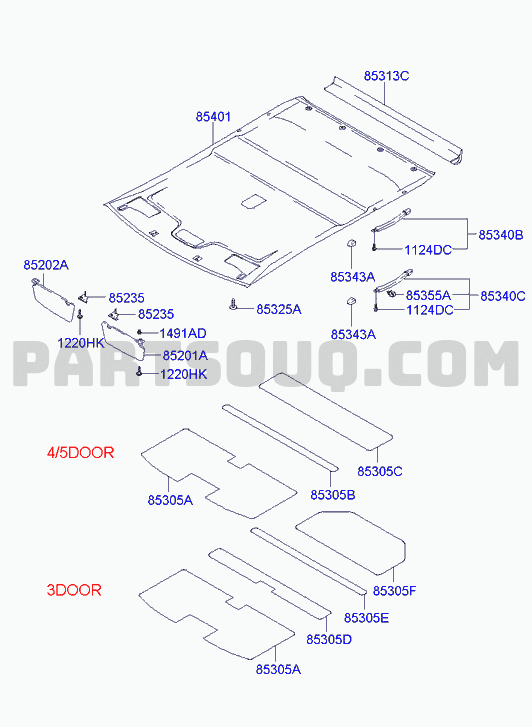

SUNVISOR & HEAD LINING

NumberNameCode
8531324201YLStrip - headlining, rear85313C
8530125000YLHeadlining assy85401
8530125971YLHeadlining assy85401
8530125001YLHeadlining assy85401
8530125000YLHeadlining assy85401
8530125970YLHeadlining assy85401
8530125070YLHeadlining assy85401
8530125071YLHeadlining assy85401
853402D500YLHandle assy - roof assist85340B
853402D500YLHandle assy - roof assist85340B
8534038000YLHandle assy - roof assist85340B
8534038000YLHandle assy - roof assist85340B
1124106281Bolt1124DC
8522025110YLSunvisor assy, rh85202A
8522025210YLSunvisor assy, rh85202A
8522025850YLSunvisor assy, rh85202A
8522025850YLSunvisor assy, rh85202A
8522025100YLSunvisor assy, rh85202A
8520225400YLSunvisor assy, rh85202A
8522025100YLSunvisor assy, rh85202A
8520225400YLSunvisor assy, rh85202A
8520225400YLSunvisor assy, rh85202A
8520225400YLSunvisor assy, rh85202A
8534325000YLCover - roof assist handle85343A
8534038100YLHandle assy - roof assist85340C
8534638000YLHook - coat85355A
853402D600YLHandle assy - roof assist85340C
8534038100YLHandle assy - roof assist85340C
853402D600YLHandle assy - roof assist85340C
8532521000YLPlug - trim mounting85325A
8523526000YLRetainer - sunvisor85235
8523526000YLRetainer - sunvisor85235
8523526000YLRetainer - sunvisor85235
8523525100YLRetainer - sunvisor85235
8523525100YLRetainer - sunvisor85235
8523525100YLRetainer - sunvisor85235
8523525100YLRetainer - sunvisor85235
8523525000YLRetainer - sunvisor85235
8523526000YLRetainer - sunvisor85235
8523526000YLRetainer - sunvisor85235
8523525000YLRetainer - sunvisor85235
8523526000YLRetainer - sunvisor85235
1491005000Retainer - tapping screw1491AD
1243405203Screw - machine1220HK
8520125450YLSunvisor assy, lh85201A
8521025100YLSunvisor assy, lh85201A
8520125450YLSunvisor assy, lh85201A
8520125400YLSunvisor assy, lh85201A
8520125400YLSunvisor assy, lh85201A
8521025110YLSunvisor assy, lh85201A
8521025250YLSunvisor assy, lh85201A
8521025110YLSunvisor assy, lh85201A
8521025830YLSunvisor assy, lh85201A
8521025850YLSunvisor assy, lh85201A
8530525200Pad - roof no. 385305C
8530525100Pad - roof no. 285305B
8530525500Pad - roof no. 685305F
8530525300Pad - roof no. 485305D
8530525000Pad - roof no. 185305A

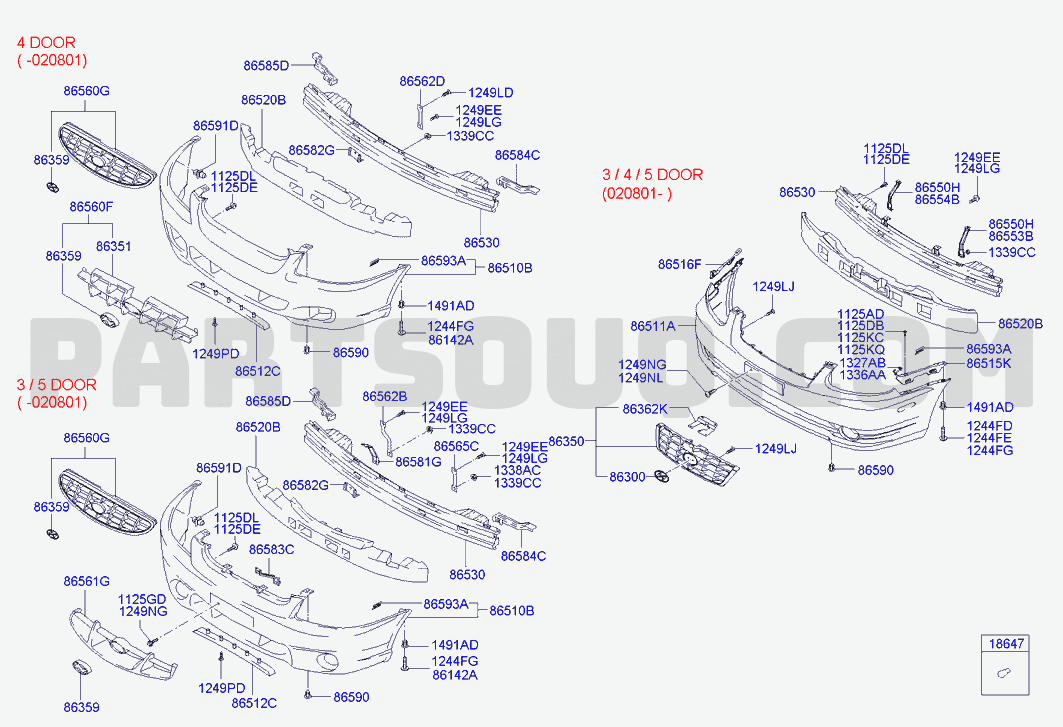

FRONT BUMPER

NumberNameCode
8658525000Bracket - front bumper corner support, rh86585D
8658525000Bracket - front bumper corner support, rh86585D
865601A000Cover assy - front bumper upper86560G
8652025600Absorber - front bumper energy86520B
8652025600Absorber - front bumper energy86520B
8652025000Absorber - front bumper energy86520B
8652025000Absorber - front bumper energy86520B
865201A000Absorber - front bumper energy86520B
8658225000Bracket - front bumper lower support86582G
8658225000Bracket - front bumper lower support86582G
8658425000Bracket - front bumper corner support, lh86584C
8658425000Bracket - front bumper corner support, lh86584C
1125108251Bolt - washer assy1125DE
1125108256KBolt [w/ washer]1125DL
1125108256BBolt [w/ washer]1125DL
1125108256BBolt [w/ washer]1125DL
1125108256KBolt [w/ washer]1125DL
8655125650Support assy - front bumper upper86550H
8655425600Bracket assy - front bumper upper support, rh86554B
8655325600Bracket assy - front bumper upper support, lh86553B
8653025600Rail assy - front bumper86530
8653025000Rail assy - front bumper86530
865301A000Rail assy - front bumper86530
8653025600Rail assy - front bumper86530
8653025000Rail assy - front bumper86530
1339506003Nut - flange1339CC
1339506007KNut - flange1339CC
1339506007KNut - flange1339CC
1339506003Nut - flange1339CC
1339506003Nut - flange1339CC
1339506003Nut - flange1339CC
8651625600Bracket assy - front bumper side, rh86516F
8651025000Cover assy - front bumper86510B
8651025000Cover assy - front bumper86510B
8651025040Cover assy - front bumper86510B
1249304163Screw - tapping1249LJ
1249304167BScrew - tapping1249LJ
1125406206KBolt1125AD
8651125610Cover - front bumper86511A
8651125620Cover - front bumper86511A
1125106203Bolt1125DB
1125406203Bolt [w/ washer]1125KC
8659324000Clip86593A
1125406207BBolt - washer assy1125KQ
1327006003Nut [w/ washer ]1327AB
8651525600Bracket assy - front bumper side, lh86515K
1249305203Screw - tapping1249NG
8651225000Grille - front bumper86512C
8651225000Grille - front bumper86512C
1336305151Nut (spring)1336AA
1249305207BScrew - tapping1249NL
826991G000Retainer - tapping screw1491AD
1491005000Retainer - tapping screw1491AD
1491005000Retainer - tapping screw1491AD
1491005000Retainer - tapping screw1491AD
1249304143Screw - tapping1249EE
826991G000Retainer - tapping screw1491AD
1491005000Retainer - tapping screw1491AD
8636225620Cover - radiator grille, upper86362K
1249304147BScrew - tapping1249LG
1244205206BScrew - tapping1244FD
1244105207BScrew - tapping1244FE
1244105207BScrew - tapping1244FE
1244205207BScrew - tapping1244FE
1244205207BScrew - tapping1244FE
8636025620Grille assy - radiator86350
8658125000Bracket - front bumper upper support86581G
8658125000Bracket - front bumper upper support86581G
8659028000Retainer assy - bumper cover mounting86590
1338506007KNut - flange1338AC
1338506003Nut - flange1338AC
1338506007BNut - flange1338AC
1338506007KNut - flange1338AC
1338506007BNut - flange1338AC
1338506003Nut - flange1338AC
8630025501Emblem - tailgate logo86300
8630025501Emblem - tailgate logo86300
8630025500Emblem - tailgate logo86300
8630025500Emblem - tailgate logo86300
1864727009Bulb - halogen18647

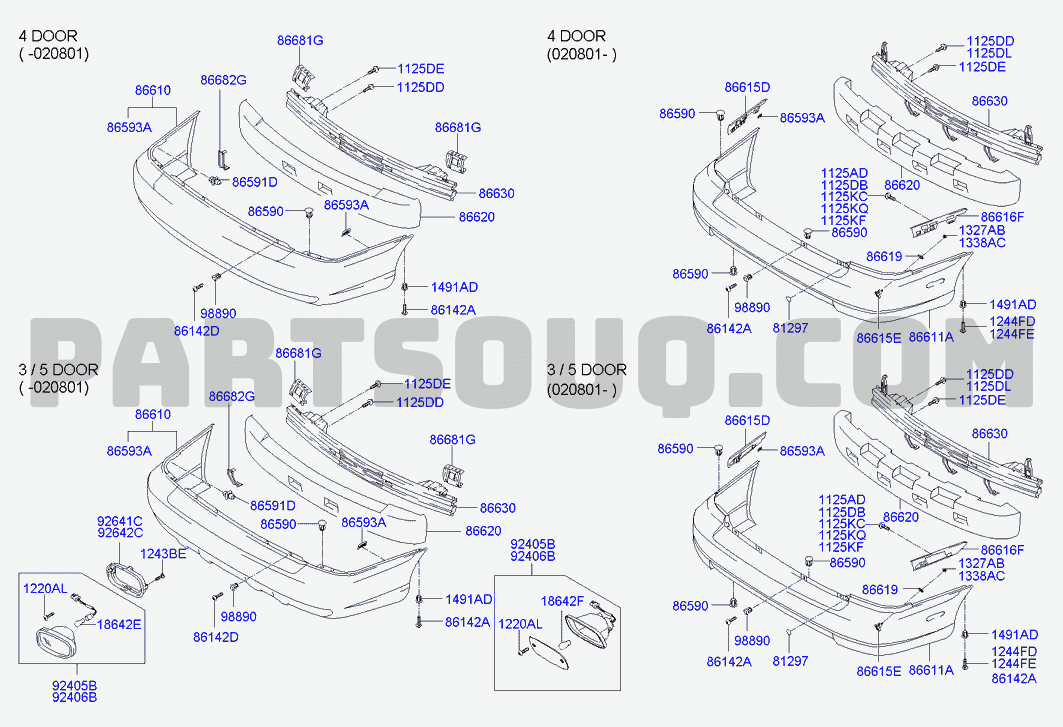

REAR BUMPER

NumberNameCode
1125108251Bolt - washer assy1125DE
8661525600Bracket assy - rear bumper side mounting86615D
8661025000Cover assy - rear bumper86610
8659324000Clip86593A
1125106203Bolt1125DB
1125406207BBolt - washer assy1125KQ
1338506003Nut - flange1338AC
1338506007BNut - flange1338AC
1338506007KNut - flange1338AC
8661935000Pad - sealing86619
826991G000Retainer - tapping screw1491AD
1491005000Retainer - tapping screw1491AD
9751922000Retainer98890
8614222000Screw - tapping86142A
1244205206BScrew - tapping1244FD
8661125610Cover - rear bumper86611A
8661125620Cover - rear bumper86611A
1125108201Bolt1125DD
1125108206BBolt [w/ washer]1125DL
1125108256BBolt [w/ washer]1125DL
1125108206KBolt [w/ washer]1125DL
1125108256KBolt [w/ washer]1125DL
8668225000Bracket - rear bumper lower support86682G
8663025600Rail assy - rear bumper86630
8663025000Rail assy - rear bumper86630
8668125000Bracket - rear bumper upper support86681G
1125406206KBolt1125AD
8659028000Retainer assy - bumper cover mounting86590
1125406203Bolt [w/ washer]1125KC
8662025600Absorber - rear bumper energy86620
8662025000Absorber - rear bumper energy86620
9240525500Lamp assy - rear fog, lh92405B
1125408256KBolt1125KF
8661625600Bracket - rear bumper side mounting, rh86616F
9240625500Lamp assy - rear fog, rh92406B
1327006001Nut [w/ washer ]1327AB
1220104189BScrew - machine1220AL
1864221008Bulb18642F
1864221008NBulb18642F
8129729500Tape - anti-abrasion81297
1244205207BScrew - tapping1244FE
1244105207BScrew - tapping1244FE
8661525610Bracket assy - rear bumper side upper86615E
