Catalog
Brand Name Code

HYUNDAI

Hyundai HYW201905
Model
NameFamilyVehicle CategoryModel Year FromModel Year ToModel Option S
ACCENT 00 (2000-2005)AccentPassenger19992006BAFDR65Body Type: (F) 4 DR SEDAN;Engine

TRIM

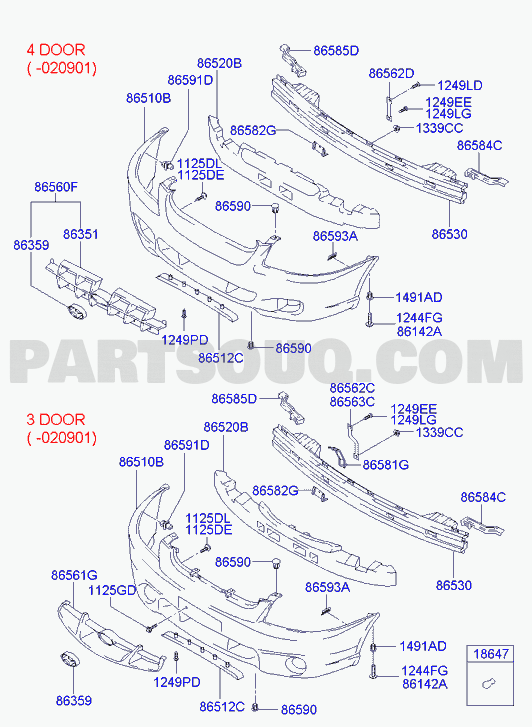

FRONT BUMPER

01/02
NumberNameCode
8658525000Bracket - front bumper corner support, rh86585D
8656225000Bar - front upper support86562D
8659125000Retainer assy - bumper side bracket86591D
1249304123Screw - tapping1249LD
8651025000Cover assy - front bumper86510B
8651025010Cover assy - front bumper86510B
1125108256BBolt [w/ washer]1125DL
8656025000Grille assy - radiator86560F
8659028000Retainer assy - bumper cover mounting86590
8659028000Retainer assy - bumper cover mounting86590
8636125800Grille - radiator86351
8656125020Grille - radiator86351
8653025650Rail assy - front bumper86530
8636125800Grille - radiator86351
8653025050Rail assy - front bumper86530
8656125020Grille - radiator86351
8659324000Clip86593A
8630038000Emblem - symbol mark86359
1244205206BScrew - tapping1244FG
1244205203Screw - tapping1244FG
8614222000Screw - tapping86142A
1249306203Screw - tapping1249PD
1249304143Screw - tapping1249EE
1249304143Screw - tapping1249EE
1249304147BScrew - tapping1249LG
8652025650Absorber - front bumper energy86520B
8652025050Absorber - front bumper energy86520B
1339506003Nut - flange1339CC
1339506003Nut - flange1339CC
8658125000Bracket - front bumper upper support86581G
8658225000Bracket - front bumper lower support86582G
8658425000Bracket - front bumper corner support, lh86584C
8658425000Bracket - front bumper corner support, lh86584C
1125108251Bolt - washer assy1125DE
1125108256KBolt [w/ washer]1125DE
1125306253Bolt1125GD
1491005000Retainer - tapping screw1491AD
1491005000Retainer - tapping screw1491AD
1864727009Bulb - halogen18647
8651225000Grille - front bumper86512C
8651225000Grille - front bumper86512C

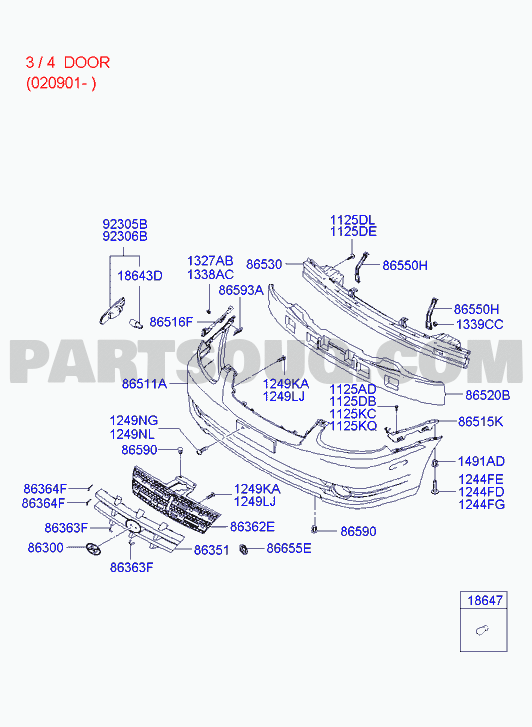

FRONT BUMPER

02/02
NumberNameCode
1125108256BBolt [w/ washer]1125DL
9230125600Lamp assy - reflex reflector & side marker front, lh92305B
1125108256KBolt [w/ washer]1125DE
1125108251Bolt - washer assy1125DE
9230225600Lamp assy - reflex reflector & side marker front, rh92306B
1327006003Nut [w/ washer ]1327AB
8653025650Rail assy - front bumper86530
8653025050Rail assy - front bumper86530
1338506007BNut - flange1338AC
1338506007BNut - flange1338AC
1338506003Nut - flange1338AC
1338506003Nut - flange1338AC
1338506007KNut - flange1338AC
1338506007KNut - flange1338AC
1864305009Bulb18643D
8659324000Clip86593A
8655125650Support assy - front bumper upper86550H
8651625600Bracket assy - front bumper side, rh86516F
1339506003Nut - flange1339CC
1339506003Nut - flange1339CC
8651125650Cover - front bumper86511A
8651125660Cover - front bumper86511A
1249303123Screw - tapping1249KA
1125406206KBolt1125AD
8652025650Absorber - front bumper energy86520B
8652025050Absorber - front bumper energy86520B
1125106203Bolt1125DB
1125406203Bolt [w/ washer]1125KC
1249305203Screw - tapping1249NG
8651525600Bracket assy - front bumper side, lh86515K
1125406207BBolt - washer assy1125KQ
1249305207BScrew - tapping1249NL
8659028000Retainer assy - bumper cover mounting86590
8659028000Retainer assy - bumper cover mounting86590
1491005000Retainer - tapping screw1491AD
1491005000Retainer - tapping screw1491AD
1244105207BScrew - tapping1244FE
1244205207BScrew - tapping1244FE
1244105207BScrew - tapping1244FE
1244205207BScrew - tapping1244FE
1244205206BScrew - tapping1244FD
1249304163Screw - tapping1249LJ
1249304167BScrew - tapping1249LJ
8636425800Pad - grille mounting86364F
1244205206BScrew - tapping1244FG
1244205203Screw - tapping1244FG
8636225800Mesh - radiator grille86362E
8636325800Pad - grille mounting86363F
8665517000Spring nut86655E
8630025500Emblem - tailgate logo86300
8630025501Emblem - tailgate logo86300
8656125020Grille - radiator86351
8636125800Grille - radiator86351
8636125800Grille - radiator86351
8656125020Grille - radiator86351
1864727009Bulb - halogen18647
