Catalog
Brand Name Code

HYUNDAI

Hyundai HYW201905
Model
NameFamilyVehicle CategoryModel Year FromModel Year ToModel Option S
GETZ 02: -OCT.2006 (2002-)GetzPassenger20022006BJWDN65TRANSMISSION: (5) 5 SPEED MT 2WD

ENGINE

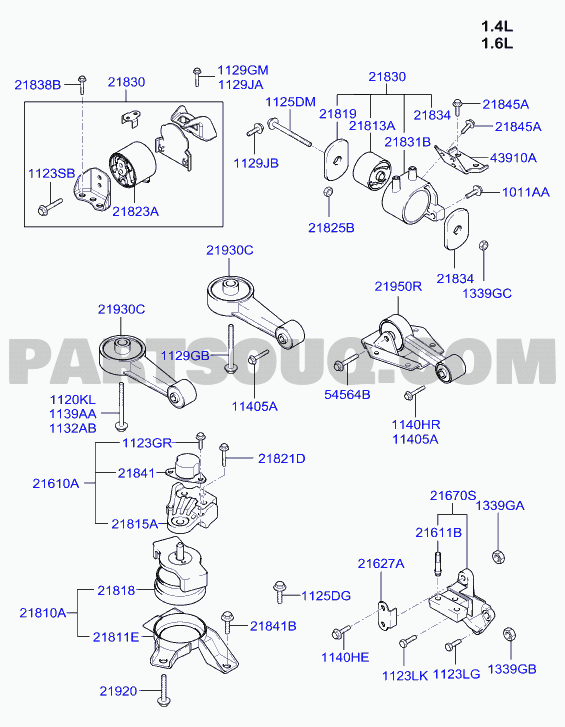

ENGINE & TRANSAXLE MOUNTING

01/04
NumberNameCode
218301C700Bracket assy - transmission mounting21830
218300B700Bracket assy - transmission mounting21830
1129410806KBolt1129GM
218351C600Bracket - transmission mounting21831B
1011610283Bolt1011AA
1339612003Nut1339GC
219501C700Bracket assy - roll rod21950R
545612E100Bolt54564B
1123308146KBolt1123GR
1140410806KBolt1140HR
1140410181Bolt11405A
218181C300Damper21841
218401C300Bracket assy - engine support21610A
218171C310Bracket - engine mounting support21815A
2167126001Stud21611B
218151C220Insulator - engine mounting bracket21818
1125110306KBolt1125DG
218101C220Bracket assy - engine mounting21810A
1339610001Nut1339GA
218111C110Bracket - engine mounting21811E
1123410301Bolt1123LG
1339610003Nut1339GB

ENGINE & TRANSAXLE MOUNTING

02/04
NumberNameCode
1129410806KBolt1129GM
218300B700Bracket assy - transmission mounting21830
218301C700Bracket assy - transmission mounting21830
218381C000Bolt - flange21838B
1129610606KBolt1129JA
1129610556KBolt1129JA
218351C600Bracket - transmission mounting21831B
1012010286KBolt1129JB
1129610256KBolt1129JB
1123610356KBolt - sems1123SB
1011610283Bolt1011AA
219501C700Bracket assy - roll rod21950R
1339612003Nut1339GC
545612E100Bolt54564B
1132110803Bolt1120KL
1140410181Bolt11405A
1140410806KBolt1140HR
1123308146KBolt1123GR
218181C300Damper21841
218401C300Bracket assy - engine support21610A
2167026004Bracket assy - engine support21670S
1339610001Nut1339GA
218171C310Bracket - engine mounting support21815A
2167126001Stud21611B
2167326000Stay - engine support bracket21627A
218151C220Insulator - engine mounting bracket21818
1125110306KBolt1125DG
218101C220Bracket assy - engine mounting21810A
218411G000Bolt21841B
218111C110Bracket - engine mounting21811E
1140410301Bolt1140HE
1339610003Nut1339GB
1123410301Bolt1123LG
1123410401Bolt1123LK
219201G000Bolt21920

ENGINE & TRANSAXLE MOUNTING

03/04
NumberNameCode
545612E100Bolt54564B
218301C700Bracket assy - transmission mounting21830
218300B700Bracket assy - transmission mounting21830
1129410806KBolt1129GM
218351C600Bracket - transmission mounting21831B
1011610283Bolt1011AA
1132110803Bolt1120KL
1339612003Nut1339GC
1123308146KBolt1123GR
218181C300Damper21841
218401C300Bracket assy - engine support21610A
218171C310Bracket - engine mounting support21815A
218101C220Bracket assy - engine mounting21810A
2167126001Stud21611B
2167026004Bracket assy - engine support21670S
1339610001Nut1339GA
218151C220Insulator - engine mounting bracket21818
1339610003Nut1339GB
218111C110Bracket - engine mounting21811E
