Catalog
Brand Name Code

HYUNDAI

Hyundai HYW201905
Model
NameFamilyVehicle CategoryModel Year FromModel Year ToModel Option S
I10 11 (INDIA PLANT-GEN) (2011-2016)I10Passenger20102016CMS6E332BTRANSAXLE: (B) AUTO - 4 SPEED 2W

CHASSIS

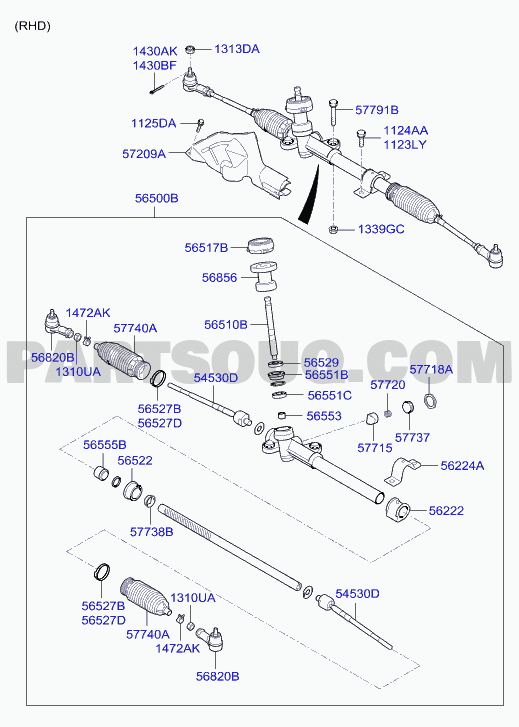

STEERING GEARBOX

01/02
NumberNameCode
1313410007KNut - slotted1313DA
1313410007KNut - slotted1313DA
1313410007KNut - slotted1313DA
1313410007KNut - slotted1313DA
577994D200Pin1430AK
577994D200Pin1430AK
577994D200Pin1430AK
577994D200Pin1430AK
1430085257BPin - split1430BF
1430085257BPin - split1430BF
5779107000Bolt57791B
5779107900Bolt57791B
5779107900Bolt57791B
5779107000Bolt57791B
1124212356KBolt - washer assy1124AA
1124212356KBolt - washer assy1124AA
1123412356KBolt1123LY
1123412356KBolt1123LY
1123612356KBolt - washer assy1124AE
1123612356KBolt - washer assy1124AE
1123612356KBolt - washer assy1124AE
1123612356KBolt - washer assy1124AE
1339612007KNut1339GC
1339612007KNut1339GC
1339612007KNut1339GC
1339612007KNut1339GC
565000X091Gear assy - steering56500B
565000X090Gear assy - steering56500B
565000X001Gear assy - steering56500B
565000X501Gear assy - steering56500B
565000X591Gear assy - steering56500B
565000X000Gear assy - steering56500B
565000X590Gear assy - steering56500B
565000X500Gear assy - steering56500B
565170X000Packing - dust56517B
565170X000Packing - dust56517B
565170X000Packing - dust56517B
565170X000Packing - dust56517B
565160X000Cap - dust56856
565160X000Cap - dust56856
565160X000Cap - dust56856
565160X000Cap - dust56856
565110X000Pinion assy - steering gearbox56510B
565110X900Pinion assy - steering gearbox56510B
565110X901Pinion assy - steering gearbox56510B
565110X501Pinion assy - steering gearbox56510B
565110X500Pinion assy - steering gearbox56510B
565110X950Pinion assy - steering gearbox56510B
565110X951Pinion assy - steering gearbox56510B
565110X001Pinion assy - steering gearbox56510B
562240X900Clamp - steering gearbox mounting [ b ]56224A
562240X000Clamp - steering gearbox mounting [ b ]56224A
562240X000Clamp - steering gearbox mounting [ b ]56224A
562240X900Clamp - steering gearbox mounting [ b ]56224A
565181C100Seal - oil56529
5652921010Seal - oil56529
565181C100Seal - oil56529
5652921010Seal - oil56529
565511C100Top plug - steering gearbox56551B
565511C100Top plug - steering gearbox56551B
5771824000Nut - lock57718A
577182F000Nut - lock57718A
577182F000Nut - lock57718A
5771824000Nut - lock57718A
5652521010Ring - snap56525B
5772007600Spring - yoke57720
5652521010Ring - snap56525B
577201R100Spring - yoke57720
577201R100Spring - yoke57720
577203K000Spring - yoke57720
5655222000Bearing56551C
5655222000Bearing56551C
565521C100Bearing56551C
565521C100Bearing56551C
5652302000Spring - steering gearbox56523
5652302000Spring - steering gearbox56523
565530X500Bearing56553
565530X500Bearing56553
562220X000Rubber - gearbox mounting56222
562220X900Rubber - gearbox mounting56222
562220X000Rubber - gearbox mounting56222
562220X900Rubber - gearbox mounting56222
5773707601Plug - yoke57737
5773724000Plug - yoke57737
577370X500Plug - yoke57737
577371R100Plug - yoke57737
5773724000Plug - yoke57737
577371R100Plug - yoke57737
577151R100Yoke assy - rack support57715
5771524000Yoke assy - rack support57715
5771524000Yoke assy - rack support57715
577151R100Yoke assy - rack support57715
577150X500Yoke assy - rack support57715
565270X000Steel bend56527D
565270X000Steel bend56527D
565270X000Steel bend56527D
565270X000Steel bend56527D
5652721000Band56527B
5652721000Band56527B
577240X010Ball joint assy, inner54530D
577240X010Ball joint assy, inner54530D
577240X010Ball joint assy, inner54530D
577240X010Ball joint assy, inner54530D
5652225000Rubber - cushion56522
5652225000Rubber - cushion56522
5652225000Rubber - cushion56522
5652225000Rubber - cushion56522
565550X500Rack bush56555B
565551C000Rack bush56555B
565550X500Rack bush56555B
565551C000Rack bush56555B
5655325000Stopper - rack57738B
5655325000Stopper - rack57738B
5655325000Stopper - rack57738B
5655325000Stopper - rack57738B
565281C000Rubber56529D
565281C000Rubber56529D
1472016006BClip - hose1472AK
1472016006BClip - hose1472AK
1472016006BClip - hose1472AK
1472016006BClip - hose1472AK
568200X010End assy - tie rod56820B
568200X010End assy - tie rod56820B
568200X010End assy - tie rod56820B
568200X010End assy - tie rod56820B
5774007600Bellows - steering gearbox57740A
5774007600Bellows - steering gearbox57740A
5774007600Bellows - steering gearbox57740A
5774007600Bellows - steering gearbox57740A
565120X000Rack56512A
565120X500Rack56512A
565120X950Rack56512A
565120X900Rack56512A
1310412001Nut1310UA
1310412001Nut1310UA
1310412001Nut1310UA
1310412001Nut1310UA

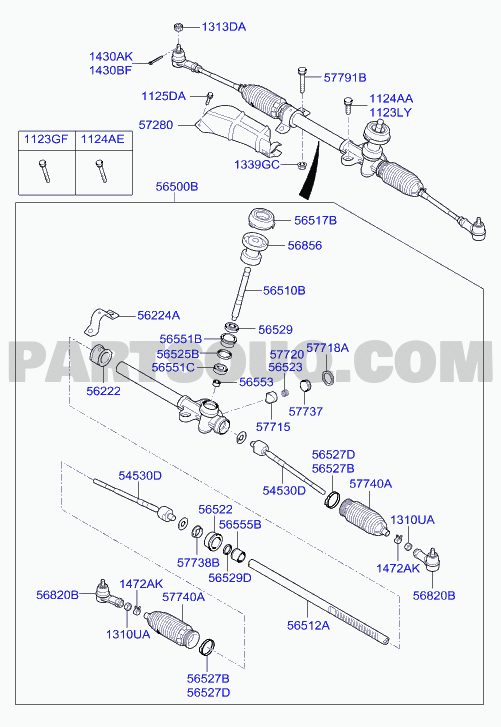

STEERING GEARBOX

02/02
NumberNameCode
1313410007KNut - slotted1313DA
1313410007KNut - slotted1313DA
1313410007KNut - slotted1313DA
1313410007KNut - slotted1313DA
577994D200Pin1430AK
577994D200Pin1430AK
577994D200Pin1430AK
577994D200Pin1430AK
1430085257BPin - split1430BF
1430085257BPin - split1430BF
5779107000Bolt57791B
5779107000Bolt57791B
5779107900Bolt57791B
5779107900Bolt57791B
1124212356KBolt - washer assy1124AA
1124212356KBolt - washer assy1124AA
1123412356KBolt1123LY
1123412356KBolt1123LY
565000X091Gear assy - steering56500B
565000X001Gear assy - steering56500B
565000X090Gear assy - steering56500B
565000X000Gear assy - steering56500B
565000X590Gear assy - steering56500B
565000X591Gear assy - steering56500B
565000X501Gear assy - steering56500B
565000X500Gear assy - steering56500B
1339612007KNut1339GC
1339612007KNut1339GC
1339612007KNut1339GC
1339612007KNut1339GC
565170X000Packing - dust56517B
565170X000Packing - dust56517B
565170X000Packing - dust56517B
565170X000Packing - dust56517B
565160X000Cap - dust56856
565160X000Cap - dust56856
565160X000Cap - dust56856
565160X000Cap - dust56856
1472016006BClip - hose1472AK
1472016006BClip - hose1472AK
1472016006BClip - hose1472AK
1472016006BClip - hose1472AK
565110X001Pinion assy - steering gearbox56510B
565110X501Pinion assy - steering gearbox56510B
565110X500Pinion assy - steering gearbox56510B
565110X000Pinion assy - steering gearbox56510B
565110X901Pinion assy - steering gearbox56510B
565110X900Pinion assy - steering gearbox56510B
565110X950Pinion assy - steering gearbox56510B
565110X951Pinion assy - steering gearbox56510B
565181C100Seal - oil56529
5652921010Seal - oil56529
5652921010Seal - oil56529
565181C100Seal - oil56529
5771824000Nut - lock57718A
5771824000Nut - lock57718A
577182F000Nut - lock57718A
577182F000Nut - lock57718A
565511C100Top plug - steering gearbox56551B
565511C100Top plug - steering gearbox56551B
577201R100Spring - yoke57720
577203K000Spring - yoke57720
577201R100Spring - yoke57720
5772007600Spring - yoke57720
565521C100Bearing56551C
5655222000Bearing56551C
565521C100Bearing56551C
5655222000Bearing56551C
565530X500Bearing56553
565530X500Bearing56553
5773724000Plug - yoke57737
577371R100Plug - yoke57737
5773724000Plug - yoke57737
577371R100Plug - yoke57737
577370X500Plug - yoke57737
5773707601Plug - yoke57737
565550X500Rack bush56555B
565551C000Rack bush56555B
565551C000Rack bush56555B
565550X500Rack bush56555B
5771524000Yoke assy - rack support57715
5771524000Yoke assy - rack support57715
577150X500Yoke assy - rack support57715
577151R100Yoke assy - rack support57715
577151R100Yoke assy - rack support57715
5652225000Rubber - cushion56522
5652225000Rubber - cushion56522
5652225000Rubber - cushion56522
5652225000Rubber - cushion56522
562240X900Clamp - steering gearbox mounting [ b ]56224A
562240X900Clamp - steering gearbox mounting [ b ]56224A
562240X000Clamp - steering gearbox mounting [ b ]56224A
562240X000Clamp - steering gearbox mounting [ b ]56224A
562220X000Rubber - gearbox mounting56222
562220X900Rubber - gearbox mounting56222
562220X000Rubber - gearbox mounting56222
562220X900Rubber - gearbox mounting56222
5655325000Stopper - rack57738B
5655325000Stopper - rack57738B
5655325000Stopper - rack57738B
5655325000Stopper - rack57738B
577240X010Ball joint assy, inner54530D
577240X010Ball joint assy, inner54530D
577240X010Ball joint assy, inner54530D
577240X010Ball joint assy, inner54530D
1310412001Nut1310UA
1310412001Nut1310UA
1310412001Nut1310UA
1310412001Nut1310UA
5652721000Band56527B
5652721000Band56527B
565270X000Steel bend56527D
565270X000Steel bend56527D
565270X000Steel bend56527D
565270X000Steel bend56527D
5774007600Bellows - steering gearbox57740A
5774007600Bellows - steering gearbox57740A
5774007600Bellows - steering gearbox57740A
5774007600Bellows - steering gearbox57740A
568200X010End assy - tie rod56820B
568200X010End assy - tie rod56820B
568200X010End assy - tie rod56820B
568200X010End assy - tie rod56820B
