Catalog
Brand Name Code

HYUNDAI

Hyundai HYW201905
Model
NameFamilyVehicle CategoryModel Year FromModel Year ToModel Option S
VernaVernaPassenger20062010BLS4A761BHC5TRANSAXLE: (B) AUTO - 4 SPEED 2W

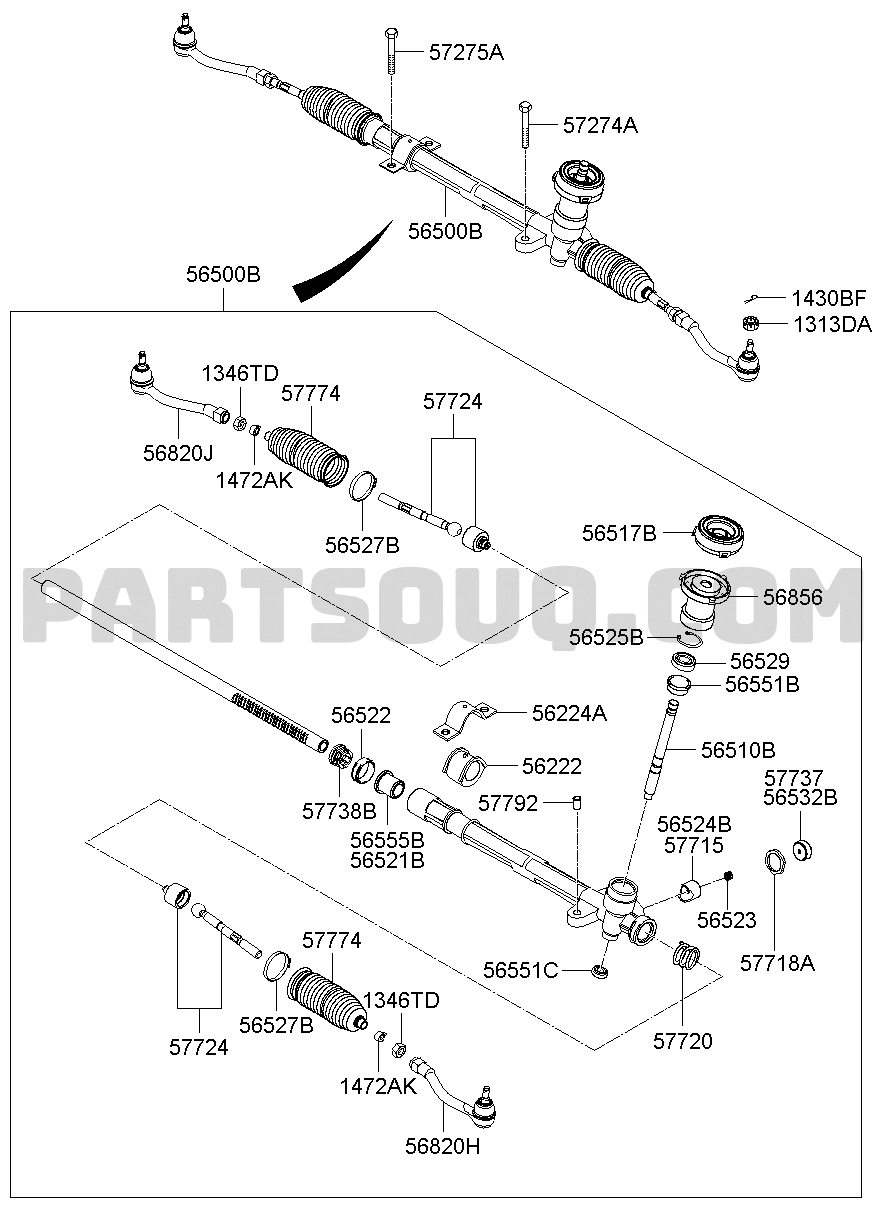

CHASSIS

STEERING GEARBOX

01/02
NumberNameCode
572751G000Bolt - special57275A
572751G000Bolt - special57275A
572751G000Bolt - special57275A
572751G000Bolt - special57275A
572751G000Bolt - special57275A
572741G000Bolt - special57274A
572741G000Bolt - special57274A
572741G000Bolt - special57274A
572741G000Bolt - special57274A
572741G000Bolt - special57274A
565001E500Gear assy - steering56500B
565001E000Gear assy - steering56500B
565001E500Gear assy - steering56500B
565001E500Gear assy - steering56500B
1430085257BPin - split1430BF
1430085257BPin - split1430BF
1430085257BPin - split1430BF
1430085257BPin - split1430BF
1430085257BPin - split1430BF
1313410007KNut - slotted1313DA
1313410007KNut - slotted1313DA
1313410007KNut - slotted1313DA
1313410007KNut - slotted1313DA
1313410007KNut - slotted1313DA
1346714007BNut1346TD
1346714007BNut1346TD
1346714007BNut1346TD
1346714007BNut1346TD
1346714007BNut1346TD
5772817000Bellows - steering gearbox57774
5772817000Bellows - steering gearbox57774
5772817000Bellows - steering gearbox57774
5772817000Bellows - steering gearbox57774
5772817000Bellows - steering gearbox57774
568201E900End assy - tie rod, rh56820J
568201E900End assy - tie rod, rh56820J
568201E900End assy - tie rod, rh56820J
568201E900End assy - tie rod, rh56820J
568201E900End assy - tie rod, rh56820J
1472016006BClip - hose1472AK
1472016006BClip - hose1472AK
1472016006BClip - hose1472AK
1472016006BClip - hose1472AK
1472016006BClip - hose1472AK
565171C000Packing - dust56517B
565171C000Packing - dust56517B
565171C000Packing - dust56517B
565171C000Packing - dust56517B
565171C000Packing - dust56517B
5652721000Band56527B
5652721000Band56527B
5652721000Band56527B
5652721000Band56527B
565161E000Cap - dust56856
565161E000Cap - dust56856
565161C000Cap - dust56856
565161E000Cap - dust56856
565161E000Cap - dust56856
5652521010Ring - snap56525B
5652921010Seal - oil56529
565181C100Seal - oil56529
565181C100Seal - oil56529
565181C100Seal - oil56529
565511C100Top plug - steering gearbox56551B
565511C100Top plug - steering gearbox56551B
565511C100Top plug - steering gearbox56551B
562241C000Clamp - steering gearbox mounting [ b ]56224A
562241C000Clamp - steering gearbox mounting [ b ]56224A
562241C000Clamp - steering gearbox mounting [ b ]56224A
562241C000Clamp - steering gearbox mounting [ b ]56224A
5652225000Rubber - cushion56522
5652225000Rubber - cushion56522
5652225000Rubber - cushion56522
5652225000Rubber - cushion56522
565111E500Pinion assy - steering gearbox56510B
565111E500Pinion assy - steering gearbox56510B
565111E500Pinion assy - steering gearbox56510B
565111E000Pinion assy - steering gearbox56510B
562221C000Rubber - gearbox mounting56222
562221C000Rubber - gearbox mounting56222
562221C000Rubber - gearbox mounting56222
562221C000Rubber - gearbox mounting56222
5773724000Plug - yoke57737
5773707601Plug - yoke57737
5773707601Plug - yoke57737
5773707601Plug - yoke57737
577371C080Plug - yoke57737
565241E500Plug - yoke56532B
565241E500Plug - yoke56532B
565241E500Plug - yoke56532B
5772126200Bush - gear housing mounting57792
5772126200Bush - gear housing mounting57792
5772126200Bush - gear housing mounting57792
5772126200Bush - gear housing mounting57792
5655325000Stopper - rack57738B
5655325000Stopper - rack57738B
5655325000Stopper - rack57738B
577321E100Stopper - rack57738B
5655325000Stopper - rack57738B
565221E500Yoke assy - rack support56524B
565221E500Yoke assy - rack support56524B
565221E500Yoke assy - rack support56524B
565551C000Rack bush56555B
5771524000Yoke assy - rack support57715
577151E000Yoke assy - rack support57715
5771524000Yoke assy - rack support57715
565551C100Bush - rack56521B
565551C100Bush - rack56521B
565551C100Bush - rack56521B
5652302000Spring - steering gearbox56523
565231C000Spring - steering gearbox56523
565231E000Spring - steering gearbox56523
577181C080Nut - lock57718A
577182F000Nut - lock57718A
577182F000Nut - lock57718A
5771824000Nut - lock57718A
577182F000Nut - lock57718A
5655222000Bearing56551C
565521C100Bearing56551C
565521C100Bearing56551C
565521C100Bearing56551C
565231E501Spring - yoke57720
565231E501Spring - yoke57720
577203K000Spring - yoke57720
565231E501Spring - yoke57720
577203K000Spring - yoke57720
577203K000Spring - yoke57720
577241E000Joint assy - inner ball57724
577241E000Joint assy - inner ball57724
577241E000Joint assy - inner ball57724
577241E000Joint assy - inner ball57724
577241E000Joint assy - inner ball57724
568201E000End assy - tie rod, lh56820H
568201E000End assy - tie rod, lh56820H
568201E000End assy - tie rod, lh56820H
568201E000End assy - tie rod, lh56820H
568201E000End assy - tie rod, lh56820H

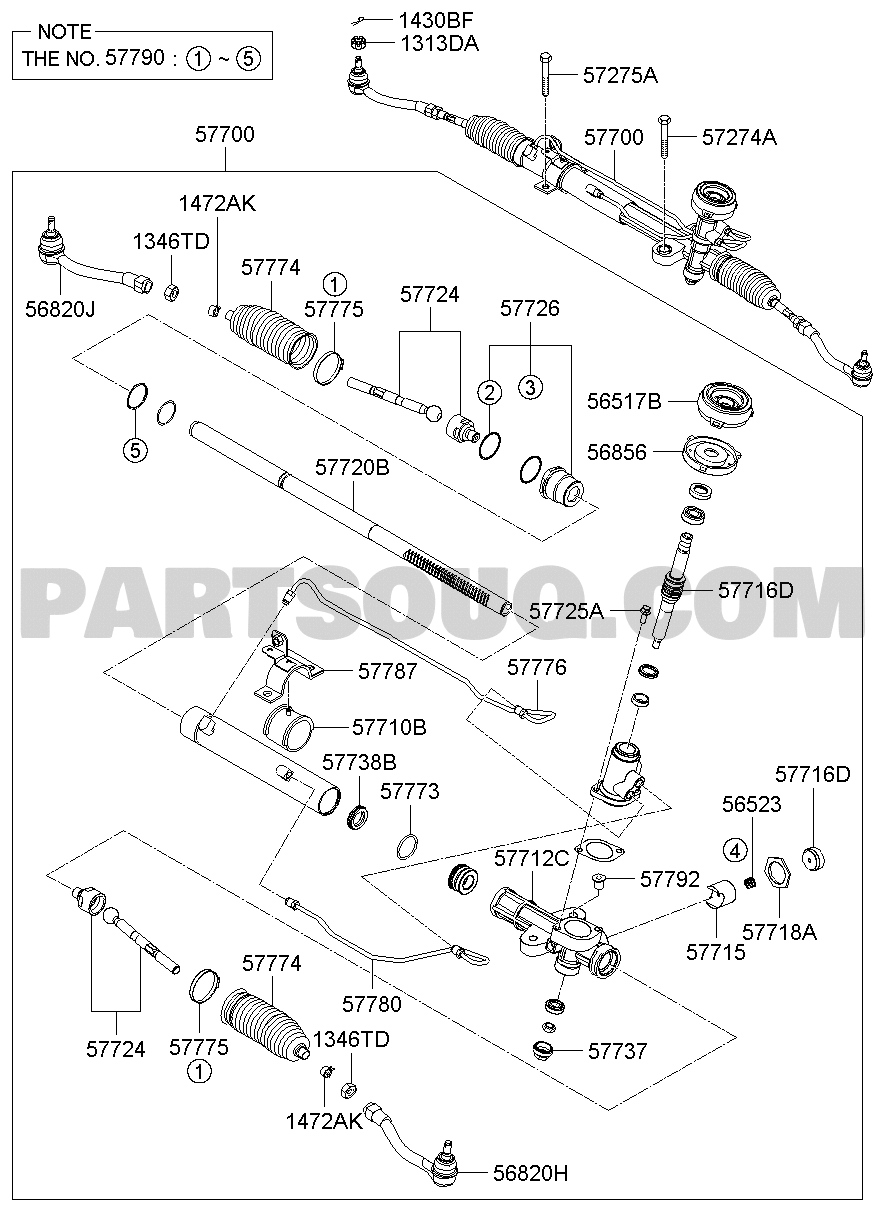

STEERING GEARBOX

02/02
NumberNameCode
1430085257BPin - split1430BF
1430085257BPin - split1430BF
1430085257BPin - split1430BF
1430085257BPin - split1430BF
1430085257BPin - split1430BF
1313410007KNut - slotted1313DA
1313410007KNut - slotted1313DA
1313410007KNut - slotted1313DA
1313410007KNut - slotted1313DA
1313410007KNut - slotted1313DA
577901EA00Seal kit - power steering gear57790
572751G000Bolt - special57275A
572751G000Bolt - special57275A
572751G000Bolt - special57275A
572751G000Bolt - special57275A
572751G000Bolt - special57275A
577001E100Gear & linkage assy - power steering57700
572741G000Bolt - special57274A
572741G000Bolt - special57274A
572741G000Bolt - special57274A
572741G000Bolt - special57274A
572741G000Bolt - special57274A
1472016006BClip - hose1472AK
1472016006BClip - hose1472AK
1472016006BClip - hose1472AK
1472016006BClip - hose1472AK
1472016006BClip - hose1472AK
1346714007BNut1346TD
1346714007BNut1346TD
1346714007BNut1346TD
1346714007BNut1346TD
1346714007BNut1346TD
5772817000Bellows - steering gearbox57774
5772817000Bellows - steering gearbox57774
5772817000Bellows - steering gearbox57774
5772817000Bellows - steering gearbox57774
5772817000Bellows - steering gearbox57774
577241E000Joint assy - inner ball57724
577241E000Joint assy - inner ball57724
577241E000Joint assy - inner ball57724
577241E000Joint assy - inner ball57724
577241E000Joint assy - inner ball57724
5772622000Bush assy - rack57726
568201E900End assy - tie rod, rh56820J
5772728500Band - power steering gearbox57775
568201E900End assy - tie rod, rh56820J
568201E900End assy - tie rod, rh56820J
568201E900End assy - tie rod, rh56820J
568201E900End assy - tie rod, rh56820J
565171C000Packing - dust56517B
565171C000Packing - dust56517B
565171C000Packing - dust56517B
565171C000Packing - dust56517B
565171C000Packing - dust56517B
565161E000Cap - dust56856
565161C000Cap - dust56856
565161E000Cap - dust56856
565161E000Cap - dust56856
565161E000Cap - dust56856
577101E000Rack assy - power steering gearbox57720B
577252E000Bolt57725A
577761E000Tube assy - feed, lh57776
577871E000Clamp - cylinder57787
577921C000Rubber - gearbox mounting57710B
5655325000Stopper - rack57738B
5655325000Stopper - rack57738B
5655325000Stopper - rack57738B
577321E100Stopper - rack57738B
5655325000Stopper - rack57738B
577161E000Valve assy57716D
5777333100Clip - circulation57773
565231E000Spring - steering gearbox56523
565231C000Spring - steering gearbox56523
5652302000Spring - steering gearbox56523
577121E100Rack housing assy57712C
5772126200Bush - gear housing mounting57792
5772126200Bush - gear housing mounting57792
5772126200Bush - gear housing mounting57792
5772126200Bush - gear housing mounting57792
577182F000Nut - lock57718A
577182F000Nut - lock57718A
577181C080Nut - lock57718A
577182F000Nut - lock57718A
5771824000Nut - lock57718A
577151E000Yoke assy - rack support57715
5771524000Yoke assy - rack support57715
5771524000Yoke assy - rack support57715
577801E000Tube assy - feed, rh57780
5773707601Plug - yoke57737
5773724000Plug - yoke57737
577371C080Plug - yoke57737
5773707601Plug - yoke57737
5773707601Plug - yoke57737
568201E000End assy - tie rod, lh56820H
568201E000End assy - tie rod, lh56820H
568201E000End assy - tie rod, lh56820H
568201E000End assy - tie rod, lh56820H
568201E000End assy - tie rod, lh56820H
