Catalog
Brand Name Code

HYUNDAI

Hyundai HYW201905
Model
NameFamilyVehicle CategoryModel Year FromModel Year ToModel Option S
GRANDEUR 99 (1998-)GrandeurPassenger19982005EBFGU6DBody Type: (F) 4 DR SEDAN;Grade:

ENGINE

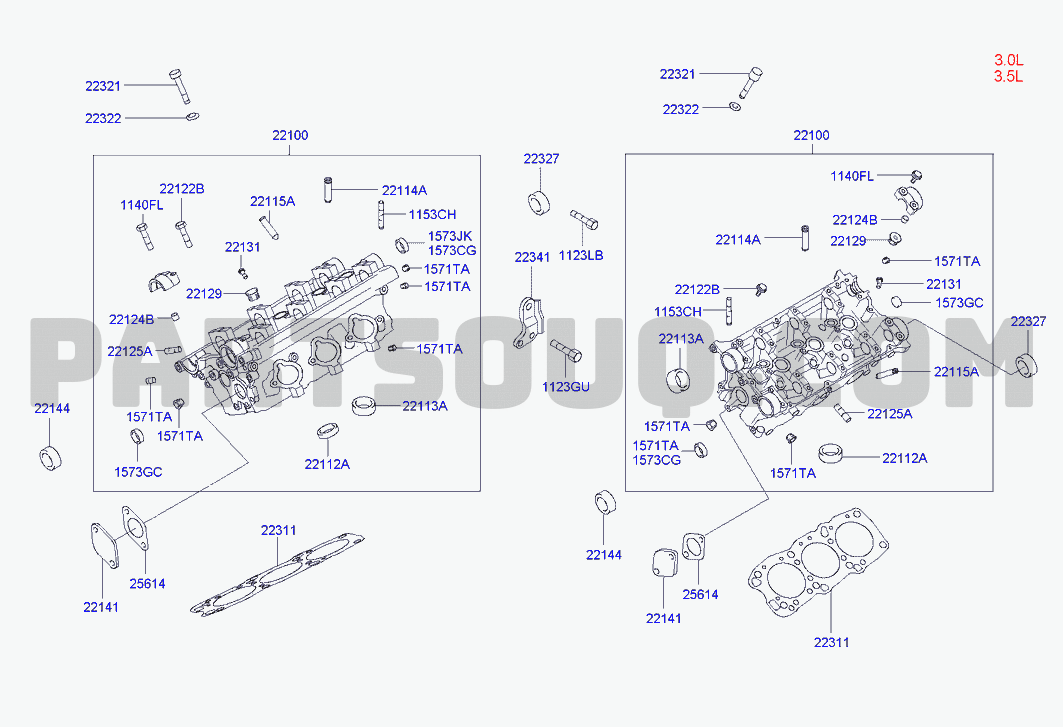

CYLINDER HEAD

01/02
NumberNameCode
2232135000Bolt - cylinder head22321
2232232100Washer - cylinder head bolt22322
2232232000Washer - cylinder head bolt22322
2210039000Head assy - cylinder22100
2232735504Packing - circular22327
2212435500Bush - knock22124B
2213123000Plug - taper22131
2213111000Plug - taper22131
1573325000Cap - (sealing)1573JK
2211433902Guide - intake valve22114A
2211433901Guide - intake valve22114A
2211433010Guide - intake valve22114A
2211433912Guide - intake valve22114A
2211433903Guide - intake valve22114A
2211433911Guide - intake valve22114A
2211433913Guide - intake valve22114A
2211433000Guide - intake valve22114A
2234139600Hanger - engine22341
2234139002Hanger - engine22341
2234139001Hanger - engine22341
2234139601Hanger - engine22341
1573225007BCap - (sealing)1573CG
2212923000Plug22129
1573225001Cap - (sealing)1573GC
1573225003Cap - (sealing)1573GC
2211338901Seat - exhaust valve22113A
2211335591Seat - exhaust valve22113A
2211335500Seat - exhaust valve22113A
2211335592Seat - exhaust valve22113A
2211338002Seat - exhaust valve22113A
2211338911Seat - exhaust valve22113A
2211533913Guide - exhaust valve22115A
2211533000Guide - exhaust valve22115A
2211533903Guide - exhaust valve22115A
2211533902Guide - exhaust valve22115A
2211533901Guide - exhaust valve22115A
2211533911Guide - exhaust valve22115A
2211533010Guide - exhaust valve22115A
2211533912Guide - exhaust valve22115A
2214439001Seal - oil22144
2214439000Seal - oil22144
2212235500Bolt22122B
2212535500Stud22125A
1571710081Plug - taper1571TA
1571710083Plug - taper1571TA
1153308505Stud1153CH
2211235520Seat - intake valve22112A
2211235595Seat - intake valve22112A
2211235596Seat - intake valve22112A
2231139001Gasket - cylinder head, rh22311C
2231139002Gasket - cylinder head, lh22311B

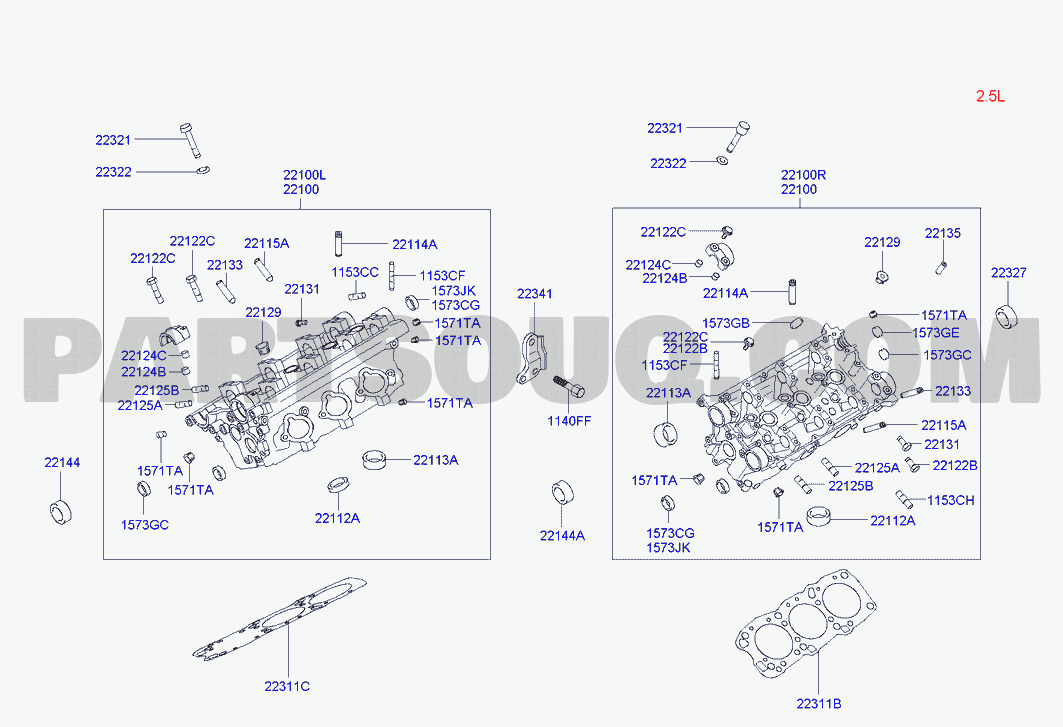

CYLINDER HEAD

02/02
NumberNameCode
2232135000Bolt - cylinder head22321
2232232100Washer - cylinder head bolt22322
2232232000Washer - cylinder head bolt22322
2210039000Head assy - cylinder22100
2232735504Packing - circular22327
1140308383Bolt1140FL
1153308505Stud1153CH
2212435500Bush - knock22124B
1573325000Cap - (sealing)1573JK
2211433901Guide - intake valve22114A
2211433010Guide - intake valve22114A
2211433902Guide - intake valve22114A
2211433000Guide - intake valve22114A
2211433903Guide - intake valve22114A
2211433913Guide - intake valve22114A
2211433911Guide - intake valve22114A
2211433912Guide - intake valve22114A
1123410186KBolt1123LB
1123410183Bolt1123LB
2234139600Hanger - engine22341
2234139001Hanger - engine22341
2234139601Hanger - engine22341
2234139002Hanger - engine22341
2213111000Plug - taper22131
2213123000Plug - taper22131
2212235500Bolt22122B
2212923000Plug22129
2211335591Seat - exhaust valve22113A
2211335592Seat - exhaust valve22113A
2211338911Seat - exhaust valve22113A
2211335500Seat - exhaust valve22113A
2211338901Seat - exhaust valve22113A
2211338002Seat - exhaust valve22113A
2211533913Guide - exhaust valve22115A
2211533911Guide - exhaust valve22115A
2211533912Guide - exhaust valve22115A
2211533000Guide - exhaust valve22115A
2211533903Guide - exhaust valve22115A
2211533901Guide - exhaust valve22115A
2211533902Guide - exhaust valve22115A
2211533010Guide - exhaust valve22115A
1123308186KBolt1123GU
1123308183Bolt1123GU
2214439000Seal - oil22144
2214439001Seal - oil22144
2212535500Stud22125A
1571710083Plug - taper1571TA
1571710081Plug - taper1571TA
1573225007BCap - (sealing)1573CG
2211235595Seat - intake valve22112A
2211235596Seat - intake valve22112A
2211235520Seat - intake valve22112A
1573225001Cap - (sealing)1573GC
1573225003Cap - (sealing)1573GC
2561435510Gasket - thermostat case25614
2214135500Cover22141
2231139000Gasket - cylinder head22311
