Catalog
Brand Name Code

HYUNDAI

Hyundai HYW201905
Model
NameFamilyVehicle CategoryModel Year FromModel Year ToModel Option S
LiberoLiberoCommercial20062007HBH46A855Engine Capacity: (6A) 2500 CC -

ENGINE

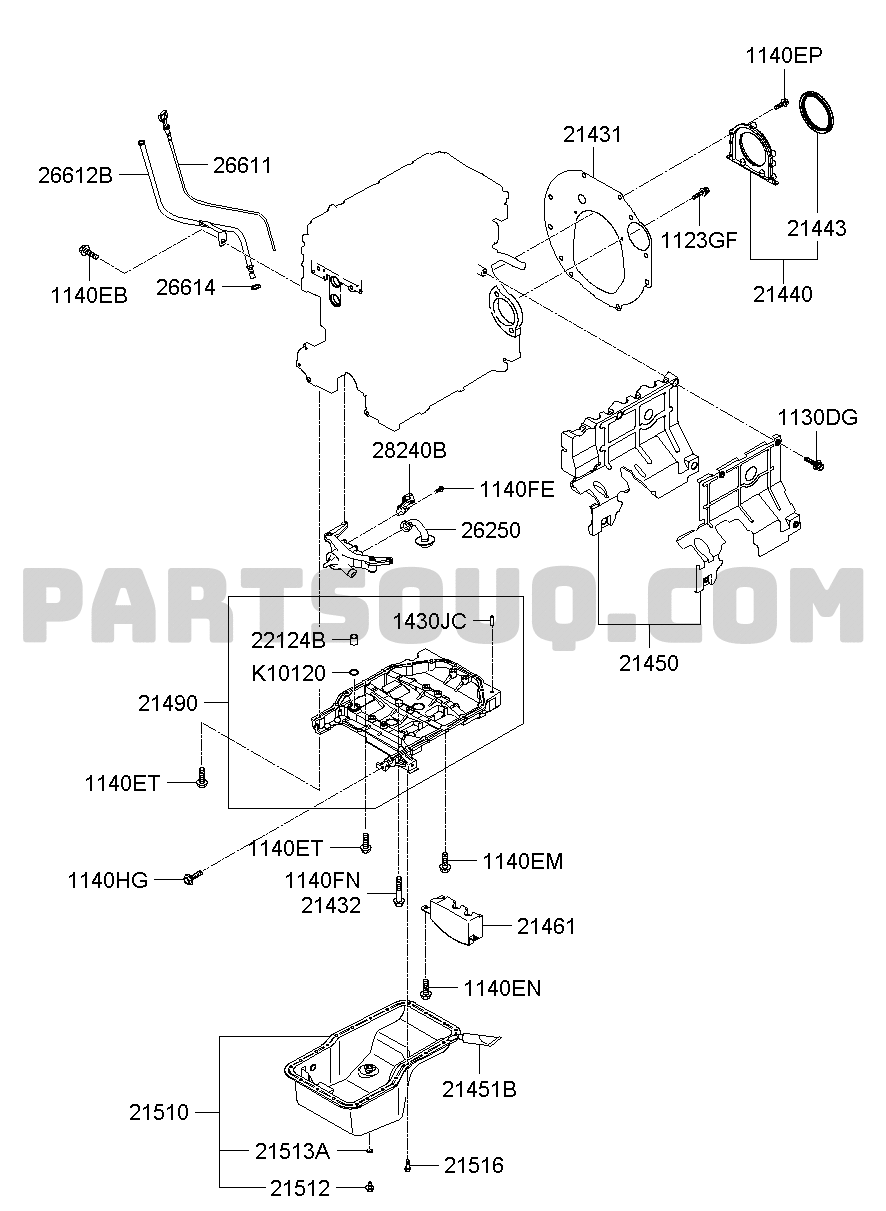

BELT COVER & OIL PAN

01/02
NumberNameCode
1140306223Bolt1140EP
1140306226KBolt1140EP
1140306223Bolt1140EP
214314A000Plate - cylinder block, rear21431
214314A000Plate - cylinder block, rear21431
266114A000Rod assy - oil level gauge26611
266114A000Rod assy - oil level gauge26611
266124A000Guide - oil level gauge26612B
266124A000Guide - oil level gauge26612B
214434A000Seal - oil rear21443
214434A001Seal - oil rear21443
214434A001Seal - oil rear21443
1123306123Bolt - washer assy1123GF
1123306123Bolt - washer assy1123GF
1123306126KBolt - washer assy1123GF
2661435010O-ring26614
2661435010O-ring26614
214404A001Case assy - oil seal21440
214404A001Case assy - oil seal21440
214404A000Case assy - oil seal21440
1140308256KBolt1140EB
1140308256KBolt1140EB
1130208206KBolt1130DG
1130208206KBolt1130DG
262204A000Pipe - oil feed28240B
262204A000Pipe - oil feed28240B
1140308183Bolt1140FE
1140308183Bolt1140FE
262004A000Screen assy - oil26250
262004A000Screen assy - oil26250
1430306140Pin - dowel1430JC
1430306140Pin - dowel1430JC
214244A000Bush - knock22124B
214244A000Bush - knock22124B
214504A020Shield assy - cylinder block21450
214504A020Shield assy - cylinder block21450
214264A000O-ringK10120
214264A000O-ringK10120
214904A000Plate assy - bed21490
214904A000Plate assy - bed21490
214974A001Bolt1140ET
214974A000Bolt1140ET
214974A001Bolt1140ET
1140306303Bolt1140ET
214984A001Bolt1140EM
214984A000Bolt1140EM
214984A001Bolt1140EM
1140308456KBolt1140FN
1140308456KBolt1140FN
1140410406KBolt - flange1140HG
1140308453Bolt1140FN
214964A001Bolt21432
214964A001Bolt21432
214614A001Cover - bell housing21461
214614A000Cover - bell housing21461
1140306183Bolt1140EN
2145133A02Gasket - liquid engine21451B
215104A001Pan assy - engine oil21510
2151323001Gasket - oil plug21513A
215164A010Bolt21516
2151221010Plug - oil drain21512
