Catalog
Brand Name Code

HYUNDAI

Hyundai HYW201905
Model
NameFamilyVehicle CategoryModel Year FromModel Year ToModel Option S
TRAJET 04: -OCT.2006 (2000-)TrajetR/V20002007ECZDS6BEngine Capacity: (S) 2000 CC;Fue

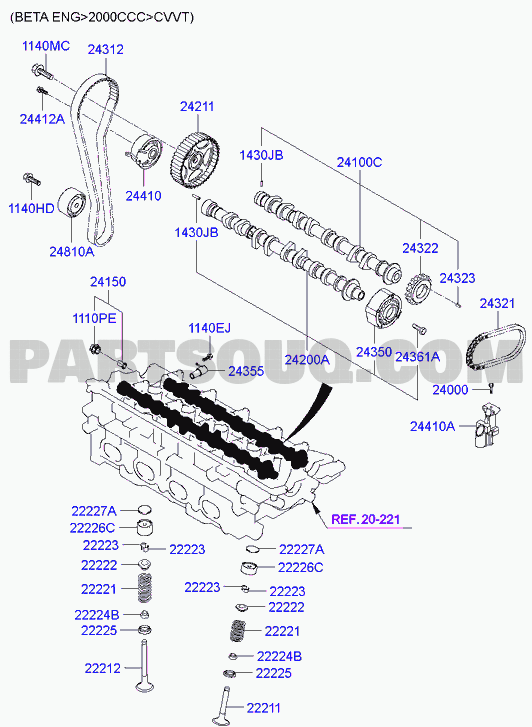

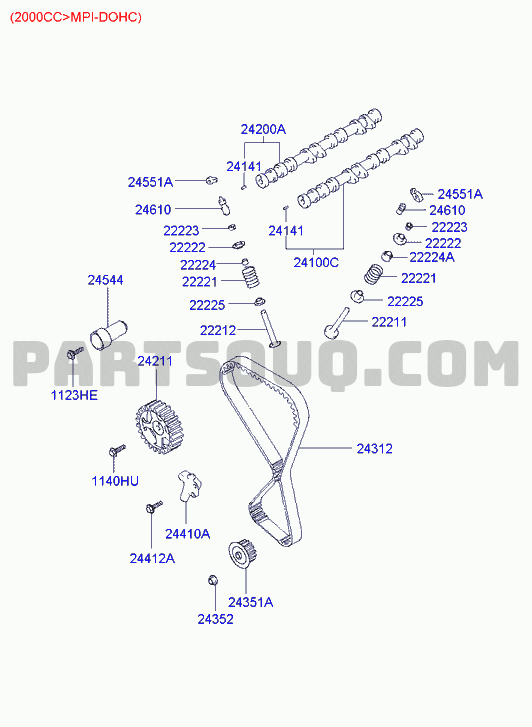

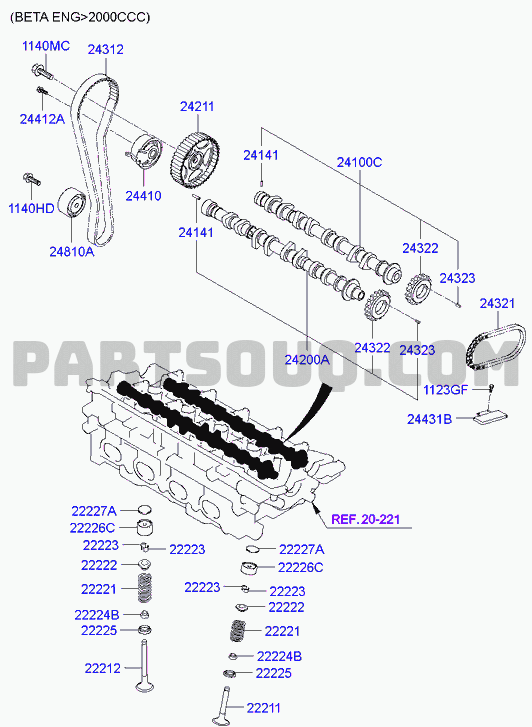

ENGINE

CAMSHAFT & VALVE

01/05
NumberNameCode
2420023770Camshaft assy - exhaust24200A
2420038202Camshaft assy - exhaust24200A
2420023550Camshaft assy - exhaust24200A
2455133050Rocker arm assy24551A
2461033020Adjuster assy - rocker arm lash24610
2461033050Adjuster assy - rocker arm lash24610
2461033050Adjuster assy - rocker arm lash24610
2222322001Lock - valve spring retainer22223
2222321004Lock - valve spring retainer22223
2222321000Lock - valve spring retainer22223
2222321000Lock - valve spring retainer22223
2222321004Lock - valve spring retainer22223
2412123500Pin - dowel24141
2414135000Pin - dowel24141
2222238000Retainer - valve spring22222
2222223000Retainer - valve spring22222
2222238000Retainer - valve spring22222
2222438010Seal - valve stem22224A
2410038101Camshaft assy - intake24100C
2410023770Camshaft assy - intake24100C
2410023550Camshaft assy - intake24100C
2222438000Seal - valve stem inlet22224
2454438010Cylinder - cam position sensing24544
2222123501Spring - valve22221
2222138000Spring - valve22221
2222138000Spring - valve22221
2222538000Seat - valve spring22225
2222523000Seat - valve spring22225
2222538000Seat - valve spring22225
2221133000Valve - intake22211
2221123600Valve - intake22211
2221133000Valve - intake22211
2221223600Valve - exhaust22212
2221223640Valve - exhaust22212
2221223600Valve - exhaust22212
2221233000Valve - exhaust22212
2221233010Valve - exhaust22212
2221233000Valve - exhaust22212
2221233010Valve - exhaust22212
2421138010Sprocket - camshaft24211
2421123000Sprocket - camshaft24211
1123308501Bolt1123HE
1123308503Bolt1123HE
2431238010Belt - valve timing24312
2431223202Belt - valve timing24312
2431238020Belt - valve timing24312
1140412301Bolt1140HU
2441023770Tensioner - timing belt automatic24410A
2441038001Tensioner - timing belt automatic24410A
2441023800Tensioner - timing belt automatic24410A
2441233000Bolt24412A
2441223000Bolt24412A
2435138011Sprocket - oil pump24351A
2435232001Nut24352

CAMSHAFT & VALVE

02/05
NumberNameCode
1140612301Bolt1140MC
1140612303Bolt1140MC
2431238010Belt - valve timing24312
2431223202Belt - valve timing24312
2431238020Belt - valve timing24312
2421123000Sprocket - camshaft24211
2421138010Sprocket - camshaft24211
2441223000Bolt24412A
2441233000Bolt24412A
2414135000Pin - dowel24141
2412123500Pin - dowel24141
2410038101Camshaft assy - intake24100C
2410023550Camshaft assy - intake24100C
2410023770Camshaft assy - intake24100C
2441023500Tensioner assy - valve timing belt24410
1140410251Bolt1140HD
2432223775Sprocket - timing chain24322
2432223760Sprocket - timing chain24322
2481023500Idler assy - timing belt24810A
2432123770Chain - timing24321
2432123001Chain - timing24321
2432323500Key - chain sprocket24323
2420023550Camshaft assy - exhaust24200A
2420038202Camshaft assy - exhaust24200A
2420023770Camshaft assy - exhaust24200A
1123306121Bolt - washer assy1123GF
1123306123Bolt - washer assy1123GF
1123306123Bolt - washer assy1123GF
2443123500Guide - chain lower24431B
2222723648Shim22227A
2222723652Shim22227A
2222723640Shim22227A
2222723644Shim22227A
2222723656Shim22227A
2222723668Shim22227A
2222723635Shim22227A
2222723676Shim22227A
2222723672Shim22227A
2222723664Shim22227A
2222723660Shim22227A
2222723620Shim22227A
2222723608Shim22227A
2222723600Shim22227A
2222723632Shim22227A
2222723612Shim22227A
2222723604Shim22227A
2222723616Shim22227A
2222723624Shim22227A
2222723628Shim22227A
2222623500Tappet22226C
2222238000Retainer - valve spring22222
2222223000Retainer - valve spring22222
2222238000Retainer - valve spring22222
2222321004Lock - valve spring retainer22223
2222321000Lock - valve spring retainer22223
2222321000Lock - valve spring retainer22223
2222321004Lock - valve spring retainer22223
2222322001Lock - valve spring retainer22223
2222138000Spring - valve22221
2222138000Spring - valve22221
2222123501Spring - valve22221
2222423500Seal - valve stem22224B
2221233000Valve - exhaust22212
2221223640Valve - exhaust22212
2221223600Valve - exhaust22212
2221223600Valve - exhaust22212
2221233000Valve - exhaust22212
2221233010Valve - exhaust22212
2221233010Valve - exhaust22212
2222538000Seat - valve spring22225
2222523000Seat - valve spring22225
2222538000Seat - valve spring22225
2221123600Valve - intake22211
2221133000Valve - intake22211
2221133000Valve - intake22211

CAMSHAFT & VALVE

03/05
NumberNameCode
1140612303Bolt1140MC
1140612301Bolt1140MC
2431238010Belt - valve timing24312
2431238020Belt - valve timing24312
2431223202Belt - valve timing24312
2421138010Sprocket - camshaft24211
2421123000Sprocket - camshaft24211
2441233000Bolt24412A
2441223000Bolt24412A
1430305120Pin - dowel1430JB
2410038101Camshaft assy - intake24100C
2410023770Camshaft assy - intake24100C
2410023550Camshaft assy - intake24100C
2441023500Tensioner assy - valve timing belt24410
1140410251Bolt1140HD
2432223775Sprocket - timing chain24322
2432223760Sprocket - timing chain24322
2481023500Idler assy - timing belt24810A
2432323500Key - chain sprocket24323
2415023761Filter assy - oil control valve24150
2432123001Chain - timing24321
2432123770Chain - timing24321
2415123760Bolt1110PE
1140306126KBolt1140EJ
1140306123Bolt1140EJ
2435023800Constant variable valve timing assy24350
2435023775Constant variable valve timing assy24350
2436123761Bolt - constant variable valve timing24361A
2420023550Camshaft assy - exhaust24200A
2420023770Camshaft assy - exhaust24200A
2420038202Camshaft assy - exhaust24200A
24355237632Oil control valve assy24355
2435523763Oil control valve assy24355
2400023020Bolt24000
2441038001Tensioner - timing belt automatic24410A
2441023770Tensioner - timing belt automatic24410A
2441023800Tensioner - timing belt automatic24410A
2222723660Shim22227A
2222723652Shim22227A
2222723656Shim22227A
2222723668Shim22227A
2222723676Shim22227A
2222723672Shim22227A
2222723648Shim22227A
2222723664Shim22227A
2222723632Shim22227A
2222723612Shim22227A
2222723644Shim22227A
2222723604Shim22227A
2222723600Shim22227A
2222723616Shim22227A
2222723608Shim22227A
2222723620Shim22227A
2222723640Shim22227A
2222723635Shim22227A
2222723628Shim22227A
2222723624Shim22227A
2222238000Retainer - valve spring22222
2222223000Retainer - valve spring22222
2222238000Retainer - valve spring22222
2222623500Tappet22226C
2222321000Lock - valve spring retainer22223
2222321000Lock - valve spring retainer22223
2222321004Lock - valve spring retainer22223
2222321004Lock - valve spring retainer22223
2222322001Lock - valve spring retainer22223
2222423500Seal - valve stem22224B
2222538000Seat - valve spring22225
2222538000Seat - valve spring22225
2222523000Seat - valve spring22225
2222138000Spring - valve22221
2222123501Spring - valve22221
2222138000Spring - valve22221
2221223600Valve - exhaust22212
2221223600Valve - exhaust22212
2221223640Valve - exhaust22212
2221233010Valve - exhaust22212
2221233000Valve - exhaust22212
2221233010Valve - exhaust22212
2221233000Valve - exhaust22212
2221123600Valve - intake22211
2221133000Valve - intake22211
2221133000Valve - intake22211

CAMSHAFT & VALVE

04/05
NumberNameCode
2431223202Belt - valve timing24312
2431238020Belt - valve timing24312
2431238010Belt - valve timing24312
2421123000Sprocket - camshaft24211
2421138010Sprocket - camshaft24211
2481023500Idler assy - timing belt24810A
2414135000Pin - dowel24141
2412123500Pin - dowel24141
2441023500Tensioner assy - valve timing belt24410
2461033020Adjuster assy - rocker arm lash24610
2461033050Adjuster assy - rocker arm lash24610
2461033050Adjuster assy - rocker arm lash24610
2222321004Lock - valve spring retainer22223
2222321004Lock - valve spring retainer22223
2222322001Lock - valve spring retainer22223
2222321000Lock - valve spring retainer22223
2222321000Lock - valve spring retainer22223
2222223000Retainer - valve spring22222
2222238000Retainer - valve spring22222
2222238000Retainer - valve spring22222
2222123501Spring - valve22221
2222138000Spring - valve22221
2222138000Spring - valve22221
2222423500Seal - valve stem22224B
2221223640Valve - exhaust22212
2221223600Valve - exhaust22212
2221223600Valve - exhaust22212
2221233000Valve - exhaust22212
2221233010Valve - exhaust22212
2221233000Valve - exhaust22212
2221233010Valve - exhaust22212
2221133000Valve - intake22211
2221123600Valve - intake22211
2221133000Valve - intake22211

CAMSHAFT & VALVE

05/05
NumberNameCode
2412123500Pin - dowel24141
2414135000Pin - dowel24141
2432323500Key - chain sprocket24323
2443123500Guide - chain lower24431B
2432223760Sprocket - timing chain24322
2432223775Sprocket - timing chain24322
2432123770Chain - timing24321
2432123001Chain - timing24321
2461033020Adjuster assy - rocker arm lash24610
2461033050Adjuster assy - rocker arm lash24610
2461033050Adjuster assy - rocker arm lash24610
2222238000Retainer - valve spring22222
2222223000Retainer - valve spring22222
2222238000Retainer - valve spring22222
2421123000Sprocket - camshaft24211
2421138010Sprocket - camshaft24211
2222322001Lock - valve spring retainer22223
2222321004Lock - valve spring retainer22223
2222321004Lock - valve spring retainer22223
2222321000Lock - valve spring retainer22223
2222321000Lock - valve spring retainer22223
1140412301Bolt1140HU
2222423500Seal - valve stem22224B
2222538000Seat - valve spring22225
2222523000Seat - valve spring22225
2222538000Seat - valve spring22225
2222123501Spring - valve22221
2222138000Spring - valve22221
2222138000Spring - valve22221
2221133000Valve - intake22211
2221123600Valve - intake22211
2221133000Valve - intake22211
2221223640Valve - exhaust22212
2221223600Valve - exhaust22212
2221223600Valve - exhaust22212
2221233000Valve - exhaust22212
2221233000Valve - exhaust22212
2221233010Valve - exhaust22212
2221233010Valve - exhaust22212
2431238010Belt - valve timing24312
2431223202Belt - valve timing24312
2431238020Belt - valve timing24312
2441223000Bolt24412A
2441233000Bolt24412A
2441023770Tensioner - timing belt automatic24410A
2441038001Tensioner - timing belt automatic24410A
2441023800Tensioner - timing belt automatic24410A
